1 Introduction

Less

In the universe, the concentration of helium is about 23%, second only to hydrogen (Qin and Li, 2021). However, helium is a very scarce resource on Earth. Due to its unique physical and chemical properties, helium is widely used in basic science and high-tech frontier research fields, such as national defense, aerospace, and earthquake disaster prediction (Wang et al., 2019; Anderson, 2018; Provornaya et al., 2022; Virk and Walia, 2001). However, China is a “helium-poor” country, and the degree of helium exploration is still very low, with more than 95% of helium dependent on imports (Li et al., 2022b). In order to avoid shortfalls in helium reserves, the most direct and effective way should be to improve our scientific understanding of the accumulation and exploration and development of helium resources in China.

At present, the exploration and development of helium resources is mainly concentrated in petroliferous basins, and many countries in the world have extracted high-quality helium resources from petroliferous reservoirs, such as the Four Corners region of the United States (the confluence of Utah, Colorado, New Mexico, and Arizona), where the helium concentration in natural gas can be as high as 10% (Jia et al., 2022a). There are many sedimentary basins in China, and they are mainly small and medium-sized basins. Although helium has also been detected in most of China’s petroliferous basins, such as the Songliao Basin, Hailar Basin, Bohai Bay Basin, Subei Basin, Sichuan Basin, Ordos Basin, Qaidam Basin, and Tarim Basin (Feng et al., 2001; Ni et al., 2014, 2022; Liu et al., 2022b; Zhao et al., 2023; Wang et al., 2008, 2023; Tao et al., 1997a; Chao et al., 2022; Xu et al., 2017; Zhang et al., 2016) , the actual exploration in most areas has little economic benefit due to the low concentrations and reserves. Helium is mainly deposited in natural gas reservoirs as trace components (Lu, 2022; You et al., 2023; Li et al., 2017). There are three main types of natural gas genesis: inorganic, organic, and mixed genesis (Dai et al., 1992). Among which there are two main sources of inorganic gases, namely the metamorphism of carbonate rocks at high temperatures and underground magmatic activity (Song and Xu, 2005). And there are three sources of organic gase: the biochemical action of anaerobic bacteria in the immature stage; the thermal catalytic degradation during mature and high maturity evolution stages; high-temperature cracking (Song and Xu, 2005). However, unlike other natural gas components, helium has three main sources, namely, atmospheric sources: introduction into the earth’s crust through groundwater recharge; mantle source: from magmatic activity area; crustal source: Gases produced in the earth’s crust by radioactive decay (Mamyrin and Tolstikhin, 2013; White, 2023). Therefore, the accumulation mechanism of helium may be different from that of other natural gas components. First, crust-derived helium from radioactive source is highly likely to be evenly deposited in the rock medium in the form of dispersed aggregation due to the uniform distribution of its source rocks in the lithosphere, while mantle-derived helium is mainly blocked by the thick lithosphere and mainly concentrated in the deep melt of the earth. So it is likely that these helium gases migrate and accumulate from rock media or deep melts to sedimentary basins mainly through volcanic, deep-large fault zones and block boundaries (Zhang et al., 2021). Therefore, regional tectonic movement and lithospheric destruction may play a very important role in helium accumulation. However, there are relatively few studies on this aspect.

As one of the oldest cratons in China, the North China Craton was destructed 200−250 million years ago, bounded by the central orogenic belt, and the eastern massif suffered destruction (Zhu et al., 2011, 2012; Xu et al., 2009; Wu et al., 2019), resulting in two strong earthquakes around the margin of the deep-large fault zone such as the Tan-Lu fault zone in the region, namely the famous Haicheng 7.3 magnitude earthquake and Tangshan 7.8 magnitude earthquake (Cui and Xie, 2001; Feng et al., 2017), while the western massif remained relatively stable (Zhu et al., 2012). In addition, there are three large sedimentary basins in and around the North China Craton area, including the Bohai Bay Basin, the Songliao Basin, which are very important natural gas reserves in China. In addition, researchers have detected lower concentrations of helium in petroliferous reservoirs in these basins, and there are differences in helium concentrations and sources (Feng et al., 2001; Ni et al., 2022; Liu et al., 2022a; Zhao et al., 2023; Wang et al., 2023). Due to the local characteristics of the destruction and the obvious differences in helium concentration and sources in the sedimentary basins in the region, the North China Craton has become an excellent natural experimental site for further exploring the role of regional tectonic movement and lithospheric destruction in helium accumulation. Therefore, this paper analyzes the impact of the destruction of the North China Craton on helium accumulation by analyzing and comparing the geochemistry features of natural gas in the petroliferous reservoirs in the Bohai Bay Basin, Ordos Basin within the North China Craton and Songliao Basin within its periphery (Fig. 1a), combined with the research results of regional petroleum geology, geophysics and seismology, which may provide possible directions or ideas for the exploration and development of helium resources in China.

2 Geological and tectonic background

Less

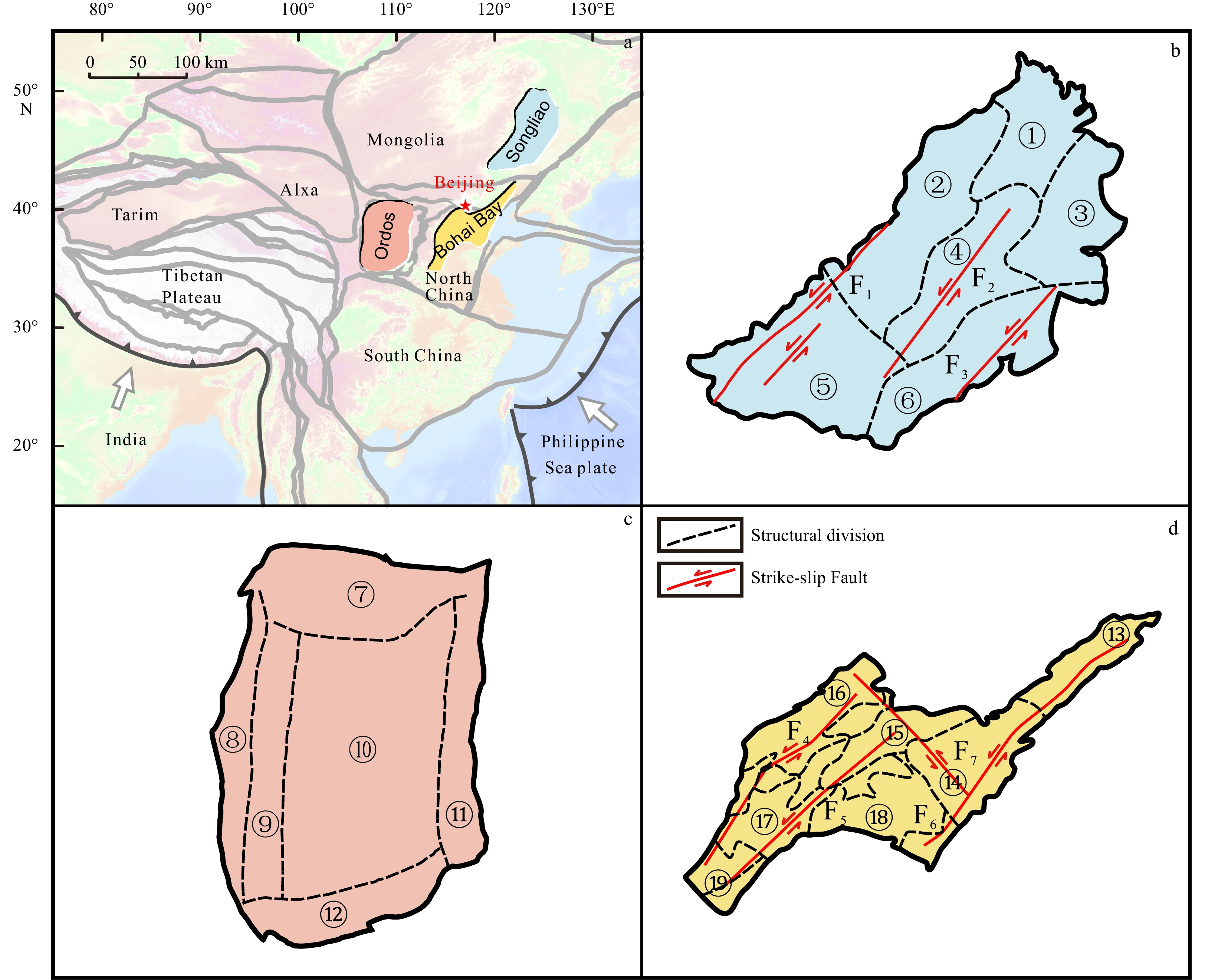

The North China Craton is located at the eastern margin of the Eurasian Plate, at the junction of the Tethys, the Paleo-Asian Ocean, and the Pacific Ocean, bounded by the Solonker-Linxi suture zone to the north and the Siberian plate, the Qilian Mountains to the west, the Qinling-Dabie orogenic belt to the south, and the Pacific subduction zone to the east (Chen, 2010). At present, the Precambrian basement of the North China Craton can be divided into “two belts”, namely the eastern massif, the western massif, and the central orogenic belt (Zhao et al., 2005).

The Songliao Basin is located in northeastern China, west of the Yilan-Yitong fault and east of the Greater Khingan Mountains (Fig. 1b), within the complex tectonic evolution zone of the Sino-Korean and Siberian plates, and is influenced by the Tan-Lu fault, the Central Asian orogenic belt, and the subduction of the Pacific plate (Zhao et al., 2023). The deep-large faults in the basement of the Songliao Basin are extremely developed, mainly NNE-trending faults, which control the formation and development of the basin. The main faults include Nenjiang-Baicheng fault, Sunwu-Shuangliao fault and Harbin-Changchun fault. NW-trending deep-large faults are generally crustal faults or basal faults, with deep cuts and large scales (Ma, 2007). The staggered faults divide the basin into different regions, showing the spatial characteristics of east-west zones and north-south zones (Tian and Han, 1993). According to the basin boundary faults and basement morphology, the Songliao Basin can be divided into six tectonic units: Northern Pitching End, Western Slope, Northeast Uplift, Central Sag Zone, Southwest Uplift and Southeast Uplift (Ma, 2007).

Located in central China (Fig. 1c), the Ordos Basin is a typical craton depression basin in the western part of the North China Craton, with an area of about 250×10³ km² during the Paleozoic Era, and is one of the most structurally stable basins in China (Dai et al., 2017; Zhao et al., 2012). Six sub-structures are developed in the basin, namely the Yishan Slope, the Tianhuan Depression, the Yimeng Uplift, the Weibei Uplift, the Jinxi Flextural Belt and the West Margin Thrusting Belt. The main body of the basin belongs to a large-scale westerly dipping gentle Yishan Slope. Although the Ordos Basin has undergone several tectonic movements, it is dominated by overall uplift, with stable internal structure and undeveloped faults (Ma et al., 2013; Fu et al., 2021). The Paleozoic Basin is conducive to natural gas accumulation, and the gas fields are mainly distributed in the northern part of the basin. The Mesozoic Basin is conducive to oil accumulation, and the oilfields are mainly distributed in the southern part of the basin (Dai et al., 2017; Fu et al., 2019).

The Bohai Bay Basin, located in eastern China (Fig. 1d), it is a typical inland rift basin within the eastern Craton massif in North China and one of the most important petroliferous basins in China. The basin covers an area of about 200 × 10³ km², and is bounded by the Tancheng-Lujiang fault zone in the east, the eastern foothill of Taihang Mountain fault zone in the west, the Yanshan orogenic belt in the north, and the Luxi massif in the south (Li et al., 2010). The tectonic evolution of the basin has undergone three large-scale tectonic movements: the Indosinian, Yanshan and Xishan periods. The tectonic movements of the Indosinian and Yanshan periods overlapped to form the basement of the basin, and the Indosinian tectonic movements were distributed in the central and northern parts of the basin in an east-west direction. The Yanshan tectonic movement was NEE, mainly affecting the western and eastern parts of the basin. Since the Himalayan orogeny, the differential movement of oceanic plates has led to the upward arching of the lower mantle in the Bohai bay area, which flows along the NW-SE direction, which in turn drives the NW-SE extension of the upper crust. This extensional effect controls the evolution characteristics of the Bohai Bay Basin, which mainly forms the Paleogene faulted lake basin (Liu et al., 2022a). The tectonic movement is very active, the faults are well developed, and there are four strike-slip fault zones in the basin, including the Tan-Lu fault zone, the Zhangjiakou-Penglai fault zone, the Huanghua-Dongpu fault zone and the Baxian-Tangyin fault zone. There are four uplifts in the basin, namely the Xingheng, Cangxian, Chengning, and Neihuang Uplifts, and seven depressions, namely the Liaohe, Bozhong, Huanghua, Jizhong, Linqing, Dongpu, and Jiyang depressions, around which petroliferous fields are widely distributed (Teng et al., 2014; Dai et al., 2017).

3 Geochemical characteristics of natural gas

Less

The average value of natural gas geochemical data in the Bohai Bay Basin, Ordos Basin and Songliao Basin is shown in Table 1 (Dai et al., 1995, 2014, 2017; Xu et al., 1995a, 1995b; Tao et al., 1997b; Liu et al., 2001, 2002, 2007, 2011, 2016; Zheng et al., 2001; Zhang et al., 2004; Wang et al., 2006a; Ni et al., 2009; Yang et al., 2014; Dai, 2016), and the detailed data are shown in Table S1, and the chemical components of natural gas in the three petroliferous basins mainly include CH₄, CO₂ and N₂, and there is a certain amount of He. In the Bohai Bay Basin, the CH₄ concentration was 0.14%−98.79%, and the average value was 49.81%. The CO₂ concentration was 0.02%−98.61%, and the average value was 38.09%. The concentration of N₂ was 0.11%−18.4%, and the average value was 1.66%. The concentration of He was 0.001 1%−0.1%, and the average value was 0.180%. The ³He/⁴He value was 0.03−3.90 Ra, and the average value was 1.64Ra. The concentration of CH₄ in Ordos Basin ranges from 29.58% to 97.56%, with an average of 87.41%. The concentration of CO₂ ranged from 0.02% to 8.87%, with an average of 1.77%. N₂ concentration ranged from 0.08% to 67.66%, with an average of 3.86%. He concentration ranged from 0.01% to 0.09%, with an average value of 0.035%. ³He/⁴He ranged from 0.02 Ra to 0.097 Ra, with an average value of 0.033 Ra. The concentration of CH₄ in Songliao Basin ranges from 0.52% to 97.8%, with an average of 77.80%. The concentration of CO₂ ranged from 0.02% to 99.48%, with an average of 18.56%. N₂ concentration ranged from 0.12% to 29.5%, with an average of 3.04%. He concentration ranged from 0.002% to 0.45%, with an average of 0.047%. ³He/⁴He ranges from 0.088 Ra to 5.84 Ra, with an average value of 1.40 Ra. The Pearson correlation coefficients between He concentration and CO₂ concentration were 0.76, −0.15 and −0.06, and the Pearson correlation coefficients between He concentration and CH₄ concentration were −0.65, 0.07 and 0.02, respectively. The Pearson correlation coefficients between He concentration and N₂ concentration were 0.33, 0.02 and 0.29, and the Pearson correlation coefficients between He concentration and ³He/⁴He were 0.45, 0.30 and −0.43 Ra, respectively. He concentration in Bohai Bay Basin has a positive correlation with CO₂ and N₂ concentration, but a weak negative correlation with CH₄ concentration. However, there is no significant correlation between He concentration and other component concentrations in the Ordos Basin and Songliao Basin (Fig. 2).

4 Discussion

Less

4.1 Source of CH₄ in three petroliferous basins

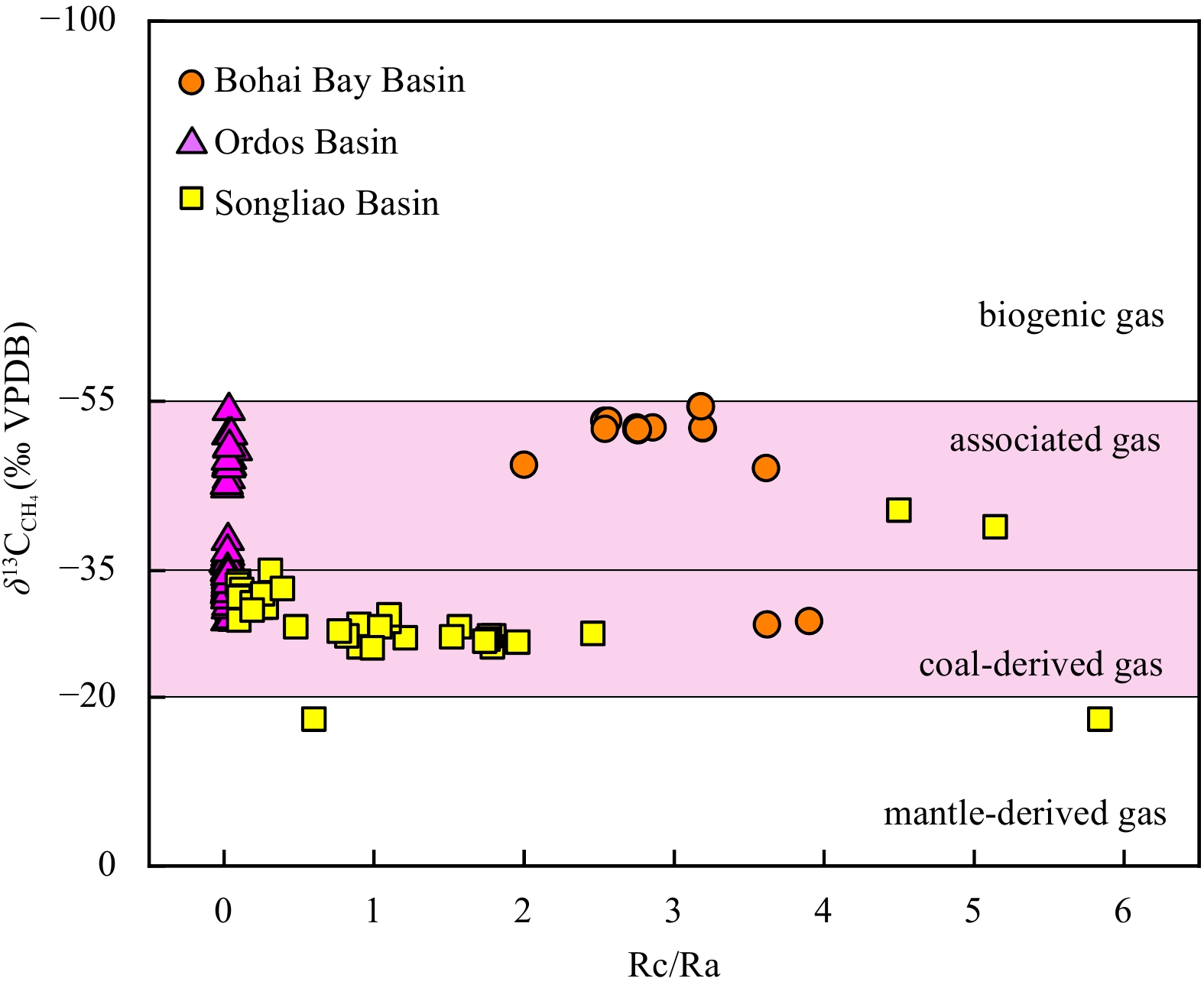

It can be observed from Fig. 2 and Fig. 3 that there is no significant difference in CH₄ concentration in Bohai Bay, Ordos and Songliao basins as a whole, ranging from 0.14% to 98.79%, 29.58% to 97.56% and 0.52% to 97.8%, respectively, and CH₄ concentration in most petroliferous fields is above 80% (Table 1). In addition, the CH₄ sources of the three petroliferous Basins are not significantly different (Figs 3 and 4), and the δ ¹³C

$_{\mathrm{CH}_4} $

(‰) values range from −54.4‰ to −28.6‰, −59.7‰ to −24.1‰, and −42.1‰ to −17.4‰, respectively (Table 1). In general, the δ ¹³C

$_{\mathrm{CH}_4} $

of different genetic types of natural gas CH₄ has obvious differences: The δC₁ value of biogenic gas is −100‰ − −55‰, the δC₁ value of associated gas is −55‰ − −35‰, the δC₁ value of pyrolysis gas is >−35‰, the δC₁ value of coal-derived gas is −35‰ − −22‰, and the δC₁ value of deep mantle source methane gas is about −20‰ (Cao and Ni, 2005). It can be seen from Fig. 4 that CH₄ in the three petroliferous basins mainly comes from coal-derived gas and associated gas, and there is almost no contribution from mantle-derived and biological source of CH₄.

The source rocks of the three petroliferous basins are all coal rocks, the source rocks of Bohai Bay and Ordos basins are mainly carboniferous and Permian coal measures, while the source rocks of Songliao Basin are mainly Cretaceous Shahezi Formation and Jurassic coal measures (Dai et al., 2017; Zhang and Zhao, 2005; Zheng and Hu, 2006; Xu et al., 2012; Tang, 1992). The reservoirs in Bohai Bay Basin are mainly in the upper and lower Paleozoic Shihezi Formation, which are dominated by arkose, lithic arkose or quartz-arkose with low permeability, while bauxite and aluminaceous mudstone are important cap beds (Zhang and Zhao, 2005; Zheng and Hu, 2006; Xu et al., 2012). The reservoirs in the Ordos Basin are mainly upper Paleozoic Carboniferous surface shallow marine sandstone and limestone, mainly clastic rock and carbonate rock, with relatively low permeability, and the cap layer is composed of mudstone and silty mudstone (Zhang and Zhao, 2005; Zheng and Hu, 2006). The reservoir in Songliao Basin mainly includes the sandstone segment and bedrock weathering crust of Quantou Formation and its overlying strata, and the cover layer is mainly argillaceous rock (Zhao et al., 2023; Zhong, 2017). In conclusion, the similar source rocks and favorable reservoir-cap conditions in Bohai Bay, Ordos and Songliao basins may be one of the main reasons that the concentration and source of CH₄ in the three petroliferous basins are not significantly different on the whole.

4.2 Source of He in three petroliferous basins

4.2.1 The controlling factors of ⁴He in natural gas reservoir of three petroliferous basins

Among the sources of helium, the contribution of atmospheric He to He in petroliferous fields is basically negligible, while⁴He produced by the radioactive decay of U-rich and Th-rich helium source rocks in the crustal strata and mantle-derived ³He from deep mantle magmatic activity are usually the main helium sources of most helium reservoirs (Tao et al., 1997b; Mamyrin and Tolstikhin, 2013; Ballentine and Burnard, 2002). The relationship between ³He/⁴He and ⁴He/²⁰Ne in Fig. 5 shows the three-terminal distribution of He in natural gas in the study area. It can be seen that He in natural gas in Ordos Basin is crust source, while in Songliao Basin and Ordos Basin, in addition to crust source radioactive source, there are 1%−50% mantle source recharge of He. Figure 5 shows the three-terminal element distribution of natural gas He in the study area through the relationship between ³He/⁴He and ⁴He/²⁰Ne. It can be seen that He in natural gas in the Ordos Basin is a crust source, while He in natural gas in the Songliao Basin and the Ordos Basin has 1%−50% mantle source supply in addition to crust source radioactivity. However, it can be seen from Table 1 that the measured concentrations of natural gas samples in the three basins do not show significant differences except for individual differences. Therefore, it is necessary to discuss the specific causes of crust-derived ⁴He and mantle-derived ³He respectively, to have a general understanding of the causes of He resources in the study area.

To study the crust-derived ⁴He, we must first understand the endowment of radioactive U and Th elements in regional rocks. It is generally believed that the content of U and Th in volcanic rocks and granite is the highest, followed by metamorphic rocks, sedimentary rocks are the lowest, and the igneous rocks are characterized by acidic rock > neutral rock > basic rock > ultrabasic rock (Meng et al., 2021). However, the content of U and Th in ordinary shale in sedimentary rocks is equal to or even higher than that in granite, and slightly lower in sandstone (Fig. 6) (Brown, 2010). Organic-rich shales are formed in hydrostatic deposition in a strong reduction environment, and a lot of organic matter is preserved in the deposition process. After U⁶⁺ is reduced to U⁴⁺ in the reducing environment, it is adsorbed on organic matter and finally reacts with SiO₂ in water to produce uranium minerals (Chen and Guo, 2007). However, although organic-rich shales can not only produce more ⁴He, they are also good source rocks in gas reservoirs. Danabalan (2017) calculated that the amount of methane gas produced by organic shale rocks with a potential hydrocarbon generation of 2 mg HC/g rock after maturity was 3000 times that of the total amount of helium produced in 1 billion years. As a result, the helium gas produced by the source rock is greatly diluted by methane and cannot be enriched. Therefore, basement granites rich in U and Th but poor in organic matter are often considered as effective helium source rocks (Li et al., 2022a). Previous studies have shown that since the late Mesozoic in Bohai Bay Basin, the lithosphere has been strongly thinning and accompanied by strong magmatic activity, resulting in the development of a large number of granites, among which late Mesozoic granites are mainly distributed in the eastern part of the basin in the Early Cretaceous, while Cenozoic granites are distributed in all depressions (Zhao and Li, 2016; Wan et al., 2017). The granites in Ordos Basin are basically distributed in the northern part of the basin, and the high He concentration of Dongsheng gas field in Hangjinqi area has been attributed to the radioactive decay of basement Archeoeo-Proterozoic metamorphic-granite series (He et al., 2022). In the Songliao Basin, a series of granites and volcanic rocks are formed along the peripheral orogenic belts of the Greater Khingan Mountains, Lesser Khingan Mountains and Zhangguangcai Mountains, which are distributed zonally along the periphery of the basin. In the basin, large areas of volcanic rocks and granites are exposed along the deep-large faults (Zhao et al., 2023). According to the calculation of Zhao et al. (2023) the shallow granites in the southern and northern parts of Songliao Basin have better helium generating capacity.

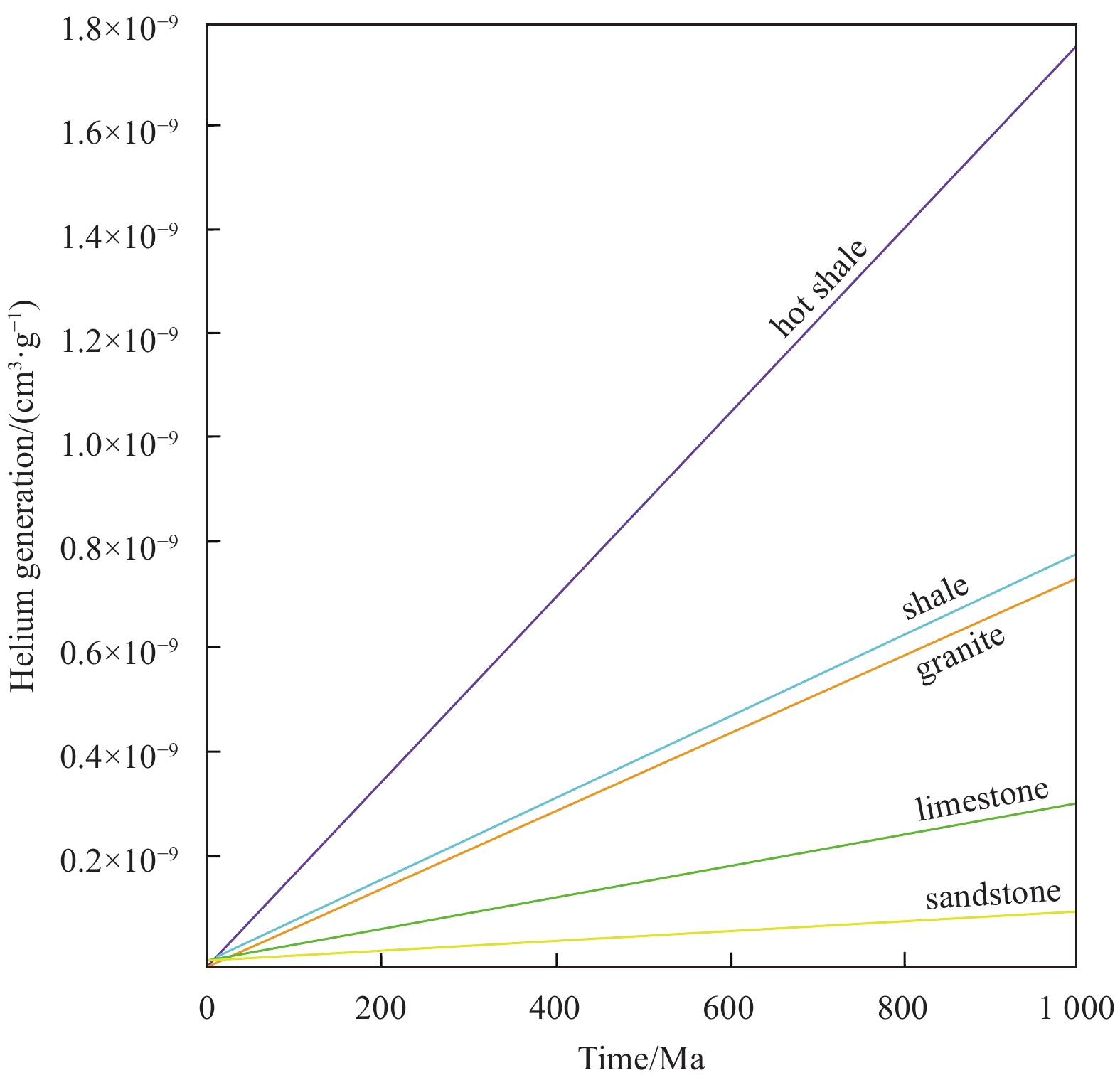

According to the absolute geologic time formula, ²³⁵U decay formula and ²³²Th decay formula, the amount of helium produced by ²³⁵U and ²³²Th can be calculated as follows (Chao et al., 2022):

$ \begin{array}{c}{V}_{{\mathrm{U}}}=\dfrac{156.88}{235}({{\mathrm{e}}}^{\lambda t}-1)\cdot v\cdot \rho \cdot x,\\ {V}_{{\mathrm{Th}}}=\dfrac{134.47}{232}({{\mathrm{e}}}^{\lambda t}-1)\cdot v\cdot \rho \cdot y,\end{array} $

where λ in ²³⁵U decay formula and ²³²Th decay formula are 9.848 5 × 10⁻¹⁰ (a⁻¹) and 4.947 5×10⁻¹⁰ (a⁻¹) respectively. t is the absolute age of helium source rock formation (a); v is the volume of helium source rock (km³); ρ is the density of helium source rock (g/cm³). x is the content of uranium in the helium source rock (10⁻⁶); y is the content of thorium in the helium source rock (10⁻⁶).

Since the basement granite is the main helium source rock, based on the distribution characteristics of the basement rocks of the above formula and the Bohai Bay Basin, Ordos Basin and Songliao Basin (Table 2), the helium production per cubic meter of the basement of the basin can be estimated. The calculation results show that the ⁴He production in the basement of Bohai Bay, Ordos and Songliao basins is similar since formation, which is 0.055, 0.062 and 0.071 m³, respectively Table 2. In addition, there is little difference in the area of Bohai Bay Basin, Ordos Basin and Songliao Basin, which are 2.0 × 10⁵ km², 2.5 × 10⁵ km² and 2.6 × 10⁵ km² respectively. Therefore, if He in the three basins is of radiological source from crust, the He concentration in the gas reservoirs should be similar. The measured data support this view, indicating that the generation of ⁴He is the main factor controlling the helium resource characteristics in the study area. However, this still cannot explain the significant difference in Rc/Ra values between Songliao Basin and Bohai Bay Basin and Ordos, so it is still necessary to discuss the ³He derived from the mantle.

4.2.2 The controlling factors of ³He in natural gas reservoir of three petroliferous Basin

Previous studies generally believe that the development of deep-large faults and strong regional tectonic activity are the necessary conditions for mantle-derived ³He migration and enrichment (Feng et al., 2001; Ni et al., 2022; Liu et al., 2022b; Zhao et al., 2023). Previous geophysical studies have found that there are obvious low-speed abnormal channels under the Tan-Lu fault zone in the eastern part of the North China Craton, indicating that there may be upthrust of deep fluids along the fault zone (Guo et al., 2014; Jia et al., 2022b). In addition, in recent years, there have been many strong earthquakes along the Tan-Lu fault zone, such as the 7.3 earthquake in Haicheng in 1973 and the 7.8 earthquake in Tangshan in 1976. However, most petroliferous fields in Songliao Basin and Bohai Bay Basin are not located above the Tan-Lu fault zone (Fig. 3). Therefore, the upwelling of ³He from the mantle along the Tan-Lu fault zone should not be the main source of ³He supply for petroliferous reservoirs in the Songliao Basin and Bohai Bay Basin, which is also contrary to the absence of mantle source CH₄ detected in the reservoirs of the two basins (Fig. 4), so there must be another source of ³He recharge to the basin reservoirs.

In addition, previous studies on regional magmatic rocks have revealed that the distribution of helium in the crust in areas without deep major faults and active tectonic movements may be close to the characteristics of mantle-derived materials, especially near basic rocks (such as basalt and diabase) that may contain mantle-derived material intrusion, and ³He may be enriched (Zhang et al., 2018). Since Cenozoic, the lithosphere of the North China Craton has undergone obvious transformation and destruction due to the northeast extrusion of the Tibetan Plateau and westward subduction of the Pacific Plate. Rock and geochemical studies have revealed that the North China Craton has lost its lithospheric roots at a depth of 100 km since about 250 million years ago, and asthenosphere upsurges, accompanied by massive magma intrusion and strong seismic activity (Zhu et al., 2012). Therefore, by combining the distribution of regional volcanic rocks with the spatial distribution of Rc/Ra in Figure 7, it is found that Cenozoic volcanic rocks are developed to a large extent in and around Songliao Basin and Bohai Bay Basin, indicating that the Cenozoic magmatic activity in the region spatially controls the mixing of mantle-derived materials. In the eastern part of North China, especially in the Kuandian and Wudalianchi areas of the Songliao Basin, a large number of pyroxene megacrysts and mantle peridotite inclusions are exposed. Among them, Wu et al. (2003) found that the pyroxene megacrysts in the Kuandian area have the highest ³He/⁴He value, which is nearly 10 times that of the atmosphere ( 9.98 Ra ), which is similar to the results determined by Li et al. (2002), reflecting the characteristics of the Mid-Ocean Ridge Basalt ( MORB ) source area. The He isotopic composition of lherzolite xenoliths ( 2.59−4.53 Ra ) is much lower than that of pyroxene megacrysts, but it also shows higher mantle source characteristics. At the same time, some researchers believe that in most cases, the isotopic composition of mantle xenoliths essentially reflects the isotopic composition of the source area of the host rock basalt (Dunai and Baur, 1995; Xu and Liu, 1997), indicating that the existence of basalt in eastern North China and its pyroxene megacrysts and mantle peridotite xenoliths may lead to the local enrichment of ³He. Figure 3 shows that seismic activity corresponds to the space of high Rc/Ra values. It shows that large-scale seismic activity may accelerate the release of mantle-derived ³He carried by regional basic magmatic rocks and their inclusions, which should be the reason for the high mantle-derived mixing of He in Songliao Basin and Bohai Bay Basin. This also indicates that the tectonic belt with dense Cenozoic volcanic rocks and strong earthquakes may be a potential area for He accumulation. At the same time, due to the destruction of the craton, extensional bedrock faults are developed in the basin, which should be an important gas transmission fault for regional basic magmatic rocks (Wang, 2005).

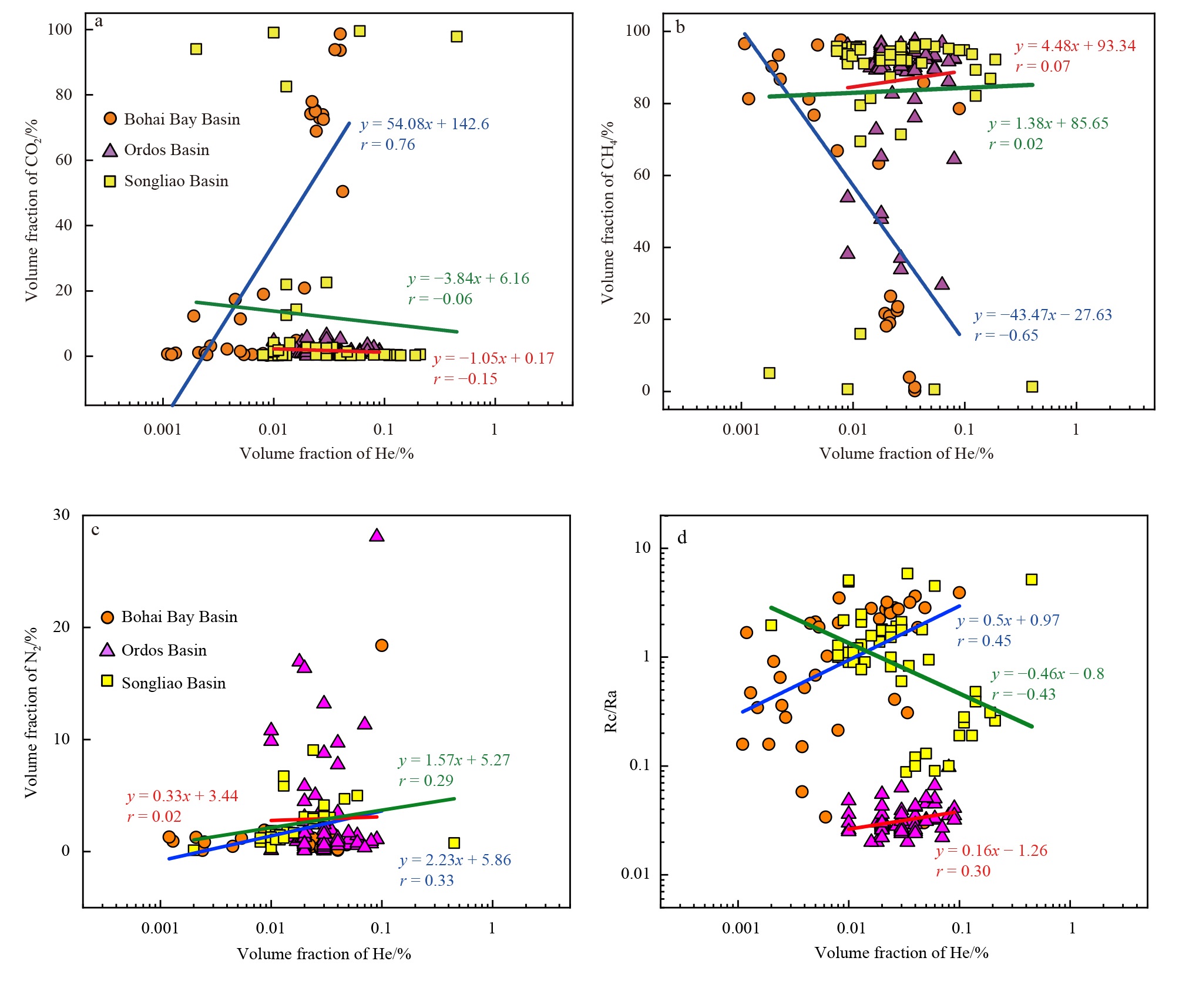

Moreover, compared with the Ordos Basin, higher CO₂ concentrations were also detected in the Bohai Bay Basin and the Songliao Basin (Fig. 3). Among them, the average CO₂ concentration in the Bohai Bay Basin was 38.14%, and the average CO₂ concentration in the Songliao Basin was 18.56%, which was much higher than the average CO₂ concentration in the Ordos Basin 1.77% (Table 1). In addition, the δ ¹³C

$_{\mathrm{CO}_2} $

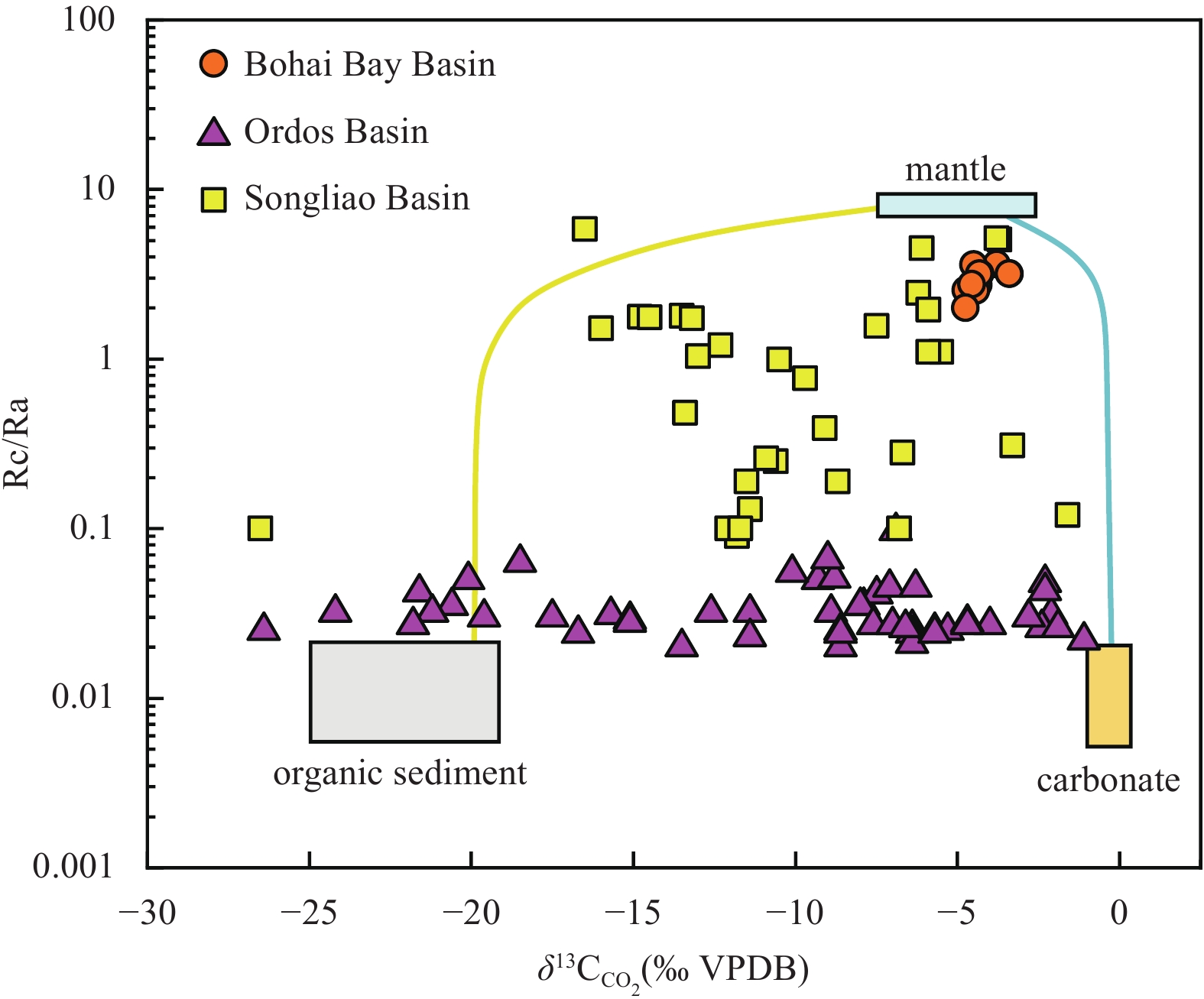

-R/Ra relationship shows that (Fig. 8), the CO₂ in the Ordos Basin is mainly organic and carbonatite source, while the CO₂ in the Bohai Bay Basin and the Songliao Basin in addition to organic and carbonatite source, there is a certain amount of mantle-derived CO₂ mixed, combined with the good positive correlation between He and CO₂ in the Bohai Bay Basin in Fig. 2, indicating that these mantle-derived CO₂ may also be the same as the mantle-derived ³He, from the regional Cenozoic magma intrusion. Wang et al. (2004) studied the mantle-derived inclusions such as pyroxene and olidine in the volcanic rocks of Jiyang Depression and found that the concentration of the mantle-derived inclusions in basalt is mainly CO₂, accounting for 60% to 70%, and the concentration of the liquid phase components is mostly CO₂, except water vapor (H₂O). It shows that the magma from mantle source carries a large amount of gaseous volatiles, mainly CO₂, during its formation, which is also the main gas source of CO₂ in the study area, which further supports our view.

If the ³He recharge of the Songliao Basin and Bohai Bay Basin comes from regional volcanic rocks, then comparing the ³He concentrations of the two with those of the Ordos Basin (Table 3), which can obtain the ³He recharge amount of the regional volcanic rocks to the helium reservoir. Subtracting them indicates that the natural gas supply of the Songliao Basin and Bohai Bay Basin from the ³He recharge of the Cenozoic volcanic rocks should be in the order of 10⁻⁸ to 10⁻⁷, this also indicates that the supply of ³He has a relatively small impact on the overall He abundance in the basin.

5 Conclusions

Less

(1) According to the absolute geologic time formula, ²³⁵U decay formula and²³²Th decay formula, the ⁴He production per cubic meter of Archean and Paleoproterozoic metamorphic crystalline basement in Bohai Bay Basin, Ordos Basin and Songliao Basin is similar to the measured value. It is concluded that the ⁴He derived from crust-source radioactivity controls the main source of He storage in the three basins.

(2) The characteristics of source rocks, reservoirs and caps in Bohai Bay Basin, Ordos Basin and Songliao Basin are basically similar, which may be one of the important reasons for the consistency of CH₄ concentration and source characteristics in these three basins. Since there is almost no mantle-derived CH₄, it is suggested that the current magmatic activity carrying mantle-derived ³He to the gas reservoir along the deep-large fault migration is not the main reason for the high mixing of mantle-derived ³He in Songliao Basin and Bohai Bay Basin.

(3) In the background of the destruction of the North China Craton, the Cenozoic magma carried mantle-derived ³He upwelling and intruded into the sedimentary crust, and the frequent strong seismic activities in and around the basin may further promote the release of mantle-derived ³He from the basic volcanic rocks, which is the possible reason for the difference between the Songliao Basin and the Bohai Bay Basin and the Ordos. It is also indicates that the tectonic belt with dense Cenozoic volcanic rocks and strong earthquakes history may be the potential area for He accumulation.

Acknowledgements

Less

Thanks to Le Hu, Weiye Shao, and Zhikeng Huang from the Institute of Earthquake Forecasting, China Earthquake Administration for their valuable suggestions on the writing of this article.

Funding

Less

The Natural gas formation rules and key technologies for exploration in the western exploration area KT2022A02; the Science and Technology Fundamental Resources Investigation Program under contract No. 2023FY101500; the National Key Research and Development Program of China under contract No. 2023YFC3012005; the Central Public-interest Scientific Institution Basal Research, under contract No. CEAIEF20230505.

References

Less

Anderson S T. 2018. Economics, helium, and the U. S. Federal Helium reserve: summary and outlook. Natural Resources Research, 27(4): 455–477, doi: 10.1007/s11053-017-9359-y

Ballentine C J, Burnard P G. 2002. Production, release and transport of noble gases in the continental crust. Reviews in Mineralogy and Geochemistry, 47(1): 481–538, doi: 10.2138/rmg.2002.47.12

Brown A A. 2010. Ps formation of high helium gases: a guide for explorationists. In: AAPG Convention. New Orleans: AAPG, 80115

Cao Xiaohong, Ni Zhiying. 2005. Isotope characteristic and forming cause of nature gas in the Mesozoic of Ordos Basin. Natural Gas Geoscience (in Chinese), 16(5): 617–621

Chao Haide, Chen Jianzhou, Wang Guocang, et al. 2022. Discovery and enrichment mechanism of water soluble helium resources in Qaidam Basin. Northwestern Geology (in Chinese), 55(4): 61–73

Chen Ling. 2010. Concordant structural variations from the surface to the base of the upper mantle in the North China craton and its tectonic implications. Lithos, 120(1-2): 96–115, doi: 10.1016/j.lithos.2009.12.007

Chen Zuyin, Guo Qingyin. 2007. Mechanism of U-reduction and concentration by sulphides at sandstone type uranium deposits. Uranium Geology (in Chinese), 23(6): 321–327,334

Cui Xiaofeng, Xie Furen. 2001. The Space-time variations of present tectonic stress field in North China before and after 1976 Tangshan earthquake. Earthquake Research in China (in Chinese), 17(3): 280–288

Dai Chunsen, Dai Jinxing, Song Yan, et al. 1995. Mantle helium of natural gases from Huanghua depression in Bohai Gulf Basin. Journal of Nanjing University (Natural Sciences Edition) (in Chinese), 31(2): 272–280

Dai Jinxing, Ni Yunyan, Hu Guoyi, et al. 2014. Stable carbon and hydrogen isotopes of gases from the large tight gas fields in China. Science China Earth Sciences, 57(1): 88–103, doi: 10.1007/s11430-013-4701-7

Dai Jinxing, Ni Yunyan, Qin Shengfei, et al. 2017. Geochemical characteristics of He and CO₂ from the Ordos (cratonic) and Bohaibay (rift) basins in China. Chemical Geology, 469: 192–213, doi: 10.1016/j.chemgeo.2017.02.011

Dai Jinxing, Pei Xigu, Qi Houfa. 1992. Natural Gas Geology in China (Vol. 1) (in Chinese). Beijing: Petroleum Industry Press

Dai Jinxing. 2016. Giant Coal-Derived Gas Fields and Their Gas Sources in China. Beijing: Science Press

Danabalan D. 2017. Helium: exploration methodology for a strategic resource [dissertation]. Durham: Durham University

Dunai T J, Baur H. 1995. Helium, neon, and argon systematics of the European subcontinental mantle: implications for its geochemical evolution. Geochimica et Cosmochimica Acta, 59(13): 2767–2783, doi: 10.1016/0016-7037(95)00172-V

Feng Chengjun, Zhang Peng, Meng Jing, et al. 2017. In situ stress measurement at deep boreholes along the Tanlu fault zone and its seismological and geological significance. Progress in Geophysics (in Chinese), 32(3): 946–967

Feng Zihui, Huo Qiuli, Wang Xue. 2001. A study of helium reservoir formation characteristic in the North part of Songliao Basin. Natural Gas Industry (in Chinese), 21(5): 27–30

Fu Jinhua, Fan Liyong, Liu Xinshe, et al. 2019. New progresses, prospects and countermeasures of natural gas exploration in the Ordos Basin. China Petroleum Exploration (in Chinese), 24(4): 418–430

Fu Suotang, Fu Jinhua, Xi Shengli, et al. 2021. Geological characteristics of Ordovician marine shale gas in the Ordos Basin and its prospects. China Petroleum Exploration (in Chinese), 26(2): 33–44

Guo Huili, Xu Peifen, Zhang Fuqin. 2014. P wave velocity structure of the North China craton and west Pacific active continental margin: exploration for dynamic processes of lithospheric thinning. Chinese Journal of Geophysics (in Chinese), 57(7): 2352–2361

He Faqi, Wang Fubin, Wang Jie, et al. 2022. Helium distribution of Dongsheng gas field in Ordos Basin and discovery of a super large helium-rich gas field. Petroleum Geology & Experiment (in Chinese), 44(1): 1–10

Hoefs J, Frey M. 1976. The isotopic composition of carbonaceous matter in a metamorphic profile from the Swiss Alps. Geochimica et Cosmochimica Acta, 40(8): 945–951, doi: 10.1016/0016-7037(76)90143-5

Jia Lingxiao, Ma Bing, Wang Huan, et al. 2022a. Progress and utilization status of global helium exploration and development. Geology in China (in Chinese), 49(5): 1427–1437

Jia Ruo, Zhao Dapeng, Wu Jianping. 2022b. P-wave anisotropic tomography of NE China: insight into lithospheric deformation, mantle dynamics and intraplate volcanism. Geophysical Journal International, 229(2): 1372–1391, doi: 10.1093/gji/ggab516

Li Jiyuan, Li Yuhong, Hu Shaohua, et al. 2022a. “Shanxi-type” helium accumulation model and its essentiality. Journal of Xi’an University of Science and Technology (in Chinese), 42(3): 529–536

Li Sanzhong, Suo Yanhui, Dai Liming, et al. 2010. Development of the Bohai Bay Basin and destruction of the North China craton. Earth Science Frontiers (in Chinese), 17(4): 64–89

Li Yanhe, Li Jincheng, Song Hebin, et al. 2002. Helium isotope studies of the mantle xenoliths and megacrysts from the Cenozoic basalts in the eastern China. Science in China Series D:Earth Sciences, 45(8): 174–183

Li Yuhong, Li Jiyuan, Zhou Junlin, et al. 2022b. Research progress and new views on evaluation of helium resources. Journal of Earth Sciences and Environment (in Chinese), 44(3): 363–373

Li Yuhong, Zhang Wen, Wang Li, et al. 2017. Henry’s Law and accumulation of crust-derived helium: a case from Weihe Basin, China. Natural Gas Geoscience (in Chinese), 28(4): 495–501

Liu Haitao, Yu Haitao, Sun Yu, et al. 2022a. Formation and differential enrichment of oil and gas on multiple types of slopes in rifted basins: taking the Bohai Bay Basin as an example, China. Acta Petrologica Sinica (in Chinese), 38(9): 2697–2708

Liu Quanyou, Dai Jinxing, Jin Zhijun, et al. 2016. Abnormal carbon and hydrogen isotopes of alkane gases from the Qingshen gas field, Songliao Basin, China, suggesting abiogenic alkanes? Journal of Asian Earth Sciences, 115: 285–297

Liu Quanyou, Liu Wenhui, Xu Yongchang, et al. 2007. Geochemistry of natural gas and crude computation of gas-generated contribution for various source rocks in Sulige gas field, Ordos Basin. Natural Gas Geoscience (in Chinese), 18(5): 697–702

Liu Quanyou, Wu Xiaoqi, Jia Huichong, et al. 2022b. Geochemical characteristics of helium in natural gas from the Daniudi Gas field, Ordos Basin, central China. Frontiers in Earth Science, 10: 823308, doi: 10.3389/feart.2022.823308

Liu Wenhui, Sun Mingliang, Xu Yongchang. 2001. Isotope characteristics and gas source tracing of rare gas in Ordos Basin. Chinese Science Bulletin (in Chinese), 46(22): 1902–1905, doi: 10.1360/csb2001-46-22-1902

Liu Wenhui, Sun Mingliang, Xu Yongchang. 2002. An approach to noble-gas isotopic compositions in natural gases and gas-source tracing in the Ordos Basin, China. Chinese Science Bulletin, 47(6): 490–494

Liu Wenhui, Xu Yongchang, Tao Minxing, et al. 2011. Helium and argon isotope geochemistry of natural gases in China’s petroliferous basins. Chinese Journal of Geochemistry, 30(1): 19–32, doi: 10.1007/s11631-011-0483-9

Lu Xuemei. 2022. Research progress of helium accumulation mechanism. Oil & Gas Geology, 43(2): 43

Ma Xiaojuan. 2007. Petroleum geological characteristics and exploration direction of Xindeng block in Songliao Basin, SINOPEC (in Chinese)[dissertation]. Changsha: Central South University

Ma Zhanrong, Bai Haifeng, Liu Baoxian, et al. 2013. Lithofacies palaeogeography of the Middle-Late Ordovician Kelimoli and Wulalike ages in western Ordos area. Journal of Paleogeography (in Chinese), 15(6): 751–764

Mamyrin B A, Tolstikhin I N. 2013. Helium Isotopes in Nature. Amsterdam: Elsevier

Meng Bingkun, Zhou Shixin, Li Jing, et al. 2021. Helium potential evaluation of different types of rocks in the upper Yangtze region and theoretical calculation of helium recovery conditions for shale in upper Yangtze region. Journal of Mineralogy and Petrology, 41(4): 102–113

Meng Fanchao, Tian Yulu, Kerr A C, et al. 2022. Neoarchean reworking of mesoarchean and paleoarchean crust (3.4~3.0 Ga) within the North China craton: constraints from zircon U-Pb geochronology and Lu-Hf isotopes from the basement of the Bohai Bay Basin. Precambrian Research, 369: 106497, doi: 10.1016/j.precamres.2021.106497

Ni Chunhua, Wu Xiaoqi, Liu Quanyou, et al. 2022. Helium signatures of natural gas from the Dongpu Sag, Bohai Bay Basin, eastern China. Frontiers in Earth Science, 10: 862677, doi: 10.3389/feart.2022.862677

Ni Yunyan, Dai Jinxing, Tao Shizhen, et al. 2014. Helium signatures of gases from the Sichuan Basin, China. Organic Geochemistry, 74: 33–43, doi: 10.1016/j.orggeochem.2014.03.007

Ni Yunyan, Dai Jinxing, Zhou Qinhua, et al. 2009. Geochemical characteristics of abiogenic gas and its percentage in Xujiaweizi fault depression, Songliao Basin, NE China. Petroleum Exploration and Development, 36(1): 35–45, doi: 10.1016/S1876-3804(09)60109-9

Provornaya I V, Filimonova I V, Eder L V, et al. 2022. Prospects for the global helium industry development. Energy Reports, 8(S3): 110–115

Qin Shengfei, Li Jiyuan. 2021. Current situation and development trend of helium supply and demand in the world. Petroleum Knowledge (in Chinese), (5): 44–45

Song Yan, Xu Yongchang. 2005. Origin and identification of natural gases. Petroleum Exploration and Development (in Chinese), 32(4): 24–29

Tang Xianming. 1992. A primary discussion on the types of natural gas traps in Eerduosi Basin. Natural Gas Industry (in Chinese), 12(4): 14–21

Tao Mingxin, Shen Ping, Xu Yongchang, et al. 1997a. Characteristics and formation conditions of mantle-derived helium gas reservoirs in Subei Basin. Natural Gas Geoscience (in Chinese), 8(3): 1–8

Tao Mingxin, Xu Yongchang, Shen Ping, et al. 1997b. Tectonic and geochemical characteristics and reserved conditions of a mantle source gas accumulation zone in eastern China. Science in China Series D:Earth Sciences, 40(1): 73–80, doi: 10.1007/BF02878583

Teng Changyu, Zou Huayao, Hao Fang. 2014. Control of differential tectonic evolution on petroleum occurrence in Bohai Bay Basin. Science China Earth Sciences, 57(5): 1117–1128, doi: 10.1007/s11430-013-4771-6

Tian Zaiyi, Han Ping. 1993. Analysis of the structures of Mesozoic and Cenozoic oil-gas bearing basins in northeastern China and the mechanism of their production. Petroleum Exploration and Development (in Chinese), 20(4): 1–8

Virk H S, Walia V. 2001. Helium/radon precursory signals of Chamoli earthquake, India. Radiation measurements, 34(1−6): 379–384, doi: 10.1016/S1350-4487(01)00190-1

Wan Yusheng, Dong Chunyan, Ren Peng, et al. 2017. Spatial and temporal distribution, compositional characteristics and formation and evolution of Archean TTG rocks in the North China Craton: a synthesis. Acta Petrologica Sinica (in Chinese), 33(5): 1405–1419

Wang Jie, Chen Jianfa, Wang Tieguan, et al. 2006a. Gas source rocks and gas genetic type in Shuangcheng-Taipingchuan area of Songliao Basin. Acta Petrolei Sinica (in Chinese), 27(3): 16–21

Wang Jie, Jia Huichong, Tao Cheng, et al. 2023. Source and enrichment regularity of helium in Dongsheng gas field of Hangjinqi area, Ordos Basin. Natural Gas Geoscience (in Chinese), 34(4): 566–575

Wang Pingzai, Li Mingsheng, Wang Jiang. 2003. Petroleum geology and exploration potential of Wuerxun helium-bearing CO₂ gas reservoir in Hailaer basin. Special Oil and Gas Reservoirs (in Chinese), 10(6): 9–12

Wang Xiaofeng, Liu Wenhui, Li Xiaobin, et al. 2019. The formation and accumulation of helium resources and the prospect of helium resources in China. In: Annual Meeting of China Society of Mineral and Rock Geochemistry (in Chinese). Hangzhou: Chinese Society of Mineral and Rock Geochemistry, 1154–1155

Wang Xingmou, Qiu Longwei, Jiang Zaixing, et al. 2004. The relativity of igneous activity and CO₂ gas reservoir in Jiyang depression. Natural Gas Geoscience (in Chinese), 15(4): 422–427

Wang Xingmou. 2005. Study on the migration pattern of the mantle-source CO₂ and deep structural factors in Jiyang depression. Petroleum Geology and Recovery Efficiency, 12(3): 5–8

Wang Ying, Zhang Fuqin, Zhang Dawei, et al. 2006b. Zircon SHRIMP U-Pb dating of meta-diorite from the basement of the Songliao Basin and its geological significance. Chinese Science Bulletin, 51(15): 1877–1883, doi: 10.1007/s11434-006-2035-y

White W M. 2023. Isotope Geochemistry. 2nd ed. John Wiley & Sons

Wu Fuyuan, Yang Jinhui, Xu Yigang, et al. 2019. Destruction of the North China craton in the Mesozoic. Annual Review of Earth and Planetary Sciences, 47: 173–195, doi: 10.1146/annurev-earth-053018-060342

Wu Maobing, Wang Xianbin, Ye Xianren, et al. 2003. Noble gas isotopic compositions of Cenozoic volcanics and mantle-derived xenoliths from Kuandian in Liaoning Province and their significance. Acta Petrologica et Mineralogica (in Chinese), 22(3): 254–258

Xing Enyuan, Zhang Yongsheng, Zheng Mianping, et al. 2022. Geochemistry, U-Pb zircon ages and Hf isotopes of basement rocks beneath the northeastern margin of the Ordos Basin: constraints on the paleoproterozoic evolution of the western North China craton. Minerals, 12(7): 865, doi: 10.3390/min12070865

Xu Fa, Zhang Jianpei, Zhang Tian, et al. 2012. Comparison of the geologic conditions for forming of the main offshore petroliferous basins in China. Offshore Oil (in Chinese), 32(3): 1–8

Xu Sheng, Liu Congqiang. 1997. Helium isotope composition of mantle xenoliths in eastern China and its significance for mantle geochemical evolution. Chinese Science Bulletin (in Chinese), 42(11): 1190–1193, doi: 10.1360/csb1997-42-11-1190

Xu Sheng, Nakai S, Wakita H, et al. 1995a. Mantle-derived noble gases in natural gases from Songliao Basin, China. Geochimica et Cosmochimica Acta, 59(22): 4675–4683, doi: 10.1016/0016-7037(95)00301-0

Xu Sheng, Nakai S, Wakita H, et al. 1995b. Helium isotope compositions in sedimentary basins in China. Applied Geochemistry, 10(6): 643–656, doi: 10.1016/0883-2927(95)00033-X

Xu Sheng, Zheng Guodong, Zheng Jianjing, et al. 2017. Mantle-derived helium in foreland basins in Xinjiang, Northwest China. Tectonophysics, 694: 319–331, doi: 10.1016/j.tecto.2016.11.015

Xu Yigang, Li Hongyan, Pang Chongjin, et al. 2009. On the timing and duration of the destruction of the North China craton. Chinese Science Bulletin, 54(19): 3379–3396, doi: 10.1007/s11434-009-0346-5

Yang Chun, Tao Shizhen, Hou Lianhua, et al. 2014. Accumulative effect of Helium isotope in gas volcanic reservoirs in Songliao Basin. Natural Gas Geoscience (in Chinese), 25(1): 109–115

You Bin, Chen Jianfa, Xiao Hong, et al. 2023. Accumulation models and key conditions of crustal-derived helium-rich gas reservoirs. Natural Gas Geoscience (in Chinese), 34(4): 672–683

Zhang Maoliang, Guo Zhengfu, Xu Sheng, et al. 2021. Linking deeply-sourced volatile emissions to plateau growth dynamics in southeastern Tibetan Plateau. Nature Communications, 12(1): 4157., doi: 10.1038/s41467-021-24415-y

Zhang Xiaobao, Xu Yongchang, Chen Jianping, et al. 2004. Isotopic characteristics of noble gas in crude oil and their tracing significance. Acta Petrolei Sinica (in Chinese), 25(2): 41–46

Zhang Xue, Liu Jianchao, Li Rongxi, et al. 2018. President situation and progress in the study of helium gas resources in China. Geological Bulletin of China (in Chinese), 37(2−3): 476–486

Zhang Yingli, Zhao Changyi. 2005. Comparative studies of reservoir formed conditions of Bohai Bay and Ordos Basin. Petroleum Exploration and Development (in Chinese), 32(5): 25–29

Zhang Yunpeng, Li Yuhong, Lu Jincai, et al. 2016. The discovery and origin of helium-rich gas on the northern margin of the Qaidam Basin. Geological Bulletin of China (in Chinese), 35(2): 364–371

Zhao Guochun, Sun Min, Wilde S A, et al. 2005. Late Archean to paleoproterozoic evolution of the North China craton: key issues revisited. Precambrian Research, 136(2): 177–202, doi: 10.1016/j.precamres.2004.10.002

Zhao Huanhuan, Liang Kaikang, Wei Zhifu, et al. 2023. Differential enrichment of helium-rich gas reservoirs in Songliao Basin and favorable area forecast. Natural Gas Geoscience (in Chinese), 34(4): 628–646

Zhao Li, Li Li. 2016. The extensional pattern and dynamics of Bohai Bay basin in Late Mesozoic-Cenozoic. Geology in China (in Chinese), 43(2): 470–485

Zhao Wenbin, Guo Zhengfu, Zheng Guodong, et al. 2022. Subducting Indian lithosphere controls the deep carbon emission in Lhasa terrane, southern Tibet. Journal of Geophysical Research:Solid Earth, 127(7): e2022JB024250., doi: 10.1029/2022JB024250

Zhao Zhengyu, Guo Yanru, Wang Yan, et al. 2012. Study progress in tectonic evolution and paleogeography of Ordos Basin. Special Oil and Gas Reservoirs (in Chinese), 19(5): 15–20

Zheng Herong, Hu Zongquan. 2006. Gas pool-forming conditions for Bohai Bay Basin and Ordos Basin in the Upper Paleozoic. Acta Petrolei Sinica (in Chinese), 27(3): 1–5

Zheng Leping, Wang Sshijie, Liao Yongsheng, et al. 2001. CO₂ gas pools in Jiyang sag, China. Applied Geochemistry, 16(9−10): 1033–1039, doi: 10.1016/S0883-2927(00)00079-2

Zhong Xin. 2017. Distribution characteristics and control factors of helium gas in northern Songliao basin. Geological Survey and Research (in Chinese), 40(4): 300–305

Zhu Rixiang, Chen Ling, Wu Fuyuan. 2011. Timing, scale and mechanism of the destruction of the North China craton. Science China Earth Sciences, 54(6): 789–797, doi: 10.1007/s11430-011-4203-4

Zhu Rixiang, Xu Yigang, Zhu Guang, et al. 2012. Destruction of the North China craton. Science China Earth Sciences, 55(10): 1565–1587, doi: 10.1007/s11430-012-4516-y

Zou Caineng, Zhu Rukai, Zhao Wenzhi, et al. 2010. Geologic characteristics of volcanic hydrocarbon reservoirs and exploration directions in China. Acta Geologica Sinica (English Edition), 84(1): 194–205, doi: 10.1111/j.1755-6724.2010.00181.x

Appendix

Less

Year 2024 volume 43 Issue 2

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-024-2290-2

Receive Date：2023-11-25
Online Date：2025-11-17
Published：2024-02-25

Article Data

Affiliations

History

Received：2023-11-25
Accepted：2024-01-02

Funding

The Natural gas formation rules and key technologies for exploration in the western exploration area KT2022A02; the Science and Technology Fundamental Resources Investigation Program under contract No. 2023FY101500; the National Key Research and Development Program of China under contract No. 2023YFC3012005; the Central Public-interest Scientific Institution Basal Research, under contract No. CEAIEF20230505.

Affiliations

¹ Institute of Earthquake Forecasting, China Earthquake Administration, Beijing 100036, China

² College of Geosciences, China University of Petroleum-Beijing, Beijing 102249, China

³ School of Earth Science and Resources, China University of Geosciences (Beijing), Beijing 100083, China

Corresponding:

* E-mail: dugu_830822@163.com

liuzhaofei0@163.com

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-024-2290-2

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. The mean values of geochemical data of natural gas in Songliao Basin, Bohai Bay Basin and Ordos Basin (refer to Dai et al., 1995, 2014, 2017; Xu et al., 1995a, 1995b; Tao et al., 1997b; Liu et al., 2001, 2002, 2007, 2011, 2016; Zheng et al., 2001; Zhang et al., 2004; Wang et al., 2006a; Ni et al., 2009; Yang et al., 2014; Dai, 2016)

Basin name	Field name	CO₂/%	N₂/%	CH₄/%	He/%	$ \text{δ} $ ¹³C $_{\mathrm{CO}_2} $/‰	$ \text{δ} $ ¹³ ${\mathrm{C}}_{\mathrm{CH}_4} $/‰	⁴He/²⁰Ne	³He/⁴He	Rc/Ra
Songliao Basin	Wankinta	98.60	2.05	1.02	0.13	−4.53	−41.10	3 516.24	6.49×10⁻⁶	4.64
	Jilin	8.44	9.52	81.43	−	−	−	5 276.62	1.97×10⁻⁶	1.41
	Shuangcheng-Taipingchuan	0.36	−	93.33	0.10	10.41	−31.75	1 775.20	2.88×10⁻⁷	0.21
	Changling	37.27	3.45	57.71	0.01	−	−	−	2.90×10⁻⁶	2.07
	Daqing	−	−	−	0.03	−	−	7 471.43	2.28×10⁻⁶	1.63
	Xujiaweizi	14.66	2.42	88.31	0.02	−18.38	−36.13	2 310.56	2.11×10⁻⁶	1.44
Bohai Bay Basin	Dagang	15.30	0.93	75.33	0.01	−3.80	−28.60	663.78	1.84×10⁻⁶	1.31
	Liaohe	0.62	18.40	78.56	0.03	−	−29.00	1 177.27	2.27×10⁻⁶	1.62
	Pingfangwang	74.01	0.71	21.65	0.02	−4.45	−51.97	−	3.91×10⁻⁶	2.79
	Pingnan	81.68	0.64	14.30	0.03	−2.80	−49.77	−	3.53×10⁻⁶	2.52
	Shengli	32.78	−	−	0.03	−	−	1 642.94	1.83×10⁻⁶	1.33
Ordos Basin	Daniudi	0.96		91.04	−	−		4 457.24	3.89×10⁻⁶	0.03
	Shaanxi-Gansu-Ningxia	3.45		−	0.02	−		6 138.32	3.75×10⁻⁸	0.03
	Central Ordos	−		−	−	−		−	4.32×10⁻⁸	0.03
	Sulige	1.31	3.17	87.78	0.02	−13.98	−34.38	−	3.12×10⁻⁸	0.02

Note: “−” indicates no data.

Table 2. Helium production per cubic meter of basin basement in the three Basin(refer to Meng et al., 2022; Xing et al., 2022; Wang et al., 2006b)

Basin	Average U content/10⁻⁶	Average Th content/10⁻⁶	Rock density/(g·cm⁻³)	Average geological age/Ma	Area/ (10⁵ km²)	⁴He generation/m³	He mean content/%
Bohai Bay Basin	611.9	180.2	2.7	1 760.9	2.0	0.055	0.018
Ordos Basin	580.31	63.2	2.7	1 940.5	2.5	0.062	0.034
Songliao Basin	784.1	405.4	2.7	1 717.1	2.6	0.071	0.046

Table 3. The endowment of ³He in Songliao Basin, Bohai Bay Basin and Ordos Basin (refer to Dai et al., 1995, 2014, 2017; Xu et al., 1995a, 1995b; Tao et al., 1997b; Liu et al., 2001, 2002, 2007, 2011, 2016; Zheng et al., 2001; Zhang et al., 2004; Wang et al., 2006a; Ni et al., 2009; Yang et al., 2014; Dai, 2016)

Basin name	Petroliferous field	³He concentration	³He mean concentration
Songliao Basin	Wankinta oilfield	8.44×10⁻⁷	2.02×10⁻⁷
	Shuangcheng-taipingchuan oilfield	2.88×10⁻⁸
	Changling fault depression	2.90×10⁻⁸
	Daqing area	6.84×10⁻⁸
	Xujiaweizi fault depression	4.22×10⁻⁸
Bohai Bay Basin	Dagang oilfield	1.84×10⁻⁸	6.51×10⁻⁸
	Liaohe oilfield	6.81×10⁻⁸
	Square king oilfield	7.82×10⁻⁸
	Pingnan oilfield	1.06×10⁻⁷
	Shengli oilfield	5.49×10⁻⁸
Ordos Basin	Shaanxi-Gansu-Ningxia region	7.50×10⁻¹⁰	6.87×10⁻¹⁰
	Sulige oilfield	6.24×10⁻¹⁰

Fig. 1. Geographic location (a) and tectonic units of Songliao Basin(b), Ordos Basin(c) and Bohai Bay Basin(d) (modified from Song and Xu, 2005; Mamyrin and Tolstikhin, 2013; White, 2023). The numbers in the figure represent, 1: Northern Pitching End; 2: Western Slope; 3: Northeast Uplift; 4: Central Sag Zone; 5: Southwest Uplift; 6: Southeast Uplift; 7: Yimeng Uplift; 8: West Margin Thrusting Belt; 9: Tianhuan Depression; 10: Yishan Slope; 11: Jinxi Flextural Belt; 12: Weibei Uplift; 13: Liaohe Depression; 14: Bozhong Depression; 15: Huanghua Depression; 16: Jizhong Depression; 17: Linqing Depression; 18: Jiyang Depression; 19: Dongpu Sag; F₁: Nenjiang-Baicheng fault; F₂: Sunwu-Shuangliao fault; F₃: Harbin-Changchun fault; F₄: Baxian-Tangyin fault; F₅: Huanghua-Dongpu fault; F₆: Tan-Lu fault (Bohai section); F₇: Zhangjiakou-Penglai fault.

Fig. 2. Correlation diagram between He and CO₂(a), CH₄(b), N₂(c) and Rc/Ra(d) from the Bohai Bay Basin, Ordos Basin and Songliao Basin. The blue, red and green lines in the figure represent the fitted curves between He and other components and Rc/Ra for the Bo- hai Bay Basin, Ordos Basin and Songliao Basin, respectively.

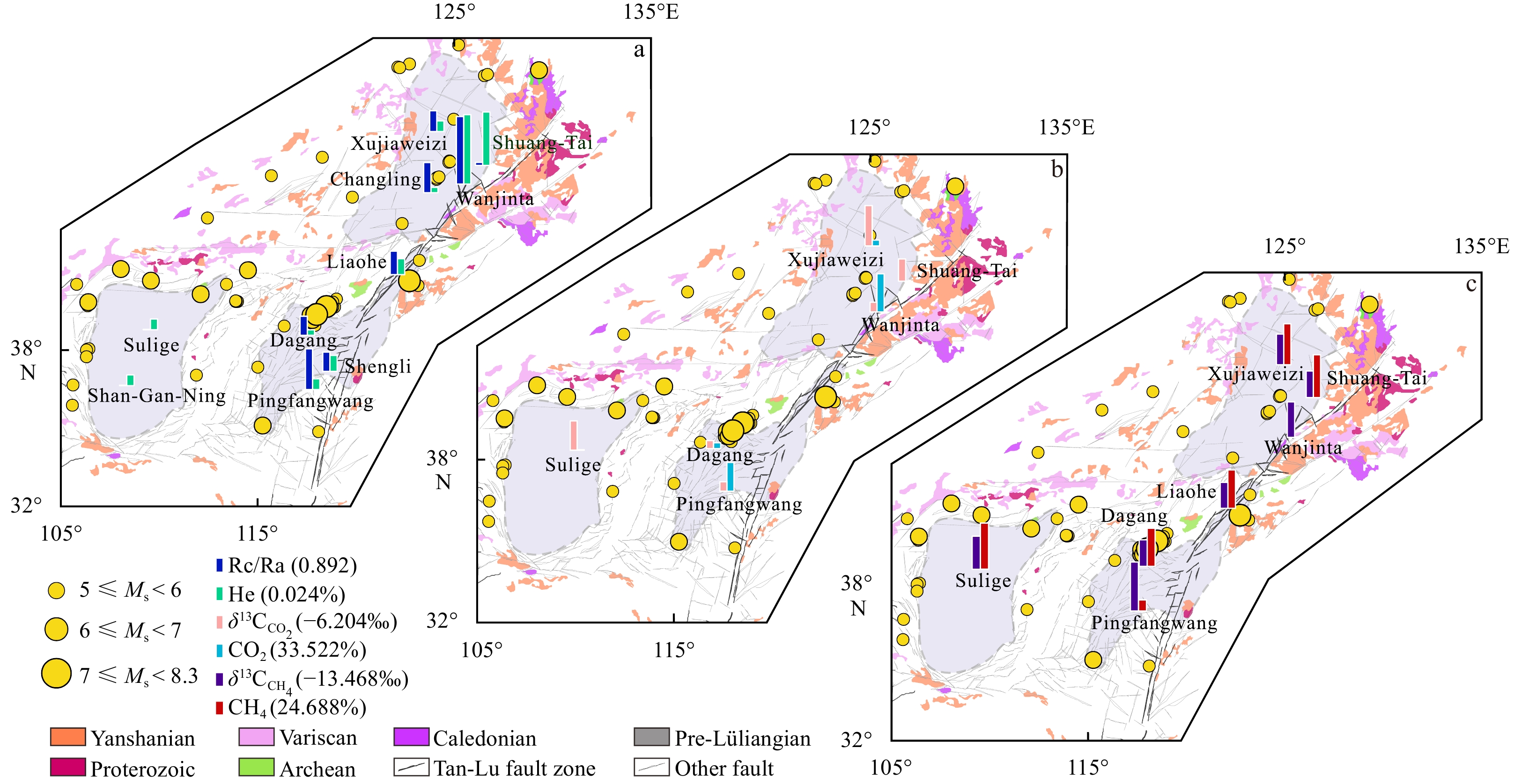

Fig. 3. Distribution of Rc/Ra and concentration of He of natural gas from the Bohai Bay Basin, Ordos Basin and Songliao Basin (a) . Distribution of δ ¹³C $_{\mathrm{CO}_2} $ and concentration of CO₂ of natural gas from Bohai Bay Basin, Ordos Basin and Songliao Basin (b) . Distribution of δ ¹³C $_{\mathrm{CH}_4} $ and concentration of CH₄ of natural gas from Bohai Bay Basin, Ordos Basin and Songliao Basin (c).

Fig. 4. The relationship between δ ¹³C_CH4 and Rc/Ra of natural gas from the Bohai Bay Basin, Ordos Basin and Songliao Basin.

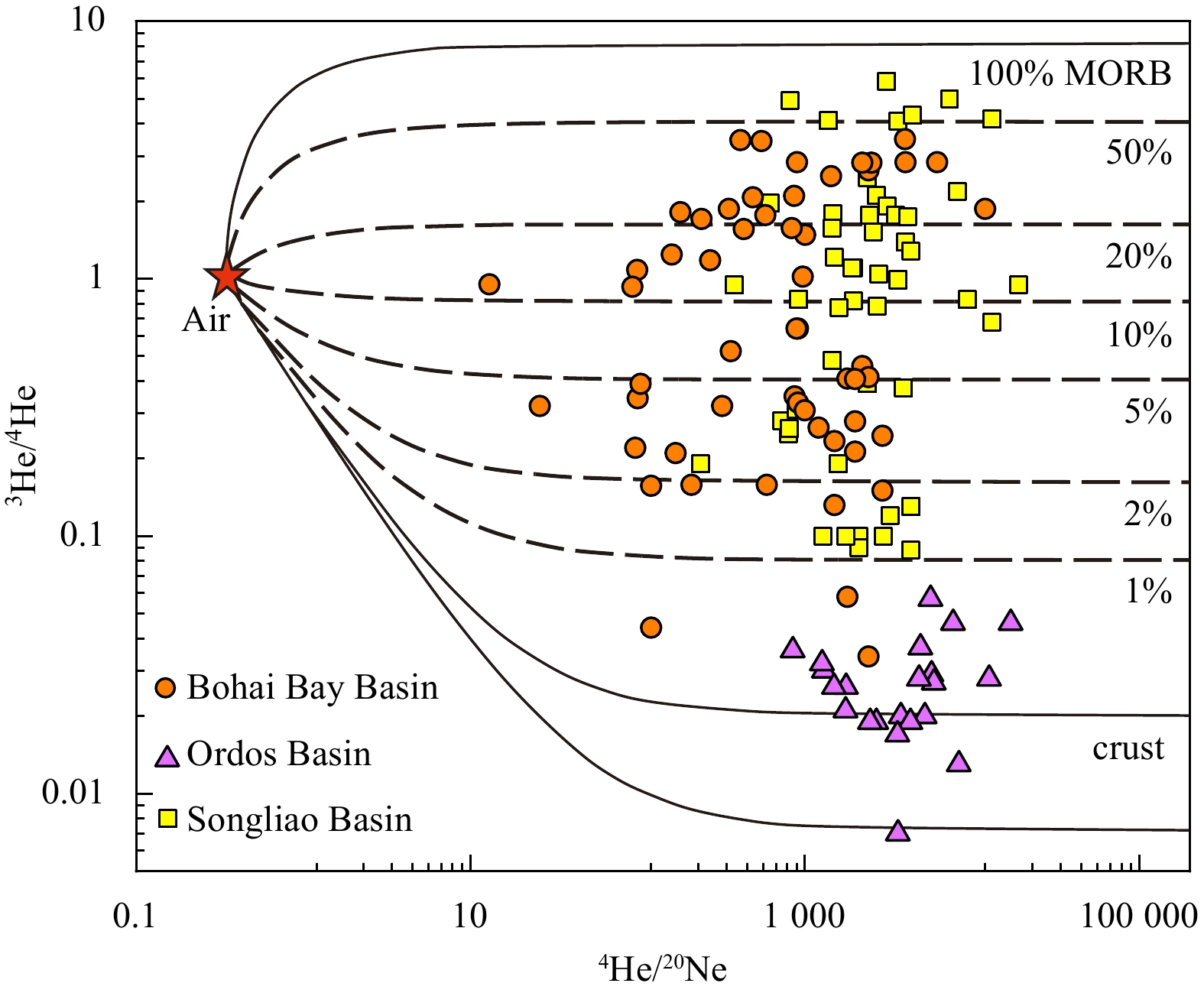

Fig. 5. The relationship between ³He/⁴He and ⁴He/²⁰Ne of natural gas from the Bohai Bay Basin, Ordos Basin and Songliao Basin. MORB: Mid-Ocean Ridge Basalts.

Fig. 6. Comparison of helium yields of different types of rocks (refer to Danabalan, 2017).

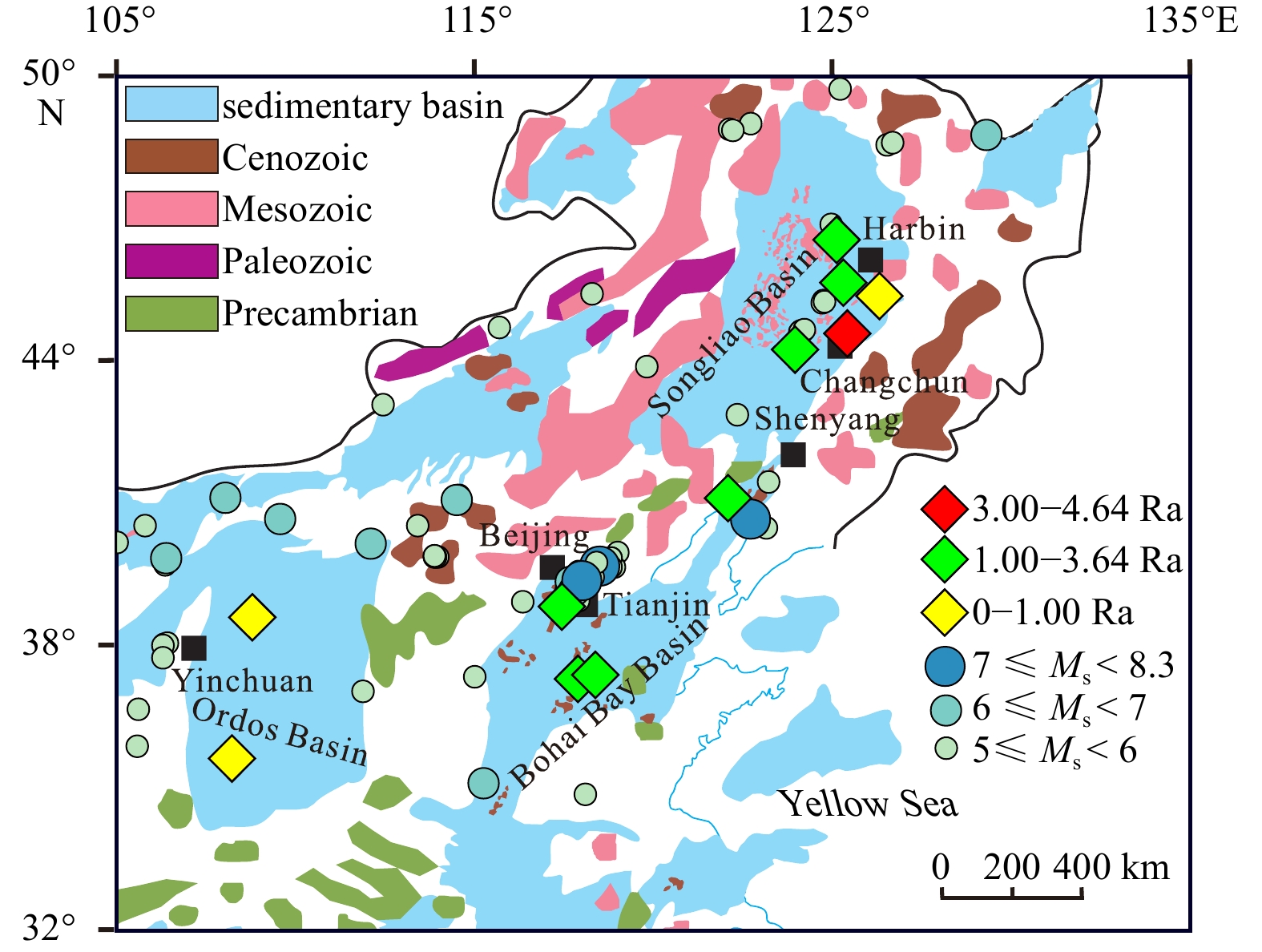

Fig. 7. The relationship between the distribution of volcanic rocks and Rc/Ra from the Bohai Bay Basin, Ordos Basin and Songliao Basin (refer to Zou et al., 2010).

Fig. 8. He-C isotope systematics for gas samples in the Bohai Bay Basin, Ordos Basin and Songliao Basin (modified fromHoefs and Frey, 1976; Zhao et al., 2022).

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
