Yuzaoea gen. nov., a new biraphid diatom (Bacillariophyceae) genus and its phylogenetic significance
收藏切换
PDF
Honghan Liu1, T, Chenhong Li1, Lang Li3, 4, Xuesong Li1, Lin Sun2, Junrong Liang1, Jun Zhang1, Yahui Gao1, 2, *, Changping Chen1, *
Acta Oceanologica Sinica | 2024, 43(2) : 130 - 136
Less
收藏切换
Acta Oceanologica Sinica | 2024, 43(2): 130-136
• Marine Biology •
Yuzaoea gen. nov., a new biraphid diatom (Bacillariophyceae) genus and its phylogenetic significance
Full
Honghan Liu1, T, Chenhong Li1, Lang Li3, 4, Xuesong Li1, Lin Sun2, Junrong Liang1, Jun Zhang1, Yahui Gao1, 2, *, Changping Chen1, *
Affiliations
  • 1 Key Laboratory of Ministry of Education for Coastal and Wetland Ecosystems and School of Life Sciences, Xiamen University, Xiamen 361102, China
  • 2 State Key Laboratory of Marine Environmental Science, Xiamen University, Xiamen 361102, China
  • 3 Guangxi Key Laboratory of Marine Environmental Science, Guangxi Academy of Marine Sciences, Guangxi Academy of Sciences, Nanning 530007, China
  • 4 Beibu Gulf Marine Industry Research Institute, Fangchenggang 538000, China
Published: 2024-02-25 doi: 10.1007/s13131-023-2260-0
Outline
收藏切换

The flexed frustules in pennate diatoms are usually associated with monoraphid diatoms. Interestingly, we found a biraphid diatom species with flexed frustules in an offshore intertidal beach environment on Weizhou Island, Beihai City, Guangxi Zhuang Autonomous Region, China. Therefore, based on morphological characteristics, we described a new genus of diatoms Yuzaoea sinensis gen. et sp. nov. CH Li, HH Liu, YH Gao & CP Chen. The frustule of this genus is characterized by heterogeneous frustule with one concave valve and one convex valve, complete raphe on both valves, straight and moderately eccentric raphe, uniseriate striae and girdle bands with a single row of areolae. The most identifying feature of this genus was the flexed frustule, which is rare in biraphid diatoms and common in monoraphid diatoms. We compared the morphometric characteristics of genus Yuzaoea with genus Rhoikoneis and several genera within the family Rhoicospheniaceae, including Rhoicosphenia, Campylopyxis, and Cuneolus. Phylogenetic analyses based on SSU rRNA and rbcL showed that the genus Yuzaoea was the sister group to the clade of Rhoicosphenia with a high support value (bootstrap values = 100%), and the clade “Yuzaoea+Rhoicosphenia” was sister to the clade of monoraphid diatoms, in which the genera Achnanthidium, Planothidium and some Cocconeis with high support values (bootstrap = 100%). Morphologically, the genus Yuzaoea shares many morphological features with monoraphid diatoms like genera Achnanthidium and Planothidium and the members within the Rhoicospheniaceae. Therefore, based on a combined morphological studies and phylogenetic results we suggested that this branch may represented the evolution of one kind monoraphid diatoms, from biraphid diatoms (e.g. genus Yuzaoea), to incompleted biraphid diatoms (e.g. genera Rhoicosphenia, Campylopyxis), to monoraphid diatoms (e.g. genera Achnanthidium and Planothidium).

biraphid diatom  /  marine  /  new genus  /  Rhoicospheniaceae  /  taxonomy  /  Yuzaoea
Honghan Liu, Chenhong Li, Lang Li, Xuesong Li, Lin Sun, Junrong Liang, Jun Zhang, Yahui Gao, Changping Chen. Yuzaoea gen. nov., a new biraphid diatom (Bacillariophyceae) genus and its phylogenetic significance[J]. Acta Oceanologica Sinica, 2024 , 43 (2) : 130 -136 . DOI: 10.1007/s13131-023-2260-0
Full Text
Less
1 Introduction
Less
The raphe is the slit-like opening in the diatom valve, which is related to the movement of diatoms (Round et al., 1990). Diatoms can secrete extracellular polymers through the raphe to help them move (Jin et al., 2018). Raphid diatoms have several types based on raphe systems, including biraphid diatoms, canal raphid diatoms and monoraphid diatoms (Round et al., 1990). The morphology and number of raphes are considered to be important features in diatom evolution (Kociolek et al., 2019). A biraphid diatom valve usually has two branches of raphe, and the position of raphe is usually in the center or at the edge of the valve (Ross et al., 1979). On the other hand, monoraphid diatoms have raphe on one valve and no raphe on the other, which are thought to have evolved from biraphid diatoms (Kociolek and Stoermer, 1986; Cox, 2010).
Compared with many monoraphid diatoms which usually have flexed frustules, few biraphid diatom genera have frustules with convex and concave valves. The biraphid diatom genus Rhoikoneis was established by Grunow (1863) to accommodate species flexed in girdle view similar to Achnanthes but could be distinguished by the presence of a central nodule on both valves. The genus included four species, i.e., R. bolleana, R. garkeana, R. genuflexa and R. trinodis. However, further study showed that taxa in Rhoikoneis were morphologically distinct and unrelated. R. genuflexa was moved to the genus Rhoicosphenia since it is an earlier synonym of Rhoicosphenis adolfi M. Schmidt. R. trinodis was placed in the genus Achnanthes (Van Heurck, 1880). Medlin (1985) reappraised the genus Rhoikoneis and described a new genus Campylopyxis based on C. garkeana (= R. garkeana). Rhoikoneis shares many morphological features with the genus Navicula, such as the raphe system and slit-like openings to the areolae, and is placed in the order Naviculales, the family Naviculaceae (Medlin, 1991). On the other hand, Campylopyxis and Rhoicosphenia are distinguished from Rhoikoneis by the type of areolae, the structure of the raphe and the morphology of the cingulum, belonging to the order Cymbellales, the family Rhoicospheniaceae (Round et al., 1990).
During the survey of epipsammic diatom flora from the marine sandy beach in southern China, an unknown taxon flexed in the pervalvar axis was analyzed and could not be ascribed to any established genera in the diatom literature. Therefore, a new genus, Yuzaoea gen. nov. is described to accommodate the new species. The new species Yuzaoea sinensis sp. nov. is introduced based on morphological examination with light microscopy (LM) and scanning electron microscopy (SEM). Their phylogenetic relationships among the genera and families in raphid diatoms are also investigated and discussed.
2 Materials and methods
Less
The sandy samples were collected from the intertidal zone of Weizhou Island (21°01′31″N, 109°08′07″E), Guangxi Zhuang Autonomous Region, China. Weizhou Island, the largest volcanic island in China, is located in the central part of the Beibu Gulf, South China Sea. It has a broad intertidal zone and coral distribution and a subtropical monsoon climate with an average annual sea surface temperature of 24.6℃. Beibu Gulf is located in the northwestern South China Sea, which is a semienclosed bay. It is located in the tropical and subtropical zone with rich resources and is one of China’s excellent fishing grounds (Chen et al., 2013).
The sand sample was first treated by ultrasound to make the epipsammic diatoms fall off, and the diatoms were diluted and cultured in the 96 multi-well culture plates with f/2 medium. Cultured diatom samples were collected, concentrated hydrochloric acid was added, and the samples were boiled in a water bath to obtain clean diatom frustules. They were then rinsed several times with distilled water to remove the hydrochloric acid and salts. For LM, the treated diatom sample was fixed with Naphrax to make permanent slides. For SEM, the acid-cleaned frustules were adhered to SEM stubs by using electroconductibility adhesive tape and covered with gold (Cocquyt, 2004; Chen et al., 2019).
LM observation was performed using an Olympus BX51 microscope (Japan) or an Olympus CKX41 inverted microscope (Japan) with a DP70 digital camera system or Canon 60D camera. SEM observation was performed under 10–20 kV conditions using JEOL JSM-6390A and FEI Quanta 650 FEG analytical scanning electron microscopy at Xiamen University (Taylor et al., 2007). Slides with at least 30 valves for morphological data measurement were stored in the Biology Department Herbarium, Xiamen University (AU: Amoy University), China.
For DNA extraction, the cells were obtained by centrifugation for 10 min at 4000 × g with 5 mL of cultured cell samples from the middle stage of logarithmic growth. Total DNA was extracted with the SteadyPure Plant Genomic DNA Kit (Accurate Biotechnology, Changsha, China) according to the manufacturer’s instructions. Primers from Zimmermann et al. (2011) and Ruck and Theriot (2011) were used to amplify the 18S rDNA fragment and part of the rbcL plasmid gene, respectively. PrimeSTAR premade mix (Takara, China) was used for PCR amplification. The conditions of amplification for 18S rDNA fragments were as follows: predenaturation at 95℃ for 5 min; 35 cycles at 94℃ for 30 s, 52℃ for 30 s, and 72℃ for 50 s; and a final extension at 72℃ for 10 min. The conditions of amplification for part of the rbcL plasmid gene were as follows: 95℃ for 5 min; 36 cycles at 95℃ for 30 s, 58℃ for 30 s, and 72℃ for 1 min; and a final extension at 72℃ for 5 min. The results of PCR amplification were demonstrated by 1% agarose gel electrophoresis, stained by GelStain. DNA products were sent to Sangon Biotech Company for product purification using SanPrep Column PCR Product Purification Kit (Sango Biotech, Shanghai, China) and sequencing using ABI 3730xl DNA Analyser.
The resulting sequences were checked and first aligned using the mafft V7.110 online program (http://mafft.cbrc.jp/alignment/server/) and the default settings. We manually checked the alignment using BioEdit v.7.0.9 (Hall, 1999). The maximum likelihood (ML) analysis was carried out by Raxml V7.2.6 (Stamatakis and Alachiotis, 2010) using the Model GTRMM in T-rex web servers (Boc et al., 2012). The bootstrap values were obtained by making 1000 replicates of the ML analyses for each branch node of the phylogenetic tree.
3 Results
Less
Yuzaoea CH Li, HH Liu, YH Gao & CP Chen, gen. nov.
3.1 Description
Frustule heterovalvate, flexed in girdle view, cells can be linked together to form a colony. Valve elliptical to linear-elliptical with rounded apices. Raphe straight, moderately eccentric with expanded proximal raphe ends. Terminal raphe fissures hooked towards the same sides. Internally, helictoglossae well developed, and proximal raphe ends deflected towards the same sides. Striae uniseriate, parallel or slightly radial, composed of small areolae and internally occluded by hymenes. Girdle bands with one row of pore.
TYPE SPECIES. Yuzaoea sinensis CH Li, HH Liu, YH Gao & CP Chen, sp. nov.
ETYMOLOGY. The genus is named after Professor Yuzao Qi (Jinan University, China) in recognition of his outstanding contributions to the study of diatoms and aquatic biology in China. The specific epithet “sinensis” refers to China, where the specimen was found.
Yuzaoea sinensis CH Li, HH Liu, YH Gao & CP Chen, sp. nov. (Figs 1–4)
LM: Valve elliptical to linear, with rounded apices, 2.6–7.9 μm long, and 1.8–2.7 μm wide. Striae parallel or slightly radial, 17–29 in 10 μm. Raphe straight and filiform. Axial area narrowly linear (Figs 1b–j). Valves connected to form a short chain (Fig. 1a). Frustules heterovalvar, bends to one side in girdle view, and several girdle bands can be observed (Fig. 1k).
SEM: In girdle view, frustule flexed (Fig. 2a), several girdle bands with transapically elongated or small rounded pores (Figs 2a, b). Valves connected to form a short chain (Fig. 2b). One valve concave and the other convex (Figs 3a, 4a). Raphe simple, moderately eccentric, proximal raphe ends enlarged in droplet shape, and distal raphe fissures bent to the same sides in hook shape, ending in mantle (Fig. 3b). Both valves of the frustule have complete raphe systems (Fig. 3c). The striae uniseriate, asymmetrical. Areolae irregularly circular and internally occluded by hymenes (Figs 3b, c). The density of striae at the ends was similar to that in the middle of the valve (Figs 3b, c). The mantle is high (Fig. 3c). In internal views, helictoglossae are strongly raised at both ends of raphe (Fig. 4c). The proximal ends of raphe hooks to the same side (Fig. 4d).
3.2 Molecular phylogenetics

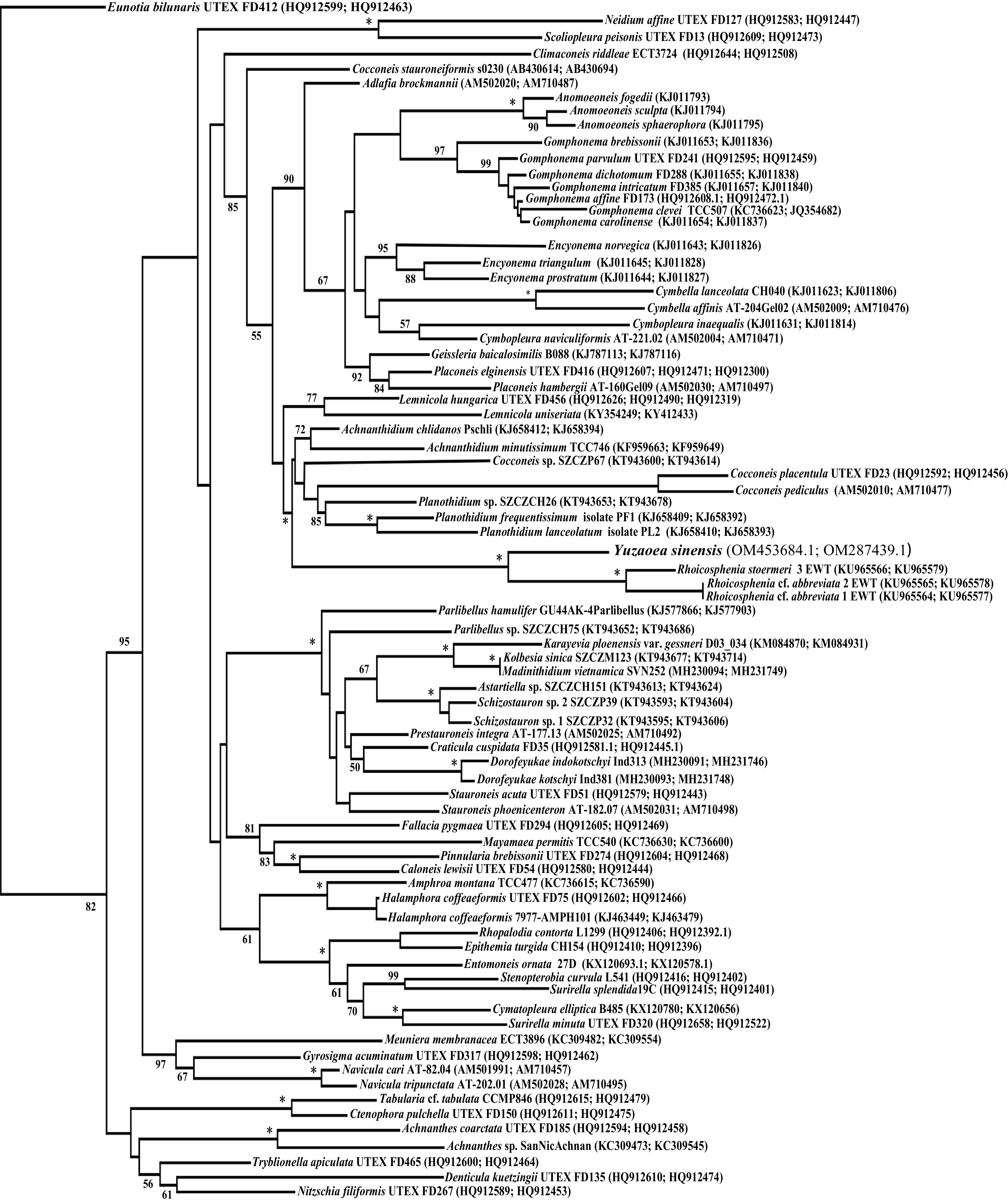

Two molecular markers, SSU rRNA and rbcL, were used to build ML phylogenetic analysis trees. The Y. sinensis taxon is a sister group to the clade of Rhoicosphenia with a high support value (bootstrap = 100%) (Fig. 5). Yuzaoea sinensis and Rhoicosphenia form a single branch that is sister to part of Cocconeis (except for Cocconeis stauroneiformis) and part of the Achnanthidiaceae clade, including Achnanthidium and Planothidium with a high support value (bootstrap = 100%). These sequence data have been submitted to the GenBank databases under accession number OM453684.1 and OM287439.1.
Holotype (here designated): Slide GX202012-6(AU, Biology Department Herbarium, Xiamen University). The holotype specimen is shown in Fig. 1b.
Isotype. Slide GX202012-6 deposited in the School of Life Sciences, Xiamen University, Xiamen, People’s Republic of China.
Type locality: The intertidal zone of Weizhou Island, Guangxi Zhuang Autonomous Region, China, 20 December 2020, collector Lang Li.
Distribution: The type specimens were found at Weizhou Island, Guangxi Zhuang Autonomous Region, China. Later, we also found this species on the beaches of Nan’ao Island, Guangdong Province, and Gouqi Island, Zhejiang Province, China.
Etymology. The specific epithet “sinensis” refers to China, where the specimen was found.
4 Discussions
Less
Under LM, Y. sinensis can be easily mistaken for raphe valves in members of Achnanthidium, such as Achnanthidium rivulare Potapova & Ponader and Achnanthidium atomoides Monnier, Lange-Bertalot & Ector (Potapova and Ponader, 2004; Morales et al., 2011), due to its linear-elliptical outline, bent girdle view and raphe system, as in Y. sinensis. Yuzaoea sinensis and A. rivulare differ mostly by the shape of the central area, which is indistinct in Y. sinensis but broader and lanceolate in A. rivulare. Achnanthidium atomoides often has spaced wider and short striae in the central portion of the valve and is denser towards the apices, while striae are more evenly and wider spaced in Y. sinensis.
Based on morphological structure, Y. sinensis is most likely aligned with taxa within the Rhoicospheniaceae, a family that includes the genera Rhoicosphenia, Campylopyxis, Cuneolus, Gomphoseptatum, Gomphonemopsis, and Gomphosphenia (Round et al., 1990). It is interesting that members within Rhoicospheniaceae showed highly diverse frustule morphology, such as isopolar and heteropolar valves in the genera Rhoicosphenia and Gomphosphenia and frustules bent in the girdle view in the genus Rhoicosphenia (Table 1). The Gomphonemoid marine diatom genera Gomphoseptatum and Gomphonemopsis were revealed to be completely unrelated to Gomphonema sensu stricto (Medlin and Round, 1986). Gomphoseptatum is similar to Rhoicosphenia in its heteropolar valve, pseudoseptum or septum on the pole and areolae occluded by hymemes. Gomphonemopsis and Gomphosphenia have similar valve outlines, transapically elongate areolae and absence of terminal fissures. Cuneolus belongs to Rhoicospheniaceae because it shares many features with Rhoicosphenia, namely, the areolae and internal raphe structure, the presence of pseudosepta and septa, and the girdle band construction (Medlin and Round, 1986). In terms of frustule and valve ultrastructure, Campylopyxis has several features that resemble Rhoicosphenia, including the heterovalvy of the frustule, the striae, the central internal and external raphe endings and the girdle bands (Medlin, 1985).
Among genera within the Rhoicospheniaceae, the valve structure of genus Yuzaoea is most closely aligned with Campylopyxis (Medlin, 1985). Both of these genera have isopolar valves and flexed cells in the girdle view, as opposed to isopolar/heteropolar valves and straight cells in the girdle view or heteropolar valves and flexed cells in the girdle view in other genera within Rhoicospheniaceae. Round poroids in the valve face and elongated poroids in valvocopula of Y. sinensis are similar to those found in the valve face and valvocopula of C. garkeana, respectively. No pseudosepta were obeserved both in the genera Campylopyxis and Yuzaoea. There are many differences that serve to distinguish Yuzaoea from Campylopyxis. First, Yuzaoea has an asymmetrical valve face about the apical axis as opposed to a naviculoid symmetric valve face about the apical axis in Campylopyxis. Second, the genus Yuzaoea has a complete raphe system with deeply indented terminal fissures, as opposed to concave valves with a complete raphe system and convex valves with a reduced raphe system in Campylopyxis. Third, the central area is indistinct in the genus Yuzaoea compared to the elliptical central area with occasional isolated puncta in Campylopyxis.
The genus Yuzaoea also shares features with the epiphytic diatom genus Cuneolus, another genus closely aligned with Rhoicosphenia but having an isovalvar frustule (Medlin and Round, 1986). As with Rhoicosphenia and Yuzaoea, valves of Cuneolus also have expanded external central endings and hooked internal central endings (Medlin, 1985). The poroids of Cuneolus are round and covered by hymenes, similar to those on the valve face of the genus Yuzaoea. However, unlike the genus Yuzaoea, the cells of Cuneolus are naviculoid in valve view, and the central area expands and thickens into a stauros. In addition, valve mantles in Cuneolus are produced into slight pseudosepta at either end (Round et al., 1990). It is worthing to note that pseudosepta is absent in the genera Gomphonemopsis and Yuzaoea. The genus Rhoikoneis with flexed frustule is worth mentioning. Similar to Rhoicosphenia, Campylopyxis and Cuneolus, Rhoikoneis is a marine diatom attached to seaweed. Although it has an idental raphe system with deeply indented terminal fissures superficially resembling that found in the genus Yuzaoea, Rhoikoneis is distinguished from the genus Yuzaoea by some aspects, such as the presence of internal raphe fissures with a thin, raised siliceous rib and accessory ribs, slit-like openings to the areolae and well-developed interstriae.
It is interesting that the molecular phylogenetic results in this study suggest that the genus Yuzaoea has a close relationship with Rhoicosphenia and the monoraphid genera (Achnanthidium, Planothidium, Cocconeis). These results are consistent with Cleve’s hypothesis about the phylogenetic affinity of Rhoicosphenia to monoraphid diatoms (Cleve, 1895; Kulikovskiy et al., 2020). The derivation of monoraphid diatoms from biraphid diatoms is generally accepted (Kociolek and Stoermer, 1986; Cox, 2006, Cox and Williams, 2006). One piece of evidence for this is the study of the ontogeny of monoraphid diatoms, which shows the existence of raphe on both valves during the early formation of the valve (Mayama and Kobayasi, 1989). With the formation of the valve, one raphe was gradually filled with silica to form a valve called the Sternum Valve (SV). The valve with the raphe is called the Raphe Valve (RV). There is no such process in araphid diatoms, so it is inferred that monoraphid diatoms originate from biraphid diatoms. In addition to ontogenetic studies, taxonomists have also attempted to compare the morphological characteristics of monoraphid diatoms with those of biraphid diatoms to prove their genetic relationship (Kociolek and Stoermer, 1986, Cox, 2006).
In addition, many studies show that monoraphid diatoms do not form a monophyletic group but that instead monoraphy evolved independently on at least three separate occasions (Cox, 2006; Davidovich et al., 2017). The first group includes Achnanthes sensu stricto, the second group has Achnanthidium, Planothidium, Cocconeis, and Davidovich et al. (2017) revealed a third lineage of monoraphid diatoms formed by Schizostauron, Astartiella, Kolbesia and Karayevia. Phylogenetic analysis by Kulikovskiy et al. (2019) showed that there were at least five independent branches of monoraphid diatoms in the phylogenetic tree.
The biraphid genera within the Cymbellales (Gomphonema, Cymbella and their allies) are confirmed to be sister to the second group of monoraphids (Bruder and Medlin, 2008; Kermarrec et al., 2011). However, few morphological or cytological apomorphies could be found between the second group of monoraphids and the members within the Cymbellales (Kociolek and Stoermer, 1986; Nakov et al., 2014). Our results suggested that the genus Yuzaoea and members within Rhoicospheniaceae are the possible origins of the second group of monoraphid diatoms which contains the majority of Cocconeis and Achnanthidiaceae. The genera Yuzaoea, Rhoicosphenia and Campylopyxis have genuflexed shapes that are similar to the monoraphid group within Achnanthidium and Planothidium (Medlin and Round, 1986; Bąk and Lange-Bertalot, 2014; Pinseel et al., 2017). Some species in the genera Rhoicosphenia and Campylopyxis, i.e., Rhoicosphenia genuflexa, Rhoicosphenia kolbei, Rhoicosphenia lesothensis and Campylopyxis garkeana have the same apically transapically symmetrical frustule that occurs in the genera Achnanthidium and Planothidium (Medlin and Fryxell, 1984; Tseplik et al., 2021). These genera system evolution usually have round areolae and simple raphe (Round et al., 1990; Kulikovskiy et al., 2011; Wetzel et al., 2013; Marquardt et al., 2021). The complete raphe system in the genus Yuzaoea and the reduced raphe system in the genera Rhoicosphenia and Campylopyxis confirm their close affinities to monoraphid diatoms. However, the copulae in Yuzaoea and members within the Rhoicospheniaceae are open and perforated compared to girdles without areolae in the genera Achnanthidium and Planothidium (Bukhtiyarova, 2007; Lai et al., 2021).
In summary, Yuzaoea sinensis gen. & sp. nov. was described in the present paper and placed within the family Rhoicospheniaceae. Based on the morphological and phylogenetic results, the clade “Yuzaoea+Rhoicosphenia” is sister to the monoraphid diatoms, suggesting possible distinct monoraphe system evolution.
Acknowledgements
Less
We thank Caiming Wu and Luming Yao from the Electron Microscopy Laboratory, Xiamen University, for providing assistance with SEM observation. We would like to thank American Journal Experts for his assistance with language editing.
Funding
Less
  • The National Key Research and Development Program of China under contract No. 2022YFC3105404, the Natural Science Foundation of China under contract Nos 42076114, 41776124, the Natural Science Foundation of Xiamen under contract No. 3502Z20227173.
References
Less
Bąk M, Lange-Bertalot H. 2014. Four small-celled Planothidium species from Central Europe proposed as new to science. Oceanological and Hydrobiological Studies, 43(4): 346–359, doi: 10.2478/s13545-014-0152-9
Boc A, Diallo A B, Makarenkov V. 2012. T-REX: a web server for inferring, validating and visualizing phylogenetic trees and networks. Nucleic Acids Research, 40(W1): W573–W579, doi: 10.1093/nar/gks485
Bruder K, Medlin L K. 2008. Morphological and molecular investigations of naviculoid diatoms. III. Hippodonta and Navicula S. S. Diatom Research, 23(2): 331–347, doi: 10.1080/0269249X.2008.9705760
Bukhtiyarova L N. 2007. Revision of the genus Achnanthes Bory s. lato (Bacillariophyta). 1. Genera Achnanthes Bory s. str. and Achnanthidium Kützing s. str. International Journal on Algae, 9(4): 328–341, doi: 10.1615/InterJAlgae.v9.i4.20
Chen Tianran, Zheng Zhaoyong, Mo Shaohua, et al. 2013. Variation of skeletal extension rate for Porites corals around Weizhou Island in response to global warming and increase of extreme events. Journal of Tropical Oceanography (in Chinese), 32(5): 79–84, doi: 10.3969/j.issn.1009-5470.2013.05.011
Chen Changping, Zhuo Suqing, Wang Zhen, et al. 2019. Seminavis exigua sp. nov. (Bacillariophyceae), a new small diatom from southern Fujian Province, China. Diatom Research, 34(2): 85–93, doi: 10.1080/0269249X.2019.1607563
Cleve P T. 1895. Synopsis of the naviculoid diatoms, Part II. Kongliga Svenska-Vetenskaps Akademiens Handlingar, 27(3): 1–219
Cocquyt C. 2004. Staurophora Caljonii Spec. Nov. (Bacillariophyceae, Anomoeoneidaceae), a new halophilic diatom species from sub-recent lake deposits in Kenya. Hydrobiologia, 511(1-3): 37–46, doi: 10.1023/B:HYDR.0000014017.38481.62
Cox E J. 2006. Achnanthes sensu stricto belongs with genera of the Mastogloiales rather than with other monoraphid diatoms (Bacillariophyta). European Journal of Phycology, 41(1): 67–81, doi: 10.1080/09670260500491543
Cox E J. 2010. Morphogenetic information and the selection of taxonomic characters for raphid diatom systematics. Plant Ecology and Evolution, 143(3): 271–277, doi: 10.5091/plecevo.2010.403
Davidovich N, Davidovich O, Witkowski A, et al. 2017. Sexual reproduction in Schizostauron (Bacillariophyta) and a preliminary phylogeny of the genus. Phycologia, 56(1): 77–93, doi: 10.2216/16-29.1
Grunow A. 1863. Ueber einige neue und ungenügend bekannte Arten und Gattungen von Diatomaceen. Verhandlungen der Kaiserlich-Kö niglichen Zoologisch-Botanischen Gesellschaft in Wien, 13: 137–162
Hall T A. 1999. BioEdit: a user-friendly biological sequence alignment editor and analysis program for windows 95/98/NT. Nucleic Acids Symposium Series, 41(41): 95–98
Jin Cuili, Yu Zhaowei, Peng Shuya, et al. 2018. The characterization and comparison of exopolysaccharides from two benthic diatoms with different biofilm formation abilities. Anais da Academia Brasileira de Ciências, 90(2): 1503–1519, doi: 10.1590/0001-3765201820170721
Kermarrec L, Ector L, Bouchez A, et al. 2011. A preliminary phylogenetic analysis of the Cymbellales based on 18S rDNA gene sequencing. Diatom Research, 26(3): 305–315, doi: 10.1080/0269249X.2011.633255
Kociolek J P, Stoermer E F. 1986. Phylogenetic relationships and classification of monoraphid diatoms based on phenetic and cladistic methodologies. Phycologia, 25(3): 297–303, doi: 10.2216/i0031-8884-25-3-297.1
Kociolek J P, Williams D M, Stepanek J, et al. 2019. Rampant homoplasy and adaptive radiation in Pennate diatoms. Plant Ecology and Evolution, 152(2): 131–141, doi: 10.5091/plecevo.2019.1612
Kulikovskiy M, Lange-Bertalot H, Witkowski A, et al. 2011. Achnanthidium sibiricum (Bacillariophyceae), a new species from bottom sediments in Lake Baikal. Algological Studies, 136–137: 77–87,doi: 10.1127/1864-1318/2011/0136-0077
Kulikovskiy M, Maltsev Y, Andreeva S, et al. 2019. Description of a new diatom genus Dorofeyukea gen. nov. with remarks on phylogeny of the family Stauroneidaceae. Journal of Phycology, 55: 173–185., doi: 10.1111/jpy.12810
Kulikovskiy M, Maltsev Y, Glushchenko A, et al. 2020. Gogorevia, a new monoraphid diatom genus for Achnanthes exigua and allied taxa (Achnanthidiaceae) described on the basis of an integrated molecular and morphological approach. Journal of Phycology, 56(6): 1601–1613, doi: 10.1111/jpy.13064
Lai G G, Ector L, Padedda B M, et al. 2021. Planothidium marganaiensis sp. nov. (Bacillariophyta), a new cavum-bearing species from a karst spring in south-western Sardinia (Italy). Phytotaxa, 489(2): 140–154, doi: 10.11646/phytotaxa.489.2.3
Marquardt G C, Bicudo D C, de Bicudo C E M, et al. 2021. Planothidium scrobiculatum sp. nov. (Bacillariophyta), a new monoraphid diatom from freshwater Pleistocene deposits of South America. Fottea, 21(1): 53–61, doi: 10.5507/fot.2020.016
Mayama S, Kobayasi H. 1989. Sequential valve development in the monoraphid diatom Achnanthes minutissima var. saprophila. Diatom Research, 4(1): 111–117, doi: 10.1080/0269249X.1989.9705056
Medlin L K. 1985. A reappraisal of the diatom genus Rhoiconeis and the description of Campylopyxis, gen. nov. British Phycological Journal, 20(4): 313–328, doi: 10.1080/00071618500650321
Medlin L K. 1991. Evidence for parallel evolution of frustule shape in two lines of pennate diatoms from the epiphyton. Diatom Research, 6(1): 109–124, doi: 10.1080/0269249X.1991.9705150
Medlin L K, Fryxell G A. 1984. Structure, life history and systematics of Rhoicosphenia (Bacillariophyta). IV. Correlation of size reduction with changes in valve morphology of Rh. genuflexa. Journal of Phycology, 20(1): 101–108, doi: 10.1111/j.0022-3646.1984.00101.x
Medlin L K, Round F E. 1986. Taxonomic studies of marine gomphonemoid diatoms. Diatom Research, 1(2): 205–225, doi: 10.1080/0269249X.1986.9704970
Morales E A, Ector L, Fernández E, et al. 2011. The genus Achnanthidium Kütz. (Achnanthales, Bacillariophyceae) in Bolivian streams: a report of taxa found in recent investigations. Algological Studies, 136–137: 89–130
Nakov T, Ruck E C, Galachyants Y, et al. 2014. Molecular phylogeny of the Cymbellales (Bacillariophyceae, Heterokontophyta) with a comparison of models for accommodating rate variation across sites. Phycologia, 53(4): 359–373, doi: 10.2216/14-002.1
Pinseel E, Vanormelingen P, Hamilton P B, et al. 2017. Molecular and morphological characterization of the Achnanthidium minutissimum complex (Bacillariophyta) in Petuniabukta (Spitsbergen, High Arctic) including the description of A. digitatum sp. nov. European Journal of Phycology, 52(3): 264–280, doi: 10.1080/09670262.2017.1283540
Potapova M G, Ponader K C. 2004. Two common North American diatoms, Achnanthidium rivulare sp. nov. and A. deflexum (Reimer) Kingston: morphology, ecology and comparison with related species. Diatom Research, 19(1): 33–57, doi: 10.1080/0269249X.2004.9705606
Ross R, Cox E J, Karayeva N I, et al. 1979. An amended terminology for the siliceous components of the diatom cell. Nova Hedwigia·Beiheft, 64: 513–533
Round F E, Crawford R M, Mann D G. 1990. The Diatoms: Biology and Morphology of the Genera. Cambridge: Cambridge University Press, 747
Ruck E C, Theriot E C. 2011. Origin and evolution of the canal raphe system in diatoms. Protist, 162(5): 723–737, doi: 10.1016/j.protis.2011.02.003
Stamatakis A, Alachiotis N. 2010. Time and memory efficient likelihood-based tree searches on phylogenomic alignments with missing data. Bioinformatics, 26(12): i132–i139, doi: 10.1093/bioinformatics/btq205
Taylor J C, Harding W R, Archibald C G M. 2007. A Methods Manual for the Collection, Preparation and Analysis of Diatom Samples. Pretoria: Water Research Commission
Tseplik N D, Maltsev Y I, Glushchenko A M, et al. 2021. Achnanthidium tinea sp. nov. – a new monoraphid diatom (Bacillariophyceae) species, described on the basis of molecular and morphological approaches. PhytoKeys, 174(3): 147–163, doi: 10.3897/phytokeys.174.60337
Van Heurck H. 1880. Synopsis des Diatomées de Belgique. Anvers: Atlas et Texte
Wetzel C E, Van de Vijver B, Hoffmann L, et al. 2013. Planothidium incuriatum sp. nov. a widely distributed diatom species (Bacillariophyta) and type analysis of Planothidium biporomum. Phytotaxa, 138(1): 43–57, doi: 10.11646/phytotaxa.138.1.6
Zimmermann J, Jahn R, Gemeinholzer B. 2011. Barcoding diatoms: evaluation of the V4 subregion on the 18S rRNA gene, including new primers and protocols. Organisms Diversity & Evolution, 11(3): 173–192, doi: 10.1007/s13127-011-0050-6
