To explore the geochemical characteristics and genesis of the elements in ferromanganese nodules from the Northwest Pacific, this study analyses the mineral composition, elemental content, occurrence phase and genetic mechanisms of samples by X-ray diffraction (XRD), inductively coupled plasma-optical emission spectrometry (ICP-OES), inductively coupled plasma-mass spectrometry (ICP-MS) and phase analysis methods. The results show that ferromanganese nodules are mainly hydrogenetic, and Mn/Fe content ratio ranges from 0.95 to 2.05. The major minerals are vernadite (δ-MnO₂) and amorphous ferric oxyhydroxide (FeOOH), and the secondary minerals include todorokite, birnessite, quartz and plagioclase. Ferromanganese nodules contain high contents of Co (0.24%–0.42%), Cu (0.23%–0.73%), Ni (0.33%–0.86%) and rare earth elements (REEs, 1192–1990 µg/g), which have positive Ce and negative Y anomalies but no Eu anomaly. A cluster analysis suggests that the elements in ferromanganese nodules can be divided into three groups: hydrogenetic components, including Fe, Ti, Zr, P, Pb, Co, Ba, Sr, V and REEs; diagenetic components, including Mn, Ni, Mg, Zn and Cu; and detrital components, including Al, Na, K and Ca. According to chemical leaching, ferromanganese nodules can be divided into four phases: Na, Ca, Mg and Sr are mainly enriched in the carbonate phase; Mn, Co, Ni and Ba are mainly enriched in the Mn-oxide phase; Fe, P, Ti, Cu, Pb, V, Zn, Zr and REEs are mainly enriched in the Fe-oxide phase; and Al and K are mainly enriched in the residual phase. A combination of the two different methods reveal selective enrichment of metal elements from seawater by ferromanganese nodules, featuring multisource mineralization. Moreover, through ion exchange and adsorption, approximately 71.2% of REEs are enriched in the Fe-oxide phase, 15.4% in the Mn-oxide phase and 12.4% in the residual phase, while REE contents in the carbonate phase are relatively low. In addition, under the oxic conditions of seawater, the oxidation of soluble Ce³⁺ to insoluble CeO₂ together with Fe-Mn minerals results in Ce enrichment in ferromanganese nodules. This study provides a reference for the metallogenesis of ferromanganese nodules from the Northwest Pacific.

Key words

Northwest Pacific / ferromanganese nodules / REEs / occurrence phase / genesis

Cite this Article

Jingjing Gao, Jihua Liu, Shijuan Yan, Lianhua He, Xiangwen Ren, Quanshu Yan. Geochemical characteristics and genesis of the elements in ferromanganese nodules from the Northwest Pacific[J]. Acta Oceanologica Sinica, 2025 , 44 (1) : 86 -103 . DOI: 10.1007/s13131-024-2449-x

Full Text

Less

1 Introduction

Less

Ferromanganese nodules are marine authigenic sedimentary minerals that are mainly distributed in deep-sea basins with water depths of 4000–6500 m (Hein et al., 2013, 2020; Hein and Koschinsky, 2014; Kuhn et al., 2017; Yang et al., 2024). Ferromanganese nodules are mainly composed of Fe and Mn oxides, with the cores including biological shells, fish teeth and volcanic debris, etc., and also contain trace metals with important economic values, such as Co, Ni, Cu and rare earth elements (REEs) (Nakamura et al., 2024; Shen et al., 2024; Zhong et al., 2021; Zhang et al., 2023). According to the material source and growth environment, ferromanganese nodules can be divided into three types: hydrogenetic, hydrothermal and diagenetic (Halbach et al., 1981; Bau et al., 2014; Josso et al., 2017). The first two are mainly formed by the precipitation of metal elements in the bottom seawater, while the latter is mainly formed by the migration of metal elements in the pore water of the sediment. Some of the hydrogenetic nodules have diagenetic microlayers, and diagenetic nodules also have hydrogenetic microlayers (Cheng et al., 2023a; Wu et al., 2023; Heller et al., 2018). The microlaminae of ferromanganese nodules differ between hydrogenetic and diagenetic nodules, which reflects the changes in redox environment of the bottom water (Hein et al., 2013; Wegorzewski and Kuhn, 2014; Guan et al., 2019). Usually, hydrogenetic nodules are formed on the oxic surface of sediments with a low Mn/Fe content ratio (Mn/Fe < 2.5) and vernadite (δ-MnO₂) and amorphous ferric oxyhydroxide (FeOOH) as the major minerals. Diagenetic nodules are formed in suboxic sediments with a high Mn/Fe ratio (Mn/Fe > 5) and 10 Å manganate minerals (todorokite, busselite, etc.) or 7 Å manganate minerals (birnessite, etc.) as the major minerals. There are also mixed types of hydrogenetic and diagenetic nodules (2.5 < Mn/Fe < 5) (Kuhn et al., 2017; Reykhard and Shulga, 2019; Hein et al., 2020). Moreover, the contents of Mn, Fe, Co, Ni, Cu and REEs in different types of ferromanganese nodules are also obviously different (Guan et al., 2017; Menendez, et al., 2019; Cheng et al., 2023b; Ren et al., 2023). For example, hydrogenetic nodules from the Northwest Pacific and Cook Islands Exclusive Economic Zone (EEZ) are rich in Fe, Co and Ce and poor in Ni and Cu (Hein et al., 2012, 2015; Deng et al., 2022; Ren et al., 2022; Luo et al., 2023); diagenetic nodules from the Clarion-Clipperton Zone (CCZ) in the Northeast Pacific and Central Indian Ocean Basin (CIOB) are rich in Mn, Cu and Ni and poor in Co and Ce (Hein and Koschinsky, 2014; Cao et al., 2017; Fu and Wen, 2020; Li et al., 2020; Ren et al., 2021); hydrothermal nodules from the Peru Basin in the Southeast Pacific are rich in Mn and Fe but poor in Co and REEs (Chen and Owen, 1989; Wu et al., 2023; Knaack et al., 2023).

Different types of nodules are different in source and enrichment mechanisms of metal elements in different mineral phases (Li et al., 2009; Zhong et al., 2017b). Therefore, it is necessary to analyse the occurrence phase of ferromanganese nodules to effectively reveal their elemental sources and genetic mechanisms. Usually, elements occur in the adsorbate state, carbonate phase, Mn-oxide phase, Fe-oxyhydroxide phase and residual phase (Koschinsky and Halbach, 1995; Koschinsky and Hein, 2003; Khanchuk et al., 2015; Mikhailik et al., 2017; Surya et al., 2020). More specifically, alkali and alkaline earth metals are enriched in the adsorbate and carbonate phases, and REEs are mainly present in Mn oxide (δ-MnO₂) and amorphous Fe oxyhydroxide (FeOOH) (Bau and Koschinsky, 2009; Jiang et al., 2011; Mohwinkel et al., 2014; Liang et al., 2024). Based on chemical leaching, Bai et al. (2004) found that REEs of ferromanganese crusts from the Pacific were mainly present in the Fe-oxide phase, with only a small fraction in the Mn-oxide phase, which indicates that REE enrichment was controlled by the Fe-mineral phase (goethite or amorphous FeOOH). Ren et al. (2019) studied ferromanganese nodules from the South China Sea and western Pacific by laser ablation-inductively coupled plasma-mass spectrometry (LA-ICPMS) and chemical leaching methods, and their results showed that the partitioning of REEs in the Fe- and Mn-mineral phases varied among different areas and their enrichment was controlled by vernadite and amorphous FeOOH. Cheng et al. (2023b) proposed that REE contents of ferromanganese nodules were very low in Fe mineral phases of goethite and FeOOH and Mn mineral phases of todorokite and busselite, but were mainly enriched in hydrogenetic δ-MnO₂ mineral phase.

Ferromanganese nodule in the Northwest Pacific Basin is hydrogenetic nodule. Compared with diagenetic and hydrothermal nodules, hydrogenetic nodule has higher Co and REE contents with important economic value (Hein et al., 2013, 2020; Ren et al., 2022, 2023). At present, there are few ferromanganese nodule investigation stations in this region, the research work is very limited, and the resource potential is unclear. Although previous studies have been carried out on the element content, mineral composition and genetic characteristics of ferromanganese nodules from the Northwest Pacific, the occurrence phase and enrichment mechanism of elements remain unclear. In this study, ferromanganese nodule samples from the Northwest Pacific Basin were chosen to investigate their mineral composition, elemental content, occurrence phase and genetic mechanisms. This study provides a reference for the metallogenesis of ferromanganese nodules from the Northwest Pacific.

2 Geological setting

Less

The Magellan, Marcus-Wake and Marshall Seamounts are located in the Northwest Pacific. These seamounts are the oldest hot spots of intraplate magmatism, formed between 120 Ma and 90 Ma and drifted northwestward to their present location as the Pacific Plate expanded (Koppers et al., 2003; Müller et al., 2008; Ren et al., 2016). The research area is located in an intermontane basin near the Magellan Seamounts and Marcus-Wake Seamounts in the Northwest Pacific, with a water depth of 5000–6500 m (Deng et al., 2019). The Northwest Pacific Basin is an area with low primary production and low inputs of terrigenous materials. The sediments are mainly pelagic clay with a thickness of 0–40 m and a sedimentation rate of 0.8–1.0 mm/ka (Luo et al., 2023). In addition, the Lower Circumpolar Deep Water (LCDW) rich in oxygen and low in temperature and salinity, which flows through the study area, provides a suitable environment for the occurrence of ferromanganese nodules (Kawabe et al., 2003). Ferromanganese nodules found in the study area are located on the surface of pelagic clay sediments (Machida et al., 2016).

3 Materials and methods

Less

3.1 Sample collection and description

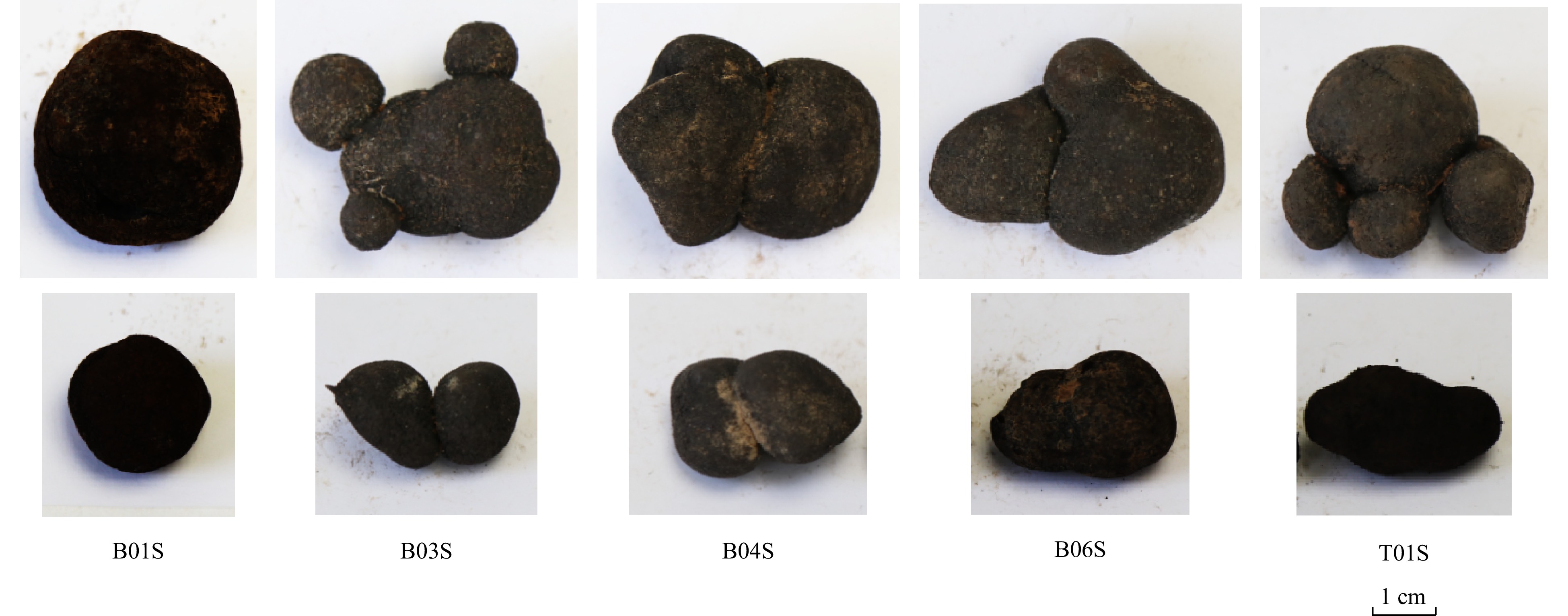

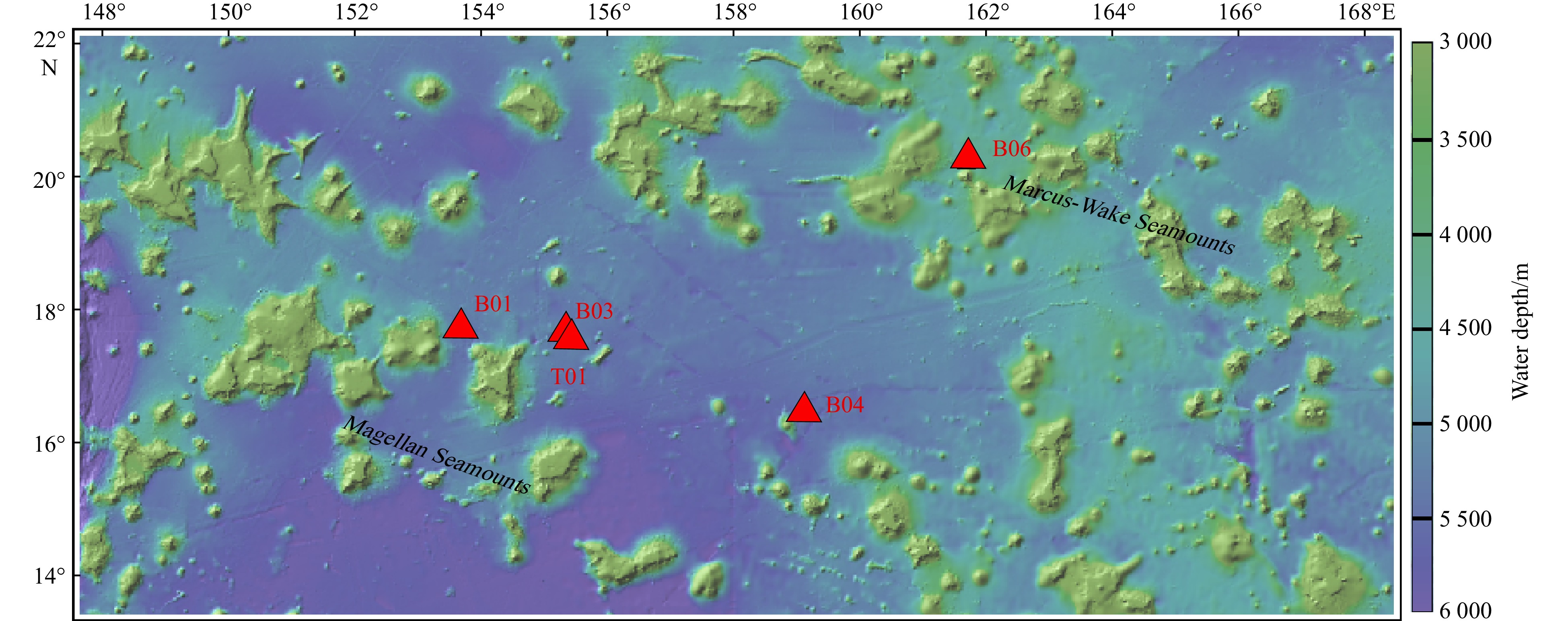

Ferromanganese nodule samples from the Northwest Pacific were collected during the Day 67-I expedition of R/V Xiangyanghong 01. Samples were collected by dredging or boxing, and the sampling locations are shown in Fig. 1. Ferromanganese nodule samples were retrieved at 5 stations, namely, B01, B03, B04, B06 and T01. The samples were black, oolitic on the surface, and had no cores or biological traces on their surface. Sample B01 contains spherical nodules with diameters of 2 × 2 cm and 3 × 3 cm, and Samples B03, B04, B06 and T01 contain conjunctive nodules with diameters of 4 × 3 cm and 3 × 2 cm. Sample descriptions and photos are shown in Table 1 and Fig. 2, respectively. After drying, the samples were ground to 200 mesh by an agate mortar and then placed in a clean sample bag for later treatments.

3.2 Major and trace element analytical methods

50.00(±0.50) mg of samples were weighed into a sample liner. Then, 1 mL of nitric acid, hydrochloric acid and hydrofluoric acid, respectively, were added to the samples, which were then placed in a sealed steel sleeve and heated in an oven at 190℃ for 48 h. After cooling, the samples were heated on an electric heating plate at 150℃ to dryness. After addition of 3 mL of 30% (v/v) hydrochloric acid solution and 0.5 mL of 1 µg/g rhodium internal standard solution, the samples were then put in a sealed steel sleeve to heat once again in an oven at 150℃ for 8 h. After cooling, 2% (v/v) nitric acid solution was added to a volume to 50 mL for measurement. Major elements were determined by ICP-OES (Thermo Fisher, iCAP7000, USA), and REEs were determined by ICP-MS (Thermo Fisher, iCAPRQ, USA) at the Key Laboratory of Marine Geology and Metallogeny, First Institute of Oceanography, Ministry of Natural Resources. The standard materials GBW 07295 and GBW 07296 were used to check data quality of the analysis, with relative errors of the elements less than 5%, and the recoveries between 90% and 110%.

3.3 Chemical leaching method

According to the chemical leaching method proposed by Koschinsky et al. (Koschinsky and Halbach, 1995; Koschinsky and Hein, 2003), four phases of the samples were sequentially extracted at the Key Laboratory of Marine Geology and Metallogeny, First Institute of Oceanography, Ministry of Natural Resources. In brief, 1 g of samples was put in a 200 mL reaction bottle, mixed with the leaching reagent, and shaken at room temperature. The leaching solution was centrifuged for analysis. The residue was washed twice with Milli-Q water and then transferred to the next leaching step. The experimental steps were as follows. Leach 1 (L1): exchangeable ions and carbonate phase (referred to as the carbonate phase) was extracted with 30 mL of 1 mol/L acetic acid solution (pH = 2.5); Leach 2 (L2): Mn oxide phase was extracted with 175 mL of 0.1 mol/L hydroxylamine hydrochloride solution (pH = 3.7); Leach 3 (L3): Fe oxide phase was extracted with 175 mL of 0.2 mol/L ammonium oxalate solution (pH = 3.5); Leach 4 (L4): major and trace elements in residual phase were analysed according to the methods in Section 3.2. During the experiment, the relative deviations were less than 5%. The acetic acid, hydroxylamine hydrochloride, oxalic acid and ammonium oxalate used in the experiment were all of superior purity; the nitric acid and hydrofluoric acid were all obtained by secondary azeotropic distillation; and the water was secondary deionized water.

3.4 Mineral identification method

The mineral identification of the samples was performed by XRD (Nippon Science Corporation, D/MAX2500HB+/PC, Japan) at the Key Laboratory of Marine Geology and Metallogeny, First Institute of Oceanography, Ministry of Natural Resources. The scanning range was 3°–75°, the step size was 0.02°, the scanning speed was 2°/min, the voltage was 40 kV, the current was 80 mA, and a Cu rake was used. XRD data were obtained using Jade 6.0 software.

4 Results

Less

4.1 Mineralogical characteristics

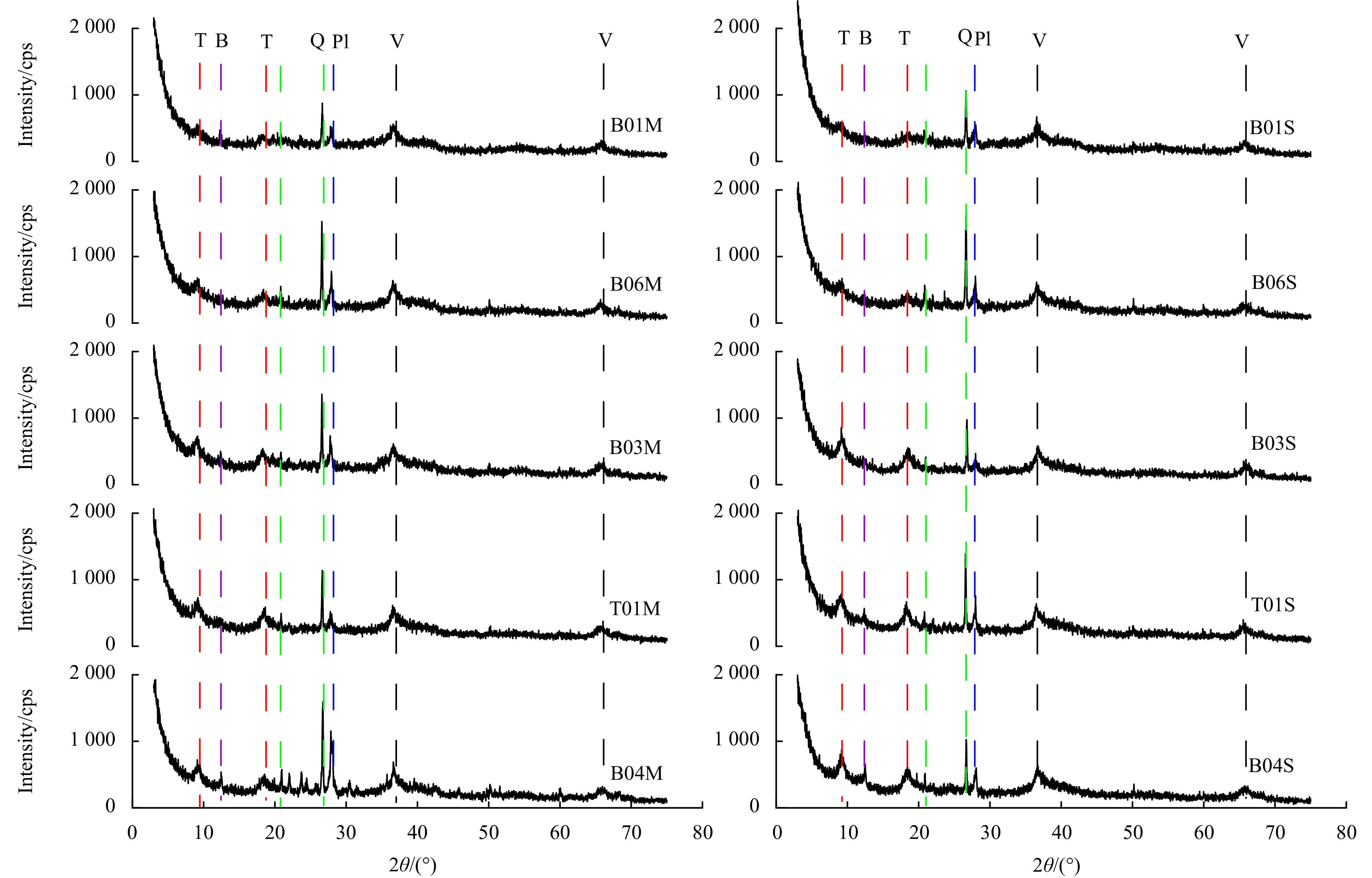

The XRD patterns of ferromanganese nodules from the Northwest Pacific are shown in Fig. 3. The major Mn minerals are vernadite (V, δ-MnO₂) with small amounts of todorokite (T) and birnessite (B). Vernadite is a hydrogenic oxide formed under strongly oxic conditions (Hein et al., 2000; Wegorzewski and Kuhn, 2014; Guan et al., 2019), indicating that the ferromanganese nodules are mainly hydrogenetic. However, todorokite generally forms under suboxic conditions (Hein et al., 2013; Yin et al., 2019; Cheng et al., 2023b), indicating that the ferromanganese nodules are affected by early diagenesis to some extent. Moreover, no diffraction peak of crystalline Fe mineral is detected in ferromanganese nodule samples, combined with the chemical leaching results of extracted reactive Fe in the following text, it can be inferred that the ferromanganese nodules contain a large amount of amorphous ferric oxyhydroxide (FeOOH). In addition, ferromanganese nodules contain small amounts of detrital minerals, including quartz (Q) and plagioclase (Pl), indicating that the ferromanganese nodules are affected by terrigenous inputs (Cui et al., 2012; Ren et al., 2023).

4.2 Major and trace element characteristics

The major and trace element contents of ferromanganese nodules from the Northwest Pacific are shown in Table 2. The results show that Mn and Fe have the highest contents among the major elements, with Mn ranging from 16.55% to 24.94% and Fe ranging from 12.19% to 17.40%. And then, Al, Ca, Mg, Na and Ti contents range from 0.64% to 3.67%. K, P, Co, Cu, Ni, Ba, Sr and Pb contents range from 0.07% to 0.86%. Finally, V, Zn and Zr contents range from 420 µg/g to 905 µg/g. Mn/Fe and Ca/P ratios range from 0.95 to 2.05 and from 5.60 to 9.59, respectively. According to the previous studies (Ren et al., 2016), Ca/P ratio of phosphatized crusts in the Pacific is less than 2, the ferromanganese nodules in the study area are not affected by phosphatization.

The ferromanganese nodules are enriched in REEs (Table 2), with their contents ranging from 1192 µg/g to 1990 µg/g. Among the REEs, Ce has the highest contents ranging from 597 µg/g to 1216 µg/g, and accounting for approximately 50% of the total REEs. The contents of light rare earth element (LREE) and heavy rare earth element (HREE) range from 950 μg/g to 1693 μg/g and from 223 μg/g to 297 μg/g, respectively, with LREE/HREE ratios ranging from 3.94 to 5.86, indicating that LREE contents are higher than those of HREEs. The δCe values [δCe = 2Ce_N/(La_N + Pr_N), where Ce_N, La_N and Pr_N are contents normalized to the respective contents in the North American shale, NASC] range from 1.86 to 2.81 (δCe > 1), suggesting a positive Ce anomaly. The δEu values [δEu = 2Eu_N/(Sm_N + Gd_N), where Eu_N, Sm_N and Gd_N are contents normalized to the respective contents in the NASC] range from 0.98 to 1.02 (δEu ≈ 1), suggesting no Eu anomaly. The δY values [δY = 2Y_N/(Dy_N + Ho_N), where Y_N, Dy_N and Ho_N are contents normalized to the respective contents in the NASC] range from 0.67 to 0.82 (δY < 1), suggesting a negative Y anomaly. The Y/Ho ratios range from 16.8 to 20.2. According to the previous studies (He et al., 2011), the Y/Ho ratio of non-phosphatized crusts in the Pacific ranges from 17 to 22, so ferromanganese nodules in the study area are not affected by phosphatization.

In addition, the sizes with diameters of 2 × 2 cm, 3 × 3 cm, 3 × 2 cm and 4 × 3 cm have no obvious effect on the element contents, while the types of spherical nodules and conjunctive nodules have an effect on the element contents. For example, Fe and REE contents of spherical nodules are higher than those of conjunctive nodules, and Mn, Cu, Ni and Zn contents of conjunctive nodules are higher than those of spherical nodules. There are some differences in the element contents between spherical nodules and conjunctive nodules, which may be related to the differences of redox environment and material source.

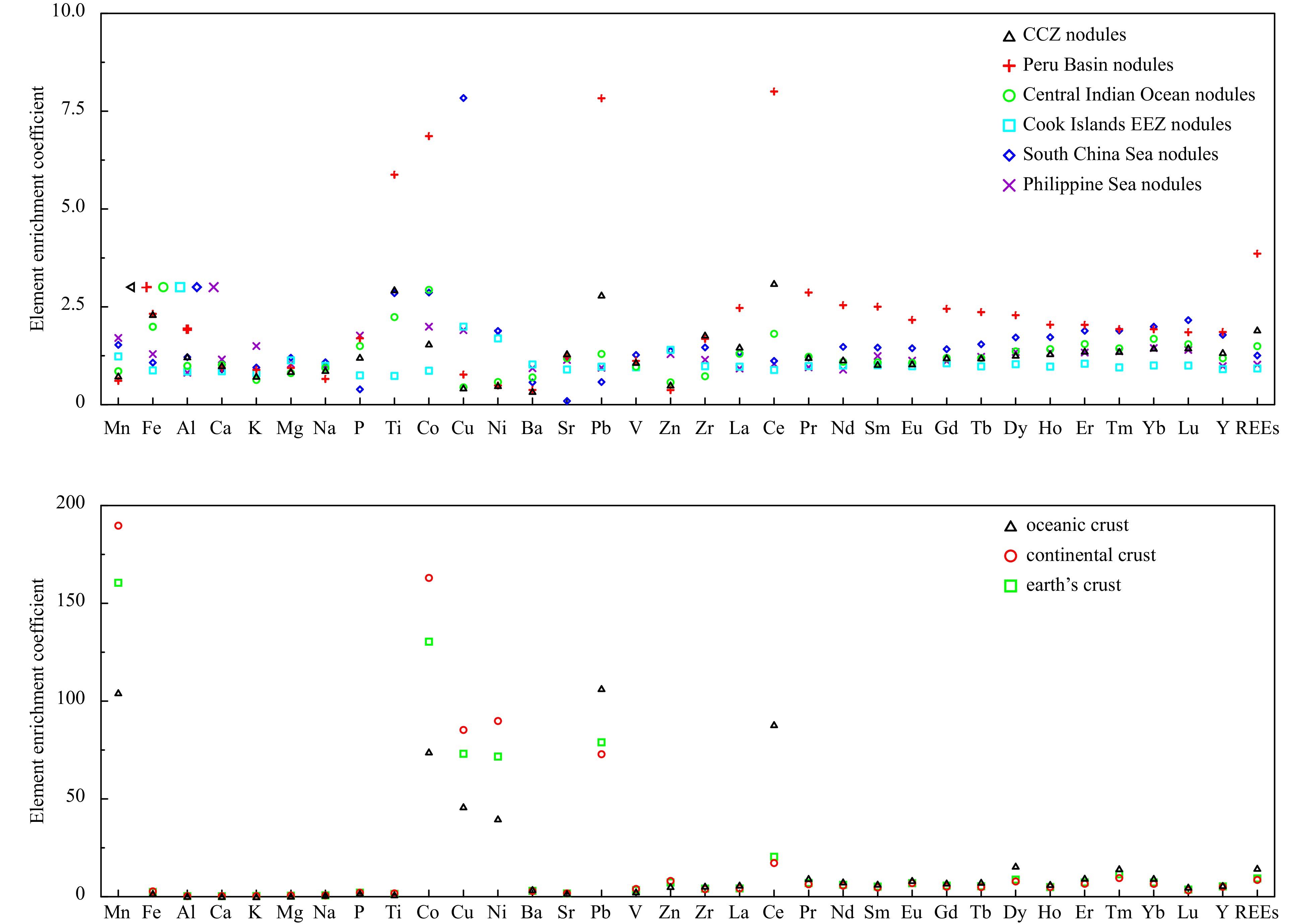

The element contents of ferromanganese nodules in the study area are compared with those of other oceanic nodules, oceanic crust, continental crust and the Earth’s crust to characterize their relative enrichments. The element enrichment coefficients are shown in Fig. 4. The studied nodules are enriched in Fe, Ti, Co, Pb and REEs compared to the nodules in Clarion-Clipperton Zone (CCZ), Peru Basin and Central Indian Ocean Basins, enriched in Cu, Ni and Zn compared to the nodules in Cook Islands Exclusive Economic Zone (EEZ), South China Sea and Philippine Sea. Meanwhile, the studied nodules are enriched in Mn, Co, Cu, Ni, Pb, Zn and REEs in comparison with oceanic crust, continental crust and Earth’s crust.

5 Discussion

Less

5.1 Origin of the ferromanganese nodules

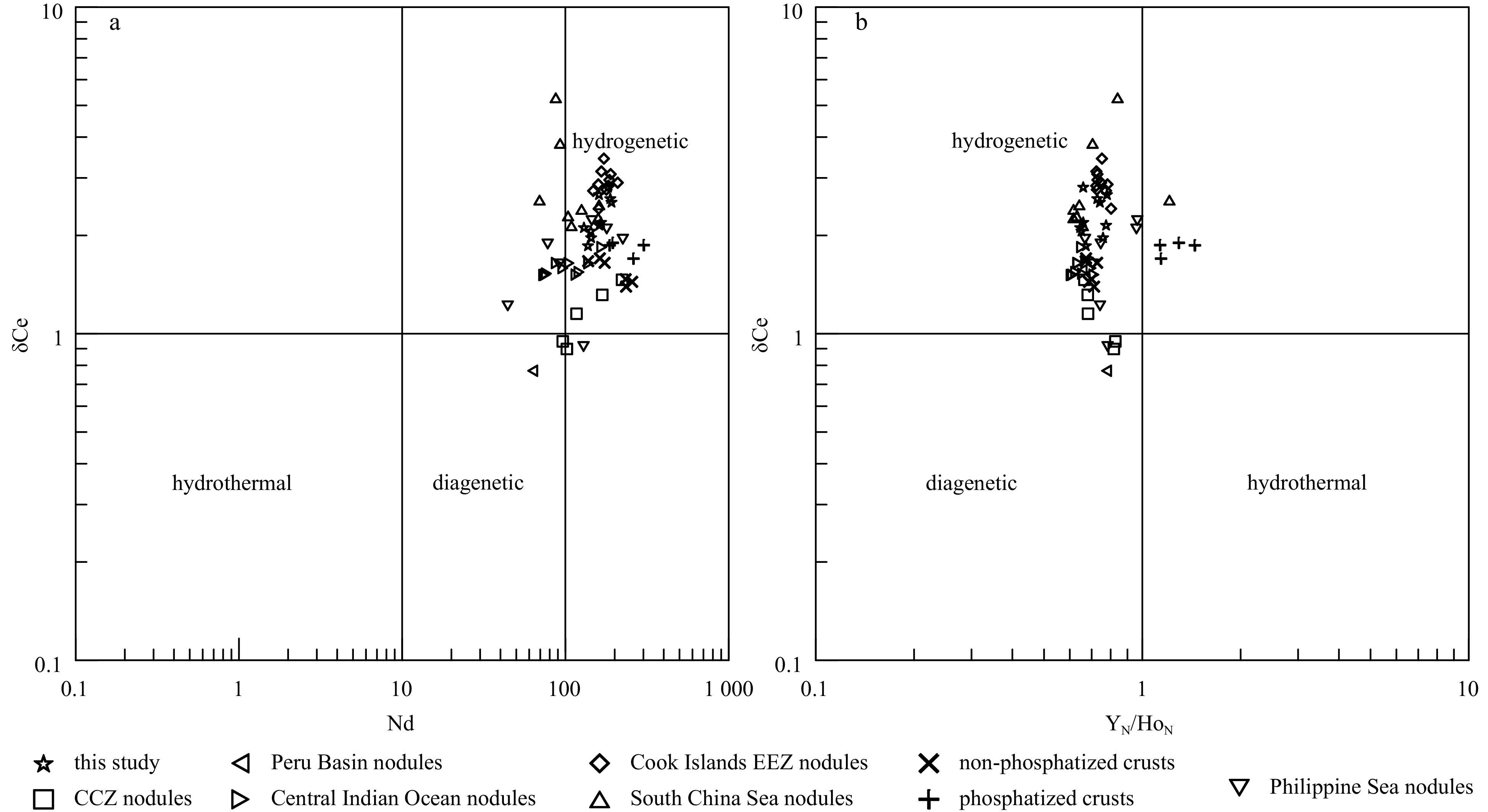

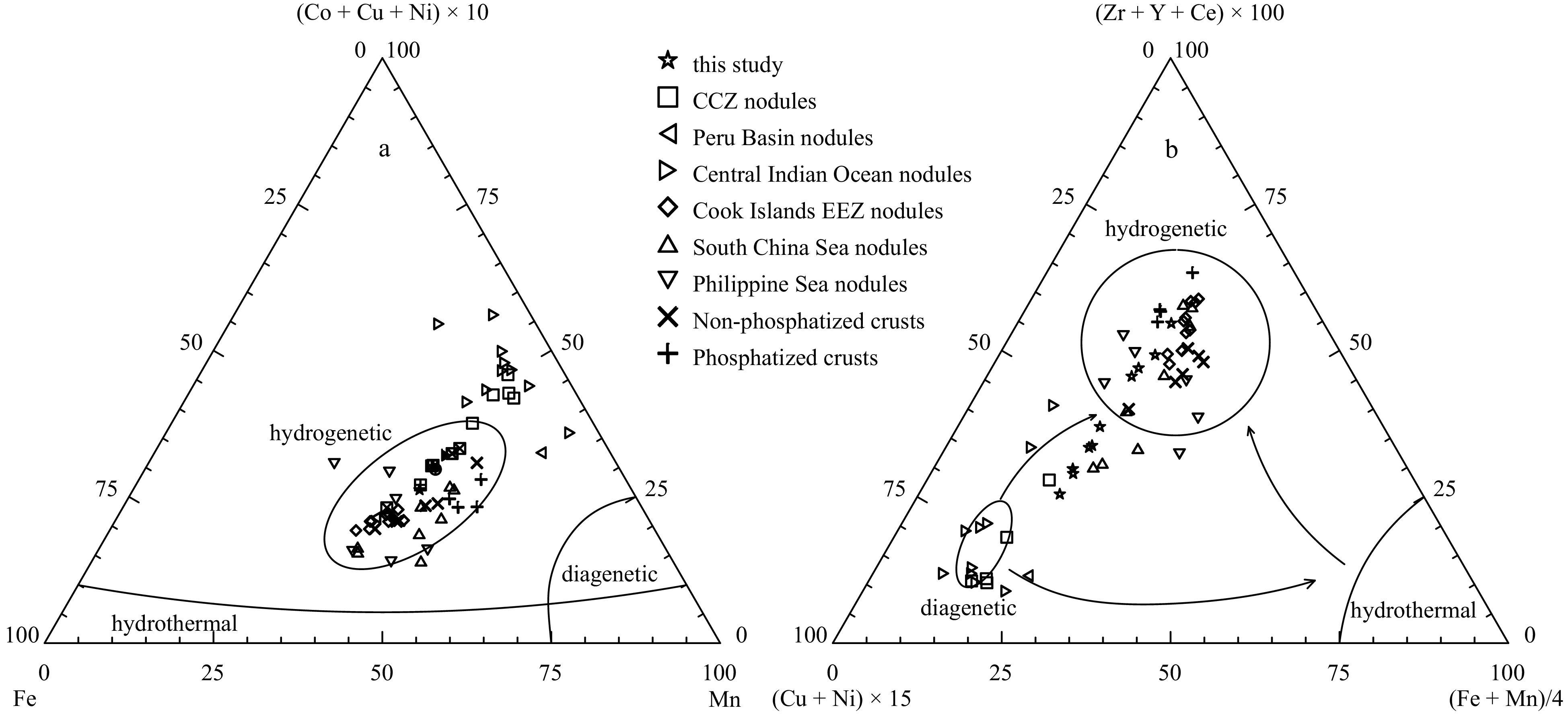

At present, the genetic classification of ferromanganese nodules using elemental geochemical characteristics has been widely recognized. Halbach et al. (1981) proposed a triangle diagram based on Mn, Fe, Co and Ni+Cu to classify the origin types by analysing a large number of nodule and crust samples in the Pacific. Since it is difficult to distinguish diagenetic origin or hydrothermal origin from triangle diagrams, Bau et al. (2014) proposed the use of rare earth element indices (such as δCe, the Y/Ho ratio and Nd content) to classify the origin types by analysing nodule and crust samples from different sea areas around the world. Therefore, according to the Fe − (Co + Cu + Ni) × 10 − Mn ternary diagram proposed by Bonatti et al. (1972) and the (Cu + Ni) × 15 − (Zr + Y + Ce) × 100 − (Fe + Mn)/4 ternary diagram proposed by Josso et al. (2017), the origin of ferromanganese nodules can be distinguished. The results show that (Fig. 5) most of the sample points are located in the hydrogenetic zone, and a few are located in the transition zone between hydrogenetic and diagenetic processes, indicating that the ferromanganese nodules in the study area are mainly hydrogenetic and less affected by diagenesis. Moreover, according to the δCe-Nd and δCe-Y_N/Ho_N correlation diagram proposed by Bau et al. (2014), the origin of ferromanganese nodules can also be distinguished. The results show that (Fig. 6) the sample points are all located in the hydrogenetic zone (Nd > 100 µg/g, δCe > 1 and Y_N/Ho_N < 1), indicating that the ferromanganese nodules in the study area are mainly hydrogenetic. Moreover, according to submarine photography, the ferromanganese nodules are located below the carbonate compensation depth (CCD) with a water depth greater than 5100 m, and combined with the oxygen-rich metallogenic conditions, low temperature and low sedimentation rate in the study area (Kawabe et al., 2003; Ren et al., 2022; Luo et al., 2023), the ferromanganese nodules are mainly hydrogenetic.

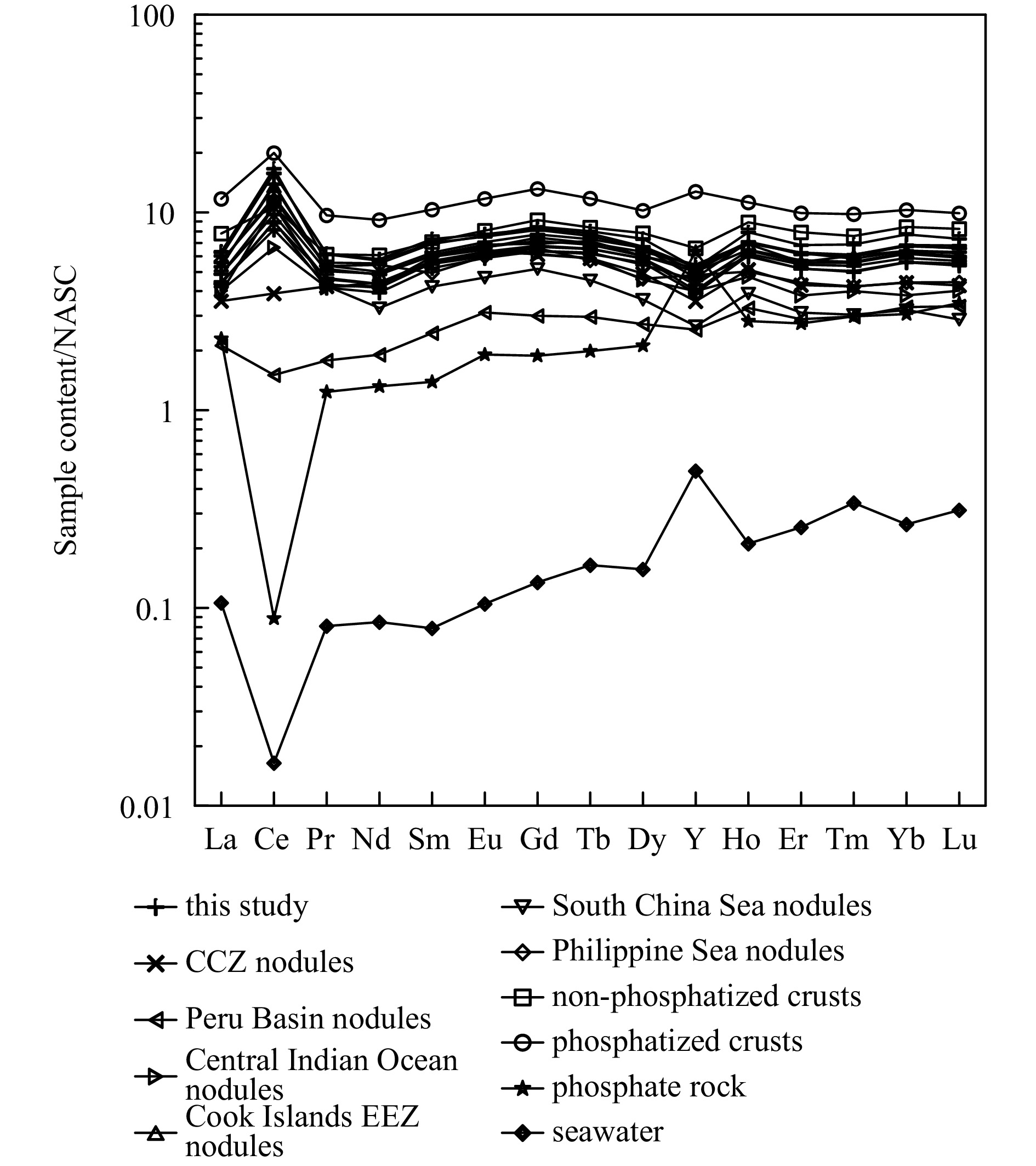

NASC-normalized REE distribution patterns of ferromanganese nodules from the Northwest Pacific are shown in Fig. 7. The results show that the nodules in the study area, as well as the nodules in the Cook Islands EEZ, South China Sea, Philippine Sea and the crusts in the Northwest Pacific, have positive Ce and negative Y anomalies. However, the nodules in the CCZ, Peru Basin and Central Indian Ocean Basin have weak or no Ce anomaly. Moreover, the REE pattern of the studied nodules shows a mirror relationship with that of seawater, indicating that the REEs of ferromanganese nodules are mainly from seawater (Ren et al., 2022, 2024).

5.2 Elemental correlation of ferromanganese nodules

To reveal the material source of ferromanganese nodules from the Northwest Pacific, elemental correlation analysis are applied, and the correlation coefficient matrix is shown in Table 3. The results show that Mn is positively correlated with Mg, Cu, Ni and Zn but negatively with Fe, P, Al, Ti, Pb, Zr and REEs. Fe is positively correlated with P, Ti, Co, Ba, Sr, Pb, V, Zr and REEs but negatively with Na, K, Mg, Cu, Ni and Zn. Al is positively correlated with Ca, K and Na but negatively with Mn, Co, Ba, Sr and V. Therefore, Mn, Mg, Cu, Ni and Zn are mainly related to Mn mineral phases, Fe, P, Ti, Co, Ba, Sr, Pb, V, Zr and REEs are mainly related to Fe mineral phases, and Al, Ca, K and Na are mainly related to Al mineral phases. Mineral phases are the main factor controlling the difference of selective enrichment.

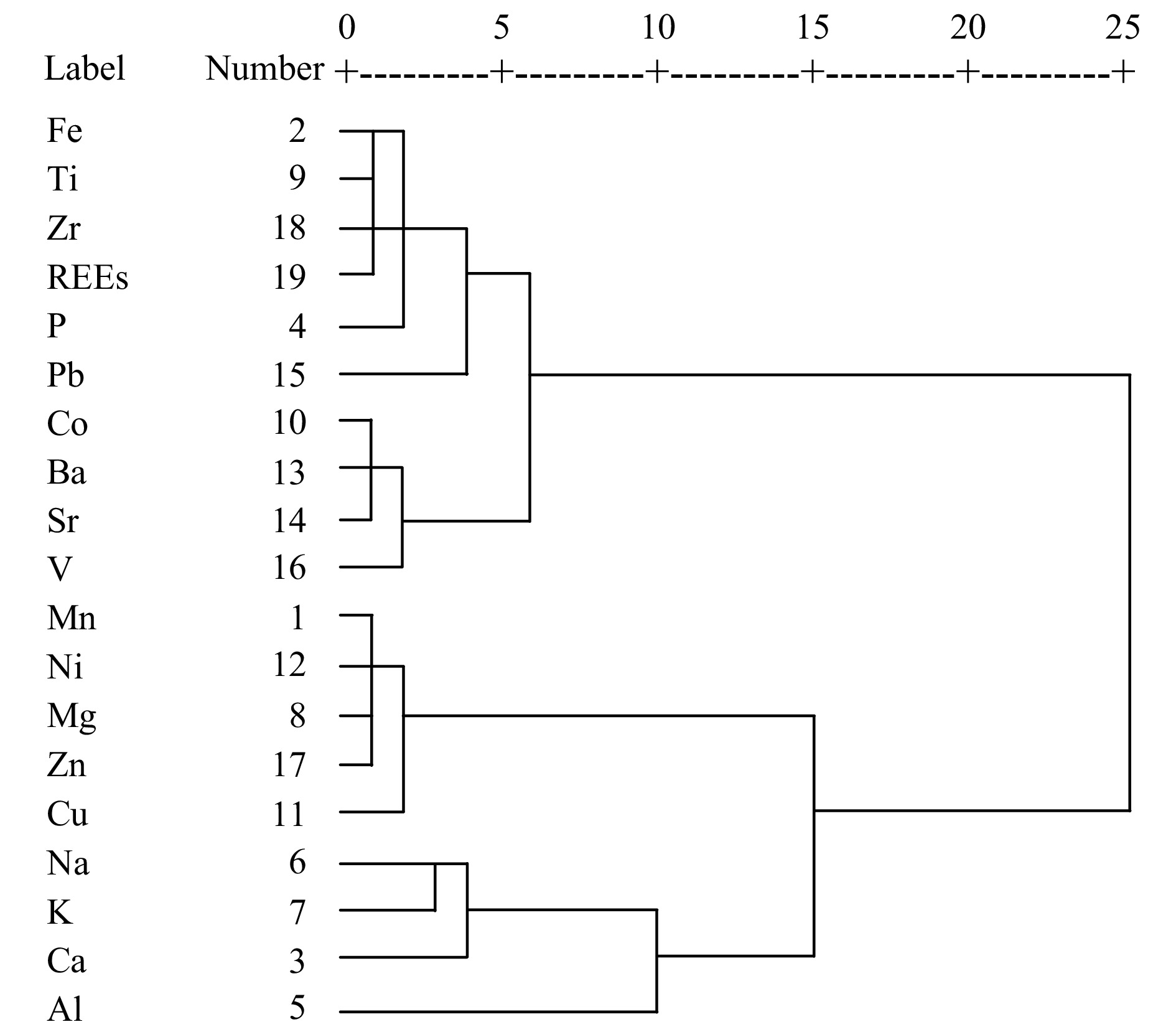

To determine the material source of ferromanganese nodules, the principal component analysis is performed, and the results are shown in Table 4. According to the Kaiser Meyer Olkin (KMO) and Bartlett sphericity tests, the elemental data meet the requirements of the principal component analysis. The results show that there are three main factors with eigenvalues greater than 1 and the cumulative variance contribution of the three main factors is 95.5%. In main factor F1, Fe, Ti, Zr, Pb and P have positive correlations and are of hydrogenetic origin, and Mn, Ni, Zn, Mg and Cu have negative correlations and are of diagenetic origin. In main factor F2, V, Ba, Sr, Co and REEs have positive correlations and are of hydrogenetic origin, and Al and Na have negative correlations and are of detrital origin. In main factor F3, Ca, K and Na have positive correlations and are of detrital origin.

To further determine material source of the ferromanganese nodules, a cluster analysis of the elements is performed, and the cluster combination diagram is shown in Fig. 8. According to the mineral phases of ferromanganese nodules, the elements can be categorized into three groups at a distance of 15 related to Fe, Mn and Al mineral phases, respectively. In ferromanganese nodules, the elements of Fe, Ti, Zr, P, Pb, Co, Ba, Sr, V and REEs, which are related to Fe mineral phase, are of hydrogenetic source. The elements of Mn, Ni, Mg, Zn and Cu, which are related to Mn mineral phase, are of diagenetic source. The elements of Al, Na, K and Ca, which are related to Al mineral phase, are of detrital source. Therefore, the element sources of ferromanganese nodules can be divided into three types: hydrogenetic, diagenetic and detrital, which indicates that ferromanganese nodules have undergone a very complex mineralization process, showing the characteristics of multisource mineralization (Ren et al., 2022, 2024; Luo et al., 2023).

5.3 Occurrence phase of ferromanganese nodules

5.3.1 Elemental occurrence characteristics

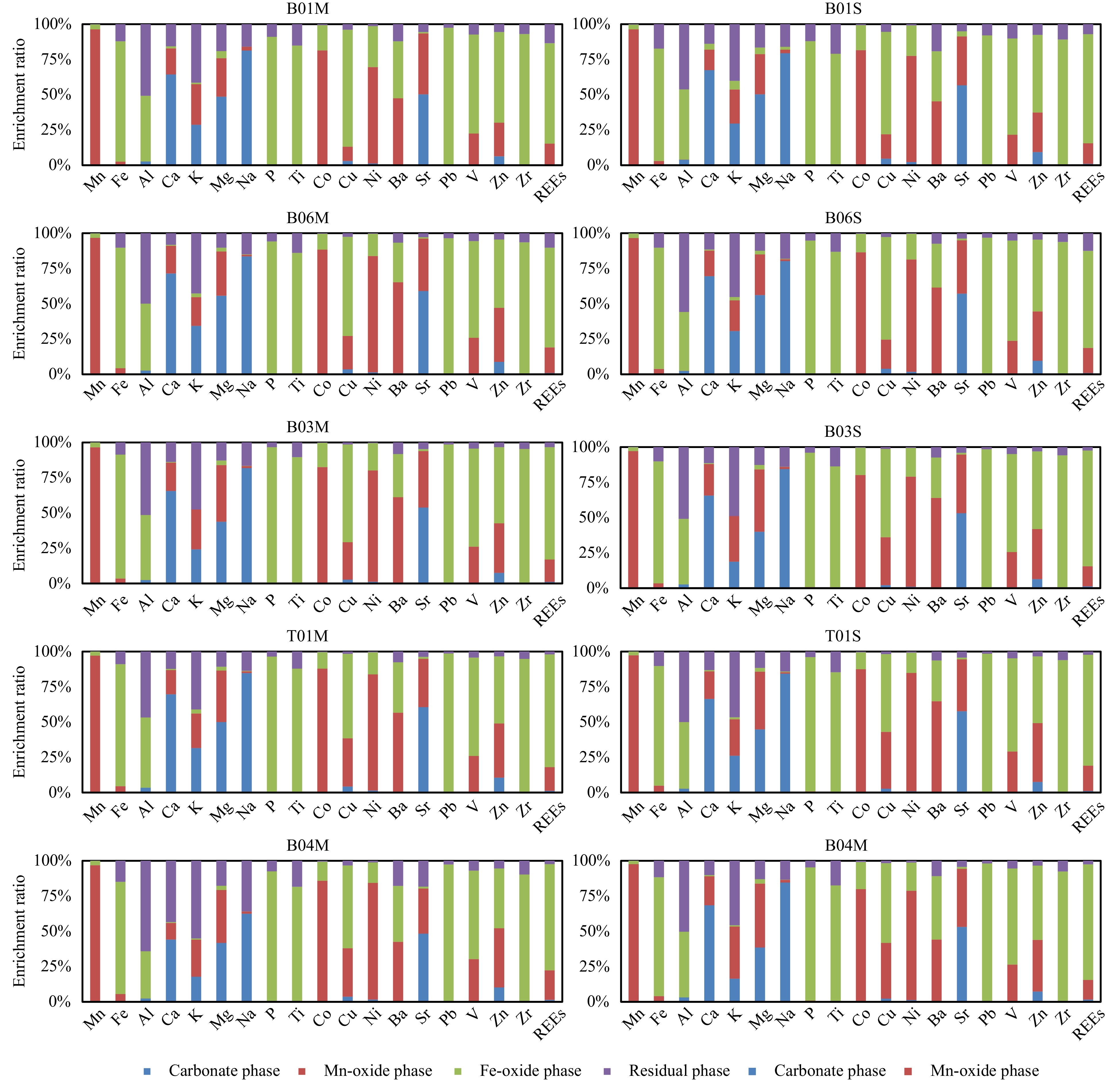

Using the chemical leaching method, ferromanganese nodules can be divided into four phases: the adsorbed cation and carbonate phase (collectively called carbonate phase hereafter), Mn-oxide phase, Fe-oxide phase and residual phase. The results of elemental occurrence phases in ferromanganese nodules from the Northwest Pacific are shown in Table 5 and Fig. 9. Na, K, Ca, Mg and Sr are mainly enriched in the carbonate phase, with their percentages of 80.7%, 65.3%, 47.0% and 55.0%, respectively, but K is much less enriched. Mn, Co, Ni and Ba are mainly enriched in the Mn-oxide phase, with their percentages of 96.8%, 84.1%, 78.9% and 54.8%, respectively, but Ca, K, Mg, Cu, Sr, V, Zn and REEs are much less enriched. Fe, P, Ti, Cu, Pb, V, Zn, Zr and REEs are mainly enriched in the Fe-oxide phase, with their percentages of 84.6%, 93.6%, 84.9%, 66.0%, 97%, 68.4%, 51.8%, 93.0% and 71.2%, respectively, but Al, Co, Ni and Ba are much less enriched. Al and K are mainly enriched in the residual phase, with their percentages of 51.6% and 45.4%, respectively, but Fe, Ca, Mg, Na, Ti, Ba and REEs are much less enriched. Moreover, REE enrichment in the different phases follows the order of Fe-oxide phase > Mn-oxide phase > residual phase > carbonate phase. Approximately 71.2% of REEs are enriched in the Fe oxide phase, 15.4% in the Mn-oxide phase and 12.4% in the residual phase. REE contents in the carbonate phase are low, with a phase enrichment ratio of 1.01%. The phase results of ferromanganese nodules are basically consistent with those of ferromanganese crusts from the Northwest Pacific (Gao et al., 2023).

The ferromanganese nodules in the study area are mainly hydrogenetic, and the elements come from seawater. Na, K, Ca, Mg and Sr in seawater mainly exist as free cations and enter carbonate minerals of ferromanganese nodules through ion exchange or adsorption (Byrne, 2002; Bai et al., 2004). According to the above phase analysis, almost all of the Mn (96.6%) is from the Mn-oxide phase, and most of the Fe (84.6%) is from the Fe-oxide phase. Marine Fe-Mn oxides are authigenic components that selectively enrich metals from seawater (Ren et al., 2022, 2024). The main Mn mineral is vernadite (δ-MnO₂), which has negative surface charges; the main Fe mineral is amorphous ferric oxyhydroxide (FeOOH), which has low positive charges (Koschinsky and Halbach, 1995; Koschinsky and Hein, 2003). According to the colloidal adsorption theory, positively charged ions and complexes in seawater are adsorbed to δ-MnO₂, and negatively charged or uncharged ions and complexes are adsorbed to FeOOH. Moreover, δ-MnO₂ and FeOOH have large specific surface areas and strong adsorption capacities (Koschinsky and Hein, 2003; Zhong et al., 2017b). Mn, Co, Ni and Ba, which occur mainly as free cations, are selectively adsorbed to δ-MnO₂; Fe, P, Ti, Cu, Pb, V, Zn, Zr and REEs, which occur mainly as anionic complexes, are selectively adsorbed to FeOOH. Meanwhile, the residual phase is mainly composed of silico-aluminate detrital minerals and clay minerals, and is derived mainly from terrigenous detrital materials, which is usually enriched in Al and K. In addition, based on the distributions of elements in seawater and at the water-sediment interface, Ren et al. (2024) propose a new two-stage model for nodule metallogenesis. Stage Ⅰ is the initial enrichment of trace elements by the sinking of ferromanganese hydroxide colloids, which regulate the distributions of scavenged-type elements in the water column. Stage Ⅱ is the top-down migration of trace elements dominated by bioparticle cycling, which promotes the re-enrichment of trace elements by ferromanganese hydroxides at the water-sediment interface. So the enrichment mechanism of elements in ferromanganese nodules needs to be further studied.

5.3.2 REE patterns of the occurrence phase

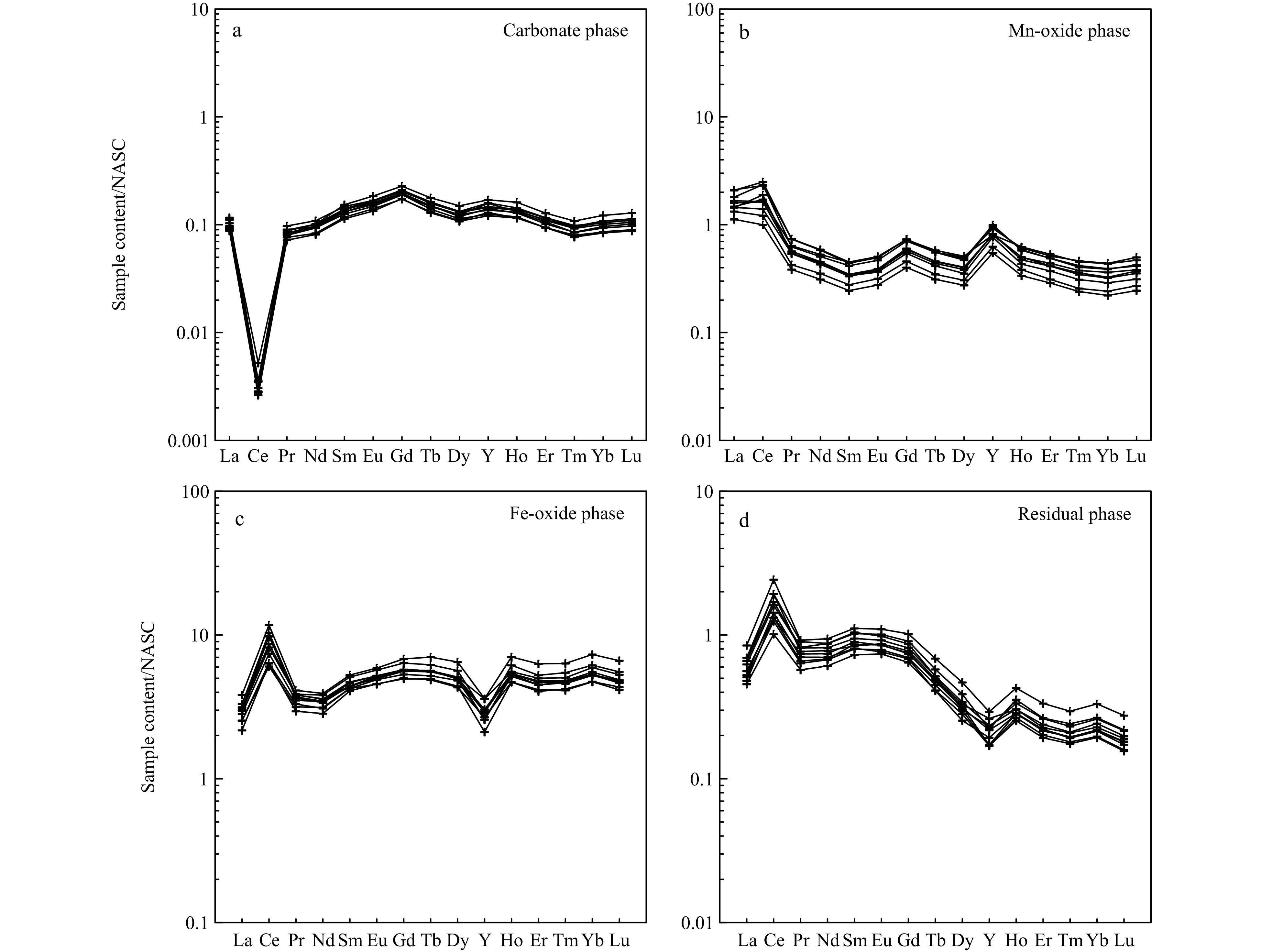

REEs have unique geochemical properties, and their contents, characteristic parameters and distribution patterns play important roles in revealing their source and growth environment. For example, δCe and δEu are important indicators of the redox environment, and the Y_N/Ho_N ratio is an important parameter for tracing mineralization (Zhong et al., 2017a, 2017b). The REE distribution patterns in the four occurrence phases of ferromanganese nodules are shown in Fig. 10. Although the REE contents of each sample are different, the REE patterns in the same phase are basically similar, and the characteristic parameters (such as δCe and δY) and variation trends are also relatively similar, indicating that the mineralization processes controlling REE enrichment in ferromanganese nodules were basically similar.

The REE contents in carbonate phase range from 12.8 µg/g to 16.7 µg/g with a relatively low phase enrichment ratio of 1.01%. The water depth of ferromanganese nodules in this study area is more than 5100 m, below the carbonate compensation depth (CCD) of 4400 m, where carbonate is almost completely dissolved (Xu et al., 2008). Therefore, the REE contents in carbonate phase are very low. In addition, δCe ranges from 0.03 to 0.06 (δCe < 1), with a negative Ce anomaly, and δY ranges from 1.08 to 1.23 (δY > 1), with a positive Y anomaly. These REE patterns are similar to those in seawater, indicating that the carbonates inherit the REE pattern of seawater and thus the REEs mainly come from seawater (Zhong et al., 2017b). The REE contents in Mn-oxide phase range from 145 µg/g to 314 µg/g with a phase enrichment ratio of 15.4%. δCe ranges from 1.33 to 1.94 (δCe > 1), with a positive Ce anomaly, and δY ranges from 1.42 to 1.96 (δY > 1), with a positive Y anomaly. Ferromanganese nodules in the study area are mainly hydrogenetic and form in an oxic environment (Koschinsky and Hein, 2003; Hein et al., 2020). As a result, soluble Ce³⁺ is oxidized to insoluble Ce⁴⁺ under the oxic conditions of seawater, leading to the formation of CeO₂ precipitates together with Fe-Mn minerals, which results in approximately 14.8% of Ce to be enriched in the Mn-oxide phase and a positive Ce anomaly due to Ce fractionation from other REEs.

The REE contents in Fe-oxide phase range from 829 µg/g to 1413 µg/g, with a relatively high percentage of 71.2%, indicating relatively high selective enrichment of REEs in the Fe-oxide phase. δCe ranges from 2.12 to 3.10 (δCe > 1), with a positive Ce anomaly, and δY ranges from 0.46 to 0.67 (δY < 1), with a negative Y anomaly. Under the oxic conditions of seawater (Koschinsky and Hein, 2003; Hein et al., 2020), soluble Ce³⁺ is oxidized to insoluble Ce⁴⁺, leading to the formation of CeO₂ precipitate together with Fe-Mn minerals, which results in an enrichment of approximately 71.8% of Ce in the Fe-oxide phase and a positive Ce anomaly. Unlike Ce, Y cannot undergo redox reactions in ferromanganese nodules, and Y readily desorbs from ferric oxyhydroxide, leading to Y fractionatation from other REEs with a negative Y anomaly (Huang et al., 2021). The REE contents in residual phase range from 130 µg/g to 270 µg/g with a phase enrichment ratio of 12.4%. δCe ranges from 1.97 to 2.75 (δCe > 1), with a positive Ce anomaly, and δY ranges from 0.57 to 0.83 (δY < 1), with a negative Y anomaly. The REE patterns in residual phase are different from those in terrigenous sediments. The difference may be related to the differences of redox environment and material source (Zhong et al., 2017b), but further study is needed.

6 Conclusions

Less

The mineral compositions, geochemical characteristics, occurrence phases and genetic mechanisms of ferromanganese nodule samples from the Northwest Pacific are studied.

The ferromanganese nodules are mainly hydrogenetic, with the major minerals being vernadite (δ-MnO₂) and amorphous ferric oxyhydroxide (FeOOH), and the secondary minerals including todorokite, birnessite, quartz and plagioclase. Mn and Fe contents are greater than those of other elements, Co, Cu, Ni and REEs are enriched in ferromanganese nodules, and the REE distribution patterns show positive Ce and negative Y anomalies but no Eu anomaly.

According to the cluster analysis method, the elements of ferromanganese nodules can be classified into three groups: hydrogenetic components, including Fe, Ti, Zr, P, Pb, Co, Ba, Sr, V and REEs; diagenetic components, including Mn, Ni, Mg, Zn and Cu; and detrital components, including Al, Na, K and Ca. Using the chemical leaching, ferromanganese nodules can be divided into four phases: carbonate phase enriched in Na, Ca, Mg and Sr; Mn-oxide phase enriched in Mn, Co, Ni and Ba; Fe-oxide phase enriched in Fe, P, Ti, Cu, Pb, V, Zn, Zr and REEs; and residual phase enriched in Al and K. Therefore, the difference between the two methods reflects the selective enrichment of metal elements by ferromanganese nodules from seawater, featuring multisource mineralization.

Through ion exchange and adsorption, the REEs of ferromanganese nodules are mainly enriched in the Fe-oxide phase, which is followed by the Mn-oxide phase and residual phase. However, the REE contents in the carbonate phase are relatively low. Under the oxic seawater conditions, the oxidation of soluble Ce³⁺ to insoluble CeO₂ together with Fe-Mn minerals is expected to result in Ce enrichment in ferromanganese nodules.
