基于荧光偏振免疫分析技术检测药茶中的黄曲霉素

PDF下载

杨晓涵 , 徐国杰 , 张欣悦 , 厉妲 , 李红霞 , 孙宇峰 , 张帆 , 刘春生 ^*

药学学报 | 研究论文 2017,52(4): 620-624

收起

药学学报 | 研究论文 2017, 52(4): 620-624

基于荧光偏振免疫分析技术检测药茶中的黄曲霉素

全屏

杨晓涵, 徐国杰, 张欣悦, 厉妲, 李红霞, 孙宇峰, 张帆, 刘春生^*

作者信息

北京中医药大学中药鉴定系, 北京 100102

A fluorescence polarization immunoassay for the detection of aflatoxins in herbal teas

Xiao-han YANG, Guo-jie XU, Xin-yue ZHANG, Da LI, Hong-xia LI, Yu-feng SUN, Fan ZHANG, Chun-sheng LIU^*

Affiliations

School of Chinese Material Medica, Beijing University of Chinese Medicine, Beijing 100102, China

出版时间: 2017-04-12 doi: 10.16438/j.0513-4870.2017-0185

文章导航

摘要

收起

本文旨在利用荧光偏振免疫 (FPIA) 分析技术检测被污染的药茶样品中的黄曲霉素.通过化学方法合成了荧光示踪物, 并通过薄层色谱 (TLC) 和质谱 (MS) 进行检测.荧光偏振值通过偏振光进行检测.结果表明, 黄曲霉素的FPIA检出限 (LOD) 为20 ng·mL^-1, 半数抑制质量浓度 (IC₅₀) 为371.80 ng·mL^-1, 检测范围为92.76~252.32 ng·mL^-1.与常规的高效液相检测方法相比较, FPIA检测方法具有快速, 成本低等优点, 可适用于药茶中黄曲霉素的高通量筛选.

关键词

黄曲霉素 / 荧光偏振免疫分析 / 示踪物 / 药茶

Abstract

收起

A rapid fluorescence polarization immunoassay (FPIA) has been developed for the determi-nation of aflatoxins in samples of naturally-contaminated herbal teas. The tracers were synthesized by chemical method and determined by thin layer chromatography (TLC) and mass spectroscopy (MS). Fluorescence polarization was evaluated by the detection of polarized light. The results showed that the limit of detection (LOD) of FPIA for aflatoxins was 20 ng·mL^-1, the IC₅₀ was 371.80 ng·mL^-1, and the linear range of the developed FPIA was 92.76-252.32 ng·mL^-1. Compared with conventional HPLC methods, the FPIA developed in this study has the advantages of short analysis time and low cost. This method may be suitable for high-throughput screening of aflatoxins in herbal teas.

Key words

aflatoxins / fluorescence polarization immunoassay / tracer / herbal teas

引用本文

杨晓涵, 徐国杰, 张欣悦, 厉妲, 李红霞, 孙宇峰, 张帆, 刘春生. 基于荧光偏振免疫分析技术检测药茶中的黄曲霉素. 药学学报, 2017 , 52 (4) : 620 -624 . DOI: 10.16438/j.0513-4870.2017-0185

Xiao-han YANG, Guo-jie XU, Xin-yue ZHANG, Da LI, Hong-xia LI, Yu-feng SUN, Fan ZHANG, Chun-sheng LIU. A fluorescence polarization immunoassay for the detection of aflatoxins in herbal teas[J]. Acta Pharmaceutica Sinica, 2017 , 52 (4) : 620 -624 . DOI: 10.16438/j.0513-4870.2017-0185

正文

收起

Aflatoxins (AFs) are a group of toxic secondary metabolites that are mainly produced by Aspergillusflavus and A. parasiticus^[1]. The four most important are AFB1, AFB2, AFG1, and AFG2, all of which are highly toxic and carcinogenic^[2]. Of these compounds, AFB1 and AFB2 are the most commonly occurring. They are often found in crops, fruits and meat, such as peanuts, wheat and so on. Recent studies have found that aflatoxin contamination in herbal teas has become increasingly prominent, which poses a public health threat. Due to the widespread occurrence of AF-producing fungi and the occurrence of the aflatoxins in a number of crops, robust efforts have been made for aflatoxin detection^{[3, 4]}.

Most of the traditional methods for detection of aflatoxins are based on chemical or biological analysis. They are generally accurate, but time-consuming^{[5, 6]}. Presently, simple and rapid immunoassays are considered as suitable methods for detection of small molecules^[7-9]. Fluorescence polarization immunoassay (FPIA) is one of most popular immunoassay methods due to its high throughput and automation^{[10, 11]}. FPIA measures the polarized light of solution by monitoring the interaction between the tracers and the specific antibodies. In general, the polarization value is inversely proportional to free unlabelled antigen (i.e., mycotoxin) in solution that competes with the tracers^[12]. The schematic diagram of FPIA are shown in Figure 1. In this study, we describe our preliminary efforts towards developing a rapid and sensitive FPIA for the detection of aflatoxins.

Materials and methods

收起

Reagents and chemicals Aflatoxins B1, carboxy methoxylamine (CMO), pyridine, benzene, 5-aminoflurescein (5-AF), ethyl acetate, tetrahydrofuran (THF), anhydrous sodium sulfate (Na₂SO₄), EDCI, HOPT, and methylene chloride were purchased from Gaohua Weiye, Beijing, China. Aflatoxin total immunoaffinity columns and multifunctional enzyme standard instrumenst were purchased from Molecylar Devices (SUPLCO, Bellefonte, PA, USA). Fluorescent microporous plates were purchased from Shenzhen Industrial Ltd., Guangzhou, China.

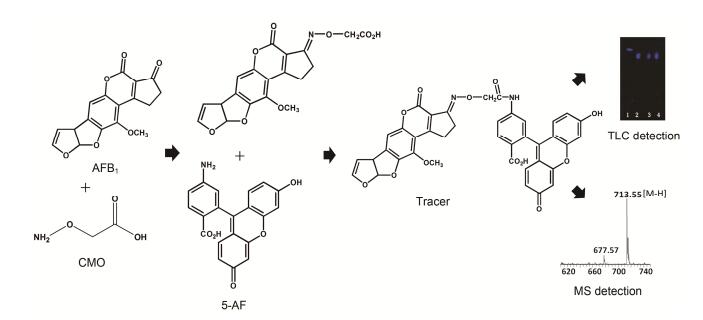

Synthesis and detection of the oxime AFB1 (10 mg, 30 μmol), carboxymethoxylamine (CMO, 20 mg, 60 μmol), and 5 mL pyridine were combined in a round-bottom flask which was shaken for 24 h at room temperature. The pyridine was evaporated at 50 ℃, and the remaining 2 mL product was dissolved in 10 mL distilled deionized water. NaOH (0.1 mol·L^-1, about 5 mL) was added drop-wise to adjust the solution to pH 8.0, completely dissolving the product. To this solution, 2×5 mL benzene was added to separate the organic and aqueous phases. The aqueous phase was acidified with 5 mol·L^-1 HCl to pH 2, and a white-brown precipitate formed. The compound was then extracted with ethyl acetate (3×20 mL) and dried with 2 g anhydrous Na₂SO₄. The solvent was evaporated and 9.5 mg (20 μmol) oxime was obtained. A small portion (about 10 μL) was dissolved in 100 μL THF and detection by TLC using ethyl acetate/methanol/ ammonia = 32:17:5.

Synthesis and detection of the tracer 20 μL EDCI, HOPT of CH₂Cl₂ solution (10 mg·mL^-1) was added to a small portion (about 20 μL) of the solution above. Dichloromethane (1 mL) was added and maintained for 5 minutes. This was followed by the addition of 20 μL of a solution of 5-amino fluorescein in THF (10 mg·mL^-1) and shaking overnight. A small portion (about 10 μL) was purified by TLC using chloroform/methanol/acetic acid = 40:10:3. The main yellow band at R_f = 0.7 was collected, eluted with 0.5 mL methanol, centrifuged for 1 min and stored the supernatant at −20 ℃ in the dark. The synthesized tracer solution was detected by mass spectrometry.

Selection of working concentration of tracer and antibody The tracer solution was serially diluted to 1/100, 1/200, 1/400, 1/800, and 1/1 600 in borate buffer (BB) (50 mmol·L^-1, pH 8.5), measured by fluorescence, and selected according to the total final fluorescence intensity, which was 10 times higher than the background of BB.

Determination of antibody concentration in the system: the anti-AF (A9555, Sigma) were serially diluted to 1/200, 1/400, 1/800, 1/1 600, 1/3 200, 1/6 400, 1/12 800. Diluted antibody (70 μL) was added to each 96-hole microplate well with 70 μL tracer (350 ng·mL⁻¹) and 70 μL BB to make a total volume of 210 μL. The reaction mixture was incubated for 10 min at room temperature and then detected by FPIA. The FPIA was measured at λ_ex = 485 nm and λ_em = 530 nm (emission cutoff = 515 nm, G factor = 1.0). The optimal antibody dilution (70% of the tracer binding to the antibody) for anti-AF was determined to be 1/1 600, 1/2 000 and 1/2 500; this dilution was then used in the FPIA calibration curve for AFs.

Standard curve of FPIA Curve fitting was performed using a four parameter logistic model as follows: Y= (A-D)/[1 + (X/C)B+D]; A, response at high asymptote; B, slope factor; C, concentration corresponding to 50% specific binding (IC₅₀); D, response at low asymptote; X, alibration concentration.

HPLC detection method Hexane (200 μL), fluoroacetic acid (100 μL) and aflatoxins standards (20 μL) were added to sample bottles oscillating for 30 s and allowed to derivatize for 20 min at 40 ℃. Samples were placed in a water bath to nearly dry followed by addition of 300 μL acetonitrile−water (2:8, v:v) and thorough mixing. The chromatographic conditions were: C18 Agilon column; fluorescence excitation wavelength: 360 nm; emission wavelength: 460 nm; column temperature: 35 ℃; sample volume: 10 μL; mobile phase: A: water, B: acetonitrile; flow rate: 1.0 mL·min⁻¹. Gradient elution as described in Table 1.

Results

收起

1 Detection of tracer

The expansion agent (chloroform/methanol/acetic acid = 40:10:3) was used in TLC and the 354 nm wavelength of the UV lamp was used for detection of tracers. As shown in Figure 2, R_f of aflatoxin tracer was about 0.8. The identity of the synthesized tracer was confirmed by mass spectrometry in negative ion mode; the molecular weight of the tracer was found to be 714 (Figure 2). These results indicate that the oxime was successfully conjugated with 5-AF.

2 The selection of the optimized concentration of antibody in FPIA

In general, the fluorescence intensity of the tracer solution should be 10 times higher than the BB solution. As a result, the optimized concentration of the tracer was determined to be 30 nmol·L^-1. And dilution ratio of the antibody should generally be selected at the moderate level of fluorescence intensity, so the optimized dilution ratio of the antibody was determined to be 1/2 000 (Figure 3).

3 Establishment of standard curve of FPIA

The FPIA calibration curve for AFB1 (Figure 4) indicated that the limit of detection (LOD) and IC₅₀ were 20 and 371.80 ng·mL^-1, respectively, and the detection range was 92.76−252.32 ng·mL^-1.

4 Analysis of HPLC method

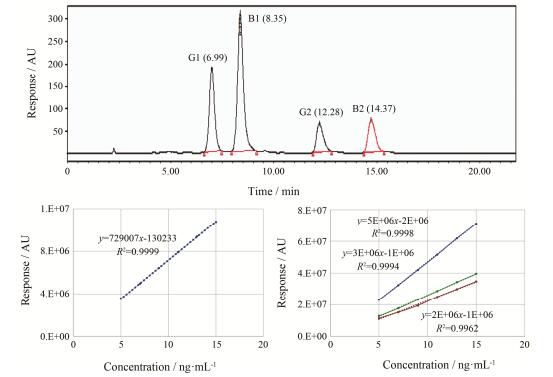

As shown in Figure 5, the chromatographic peaks of four aflatoxins were significantly separated by HPLC method. It indicates the HPLC method established in this study can be used for the qualitative analysis of aflatoxins. The standard curve of aflatoxins also showed that the linear correlation coefficient was higher than 0.99 and LOD of aflatoxins was about 5 ng·mL^-1 (Figure 5). Results suggest the HPLC detection method can be used for determination of aflatoxin B1, B2, G1 and G2.

5 The analysis of herbal tea samples by HPLC and FPIA

Seventy-two samples of six important herbal teas including medlar (the fruit), honeysuckle (flower), American ginseng (roots), Gynostemma (whole plant), Ganoderma lucidum spores (bacteria) and velvet (animals) were collected from market for further detection of aflatoxins by HPLC and FPIA. As a consequence, FPIA detected traces of aflatoxins in two samples of Gynostemma. Comparative analyses of these herbal teas samples by both the FPIA and HPLC methods showed a good correlation (r = 0.964). These results indicate that, instead of traditional method of HPLC, FPIA we established may also be suitable for determination of aflatoxins in herbal teas.

Discussion

收起

We established a method for the detection of aflatoxins by FPIA in this study, making it possible for rapid quantitative and qualitative detection of aflatoxins in herbal teas. In FPIA, tracers can be easily synthesized by chemical method and purified by chromatography. Also, the whole detection process takes less than 15 min. In contrast, HPLC detection method is time-consuming and expensive. Thus, FPIA developed in this work has advantages of short analysis time, low cost and high sensitivity for detection of aflatoxins.

Moreover, there are some problems that need to be solved in further studies. First, the value of fluorescence polarization is larger than that reported in the other literatures. This phenomenon may be related to testing instruments, the access to converting and effect of background signal. In this work, the fluorescence polarization of tracer value showed sufficient differences after adding antibody, which indicates the final measurement value may have significant correlation with aflatoxin content. Therefore, the developed FPIA can be used for the qualitative and quantitative detection of aflatoxina. The next problem concerns the effect of methanol on the antibody. The fluorescence polarization values measured by the antibody in the experiment were lower than the real value, which may be affected by the methanol in the system according to other papers. In this study, there was methanol in the presence of storage fluid and aflatoxins standard. However, since the solution was diluted more than 50 times, the impact of methonal is small. The third problem concerns the activity of the antibody, which varied according to storage conditions, storage time and

reaction temperature. Therefore, it is recommended that close attention should be paid to the preservation of the antibody across experiments. The antibody solution should be saved at −20 ℃ and the working dilutions should be stored at 4 ℃. Freeze-thawing cycles for antibody should be avoided. It is recommended to reconstruct the standard curve to ensure the accuracy of measurement before the detection of different batches of samples at different time.

基金

收起

参考文献

收起

文献

收起

参考文献引证文献

排序方式：

[1]

Chen J, Zhang XH, Yang MH, et al. Detection of aflatoxin in Chinese herbal medicine[J]. Chin Tradit Herb Drugs (中草药), 2006, 3:463-466.

[2]

Liu XD. Detection method of aflatoxin and overall solu-tion[J]. Food S Guide (食品安全导刊), 2015, 9:95.

[3]

Liu Y, Hu JH, Liu CZ. The toxicological effects and detec-tion methods of aflatoxin[J]. Biolo Pro (生物加工), 2013, 3:83-88.

[4]

Ma YS. Detection method and comparison of aflatoxin in grain and oil food[J]. Fri Sci (科学之友), 2012, 7:18-19.

[5]

Wan LZ, Jun T, Lin C, et al. Hetero-enzyme-based two-round signal amplification strategy for trace detection of aflatoxin B1 using an electrochemical aptasensor[J]. Biosens Bioelectron, 2016, 80:570-574.

[6]

Mécheri S, Peltre G, Weyer A, et al. Production of a monoclonal antibody against a major allergen of Dactylis glomerata pollen (Dg1)[J]. Ann Inst Pasteur Immunol, 1985, 136C2:195-209.

[7]

Lippolis V, Pascale M, Valenzano S, et al. A rapid fluores-cence polarization immunoassay for the determination of T-2 and HT-2 toxins in wheat[J]. Anal Bioanal Chem, 2011, 401:2561-2571.

[8]

Zezza F, Longobardi F, Pascale M, et al. Fluorescence polarization immunoassay for rapid screening of ochra-toxin A in red wine[J]. Anal Bioanal Chem, 2009, 395:1317-1323.

[9]

Chun HS, Choi EH, Chang HJ, et al. A fluorescence polari-zation immunoassay for the detection of zearalenone in corn[J]. Anal Chim Acta, 2009, 639:83-89.

[10]

Ren LL, Meng M, Wang P, et al. Determination of sodium benzoate in food products by fluorescence polarization immunoassay[J]. Talanta, 2014, 121:136-143.

[11]

Maragos CM, Kim EK. Detection of zearalenone and related metabolites by fluorescence polarization im-munoassay[J]. J Food Protect, 2004, 67:1039-1043.

[12]

Lippolis V, Pascale M, Visconti A. Optimization of a fluo-rescence polarization immunoassay for rapid quantification of deoxynivalenol in durum wheat-based products[J]. J Food Protect, 2006, 69:2712-2719.
