基于生物信息分析研究黄芩素通过NOX2/STAT1/NF-κB通路抑制LPS诱导的BV-2细胞神经炎症的作用机制

PDF下载

杨吾燕 ¹^,²^,³ , 闫姣姣 ¹^,²^,³ , 高丽 ¹^,²^,³^,^* , 秦雪梅 ¹^,²^,³^,^*

药学学报 | 研究论文 2022,57(3): 716-723

收起

药学学报 | 研究论文 2022, 57(3): 716-723

基于生物信息分析研究黄芩素通过NOX2/STAT1/NF-κB通路抑制LPS诱导的BV-2细胞神经炎症的作用机制

全屏

杨吾燕¹^,²^,³, 闫姣姣¹^,²^,³, 高丽¹^,²^,³^,^*, 秦雪梅¹^,²^,³^,^*

作者信息

1.山西大学中医药现代研究中心, 山西太原 030006

2.山西大学化学生物学与分子工程教育部重点实验室, 山西太原 030006

3.地产中药功效物质研究与利用山西省重点实验室, 山西太原 030006

通讯作者:

*高丽, Tel: 86-351-7018379, E-mail: gaoli87@sxu.edu.cn;

秦雪梅, Tel: 86-351-7011501, E-mail: qinxm@sxu.edu.cn

Baicalein inhibits neuroinflammation via NOX2/STAT1/NF-κB pathway in LPS-induced BV-2 cells based on bioinformatics methods

Wu-yan YANG¹^,²^,³, Jiao-jiao YAN¹^,²^,³, Li GAO¹^,²^,³^,^*, Xue-mei QIN¹^,²^,³^,^*

Affiliations

1. Modern Research Center for Traditional Chinese Medicine, Shanxi University, Taiyuan 030006, China

2. The Key Laboratory of Chemical Biology and Molecular Engineering of Ministry of Education, Shanxi University, Taiyuan 030006, China

3. The Key Laboratory of Effective Substances Research and Utilization in TCM of Shanxi Province, Taiyuan 030006, China

出版时间: 2022-03-12 doi: 10.16438/j.0513-4870.2021-1339

文章导航

摘要

收起

本研究旨在确定黄芩素对脂多糖(lipopolysaccharide, LPS) 诱导的BV-2细胞神经炎症的分子机制。采用生物信息分析、分子对接方法预测黄芩素的潜在靶点和作用机制, 并使用免疫荧光染色和Western blot技术对关键靶点一氧化氮合酶(inducible nitric oxide synthase, iNOS) 和环氧合酶-2 (cyclooxygenase-2, COX-2)、信号转导子和转录激活子1/核因子κB (signal transducer and activator of transcription 1/nuclear factor kappa-B, STAT1/NF-κB) 信号通路相关蛋白及其上游调控因子NADPH氧化酶2 (NADPH oxidase-2, NOX2) 进行验证, 研究黄芩素改善神经炎症的作用机制。结果表明, 生物信息分析和分子对接技术预测出iNOS和COX-2为关键靶点, NF-κB信号通路为关键通路。实验验证表明, 在LPS诱导的BV-2细胞中, 黄芩素能显著降低iNOS和COX-2的表达水平, 有效抑制NF-κB和STAT1的磷酸化及NOX2的生成。综上, 黄芩素可通过NOX2 (gp91^phox/p47^phox)/STAT1/NF-κB途径显著抑制LPS诱导的BV-2细胞炎症。

关键词

黄芩素 / 神经炎症 / 网络药理学 / 分子对接 / 作用机制

Abstract

收起

This study identified the exact molecular mechanisms of baicalein on neuroinflammation in lipopolysaccharide (LPS)-induced BV-2 cells. Bioinformatics methods and molecular docking were integrated for predicting the potential targets and mechanisms of baicalein. Immunofluorescence staining and Western blot were used to analyze the predicted key targets [inducible nitric oxide synthase (iNOS), cyclooxygenase-2 (COX-2)], the expression level of protein related to signal transducer and activator of transcription 1/nuclear factor kappa-B (STAT1/NF- κB) signaling pathway and its upstream regulator NADPH oxidase-2 (NOX2), and then the mechanism of baicalein in alleviating neuroinflammation was explored. The results showed that iNOS and COX-2 were predicted as the key targets and NF-κB signaling pathway was one of the important pathways by bioinformatics methods and molecular docking. Experimental verification showed that baicalein could significantly reduce the expression of iNOS and COX-2, inhibit the phosphorylation of NF-κB and STAT1 and the production of NOX2 in LPS-induced BV-2 cells. To sum up, baicalein could effectively inhibit the inflammatory reaction in LPS-induced BV-2 cells through regulating NOX2 (gp91^phox/p47^phox)/STAT1/NF-κB pathway.

Key words

baicalein / neuroinflammation / network pharmacology / molecular docking / mechanism

引用本文

杨吾燕, 闫姣姣, 高丽, 秦雪梅. 基于生物信息分析研究黄芩素通过NOX2/STAT1/NF-κB通路抑制LPS诱导的BV-2细胞神经炎症的作用机制. 药学学报, 2022 , 57 (3) : 716 -723 . DOI: 10.16438/j.0513-4870.2021-1339

Wu-yan YANG, Jiao-jiao YAN, Li GAO, Xue-mei QIN. Baicalein inhibits neuroinflammation via NOX2/STAT1/NF-κB pathway in LPS-induced BV-2 cells based on bioinformatics methods[J]. Acta Pharmaceutica Sinica, 2022 , 57 (3) : 716 -723 . DOI: 10.16438/j.0513-4870.2021-1339

正文

收起

脑衰老是一个高度复杂的生物过程, 可导致认知功能下降和神经退行性疾病的发生。神经炎症是神经退行性疾病的主要特征, 与中枢神经系统中小胶质细胞的激活和炎性因子的过度分泌有关^{[1, 2]}。

小胶质细胞是脑内关键的免疫细胞, 小胶质细胞的激活可增加促炎因子和活性氧的生成, 进而引发神经元凋亡或坏死^{[3, 4]}。因此, 抑制小胶质细胞的异常激活可以延缓多种衰老相关疾病的病程。脂多糖(lipopolysaccharide, LPS) 是一种来源于革兰阴性菌的内毒素, 通过诱导促炎因子的分泌, 从而引发神经炎症。因此, LPS诱导的BV-2小胶质细胞和原代小胶质细胞模型常用于神经炎症的研究^[5]。

黄芩素是从黄芩根中分离得到的一种黄酮类化合物, 具有抗氧化和抗炎作用^[6]。课题组前期研究发现, 黄芩素不仅可减轻D-半乳糖诱导的衰老大鼠认知障碍^[7], 还可改善快速老化小鼠SAMP8的学习和记忆功能^[8]。同时, 课题组证明黄芩素通过抑制LPS诱导的BV-2细胞促炎因子的释放而表现出抗炎作用^[9]。但是, 黄芩素改善神经炎症的具体分子机制尚不明晰。

基因差异表达是指在一定刺激下, 基因的mRNA表达水平发生显著性改变的现象。大量文献报道^[10-12], LPS可诱导BV-2细胞的许多基因发生差异表达, 一氧化氮合酶(inducible nitric oxide synthase, iNOS) 和环氧合酶-2 (cyclooxygenase-2, COX-2) 是差异表达最显著的基因之一。iNOS和COX-2是重要的炎症介质, 均受信号转导子和转录激活子1/核因子κB (signal transducer and activator of transcription 1/nuclear factor kappa-B, STAT1/NF-κB) 信号通路的调控^[13]。NADPH氧化酶2 (NADPH oxidase-2, NOX2) 是一个关键的酶系统, 当LPS激活小胶质细胞后会迅速导致活性氧的产生增加^[14], 进一步激活STAT1/NF-κB信号通路^{[15, 16]}。此外, iNOS和COX-2的过度激活会使前列腺素E₂ (prostaglandin E₂, PEG₂) 和一氧化氮(nitric oxide, NO) 的合成增加, 这也是导致神经元损伤和神经炎症发生的主要原因^{[17, 18]}。

基于文献报道的LPS激活BV-2细胞相关的差异表达基因, 本研究进行了生物信息学分析和网络分析, 寻找在该过程中发挥核心作用的靶点; 同时采用分子对接方法, 根据蛋白质与小分子的形状匹配和能量匹配原理, 计算结合亲和力, 预测小分子化合物的作用靶点^[19]。通过上述方法, 预测黄芩素在LPS诱导的BV-2细胞中调节的潜在靶点和通路, 进行实验验证, 以阐释黄芩素抗神经炎症的分子机制。

1 材料与方法

收起

药品与试剂 小鼠小胶质细胞株(BV-2细胞)、MEM培养基、特级胎牛血清、青霉素-链霉素溶液(100×) 和BCA试剂盒购自上海生工生物工程有限公司; 黄芩素(批号JZ20150711, 质量分数 > 98%) 购自南京景竹生物科技有限公司; LPS购自Sigma公司; Hoechst 33342、细胞膜/细胞浆蛋白提取试剂盒购自碧云天生物技术(上海) 公司; iNOS、COX-2、NF-κB/p65、phospho - NF - κB (p- NF - κB)、STAT1、phospho-STAT1 (p-STAT1)、gp91^phox抗体购自武汉三鹰生物技术有限公司; p47^phox抗体购自上海英骏生物技术有限公司; 荧光标记IgG二抗购自美国英杰生命技术有限公司。

仪器 Infinite M200 Pro多功能酶标仪(瑞士Tecan公司); ECLIPSE Ti荧光显微镜(日本Nikon公司); 电泳仪、光成像系统Chemi Doc TM XRS + (Bio-Rad公司); Cytation^TM 5细胞成像多功能检测仪(美国伯腾仪器有限公司)。

靶点收集 在PubMed^[20] (https://www.ncbi.nlm.nih.gov/pubmed) 数据库以关键词“LPS、BV- 2 cell、differentially expressed genes”收集LPS激活BV-2细胞相关差异表达基因。将所得差异基因汇总, 并删除重复基因。使用SwissTargetPrediction数据库^[21] (http://www.swisstargetprediction.ch/) 和SEA数据库^[22] (http://sea.bkslab.org/) 预测黄芩素的靶点, 并与LPS激活BV-2细胞的差异基因取交集, 从而得到黄芩素抗神经炎症的潜在靶点。

蛋白- 蛋白互作 (protein-protein interaction, PPI) 网络构建 使用STRING11.0数据库^[23] (https://string-db.org/) 获得靶点与靶点之间的作用关系, 并用Cytoscape 3.7.2软件构建蛋白与蛋白互作网络^[24]。应用Network Analyzer^[25]插件计算网络中的拓扑参数, 并使用MCODE插件获得关键子网络^[26]。

分子对接 使用ZINC数据库^[27] (http://zinc.docking.org/) 获得黄芩素的结构, RCSB PDB数据库^[28] (https://www.rcsb.org/) 获得COX-2 (PDB ID: 5KIR) 和iNOS (PDB ID: 3E7G) 蛋白的3D结构。采用AutoDock Vina (version 1.1.2) 软件^[29]预测黄芩素与COX-2、iNOS的结合能值和结合模式, 并用PyMOL (version 0.99)^[30]可视化对接结果。

GO富集分析采用DAVID数据库^[31] (https://david.ncifcrf.gov/) 预测黄芩素发挥抗神经炎症作用涉及的重要生物过程。

细胞培养和药物处理 将BV-2细胞以每毫升1.2×10⁶个细胞的密度接种于含10%胎牛血清(fetal bovine serum, FBS) 的MEM培养基中, 并在含5% CO₂的37 ℃培养箱中培养。根据前期研究结果^[9], 给予4 μmol·L^-1黄芩素预处理2 h后, 再加入0.1 μg·mL^-1 LPS共孵育24 h进行后续实验。

Western blot实验收集细胞样品, 按照制造商的说明书提取细胞膜蛋白与胞浆蛋白, 具体步骤如下: 向细胞中加入1 mL含1%苯甲基磺酰氟(phenyl methanesulfonyl fluoride, PMSF) 的裂解缓冲液A, 反复冻融5次破坏细胞后, 置冰上裂解15 min, 700 ×g离心10 min, 收集上清液, 再以12 000 ×g离心10 min, 收集胞浆蛋白。之后将200 μL裂解缓冲液B加入细胞膜沉淀物中, 置冰上裂解10 min, 12 000 ×g离心5 min, 收集膜蛋白。通过BCA蛋白质测定法确定蛋白质浓度。

收集细胞样品, 加入RIPA裂解液在冰上裂解30 min, 每10 min涡旋一次, 用BCA法测定蛋白浓度。通过10%或12% SDS-PAGE凝胶电泳分离蛋白(每孔上样量为50 μg), 并转移到PVDF膜上。用5%脱脂牛奶封闭2 h后, 分别加入iNOS、COX-2、NF-κB/p65、p-NF-κB、STAT1、p-STAT1、p47^phox、gp91^phox抗体, 并在4 ℃孵育过夜。TBST洗去一抗后, 加入二抗在37 ℃孵育条带1 h, 再次用TBST洗涤3次后, 在凝胶成像仪上显影成像, 并运用Image J对条带进行分析。

免疫荧光染色 将BV-2细胞以每毫升1.2×10⁶个细胞的密度接种于96孔板中, 4 μmol·L^-1黄芩素预处理2 h后用0.1 μg·mL^-1 LPS刺激24 h。弃去上清液后, 用4%多聚甲醛固定细胞20 min, 并用PBS洗涤。使用0.1% TritonX-100透化细胞, 并封闭1 h, 加入一抗p47^phox在4 ℃孵育过夜。清洗掉一抗后, 加入荧光二抗置于摇床上在37 ℃孵育2 h。最后加入10 μmol·L^-1 Hoechst 33342与细胞共孵育15 min。使用Cytation^TM 5细胞成像多功能检测仪检测荧光强度和拍摄荧光图像。

统计学方法 实验结果采用x ± SEM表示, 使用GraphPad Prism 5.0软件进行统计分析。采用单因素方差分析和Tukey's检验比较组间差异, P < 0.05表明有统计学意义。

2 结果

收起

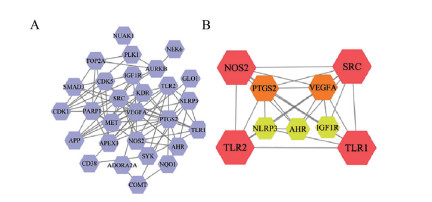

1 黄芩素抗神经炎症靶点PPI网络构建

从PubMed数据库共收集到2 463个差异表达基因, 利用SwissTargetPrediction和SEA数据库预测得到黄芩素的作用靶点139个。通过取交集, 得到38个共同靶点, 见表 1^[10-12]所示。基于STRING数据库构建蛋白-蛋白互作网络, 删除网络中未连接的节点, 得到黄芩素抗神经炎症的靶点网络(图 1A)。网络聚类分析显示, 核心子网络[top 1, molecular complex detection (MCODE) 得分= 6.75] 由9个节点组成(图 1B), 其中COX-2和iNOS在核心子网络中具有较高的度值(degree), 且已报道这两个基因在LPS诱导的BV-2细胞中发生明显的差异表达。

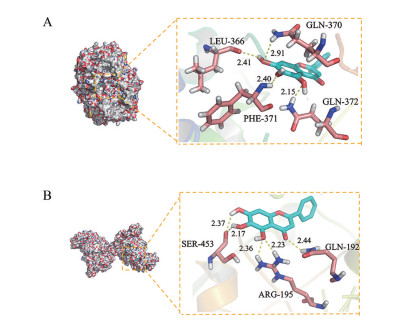

2 分子对接结果

为了进一步探索黄芩素与COX-2 (PDB ID: 5KIR)、iNOS (PDB ID: 3E7G) 的结合模式, 采用AutoDock Vina对结合能进行预测, 并与相应的阳性小分子(罗非昔布和AR-C102222) 进行比较。所有对接结果的均方根偏差(RMSD) 均小于2, 表明对接结果是可靠的^[32]。Morris等^[33]研究发现, 当结合能小于-5.0 kcal·mol^-1时, 代表对接良好。结果显示, 黄芩素和阳性小分子罗非昔布与COX-2的结合能分别为-9.9和-8.4 kcal·mol^-1, 黄芩素和阳性小分子AR-C102222与iNOS的结合能分别为-7.2和-7.1 kcal·mol^-1, 表明黄芩素与COX-2和iNOS对接良好。黄芩素与iNOS、COX-2的最佳结合模式如图 2所示。

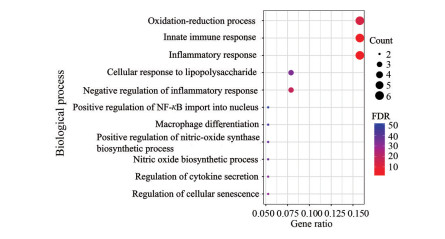

3 GO富集分析结果

运用DAVID数据库对38个靶点进行GO富集分析, 根据P < 0.05, 得到11个显著富集的生物过程。结果显示, 黄芩素可调节氧化还原过程(oxidation-reduction process)、炎症反应(inflammatory response)、NF-κB入核的正向调节(positive regulation of NF-κB import into nucleus)、iNOS生物合成过程的正向调节(positive regulation of nitric-oxide synthase biosynthetic process), 这些生物过程与氧化应激和神经炎症的发生密切相关(图 3)。

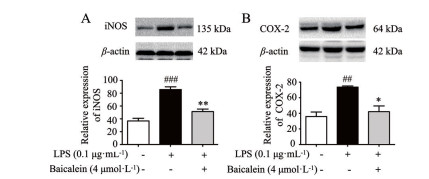

4 黄芩素抑制LPS诱导的BV-2细胞iNOS、COX-2蛋白表达

为了验证黄芩素对炎症介质iNOS、COX-2的抑制作用, 采用Western blot技术进行检测。结果显示, 0.1 μg·mL^-1 LPS处理细胞后, iNOS和COX-2表达水平分别显著升高132.94%和105.52%。然而, 用4 μmol·L^-1黄芩素预处理后可使iNOS表达水平显著降低40.09% (图 4A), COX-2表达水平显著降低42.80% (图 4B), 这表明黄芩素可以显著抑制iNOS和COX-2的表达。

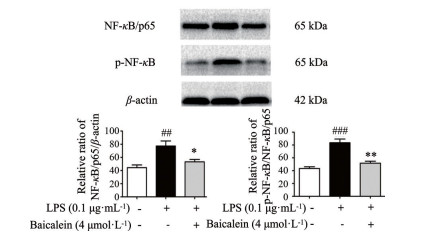

5 黄芩素抑制LPS诱导的BV-2细胞NF-κB/p65和p-NF-κB蛋白表达

iNOS和COX-2是NF-κB信号通路中两种重要的分子, iNOS和COX-2蛋白的过表达可激活NF-κB信号通路, 诱导神经炎症反应。本课题组前期采用免疫荧光技术发现4 μmol·L^-1黄芩素可使LPS诱导的NF-κB/p65表达显著降低且有效抑制NF-κB/p65的核易位^[9]。本研究采用Western blot对NF-κB信号通路的关键蛋白进行检测。结果显示, LPS诱导BV-2细胞后, NF-κB/p65和p-NF-κB表达水平分别上调74.03%和92.63%。然而, 黄芩素给药后可使NF-κB/p65和p-NF-κB的表达水平显著下调31.12%和38.22% (图 5), 这表明黄芩素能有效抑制NF-κB/p65的表达和NF-κB的磷酸化。

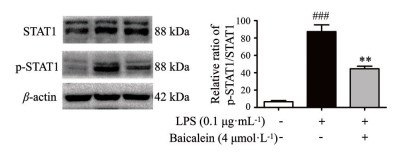

6 黄芩素抑制LPS诱导的BV-2细胞p-STAT1蛋白表达

LPS可诱导NF-κB蛋白过表达, 并快速激活其上游蛋白STAT1的表达, 从而加剧神经炎症。采用Western blot技术对STAT1信号通路的关键蛋白p-STAT1进行检测。结果显示, LPS诱导BV-2细胞后能使p-STAT1的表达显著上调1 222.45%。然而, 黄芩素处理后可使p-STAT1的表达水平显著降低48.97% (图 6), 这表明黄芩素能明显下调LPS诱导的BV-2细胞STAT1蛋白的磷酸化。

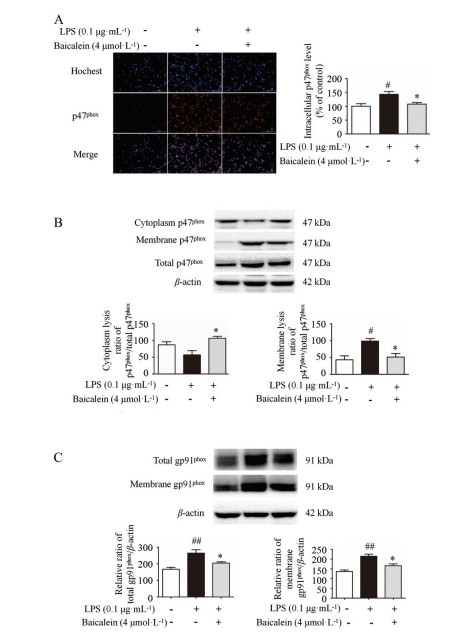

7 黄芩素对LPS诱导的BV-2细胞p47^phox、gp91^phox蛋白表达的影响

STAT1介导的炎症反应需要NOX2 (gp91^phox/p47^phox)依赖性生成ROS, 而过量的ROS对于激活NF-κB信号通路, 促进STAT1磷酸化和核易位至关重要。采用免疫荧光和Western blot技术对p47^phox、gp91^phox蛋白表达进行检测。免疫荧光结果表明, LPS处理后p47^phox的表达显著增加42.89%。然而, 黄芩素使p47^phox的表达显著降低24.57% (图 7A)。Western blot结果表明, LPS刺激后使胞膜p47^phox的表达增加了128.55%, 然而, 黄芩素处理后使胞膜p47^phox水平显著下调了48.12% (图 7B)。此外, LPS刺激使总蛋白水平和胞膜gp91^phox水平分别显著增加57.80%和57.21% (图 7C)。然而, 黄芩素处理使gp91^phox总蛋白和膜蛋白表达显著降低了35.76%和35.48%。以上结果表明, LPS可加快p47^phox从细胞质到细胞膜的转移, 并上调膜蛋白gp91^phox的表达, 但给予黄芩素后能抑制p47^phox从胞质到胞膜的转移, 并抑制总gp91^phox蛋白和膜gp91^phox蛋白的表达。

讨论

收起

差异表达基因是在疾病发生发展过程中发挥重要作用的基因, 这些基因对于阐述疾病病理机制具有重要意义。大量文献报道, LPS可诱导BV-2细胞内大量基因发生差异表达, 这些基因为神经炎症相关靶点的发现提供了依据。对这些基因进行生物信息挖掘, 通过网络构建和网络聚类分析寻找核心靶点, 是药物靶点发现的新途径^[34]。分子对接可用于模拟药物小分子和受体蛋白的结合模式, 将分子对接和生物信息分析相结合, 为黄芩素抗神经炎症潜在靶点和通路的预测提供了新的思路。预测结果显示, 黄芩素可能通过与关键靶点COX-2和iNOS结合发挥抗神经炎症的作用。

LPS可诱导小胶质细胞的过度活化, 从而引起神经变性, 导致神经元功能受损^[35]。此外, 小胶质细胞的激活将引起多种炎性介质水平的升高, 包括COX-2和iNOS^[36-38]。iNOS的过度累积加速NO的生成, 同时增强COX-2的活性, 进一步加重炎症的级联反应和神经系统的退行性病变^[39-41]。本研究发现, LPS显著上调iNOS和COX-2的表达。然而, 给予黄芩素后可显著下调iNOS和COX-2的蛋白表达, 表明黄芩素抑制LPS诱导的BV-2细胞炎症。

NF-κB信号通路与慢性炎症和神经退行性疾病的发展高度相关。NF-κB信号通路的激活可导致炎症介质iNOS和COX-2的生成增加^[42-44]。同时, NF-κB转录因子表达受胞质内STAT1的调控^[45], STAT1可与NF-κB结合并激活下游基因的表达, 最终导致神经炎症和神经退行性疾病^[46]。因此, 通过抑制NF-κB信号通路来调节炎症因子的生成可减轻神经毒性和减少神经元死亡, 进而延缓衰老相关疾病的发生^{[47, 48]}。本研究发现, LPS显著增加NF-κB/p65的表达和NF-κB的磷酸化, 但给予黄芩素后显著降低NF-κB/p65的表达和NF-κB的磷酸化, 表明黄芩素可通过NF-κB信号通路抑制LPS诱导的BV-2细胞炎症。

STAT1受Toll样受体刺激后迅速磷酸化, 而磷酸化的STAT1参与调节促炎因子的释放和介导免疫反应^[49]。通过抑制STAT1的磷酸化可显著减少COX-2和iNOS的生成^[50]。本研究发现, LPS刺激后STAT1的磷酸化显著增加。给予黄芩素后显著抑制STAT1的磷酸化, 表明黄芩素可通过STAT1信号通路抑制LPS诱导的BV-2细胞炎症。本研究结果与前期发现黄芩素抑制STAT1信号通路减少快速老化小鼠炎症因子分泌相一致^[51]。

NF-κB和STAT1信号通路的激活受ROS信号调控^[52]。NOX是加快细胞中ROS产生的重要物质。当胞质组分p47^phox转移到细胞膜, 并在细胞膜与gp91^phox结合后, NOX的表达会迅速增加, 进而诱导细胞内产生高水平的ROS^{[53, 54]}。因此, 抑制依赖于NOX产生ROS的通路可调控NF-κB和STAT1信号通路激活介导的炎症反应。本研究结果表明, LPS处理后胞质组分p47^phox在细胞膜上的表达显著增加, 且促使胞膜gp91^phox蛋白表达增加, 有利于NOX2的形成, 进而加速ROS的产生。然而, 给予黄芩素后抑制gp91^phox和p47^phox的表达, 从而减轻LPS诱导的BV-2细胞炎症反应。

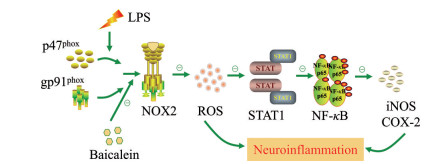

综上, 通过结合生物信息分析和分子对接技术, 本研究结果揭示黄芩素可能通过抑制NOX2 (gp91^phox/p47^phox) /STAT1/NF-κB级联反应来改善LPS诱导的氧化应激和神经炎症(图 8)。

作者贡献: 杨吾燕和闫姣姣负责进行实验和数据分析, 完成文章撰写; 高丽和秦雪梅负责实验思路的指导; 所有作者均对本文有所贡献。

利益冲突: 无利益冲突。

基金

收起

国家自然科学基金资助项目(81603319)
山西省面上青年基金资助项目(201801D221374)
