非小细胞肺癌的EGFR外显子20插入突变: 分类及临床治疗研究进展

PDF下载

李润 ¹ , 郭弘洁 ² , 陈羲 ²^,^* , 丁玲 ²^,^*

药学学报 | 综述 2021,56(5): 1201-1210

收起

药学学报 | 综述 2021, 56(5): 1201-1210

非小细胞肺癌的EGFR外显子20插入突变: 分类及临床治疗研究进展

全屏

李润¹, 郭弘洁², 陈羲²^,^*, 丁玲²^,^*

作者信息

1.浙江中医药大学, 浙江杭州 310053

2.浙江大学药学院, 药理毒理研究所, 浙江杭州 310058

通讯作者:

*陈羲, E-mail: chenxii@zju.edu.cn;

丁玲, Tel: 86-571-88208400, E-mail: ld362@zju.edu.cn

EGFR exon 20 insertion mutation in non-small cell lung cancer: classification and clinical treatment research

Run LI¹, Hong-jie GUO², Xi CHEN²^,^*, Ling DING²^,^*

Affiliations

1. Zhejiang Chinese Medical University, Hangzhou 310053, China

2. Institute of Pharmacology and Toxicology, College of Pharmaceutical Sciences, Zhejiang University, Hangzhou 310058, China

出版时间: 2021-05-12 doi: 10.16438/j.0513-4870.2020-1852

文章导航

摘要

收起

近年来，靶向治疗已成为晚期非小细胞肺癌（non-small cell lung cancer，NSCLC）的标准治疗方案，但这种治疗方法对于那些具有表皮生长因子受体（epidermal growth factor receptor，EGFR）外显子20插入（ex20ins）突变的肿瘤患者效果非常有限。该插入突变是EGFR第三大常见突变，它缩小了药物结合口袋，赋予肿瘤对常用的EGFR酪氨酸激酶抑制剂（tyrosine kinase inhibitors，TKI）的内在抗性，致使第一代和第二代EGFR TKI的功效有限。迄今为止，尚未有获得批准的针对NSCLC EGFR外显子20插入突变的靶向治疗的药物。在这种情况下，研究新一代的EGFR TKI或采用双特异性抗体作为新的治疗策略，可能会为这些患者建立新的治疗标准。本文将总结迄今为止报道的所有有关外显子20插入对EGFR结构和其对EGFR抑制剂敏感性的影响，以及外显子20插入的NSCLC患者的治疗策略，希望为临床治疗提供参考。

关键词

表皮生长因子受体 / 外显子20 / 插入突变 / 酪氨酸激酶抑制剂 / 临床治疗

Abstract

收起

In recent years, targeted therapy has become the standard treatment for advanced non-small cell lung cancer (NSCLC), but this treatment method has very limited effect on patients with epidermal growth factor receptor (EGFR) exon 20 insertion (ex20ins) mutation. This insertion mutation is the third most common mutation in EGFR. It shrinks the drug binding pocket and gives tumors inherent resistance to available EGFR tyrosine kinase inhibitors (TKIs), resulting in the limited efficiency of the first and second generation of EGFR tyrosine. So far, no targeted therapy has been approved for NSCLC patients with EGFR exon 20 insertion mutations, and there are still no drugs that have met clinical needs. In this case, new treatment strategies using new EGFR TKIs or bispecific antibodies may establish new treatment standards for these patients in the future. In this review, we will summarize all relevant exon 20 insertions reported so far on the structure of EGFR and its influence on EGFR inhibitor sensitivity, as well as the treatment strategies of exon 20 insertions in NSCLC patients, hoping to be a clinical treatment for reference.

Key words

epidermal growth factor receptor / exon 20 / insertion mutation / tyrosine kinase inhibitor / clinical treatment

引用本文

李润, 郭弘洁, 陈羲, 丁玲. 非小细胞肺癌的EGFR外显子20插入突变: 分类及临床治疗研究进展. 药学学报, 2021 , 56 (5) : 1201 -1210 . DOI: 10.16438/j.0513-4870.2020-1852

Run LI, Hong-jie GUO, Xi CHEN, Ling DING. EGFR exon 20 insertion mutation in non-small cell lung cancer: classification and clinical treatment research[J]. Acta Pharmaceutica Sinica, 2021 , 56 (5) : 1201 -1210 . DOI: 10.16438/j.0513-4870.2020-1852

正文

收起

在我国, 肺癌的发病率与死亡率仍高居首位, 每年约有78万人罹患肺癌, 其5年生存率低于20%, 且85%肺癌患者为非小细胞肺癌(non-small cell lung cancer, NSCLC)^[1]。近年来, 对晚期NSCLC的治疗已经由传统化疗转变为由遗传突变和分子水平指导为基础的疾病精细分类疗法^[2], 特别是表皮生长因子受体(epidermal growth factor receptor, EGFR) 突变、无融合淋巴瘤激酶(anaplastic lymphoma kinase, ALK) 易位、c-ROS肉瘤致癌因子-受体酪氨酸激酶(ROS proto-oncogene 1, receptor tyrosine kinase, ROS1) 重排以及B-raf原癌基因丝氨酸/苏氨酸激酶(B-Raf proto oncogene serine/threonine protein kinase, BRAF) 突变, 这些患者在使用了精准的靶向治疗后其无进展生存期(progression-free survival, PFS) 有了显著改善^[3-7]。其中EGFR抑制剂治疗EGFR突变的腺癌已成为NSCLC靶向治疗的先驱^{[8, 9]}。开发新一代抑制剂来应对EGFR获得性耐药也成为该领域的研究热点。

EGFR基因位于7p12号染色体上, 由28个外显子和27个内含子组成^{[10, 11]}。EGFR是ERBB家族受体酪氨酸激酶之一, ERBB家族由4个成员组成: EGFR (也称为ERBB1/HER1)、ERBB2/HER2/NEU、ERBB3/HER3和ERBB4/HER4。对于野生型EGFR, 需要特定的配体与EGFR的胞外域结合, 导致同二聚体和异二聚体的形成^{[12, 13]}。聚合物刺激受体固有的酪氨酸激酶活性, 并触发特定酪氨酸残基的自磷酸化, 通过信号转导子启动多个下游通路, 如Ras/Raf/丝裂原活化蛋白激酶通路(Ras/Raf/mitogen-activated protein kinase pathway, Ras/MAPK)、磷脂酰肌醇3激酶/AKT通路(phosphatidylinositol 3-kinase/AKT pathway, PI3K/AKT) 和信号转导和转录激活因子通路(signal transducers and activators of transcription pathway, STAT), 从而参与调节增殖和凋亡^[14-16]。EGFR突变使蛋白质结构的平衡在没有配体刺激下从非活性状态转变为活性状态, 从而导致EGFR和其他HER家族蛋白的持续磷酸化^[17]。

在所有NSCLC的EGFR激酶结构域突变中, EGFR外显子21中的亮氨酸到精氨酸(L858R) 的单点突变和外显子19中至少3个氨基酸残基的可变缺失通常被称为经典EGFR激活突变, 且这些突变对EGFR抑制剂敏感^[18-21]。但是, 并非所有激活的EGFR突变对EGFR抑制剂都敏感。EGFR外显子20插入(ex20ins) 在所有NSCLC病例中占比较低, 占所有已证明EGFR突变的癌症的10%~12%^[22-24]。这些突变是继常见的致敏EGFR突变(即外显子19缺失和外显子21 L858R突变) 之后的第三大常见的EGFR突变亚型。外显子20中的框内碱基对插入导致EGFR的组成性激活, 但是与经典的激活性EGFR突变不同, EGFR外显子20的插入导致该类患者对当前临床上可用的EGFR抑制剂产生新抗性^{[24, 25]}。近年来, 临床前工作一直在寻找EGFR外显子20插入突变的NSCLC患者中EGFR抑制剂耐药的原因, 也针对这些突变开发了相应的药物。本文将对外显子20插入对EGFR结构和EGFR抑制剂敏感性影响的研究现状进行综述以及对目前临床治疗策略进行梳理, 希望为临床治疗提供新的思路。

1 外显子20插入对EGFR结构和EGFR抑制剂敏感性影响的研究现状

收起

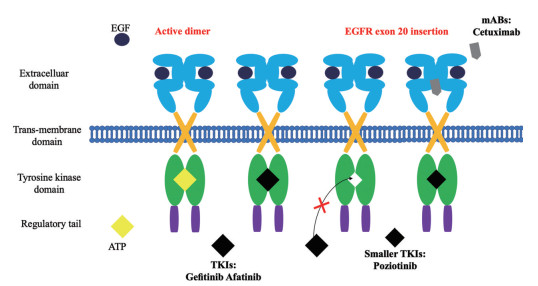

EGFR的激活状态取决于C-螺旋(外显子20插入的C末端) 的状态, C-螺旋由外向内旋转从而允许与稳定二聚化EGFR的活性位点进行特异性相互作用^{[26, 27]}。EGFR中外显子19的缺失通过从环上去除残基而限制了C螺旋的旋转, 从而使C螺旋不再是向外的非活性构象, 而是转变为向内的活性构象^[28]。正是通过这种机制, 外显子19缺失突变将使EGFR由非活跃态转向活跃状态, 从而促进组成型受体活化。外显子20突变中的大多数位于残基M766之后, 处于激酶N瓣内C螺旋末端附近, 并有一小部分映射到C螺旋中间(影响氨基酸E762至Y764) (图 1)^[29-31]。总之, EGFR外显子20插入突变表征为在EGFR蛋白的氨基酸762和774之间聚集的3至21 bp的框内插入或重复^{[17, 32]}。然而, 与外显子19缺失不同, 外显子20插入通常直接按顺序插入环中, 从另一个方向将C螺旋转变为主动构象^[33]。

EGFR外显子20插入突变是异质的, 插入位置可能会影响药物和ATP结合的动力学, 最终决定对EGFR抑制剂的耐药性或敏感性。在众多的插入类型中, 仅有A763_Y764insFQEA的突变, 展现出对吉非替尼和厄洛替尼的高度敏感^[32]。三名A763_Y764insFQEA插入的患者在接受厄洛替尼治疗后显示出肿瘤消退或保持稳定。A763_Y764insFQEA插入的3D建模表明, 在C螺旋自身内部残基764之前发生的外显子20插入可能具有与L858R或外显子19更为相似的激活机制和结构^{[28, 34]}。D770_N771insSVD和p.V769_D770insASV等其他外显子20插入则与常见的L858R或外显子19的激活机制和结构不同(部分突变结构如表 1所示), 这也使其具有对酪氨酸激酶抑制剂(tyrosine kinase inhibitors, TKI) 的耐药性, 而如何克服这个难题是现在面对的问题。

一项分子结构的研究发现, 某些EGFR外显子20中以及相应的ERBB2/HER2外显子20插入引起结构变化, 从而限制了ATP结合袋的大小^[35]。因此, 如图 2所示, 较大的药物很难与预期的靶标结合。所以, 在外显子20突变的EGFR肿瘤中, ATP结合袋的结构较小, TKI无法再与靶标结合^{[7, 36]}, 使EGFR得以保持活性, 致癌信号持续存在。使用单克隆抗体(monoclonal antibody, mAb) 或更小的新一代TKI可能会避免外显子20插入改变所产生的耐药性^[37]。其次, T790M突变使L858R突变型EGFR的ATP结合亲和力几乎恢复到野生型受体水平, 这消除了可逆性ATP竞争性抑制剂吉非替尼和厄洛替尼对突变型的选择性, 使治疗窗口变窄^[38-40], 而第三、四代TKI的出现或许能够解决这些问题^{[41, 42]}。

先前的研究也表明, 不同的EGFR突变可驱动不同的下游信号传导蛋白^{[43, 44]}。那么不同类型的EGFR外显子20插入突变激活的下游信号通路极有可能不相同, 而这些通路与更常见的L858R或外显子19缺失EGFR突变激活的下游信号通路的重叠程度同样需要更多的研究^[45]。不同EGFR外显子20插入所特有的下游途径激活的未来表征可能会产生选择性靶向这些途径的突变特异性疗法。

2 外显子20插入的NSCLC治疗策略研究

收起

2.1 EGFR抑制剂

2.1.1 第一代EGFR抑制剂

Geﬁtinib和erlotinib是可逆的ATP竞争性抑制剂, 其可逆地与EGFR的ATP结合袋结合。Ⅲ期随机试验已经证明, 在具有EGFR突变的肺癌患者中, 这些TKI在PFS方面优于常规化疗, 并成为EGFR突变NSCLC治疗的金标准, 可实现高达72%的反应率(response rate, RR) 和近10个月的PFS^{[46, 47]}。相比之下^[47-49], 除了A763_Y764insFQEA突变外, 对临床数据的回顾性分析显示, 第一代EGFR抑制剂在绝大多数EGFR外显子20插入突变型NSCLC患者中效果不佳^{[18, 50]}。

2.1.2 第二代EGFR抑制剂

Neratinib、dacomitinib和afatinib都在特定的半胱氨酸残基(C797) 上与EGFR形成不可逆的共价相互作用^{[20, 51, 52]}。尽管有令人鼓舞的临床前数据, 但由于对野生型EGFR的抑制作用, 第二代TKI与第一代TKI相比有较严重的不良事件, 使该药物的临床可用浓度尚未达到T790M肿瘤的治疗范围^{[32, 53]}。

当前, 仅有有限的临床证据支持在外显子20插入突变体NSCLC中使用第二代EGFR抑制剂^[54]。结合Ⅱ Lux-Lung 2期、Ⅲ Lux-Lung 3和6期的结果进行分析, 虽然阿法替尼在罕见的EGFR点突变(G719X、S786I和L861Q) 中具有临床活性, 但是afatinib治疗的EGFR外显子20插入的患者RR为8.7%, PFS为2.7个月, 效果不佳^[55-57]。但是临床前实验中, 在770位引入甘氨酸的插入物展现出对dacomitinib的独特敏感性, 为具有D770delinsGY突变的患者提供了潜在的治疗途径^[58]。而且在2011年的Ⅰ期临床试验中, 在6名具有不同EGFR外显子20插入突变的患者中, 只有携带D770delinsGY突变的患者对dacomitinib表现出部分反应^{[59, 60]}。然而, 常见的外显子20插入片段在770位缺少甘氨酸, 因此, 大多数外显子20插入患者不太可能受益于dacomitinib的治疗。

2.1.3 第三代EGFR抑制剂

Osimertinib和rociletinib是第三代EGFR抑制剂, 与EGFR的C797半胱氨酸残基共价结合并保持了对双突变L858R/T790M或第19外显子del/T790M EGFR的选择性, 以及在表达常见EGFR外显子20插入片段的异种移植物中的体内作用^[61-63]。一例报告携带EGFR V769_D770InsASV变体的患者, 在osimertinib治疗后出现了肿瘤缩小^[64]。但是, 仍然需要更多的临床证据支持在外显子20插入突变体NSCLC中使用第三代EGFR抑制剂^[65]。

Ikemuraa和Yasuda等^[66-68]利用基于分子动力学模拟的模型计算EGFR外显子20插入突变对EGFR-TKI的敏感性的影响。该模型计算了外显子20插入突变体(包括单例) 对第三代EGFR-TKI奥西替尼的敏感性(图 3)。可以从中看出, 仅有A763_Y764insFQEA外显子20插入的突变具有对EGFR-TKI的高敏感性。此外, Zhao等^[69]通过分子动力学模拟发现, HER2 ex20ins通过改变HER2激酶的构象结构, 并限制活性状态的激酶构象, 致使配体依赖性激酶的活化。

通过使用Ba/F3细胞对TKI的体外敏感性数据(表 2)^{[24, 25, 70]}可以看出: EGFR外显子20插入让外显子20突变的EGFR肿瘤恢复到野生型的水平, 这与常见的致敏EGFR突变(即外显子19缺失和外显子21 L858R突变) 不同^[71]。而且可以看出不同的突变对于不同TKI的敏感性不同, 通过精确检测目标突变, 为每种突变选择最合适的TKI, 同时继续开展体外研究, 收集罕见突变的临床数据, 可能可以提供新的临床治疗决策。

2.1.4 EGFR外显子20插入选择性抑制剂

对EGFR外显子20插入突变体具有选择性的化合物的开发对于限制患者由于野生型EGFR受抑制产生的毒性至关重要。最近开发的几种新抑制剂化合物, 被证明可直接靶向EGFR外显子20插入(如TAS6417共价修饰突变EGFR的ATP结合位点797位半胱氨酸残基)。尽管这些进展仍处于临床前阶段, 但已发表的数据表明, 这些化合物在携带EGFR外显子20插入突变的NSCLC患者中可能具有重要的临床活性^[72]。如TAS6417^[73]、化合物1A^{[61, 74]}和TAK-788^{[75, 76]}等都显示出对肿瘤的抑制作用。但是在临床试验前, 这些药物的不良药代动力学特性(包括其口服生物利用度低、半衰期短和清除率高) 尚待解决。

TAS6417, 也称为CLN-081, 是一种新型小分子, 它通过共价修饰突变EGFR的ATP结合位点797位半胱氨酸残基来抑制EGFR, 该突变在外显子20中具有框内插入突变^[73]。在具有EGFR外显子20突变或外显子19突变的肺癌患者的基因工程细胞和细胞系以及具有KRAS突变的细胞中建立的体外基因工程研究中, TAS6417展现出较好的效果, 与大多数批准/开发中的EGFR抑制剂相比, 具有更广泛的活性谱和更宽的治疗范围^[77]。可惜的是, 虽然用TAS6417进行的治疗在具有EGFR外显子20突变的小鼠中抑制了PI3K/AKT途径和RAS/MAPK途径, 但对那些具有EGFR外显子20突变的小鼠没有抗肿瘤作用, TAS6417在NSCLC患者中的临床评估尚未开始, 因此, 在EGFR外显子20插入阳性患者中, 抑制剂的突变体选择性是否足以达到良好的治疗窗且毒性低尚待确定。

2.2 其他靶向抑制剂

2.2.1 Poziotinib

Poziotinib (HM781-36B) 是EGFR和HER2外显子20插入的共价不可逆抑制剂^[78]。Poziotinib与afatinib相似, 是一种柔软的喹唑啉衍生物, 但它具有较小的尺寸和更大的卤化度, 并且具有更高的柔软性。3D建模预测, 这些结构优势使poziotinib能够避开外显子20插入所产生的空间变化, 并在药物结合袋中更紧密地结合^[35], 可能可以避免由于ATP结合袋的结构较小TKI无法结合的问题。

使用携带外显子20插入的工程Ba/F3细胞的体外分析表明, poziotinib有效地抑制了具有EGFR或HER2外显子20突变的细胞的生长^[79]。在该细胞系中, 对poziotinib的生长增殖抑制作用比其他TKI更有效。与afatinib相比, poziotinib可显著减少肿瘤体积, 并在12周时出现持久无进展迹象^{[35, 80]}。但是, 由于poziotinib在野生型EGFR中也发挥了体外活性, 因此治疗范围可能很窄。

2.2.2 Luminespib

Luminespib (AUY922) 是一种基于异噁唑基间苯二酚的热休克蛋白90 (heat shock protein 90, HSP90) 抑制剂, 与第一代格尔德霉素HSP90抑制剂不同。第二代抑制剂效力增强, 拥有更少的不良反应和更优的药代动力学。HSP90是一种分子伴侣, 可维持细胞蛋白质稳定性并协助折叠^{[81, 82]}。重要的是, 在NSCLC中, HSP90介导了许多重要的致癌驱动蛋白的调控, 包括EGFR和ALK, 而且HSP90抑制剂也显示出对癌细胞更强的抗肿瘤特性和选择性^[83], 尽管迄今为止尚未批准HSP90抑制剂, 但在许多治疗选择受到限制的癌症类型中, 正在积极探索其潜力^[84]。最近, 临床前数据表明, EGFR外显子20插入突变激酶与HSP90分子伴侣系统相关, 可以通过使用HSP90抑制剂降解。在EGFR外显子20插入NSCLC中, luminespib表现出比第一代或第二代EGFR抑制剂更好的效果^[85]。然而, 中位PFS和总生存期都很短, 所以luminespib在EGFR外显子20插入NSCLC患者中是否具有临床应用价值仍不清楚(图 3)。

2.2.3 Tarloxotinib

Tarloxotinib是一种低氧激活的前药(hypoxia-activated prodrug, HAP), 仅在低氧条件下才会释放不可逆的EGFR/HER2抑制剂, 已有许多研究将其作为针对具有EGFR外显子20突变的肿瘤的潜在疗法^{[86, 87]}。在肺癌中, 肿瘤细胞中的低氧状态促进了基因组的不稳定性、侵略性的增强和转移潜力的增加^[88]。它还导致了对EGFR抑制剂的耐药性和低存活率^{[89, 90]}。在一项Ⅱ期临床试验中, tarloxotinib在EGFR突变T790M阴性NSCLC患者中效果不佳, 然而, 应用带有内源性EGFR外显子20插入的NSCLC细胞系异种移植的小鼠模型, 显示使用tarloxotinib可使肿瘤显著消退, 而在afatinib中未观察到反应^[87]。这些初步数据表明, 需要更集中的临床试验以确定tarloxotinib在EGFR外显子20插入NSCLC患者亚型中的疗效。

2.2.4 Cetuximab和EGFR抑制剂组合

Cetuximab是与EGFR胞外域结合并在空间上阻碍二聚体形成的单克隆抗体。抗体部分经过蛋白水解降解后释放DM1^{[91, 92]}。如emtansine也称为T-DM1, 是一种抗体-药物偶联物, 由细胞毒性微管剂DM1与人源化单克隆抗体曲妥珠单抗连接而成。每个抗体T-DM1平均带有3.5个分子的DM1。抗体药物偶联物(antibody-drug conjugates, ADC) 与表面受体HER2结合, 并通过受体介导的内吞作用进入细胞^{[93, 94]}。

另一项研究利用模型证明了某些EGFR外显子20的改变可能促进受体二聚化, 并且可能对靶向该结构域的EGFR抗体敏感^[67]。作为治疗方案的一部分, 分别将两名携带EGFR D770_P772delinsKG和EGFR D770 > GY的患者接受cetuximab治疗, 并在6个月和42个月以上实现了持续的部分缓解(表 3)^{[26, 33, 35, 50, 55, 59, 64, 73, 74, 85, 87, 92, 95-98]}。在另一项研究中, 接受cetuximab联合阿法替尼治疗的4名患者中有3名也获得了反应^[92]。

2.2.5 JNJ-61186372

JNJ-61186372 (JNJ-372) 是一种同时靶向EGFR和cMet受体的双特异性抗体。它阻断配体诱导的EGFR和cMet磷酸化, 并抑制pERK和pAKT, 而且还可以通过依赖Fc的效应子机制介导抗体依赖性细胞毒性诱导受体降解^[99]。在一项Ⅰ期临床研究中展现出对部分晚期NSCLC患者的抗肿瘤效果。基于在具有EGFR外显子20突变的NSCLC患者中观察到的活性, 为了更好地了解这种特殊情况下的潜在机制, 已开展了临床前研究^{[98, 100]}。对包含EGFR外显子20突变的Ba/F3细胞系的临床前实验表明, JNJ-61186372通过抑制EGF和cMet受体表达, 下调pERK、pAKT和p-S6的水平来抑制细胞增殖, 并同时上调caspase的表达来促进细胞凋亡^[101]。

3 结论

收起

NSCLC中的EGFR外显子20突变使其与ATP的结合能力下降, 并使其与EGFR抑制剂的亲和力低于野生型, 这使原有的靶向治疗方法效果不佳。特异的外显子20突变对于不同的TKI的敏感性不同, 通过精确检测目标突变, 为每种突变选择最合适的已上市TKI, 可能是新的临床治疗手段。由于EGFR外显子20插入突变的异质性, 不同的插入位置对药物的响应和耐药性影响可能不同。根据特定的突变类型, 需要进一步来阐明原发性和获得性耐药的机制以及对药物敏感性不同的原因, 选择性靶向这些特异突变位点的特异性疗法也将不断涌现。随着对EGFR外显子20插入研究的不断深入, 靶向EGFR外显子20插入突变的新型药物也不断涌现, 这些药物的临床前和临床方面进展为外显子20突变患者带来了新的希望。但是, 由于药物会抑制野生型EGFR, 安全性问题还需要进一步研究。此外, 这些药物的临床耐药性仍然不清楚。但是可以预见, 这些化合物可能最终成为对抗癌症的武器。正在进行的对类似外显子20插入突变的特定人群的功效和毒性的临床试验将引导研究者进入分子驱动疗法的新时代。

作者贡献: 丁玲和陈羲为文章提供了指导和思路, 李润和郭弘洁进行了文献查阅和写作。

利益冲突: 本文无任何利益冲突。

基金

收起

国家自然科学基金资助项目(81773754)
