靶向肿瘤相关巨噬细胞药物的研究进展

PDF下载

任利文 ^# , 杨艺辉 ^# , 李婉 , 张宜之 , 杨红 , 张森 , 许芳 , 郝悦 , 曹婉昕 , 杜冠华 , 王金华 ^*

药学学报 | 综述 2023,58(12): 3508-3518

收起

药学学报 | 综述 2023, 58(12): 3508-3518

靶向肿瘤相关巨噬细胞药物的研究进展

全屏

任利文^#, 杨艺辉^#, 李婉, 张宜之, 杨红, 张森, 许芳, 郝悦, 曹婉昕, 杜冠华, 王金华^*

作者信息

中国医学科学院、北京协和医学院药物研究所, 北京市药物靶点研究与新药筛选重点实验室, 北京 100050

通讯作者:

*王金华, Tel: 86-10-63165313, E-mail: wjh@imm.ac.cn

Research progress in drugs targeting tumor associated macrophage

Li-wen REN, Yi-hui YANG, Wan LI, Yi-zhi ZHANG, Hong YANG, Sen ZHANG, Fang XU, Yue HAO, Wan-xin CAO, Guan-hua DU, Jin-hua WANG^*

Affiliations

Key Laboratory of Drug Target Research and Drug Screen, Institute of Materia Medica, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing 100050, China

出版时间: 2023-12-12 doi: 10.16438/j.0513-4870.2023-1138

文章导航

摘要

收起

肿瘤严重威胁人类生命健康, 近年来其发病率和死亡率在全球范围内迅速增加。肿瘤治疗药物经历了细胞毒疗法、靶向疗法和免疫疗法的发展, 其中肿瘤免疫治疗已经成为近年来快速发展起来的新兴抗肿瘤疗法, 但其也存在一些相关的不良反应。肿瘤微环境是由免疫细胞、肿瘤血管、成纤维细胞、细胞外基质等多种成分构成的复杂动态环境, 肿瘤微环境显著影响免疫治疗的效果。肿瘤微环境中的巨噬细胞被称为肿瘤相关巨噬细胞, 近年来越来越多的研究表明肿瘤相关巨噬细胞在肿瘤免疫调节中起着重要作用, 特别是在肿瘤免疫监控及免疫逃逸等方面发挥关键调节作用。目前, 越来越多针对肿瘤相关巨噬细胞的抗肿瘤免疫治疗策略正处于研发阶段。基于肿瘤相关巨噬细胞在肿瘤免疫微环境中的重要作用以及其可以作为肿瘤免疫治疗的潜在靶点, 本文对肿瘤相关巨噬细胞的亚型与功能、肿瘤相关巨噬细胞在肿瘤中的主要作用, 近年来靶向肿瘤相关巨噬细胞的抗肿瘤策略相关研究以及药物研发现状进行综述, 以期为肿瘤免疫治疗提供新的思路。

关键词

免疫治疗 / 肿瘤微环境 / 肿瘤相关巨噬细胞 / 药物靶点

Abstract

收起

Tumor brings great threat to human public health. In recent years, incidence rate and mortality of tumor were rapidly increased in the world. Anti-tumor therapies have undergone the development of cytotoxic therapy, targeted therapy, and immunotherapy. Among them, tumor immunotherapy is rapidly developed and becomes an important anti-tumor therapy in recent years, although it also brings some related side effects. Tumor microenvironment (TME) is composed of immune cells, vascular vessels, fibroblasts, the extracellular matrix, etc. TME significantly affects the efficacy of immunotherapy. Macrophages in the TME are named as tumor associated macrophages (TAMs). Recently, increasing studies have shown that TAMs play an important role in the regulation of tumor immunity, especially in tumor immune surveillance and immune escape. Currently, more and more anti-tumor immunotherapy strategies targeting TAMs are at the development stage. Based on the important role of TAMs in the TME and their potential as therapeutic targets in tumor immunotherapy, we first reviewed the subtypes and functions of TAMs, as well as the roles of TAMs in tumors. Furthermore, we summarized the research progress on anti-tumor strategies targeting TAMs and the current status of drug targeting TAMs. The current review will provide new ideas and novel insights for tumor immunotherapy.

Key words

immunotherapy / tumor microenvironment / tumor associated macrophage / drug target

引用本文

任利文, 杨艺辉, 李婉, 张宜之, 杨红, 张森, 许芳, 郝悦, 曹婉昕, 杜冠华, 王金华. 靶向肿瘤相关巨噬细胞药物的研究进展. 药学学报, 2023 , 58 (12) : 3508 -3518 . DOI: 10.16438/j.0513-4870.2023-1138

Li-wen REN, Yi-hui YANG, Wan LI, Yi-zhi ZHANG, Hong YANG, Sen ZHANG, Fang XU, Yue HAO, Wan-xin CAO, Guan-hua DU, Jin-hua WANG. Research progress in drugs targeting tumor associated macrophage[J]. Acta Pharmaceutica Sinica, 2023 , 58 (12) : 3508 -3518 . DOI: 10.16438/j.0513-4870.2023-1138

正文

收起

癌症严重威胁人类生命健康。根据世界卫生组织(WHO) 下属的国际癌症研究机构(International Agency for Research on Cancer, IARC) 发布的癌症最新数据, 2020年全球新发癌症病例1 929万, 其中男性1 006万例, 女性923万例; 2020年全球癌症死亡病例996万例, 其中男性553万例, 女性443万例。在21世纪, 癌症预计将超过心血管疾病, 成为大多数患者过早死亡的主要原因。IARC调查数据中令人震惊的是乳腺癌首次超过肺癌成为全球最常被诊断出的癌症类型^[1]。

目前治疗肿瘤的药物经历了细胞毒药物、靶向药物、免疫治疗药物的发展。肿瘤免疫治疗是近年来快速发展起来的新型疗法, 主要作用通过激活机体的免疫系统而非肿瘤细胞, 通过增强机体对肿瘤的自然免疫防御、重塑免疫微环境等方式清除肿瘤细胞。目前常见的肿瘤免疫疗法包括单克隆抗体疗法、免疫检查点阻断剂疗法、过继细胞疗法、溶瘤病毒疗法和肿瘤疫苗等。各种肿瘤免疫新疗法不断涌现并取得令人兴奋的进展, 被学术界认为是继传统治疗、靶向治疗后, 肿瘤治疗史上的第三次革命^[2]。但肿瘤免疫治疗也存在反应率低及细胞因子风暴等问题, 同时患者皮肤会出现红肿、干燥、水泡等, 类似流感症状, 以及很多心脏相关疾病等不良反应^[3]。

肿瘤微环境(tumor microenvironment, TME) 是肿瘤细胞、间质细胞、上皮细胞、成纤维细胞和包括T细胞、树突状细胞、巨噬细胞等在内的免疫细胞之间相互作用、共同构成的复杂动态环境^[4-6]。肿瘤微环境中存在的巨噬细胞又称之为肿瘤相关巨噬细胞(tumor associated macrophage, TAM)。近年来, 越来越多的研究显示, TAM在肿瘤免疫调节等方面发挥重要作用^{[5, 7]}。TAM在乳腺癌免疫微环境中所占比重较高, 甚至能够达到乳腺癌组织的30%~60%^{[8, 9]}。TAM具有较高的异质性, 其功能复杂多样, 其中包括促进肿瘤增殖和转移, 促进肿瘤新生血管及诱导抑制性免疫微环境产生等^[10]。TAM在肿瘤免疫抑制及免疫逃逸等方面发挥关键调节作用, 近年来有越来越多针对TAM的抗肿瘤靶向治疗策略处于研发阶段^{[11, 12]}。基于TAM在肿瘤免疫微环境中的重要作用, 本综述首先对TAM与肿瘤免疫之间的关系进行梳理, 在此基础上对近年来靶向TAM的抗肿瘤策略相关研究和药物研发现状进行总结, 以期为肿瘤免疫治疗提供新的思路。

1 TAM与肿瘤免疫

收起

近年来越来越多的研究显示, TAM具有很强的可塑性, TAM与肿瘤细胞免疫逃逸等密切相关。

1.1 TAM的亚型

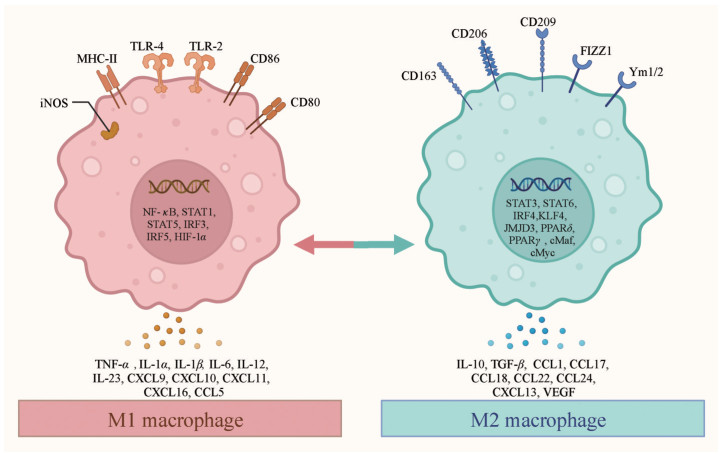

TAM的分型较为复杂, 且随着肿瘤进展过程处于动态调节中, 其可以简单分为两种极化类型(图 1), 即M1型经典激活的巨噬细胞和M2型交替激活的巨噬细胞^[13]。M1型巨噬细胞能够杀伤肿瘤细胞、抵御机体病原体入侵, 起抑制肿瘤作用, 而M2型巨噬细胞能够促进肿瘤细胞增殖和转移, 具有促进肿瘤作用。M2型巨噬细胞是肿瘤微环境中主要的巨噬细胞类型^[14]。M1型巨噬细胞受白细胞介素(interleukin, IL)-1β、干扰素(interferon, IFN)-γ、肿瘤坏死因子-α (tumor necrosis factor-α, TNF-α) 和脂多糖等的刺激, 并通过产生多种细胞因子, 如IL-1、IL-8、IL-6、TNF-α与ROS来抑制肿瘤生长^[15]。M1型巨噬细胞能够通过激活辅助性T细胞1 (help T cell 1, Th1) 来增强其对肿瘤细胞的杀伤作用, 从而促进抗肿瘤免疫应答^[16]。与之相反, M2型交替激活巨噬细胞能够被IL-4和IL-13激活, 分泌大量的IL-10及小部分IL-12、IL-23, 减弱肿瘤部位的炎症反应, 从而抑制机体抗肿瘤免疫应答^[17]。此外, M2型巨噬细胞还能够通过抑制T淋巴细胞的活性进而抑制T淋巴细胞对肿瘤的杀伤作用^{[18, 19]}。M1与M2型巨噬细胞的细胞类型并不是固定的, 在肿瘤进展过程中, 肿瘤微环境可以调控两种类型的巨噬细胞进行相互转化, 其细胞类型具有高度可塑性。但TAM分子类型较为复杂, 不能简单视为M1与M2两种亚型, 近年来也发现CD169⁺、TCR⁺等分子分型的TAM^[18], 以及按组织来源分为组织驻留巨噬细胞(tissue-resident macrophages, TRMs) 和骨髓来源的血液单核细胞等^[20]。

1.2 TAM在肿瘤的主要作用

1.2.1 TAM促进肿瘤的侵袭和转移

TAM能够通过分泌基质金属蛋白酶(matrix metalloproteinase, MMP)、组织蛋白酶(cathepsin) 等物质破坏细胞之间的紧密连接与基底膜, 从而促进肿瘤细胞的侵袭与转移过程^{[21, 22]}。在乳腺癌中, TAM来源的组织蛋白酶B (cathepsin B) 能够促进乳腺癌细胞发生转移、侵袭, 导致乳腺癌细胞的肺转移^[23]。此外, TAM还能够通过提高肿瘤组织和机体全身水平血管内皮生长因子(vascular endothelial growth factor, VEGF)、脂钙素-2 (Lcn-2)、几丁质酶-3样蛋白1 (CHI3L1)、MMP9等蛋白表达, 促进小鼠三阴性乳腺癌模型的转移^[24]。有研究表明, 绝大多数的肿瘤细胞转移和血管内渗过程都与肿瘤细胞与巨噬细胞的相互作用有关^[25]。与此同时, TAM也能够通过分泌细胞外基质(extracellular matrix, ECM) 重塑蛋白来调节肿瘤组织重构, 从而促进肿瘤细胞的侵袭和转移过程^[26]。

1.2.2 TAM能够促进肿瘤血管生成

TAM能够分泌多种血管生成调节因子, 如尿激酶型纤溶酶原激活物(uPA)、血小板衍生生长因子-β (platelet derived growth factor β, PDGF-β)、VEGF、TNF-α、IL-1β、CXCL8、MMP7、MMP9和MMP12等来促进肿瘤血管生成^[27]。血管生成素2 (angiopoietin 2, ANG2) 属于血管生成素家族成员, 能够通过调节血管生成素酪氨酸激酶蛋白受体2 (TEK receptor tyrosine kinase Tie2, TIE2) 促进肿瘤血管生成, 同时还能够通过调节TIE2表达水平调控TAM的促血管生成活性。抑制ANG2能够抑制TIE2⁺巨噬细胞的促血管生成能力, 阻断小鼠原位乳腺癌肿瘤血管生成, 抑制乳腺癌进展和转移^[28]。此外, TAM还能够通过分泌Wnt7b (Wnt family member 7b) 调控内皮细胞Wnt/β-catenin信号通路, 促进肿瘤血管生成^[29]。

1.2.3 TAM能够促进肿瘤耐药

研究表明, 在肿瘤耐药的肿瘤微环境中巨噬细胞的比例显著增加, 提示在肿瘤组织产生耐药的过程中有TAM的参与^[30]。抗血管生成药物阿柏西普(Zaltrap/Aflibercept) 能够通过结合VEGF与胎盘生长因子(placental growth factor, PLGF) 抑制复发胶质母细胞瘤患者的血管生成, 发挥抗肿瘤作用。但TAM能够通过分泌MMP9使得患者对阿柏西普产生耐药性, 巨噬细胞所分泌的相关细胞因子可以作为患者不良预后的生物标志物^[31]。许多乳腺癌患者在接受紫杉醇治疗后, 乳腺癌中的巨噬细胞浸润水平与组织蛋白酶表达显著升高。在体外共培养实验研究中发现, 巨噬细胞能够通过分泌组织蛋白酶B和组织蛋白酶S保护肿瘤细胞不被紫杉醇、依托泊苷和多柔比星等化疗药物杀伤。同时使用化疗药物和组织蛋白酶抑制剂能够显著增加化疗药物的体内外治疗效果^[32]。此外, TAM还能够通过激活MAPK/ERK激酶(MEK) 来抑制紫杉醇对乳腺癌的治疗效果, 通过清除乳腺癌组织中的巨噬细胞或者抑制MEK能够增强乳腺癌对紫杉醇化疗的敏感性^[33]。在给予多柔比星及顺铂化疗的小鼠乳腺癌模型中, 肿瘤微环境中的乳腺癌细胞能够通过分泌CCL2招募CCR2⁺巨噬细胞, 巨噬细胞通过分泌MMP9促进肿瘤细胞血管渗漏, 帮助肿瘤细胞发生转移^[34]。与此同时, TAM还能够促进肿瘤微环境中肿瘤干细胞的增殖, 进而促进肿瘤进展^[35]。

1.2.4 TAM具有免疫抑制效应

TAM是肿瘤微环境中重要的具有免疫调节功能的细胞, 能够抑制肿瘤微环境中发挥主要抗肿瘤免疫效应的细胞毒性T淋巴细胞的有效应答。不幸的是, 在肿瘤微环境中TAM能够通过多种机制直接或间接抑制细胞毒性T淋巴细胞的作用, 从而促进肿瘤免疫逃逸与肿瘤进展^[36]。TAM能够分泌多种细胞因子(如VEGF、IL-4、IL-10、PDGF-β)、细胞趋化因子(如CCL2、CCL17、CCL5) 和多种蛋白酶[如环氧合酶-2 (cyclooxygenase-2, COX-2)、精氨酸酶1 (arginase-1, ARG1)、组织蛋白酶K (cathepsin K) 和基质金属蛋白酶MMP等], 从而直接抑制CD8⁺ T淋巴细胞和CD4⁺ T淋巴细胞对肿瘤细胞的杀伤功能^[37]。与此同时, TAM还能够通过分泌多种细胞因子、细胞趋化因子及蛋白酶等募集自然调节性T细胞(regulatory T cells, Tregs) 并诱导适应性调节T细胞产生, Tregs细胞能够通过分泌抑制性免疫因子或通过直接抑制效应性T细胞的免疫应答来发挥免疫抑制功能。除Tregs外, 骨髓来源抑制性细胞(myeloid-derived suppressor cells, MDSCs) 也是免疫微环境中另一重要的抑制性免疫细胞。脑恶性胶质瘤中的TAM能够通过CCL2的分泌, 进而招募CCR2⁺ MDSCs来抑制肿瘤免疫应答, 促进恶性胶质瘤进展^[38]。TAM不仅能够招募免疫抑制性T细胞, 还能够通过表达干扰素调节因子IRF8等多种途径来促进肿瘤微环境中CD8⁺ T淋巴细胞的耗竭, 进而促进肿瘤进展^{[39, 40]}。此外, TAM还能够通过自分泌TNF-α和IL-10来诱导自身PD-L1表达上调, 进而抑制肿瘤特异性的T细胞免疫应答, 促进肿瘤进展。并且在肝癌患者中, TAM PD-L1表达水平越高往往与患者更高的死亡率和更低的生存率有显著关联^[41]。

2 靶向TAM的抗肿瘤策略和药物研发现状

收起

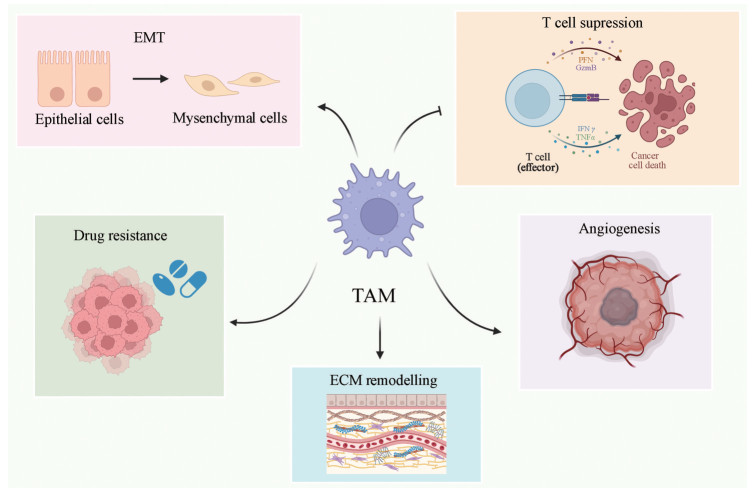

TAM在肿瘤的发生发展中发挥关键作用(图 2), 目前已有多种针对TAM的在研药物处于临床研究阶段。主要有两种针对TAM治疗策略, 一种是清除肿瘤微环境中具有促瘤作用的TAM, 包括诱导巨噬细胞凋亡或者阻断细胞因子或趋化因子等对巨噬细胞的招募等; 另一种方式是对TAM进行重编程, 诱导促瘤的M2型巨噬细胞转化为具有抗肿瘤作用的M1型巨噬细胞。现阶段, 针对TAM开发的药物研发主要围绕以下一些靶点展开。

2.1 巨噬细胞集落刺激因子1受体(colony stimulating factor 1 receptor, CSF1R) 抑制剂研发现状

CSF1R信号通路在TAM的增殖和活化过程发挥关键作用^[42], 通过抑制CSF1R能够有效抑制肿瘤免疫微环境中TAM的募集, 具有显著的抗肿瘤活性^[43]。靶向调控CSF1R也是研究最多的针对TAM的药物开发策略, 目前有多个CSF1R单克隆抗体或者小分子抑制剂已获批上市或正处于临床研究阶段。Surufatinib (HMPL-012) 是一种能够选择性靶向CSF1R、VEGFR1-3和FGFR1的小分子抑制剂, 基于其SANET-ep III期临床试验的结果, sulfatinib在中国获批用于非胰腺来源的神经内分泌瘤^[44]。Emactuzumab (RG-7155) 是由罗氏制药和Celleron Therapeutics共同开发的CSF1R抑制剂, 用于治疗腱鞘巨细胞瘤、卵巢癌和腹膜恶性肿瘤等, 目前主要处于II/III期临床试验阶段^{[45, 46]}。Axatilimab (SNDX-6352) 是由Syndax Pharmaceuticals和英赛德公司(Incyte Corporation) 联合开发的选择性CSF-1R抑制剂, 用于治疗慢性移植物抗宿主病、特发性肺纤维化及胆管癌等^[47]。培西达替尼(pexidartinib, PLX3397) 是由日本第一三共株式会社(Daiichi Sankyo) 研发的CSF1R单克隆抗体, 目前正在进行III期临床试验, 主要用于治疗滑膜肉瘤^[48]。在2019年美国FDA批准培西达替尼用于治疗对手术治疗无效、伴有功能受限或具有较高发病频率的症状性腱鞘巨细胞瘤成人患者^[49]。BLZ945是美国安进公司(Amgen) 研发的CSF1R小分子抑制剂, 目前正在进行多项临床试验, 包括治疗具有脑转移的淋巴瘤和胶质母细胞瘤(NCT02829723)^[50]。JNJ-40346527是美国强生(Johnson & Johnson) 公司研发的CSF1R小分子抑制剂, 目前处于II期临床试验, 用于治疗复发或难治性霍奇金淋巴瘤^[51]。IMS-935是由美国Immuneering Corporation研发的CSF1R抑制剂, 是一种口服小分子药物, 用于治疗不同类型的癌症, 如乳腺癌、肝癌和结肠直肠癌等, 目前处于临床I/II期研究阶段。ARRY-382由Array BioPharma公司研发的CSF1R选择性抑制剂, 目前正在进行I/II期临床试验, 主要与派姆单抗(pembrolizumab) 联用治疗晚期实体瘤^[52]。CSF1R-IH4是由英赛德公司研发的CSF1R抑制剂, 目前正在进行I/II期临床试验, 研究其在治疗实体瘤(如结肠癌) 中的疗效。Vimseltinib (DCC-3014) 是由Deciphera Pharmaceutical公司研发的一种高选择性的CSF1R开关控制激酶抑制剂, 目前正在进行III期临床试验以评估其用于治疗腱鞘巨细胞瘤的有效性^[53]。Q702是一种口服Axl/Mer/CSF1R选择性抑制剂, 由韩国上市公司Qurient Co., Ltd开发。目前Q702联合帕博利珠单抗(pembrolizumab) 用于治疗包括食道癌在内的多种晚期实体瘤, 正处在IB/II期临床试验中^[54]。西奥罗尼(chiauranib/CS2164) 是由深圳微芯生物科技股份有限公司研发的一种对包括CSF1R在内的多种激酶具有选择性抑制作用的多重激酶抑制剂, 其目前正在进行针对晚期实体肿瘤的临床Ib/II期试验^[55]。以上是目前主要的在研CSF1R抑制剂, 目前绝大多数CSF1R抑制剂开发都只处于临床研究阶段, 一些CSF1R抑制剂单药的临床试验结果不太理想甚至提前终止, 其原因可能为TAM具有较大的异质性和CSF1R抑制剂特异性的问题。对TAM进行更加精密的分型以及提高CSF1R抑制剂靶向性可能是未来靶向TAM药物开发的重要研究方向。

2.2 CCR2抑制剂研发现状

细胞趋化因子CCL2能够招募TAM向肿瘤组织中浸润, 阻断肿瘤内CCL2/CCR2信号通路能够抑制TAM的浸润水平, 抑制肿瘤进展与肿瘤转移^[56-58]。INCB 39110是由Incyte公司开发的口服CCR2抑制剂, 该化合物已经进入II期临床试验, 用于治疗晚期实体瘤和胰腺癌等。PF-04136309是由辉瑞公司(Pfizer) 开发的口服CCR2抑制剂, 用于治疗晚期实体瘤, 目前该药物已经进入II期临床试验^[59]。CCX872是由ChemoCentryx公司开发的口服CCR2抑制剂, 用于治疗晚期实体瘤, 目前该药物已经进入II期临床试验^[60]。Carlumab (CNTO 888) 是靶向CCL2的特异性单克隆抗体, 其能够抑制由CCL2介导的TAM向肿瘤组织的募集。Carlumab在临床前乳腺癌和前列腺癌小鼠模型中, 显示出良好的疗效, 但在临床试验中未观察到有效的反应率^[61]。此外, 还有很多处于临床前研究的CCR2抑制剂, 也具有良好的抗肿瘤活性^{[62, 63]}。CCR2抑制剂的开发面临和CSF1R抑制剂同样的问题, 如何对巨噬细胞进行更加精确的分型或者寻求更好的联合给药策略可能是未来重要的研究方向。

2.3 靶向CD47-SIRPα免疫检查点的药物研发现状

人体正常细胞能够通过表达CD47与巨噬细胞表面表达的信号调节蛋白α (signal-regulatory protein α, SIRPα) 相互作用, 向巨噬细胞传递“自己人, 别吃我”信号来避免巨噬细胞对自身的误伤, 但肿瘤细胞能够通过高表达CD47来躲避具有抗肿瘤活性的巨噬细胞杀伤^{[64, 65]}。因此, 通过抑制CD47-SIRPα轴可能具有重新恢复促瘤作用的TAM对肿瘤细胞杀伤能力的效应^[66]。目前, 已有靶向CD47的单克隆抗体Hu5f9-G4、CC-90002和TTI-621等在临床研究阶段^[67-69]。尽管I期临床结果显示, CC-90002在复发/难治性血液系统恶性肿瘤患者中具有良好的耐受性, 但是该临床试验最终由于未观察到客观响应而以失败告终。基于CC-90002较好的耐受性和药代动力学特性, 提高其给药剂量并联合其他单克隆抗体是一个后续值得探索的治疗策略^[70]。此外, 尽管Hu5f9-G4在多种血液病肿瘤中取得良好的疗效, 但由于CD47广泛表达于正常细胞中, 通过单独阻断CD47-SIRPα通路往往会导致血小板减少、自发性溶血等一些严重不良反应^[70-73]。如果通过与其他抗体药物联合治疗后, 可能发挥显著的治疗效果。CD47单抗Hu5F9-G4与利妥昔单抗联合给药能够有效治疗复发弥漫性大B细胞淋巴瘤和滤泡性淋巴瘤^[74]。如何减少阻断CD47-SIRPα信号通路的不良反应以及如何通过联合给药方式以增加该疗法的治疗效果, 可能是未来靶向CD47-SIRPα途径的药物研发的重要课题, 同时针对这一思路也有多项临床试验正在开展, 如将TTI-621与rituximab、nivolumab联合用于治疗血液肿瘤与实体肿瘤, Hu5F9-G4与azacitidine联合用于治疗血液肿瘤等^[75]。

2.4 驱动巨噬细胞向M1表型极化的药物研发现状

将具有促肿瘤作用的M2型巨噬细胞转化为具有抗肿瘤作用的M1型巨噬细胞能够有效地抑制肿瘤生长。目前针对驱动巨噬细胞向M1型极化有多种研究策略与相应的治疗药物处于研发阶段。CD40主要表达于B淋巴细胞和髓系细胞表面, CD40能够与树突细胞表面CD40配体结合促进树突细胞产生细胞因子和趋化因子, 诱导共刺激分子的表达, 增强抗原向T细胞的递呈^{[76, 77]}。此外, CD40还能够驱动M2型巨噬细胞向M1表型发生极化^{[78, 79]}。CP-870, 893是由罗氏公司开发的人源化单克隆CD40抗体, 在I期临床试验中与紫杉醇等化疗药物联用于晚期实体瘤的治疗中显示出良好的治疗效果^[80]。达妥珠单抗(SEA-40或SGN-40) 是由西雅图遗传学公司(Seattle Genetics) 研发的人源化CD40单克隆抗体。目前多项临床试验结果表明, 达妥珠单抗在治疗复发性或难治性晚期多发性骨髓瘤、复发或难治性非霍奇金淋巴瘤、弥漫大B细胞淋巴瘤具有良好的治疗效果, 无严重不良反应发生^[81-83]。ChiLob7/4是英国南安普敦大学研发的嵌合体激动剂抗CD40抗体, I期临床试验结果表明ChiLob7/4对CD40阳性的实体肿瘤或淋巴瘤患者具有良好的治疗效果^[84]。目前, 全世界约有20多种CD40抗体药物处于临床研究阶段, 用于肿瘤或其他免疫疾病的治疗。

Toll样受体(Toll-like receptor, TLR) 是一种先天免疫模式识别受体(图 3), 它能够被入侵的细菌颗粒或病毒核酸激活使巨噬细胞向M1型极化^[85]。目前有1个TLR9配体(IMO-2055) 与2个TLR7配体(imiquimod和852A) 在临床试验中针对巨噬细胞重编程测试其抗肿瘤活性^[86]。此外, 有研究表明激活IκB/NF-κB通路能够调节巨噬细胞向M1型转化^[87], 而硼替佐米能够通过抑制IκB的降解, 促进NF-κB活化, 促使巨噬细胞由M2型向M1型极化, 从而发挥抗肿瘤作用^[88]。

嵌合抗原受体巨噬细胞(chimeric antigen receptor-macrophage, CAR-M) 是将巨噬细胞工程化修饰嵌合抗原受体后以增强巨噬细胞抗原特异性的吞噬功能和肿瘤清除能力。Klichinsky等^{[89, 90]}首次提出CAR-M的想法并构建了能够靶向HER2的CAR-M, 发现其不仅表现出优秀的体内外抗肿瘤活性, 同时CAR-M能够增加促炎细胞因子的分泌, 促进M2型巨噬细胞向M1型转化, 上调对T细胞的抗原递呈并抵抗免疫抑制性的细胞因子。

2.5 其他靶向肿瘤相关巨噬细胞策略

肿瘤是一种快速生长、代谢活跃的恶性组织, 通过TAM输送和产生营养物质的获取是肿瘤微环境中代谢调控的重要组成部分。因此通过营养获取和代谢控制抑制TAM的促肿瘤作用, 也是目前靶向TAM的重要研究方向^{[91, 92]}。此外, TAM还能够通过表达PD-L1、B7-H4等免疫检查点来抑制肿瘤免疫应答, 因此靶向TAM表面的免疫检查点也成为调控TAM的免疫抑制活性的重要研究方向之一^[93]。由于M1型巨噬细胞可以靶向并吞噬肿瘤细胞, 因此工程化改造的巨噬细胞(engineering macrophages) 也可作为药物递送的载体, 以期实现抗肿瘤药物的靶向递送。除了巨噬细胞自身可作为药物递送的直接载体, 巨噬细胞分泌的外泌体由于具有和巨噬细胞相似的膜特征, 也可作为抗肿瘤药物递送的载体。此外, 将巨噬细胞膜提取后包覆上纳米粒也可以作为一种药物载体进行抗肿瘤药物的靶向递送^[94]。但是, 目前此类研究大多处于临床前研究阶段。

目前靶向TAM处于临床研究阶段的候选药物, 如表 1总结所示。

3 总结与展望

收起

随着新技术与新方法(各种组学和单细胞测序) 的发现, 多个学科不断交叉融合, 越来越多的肿瘤免疫药物(PD-1抗体、PD-L1抗体和CTLA-4抗体) 相继出现, 肿瘤免疫治疗取得突飞猛进。2018年美国的詹姆斯·艾利森与日本的本庶佑因为在免疫治疗肿瘤方面做出的巨大贡献被授予诺贝尔生理学或医学奖。相较于传统化疗, 肿瘤免疫治疗表现出更强的疗效与更好的耐受性。随着免疫治疗的进展, 也出现了一些问题, 如只有约20%的肿瘤患者对免疫治疗有反应及出现皮肤红肿及心肌炎等不良反应, 这些问题亟待未来进一步解决^[95]。

肿瘤微环境是肿瘤不可分割的一部分, 肿瘤微环境能够影响抗肿瘤免疫治疗的效果^[96]。巨噬细胞是肿瘤微环境的重要组成部分, 也是抗肿瘤免疫应答的重要组成部分。肿瘤微环境中的M1型巨噬细胞具有很强的抗原递呈能力, 通过释放促炎因子和激活I型T细胞应答, 从而发挥抗肿瘤作用^[97]。而损伤巨噬细胞的吞噬功能能够抑制肿瘤细胞的抗原递呈, 从而抑制抗肿瘤免疫应答^[98]。肿瘤微环境中的巨噬细胞具有可塑性, 存在M1与M2型巨噬细胞极化现象, 其中M1巨噬细胞主要参与促炎反应, M2巨噬细胞主要参与抗炎反应^[99]。TAM具有促进肿瘤的侵袭和转移、促肿瘤血管生成、促肿瘤耐药和抑制肿瘤免疫反应等作用。靶向TAM的药物研究正成为研究热点^[100]。此外, 由于肿瘤的异质性和患者个体免疫微环境的不同, 同一免疫治疗药物在不同肿瘤的免疫治疗效果不同。同一免疫治疗药物在同种肿瘤的不同患者治疗效果也不同。免疫疗法并不能在所有个体、所有肿瘤上表现出良好的治疗效果, 不良反应事件也不尽相同。随着单细胞测序、空间组学、大数据及人工智能的发展及多个学科的交叉合作, 更多的研究重点应放在TAM极化机制、TAM的靶点优化、TAM个性化差异等研究。

未来, 随着各种组学(尤其单细胞组学与空间组学)、大数据、人工智能等新技术和新方法的发展, 对肿瘤微环境中TAM不断深入了解, 一定会设计和开发出个性化、高效、不良反应小的靶向TAM药物, 提高和促进肿瘤的免疫治疗。

作者贡献: 任利文、杨艺辉负责论文的撰写、图片与表格的绘制; 李婉、张宜之、杨红、张森、许芳、郝悦、曹婉昕负责文献收集与分析; 王金华负责论文的选题、构思并指导文章的撰写; 王金华、杜冠华负责稿件的修改与校对。

利益冲突: 作者声明没有利益冲突。

基金

收起

北京市自然科学基金资助项目(7212157)
中国医学科学院医学与健康科技创新工程(2021-I2M-1-029)
中国医学科学院医学与健康科技创新工程(2022-I2M-JB-011)

参考文献

收起

文献

收起

参考文献引证文献

排序方式：

[1]

Sung H, Ferlay J, Siegel RL, et al. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries[J]. CA Cancer J Clin, 2021, 71: 209-249.

https://doi.org/10.3322/caac.21660

[2]

Riley RS, June CH, Langer R, et al. Delivery technologies for cancer immunotherapy[J]. Nat Rev Drug Discov, 2019, 18: 175-196.

https://doi.org/10.1038/s41573-018-0006-z

[3]

Brown TJ, Mamtani R, Bange EM. Immunotherapy adverse effects[J]. JAMA Oncol, 2021, 7: 1908.

https://doi.org/10.1001/jamaoncol.2021.5009

[4]

Xiao Y, Yu D. Tumor microenvironment as a therapeutic target in cancer[J]. Pharmacol Ther, 2021, 221: 107753.

https://doi.org/10.1016/j.pharmthera.2020.107753

[5]

Hinshaw DC, Shevde LA. The tumor microenvironment innately modulates cancer progression[J]. Cancer Res, 2019, 79: 4557-4566

[6]

Yang MM, Han XP, Qin C, et al. Strategies for targeting and remodeling tumor microenvironment[J]. Acta Pharm Sin (药学学报), 2022, 57: 98-108 http://www.yxxb.com.cn/aps/cn/article/doi/10.16438/j.0513-4870.2021-1232

[7]

Feng JL, Yang K, Hu JR, et al. Recent progress of nanoparticle-enabled modulation of macrophages for cancer immunotherapy[J]. Acta Pharm Sin (药学学报), 2022, 57: 2654-2661 http://www.yxxb.com.cn/aps/cn/article/doi/10.16438/j.0513-4870.2022-0516

[8]

Laviron M, Petit M, Weber-Delacroix E, et al. Tumor-associated macrophage heterogeneity is driven by tissue territories in breast cancer[J]. Cell Rep, 2022, 39: 110865.

https://doi.org/10.1016/j.celrep.2022.110865

[9]

Li S, Yu J, Huber A, et al. Metabolism drives macrophage heterogeneity in the tumor microenvironment[J]. Cell Rep, 2022, 39: 110609.

https://doi.org/10.1016/j.celrep.2022.110609

[10]

Anderson NR, Minutolo NG, Gill S, et al. Macrophage-based approaches for cancer immunotherapy[J]. Cancer Res, 2021, 81: 1201-1208

[11]

Boissonnas A, Combadière C. Modulating the tumor-associated macrophage landscape[J]. Nat Immunol, 2022, 23: 481-482

[12]

Cheng Y, Song S, Wu P, et al. Tumor associated macrophages and TAMs-based anti-tumor nanomedicines[J]. Adv Healthc Mater, 2021, 10: e2100590.

https://doi.org/10.1002/adhm.202100590

[13]

Murray PJ, Allen JE, Biswas SK, et al. Macrophage activation and polarization: nomenclature and experimental guidelines[J]. Immunity, 2014, 41: 14-20.

https://doi.org/10.1016/j.immuni.2014.06.008

[14]

Chen Y, Song Y, Du W, et al. Tumor-associated macrophages: an accomplice in solid tumor progression[J]. J Biomed Sci, 2019, 26: 78.

https://doi.org/10.1186/s12929-019-0568-z

[15]

Gunassekaran GR, Poongkavithai Vadevoo SM, Baek MC, et al. M1 macrophage exosomes engineered to foster M1 polarization and target the IL-4 receptor inhibit tumor growth by reprogramming tumor-associated macrophages into M1-like macrophages[J]. Biomaterials, 2021, 278: 121137.

https://doi.org/10.1016/j.biomaterials.2021.121137

[16]

Zhao X, Di Q, Liu H, et al. MEF2C promotes M1 macrophage polarization and Th1 responses[J]. Cell Mol Immunol, 2022, 19: 540-553.

https://doi.org/10.1038/s41423-022-00841-w

[17]

Rahal OM, Wolfe AR, Mandal PK, et al. Blocking interleukin (IL)4- and IL13-mediated phosphorylation of STAT6 (Tyr641) decreases M2 polarization of macrophages and protects against macrophage-mediated radioresistance of inflammatory breast cancer[J]. Int J Radiat Oncol Biol Phys, 2018, 100: 1034-1043.

https://doi.org/10.1016/j.ijrobp.2017.11.043

[18]

Chávez-Galán L, Olleros ML, Vesin D, et al. Much more than M1 and M2 macrophages, there are also CD169⁺ and TCR⁺ macrophages[J]. Front Immunol, 2015, 6: 263.

[19]

Petty AJ, Li A, Wang X, et al. Hedgehog signaling promotes tumor-associated macrophage polarization to suppress intratumoral CD8⁺ T cell recruitment[J]. J Clin Invest, 2019, 129: 5151-5162.

https://doi.org/10.1172/JCI128644

[20]

Ostuni R, Kratochvill F, Murray PJ, et al. Macrophages and cancer: from mechanisms to therapeutic implications[J]. Trends Immunol, 2015, 36: 229-239.

https://doi.org/10.1016/j.it.2015.02.004

[21]

Shi Q, Shen Q, Liu Y, et al. Increased glucose metabolism in TAMs fuels O-GlcNAcylation of lysosomal cathepsin B to promote cancer metastasis and chemoresistance[J]. Cancer Cell, 2022, 40: 1207-1222.e10.

https://doi.org/10.1016/j.ccell.2022.08.012

[22]

Yu-Ju Wu C, Chen CH, Lin CY, et al. CCL5 of glioma-associated microglia/macrophages regulates glioma migration and invasion via calcium-dependent matrix metalloproteinase 2[J]. Neuro Oncol, 2020, 22: 253-266.

https://doi.org/10.1093/neuonc/noz189

[23]

Vasiljeva O, Papazoglou A, Krüger A, et al. Tumor cell-derived and macrophage-derived cathepsin B promotes progression and lung metastasis of mammary cancer[J]. Cancer Res, 2006, 66: 5242-5250.

https://doi.org/10.1158/0008-5472.CAN-05-4463

[24]

Steenbrugge J, Breyne K, Demeyere K, et al. Anti-inflammatory signaling by mammary tumor cells mediates prometastatic macrophage polarization in an innovative intraductal mouse model for triple-negative breast cancer[J]. J Exp Clin Cancer Res, 2018, 37: 191.

https://doi.org/10.1186/s13046-018-0860-x

[25]

Wyckoff JB, Wang Y, Lin EY, et al. Direct visualization of macrophage-assisted tumor cell intravasation in mammary tumors[J]. Cancer Res, 2007, 67: 2649-2656.

https://doi.org/10.1158/0008-5472.CAN-06-1823

[26]

Finkernagel F, Reinartz S, Lieber S, et al. The transcriptional signature of human ovarian carcinoma macrophages is associated with extracellular matrix reorganization[J]. Oncotarget, 2016, 7: 75339-75352.

https://doi.org/10.18632/oncotarget.12180

[27]

Dirkx AE, Oude Egbrink MG, Wagstaff J, et al. Monocyte/macrophage infiltration in tumors: modulators of angiogenesis[J]. J Leukoc Biol, 2006, 80: 1183-1196.

https://doi.org/10.1189/jlb.0905495

[28]

Mazzieri R, Pucci F, Moi D, et al. Targeting the ANG2/TIE2 axis inhibits tumor growth and metastasis by impairing angiogenesis and disabling rebounds of proangiogenic myeloid cells[J]. Cancer Cell, 2011, 19: 512-526.

https://doi.org/10.1016/j.ccr.2011.02.005

[29]

Yeo EJ, Cassetta L, Qian BZ, et al. Myeloid Wnt7b mediates the angiogenic switch and metastasis in breast cancer[J]. Cancer Res, 2014, 74: 2962-2973

[30]

Castro BA, Flanigan P, Jahangiri A, et al. Macrophage migration inhibitory factor downregulation: a novel mechanism of resistance to anti-angiogenic therapy[J]. Oncogene, 2017, 36: 3749-3759.

https://doi.org/10.1038/onc.2017.1

[31]

De Groot JF, Piao Y, Tran H, et al. Myeloid biomarkers associated with glioblastoma response to anti-VEGF therapy with aflibercept[J]. Clin Cancer Res, 2011, 17: 4872-4881.

https://doi.org/10.1158/1078-0432.CCR-11-0271

[32]

Shree T, Olson OC, Elie BT, et al. Macrophages and cathepsin proteases blunt chemotherapeutic response in breast cancer[J]. Genes Dev, 2011, 25: 2465-2479.

https://doi.org/10.1101/gad.180331.111

[33]

Olson OC, Kim H, Quail DF, et al. Tumor-associated macrophages suppress the cytotoxic activity of antimitotic agents[J]. Cell Rep, 2017, 19: 101-113.

https://doi.org/10.1016/j.celrep.2017.03.038

[34]

Nakasone ES, Askautrud HA, Kees T, et al. Imaging tumor-stroma interactions during chemotherapy reveals contributions of the microenvironment to resistance[J]. Cancer Cell, 2012, 21: 488-503.

https://doi.org/10.1016/j.ccr.2012.02.017

[35]

Peng P, Zhu H, Liu D, et al. TGFBI secreted by tumor-associated macrophages promotes glioblastoma stem cell-driven tumor growth via integrin αvβ5-Src-Stat3 signaling[J]. Theranostics, 2022, 12: 4221-4236.

https://doi.org/10.7150/thno.69605

[36]

Cassetta L, Kitamura T. Macrophage targeting: opening new possibilities for cancer immunotherapy[J]. Immunology, 2018, 155: 285-293.

https://doi.org/10.1111/imm.12976

[37]

Pan Y, Yu Y, Wang X, et al. Tumor-associated macrophages in tumor immunity[J]. Front Immunol, 2020, 11: 583084.

https://doi.org/10.3389/fimmu.2020.583084ournalTitle=环境工程&year=2021&firstpage=46&issue=11

[38]

Chang AL, Miska J, Wainwright DA, et al. CCL2 produced by the glioma microenvironment is essential for the recruitment of regulatory T cells and myeloid-derived suppressor cells[J]. Cancer Res, 2016, 76: 5671-5682.

https://doi.org/10.1158/0008-5472.CAN-16-0144

[39]

Nixon BG, Kuo F, Ji L, et al. Tumor-associated macrophages expressing the transcription factor IRF8 promote T cell exhaustion in cancer[J]. Immunity, 2022, 55: 2044-2058.e5.

https://doi.org/10.1016/j.immuni.2022.10.002

[40]

Dong L, Chen C, Zhang Y, et al. The loss of RNA N⁶-adenosine methyltransferase Mettl14 in tumor-associated macrophages promotes CD8⁺ T cell dysfunction and tumor growth[J]. Cancer Cell, 2021, 39: 945-957.e10.

https://doi.org/10.1016/j.ccell.2021.04.016

[41]

Kuang DM, Zhao Q, Peng C, et al. Activated monocytes in peritumoral stroma of hepatocellular carcinoma foster immune privilege and disease progression through PD-L1[J]. J Exp Med, 2009, 206: 1327-1337.

https://doi.org/10.1084/jem.20082173

[42]

Kubota Y, Takubo K, Shimizu T, et al. M-CSF inhibition selectively targets pathological angiogenesis and lymphangiogenesis[J]. J Exp Med, 2009, 206: 1089-1102.

https://doi.org/10.1084/jem.20081605

[43]

Cannarile MA, Weisser M, Jacob W, et al. Colony-stimulating factor 1 receptor (CSF1R) inhibitors in cancer therapy[J]. J Immunother Cancer, 2017, 5: 53.

https://doi.org/10.1186/s40425-017-0257-y

[44]

Xu J, Shen L, Zhou Z, et al. Surufatinib in advanced extrapancreatic neuroendocrine tumours (SANET-ep): a randomised, double-blind, placebo-controlled, phase 3 study[J]. Lancet Oncol, 2020, 21: 1500-1512.

https://doi.org/10.1016/S1470-2045(20)30496-4

[45]

Ries CH, Cannarile MA, Hoves S, et al. Targeting tumor-associated macrophages with anti-CSF-1R antibody reveals a strategy for cancer therapy[J]. Cancer Cell, 2014, 25: 846-859.

https://doi.org/10.1016/j.ccr.2014.05.016

[46]

Gomez-Roca C, Cassier P, Zamarin D, et al. Anti-CSF-1R emactuzumab in combination with anti-PD-L1 atezolizumab in advanced solid tumor patients naïve or experienced for immune checkpoint blockade[J]. J Immunother Cancer, 2022, 10: e004076.

https://doi.org/10.1136/jitc-2021-004076

[47]

Kitko CL, Arora M, Defilipp Z, et al. Axatilimab for chronic graft-versus-host disease after failure of at least two prior systemic therapies: results of a phase I/II study[J]. J Clin Oncol, 2023, 41: 1864-1875.

https://doi.org/10.1200/JCO.22.00958

[48]

Tap WD, Gelderblom H, Palmerini E, et al. Pexidartinib versus placebo for advanced tenosynovial giant cell tumour (ENLIVEN): a randomised phase 3 trial[J]. Lancet, 2019, 394: 478-487.

https://doi.org/10.1016/S0140-6736(19)30764-0

[49]

Lamb YN. Pexidartinib: first approval[J]. Drugs, 2019, 79: 1805-1812.

https://doi.org/10.1007/s40265-019-01210-0

[50]

Klemm F, Möckl A, Salamero-Boix A, et al. Compensatory CSF2-driven macrophage activation promotes adaptive resistance to CSF1R inhibition in breast-to-brain metastasis[J]. Nat Cancer, 2021, 2: 1086-1101.

https://doi.org/10.1038/s43018-021-00254-0

[51]

Von Tresckow B, Morschhauser F, Ribrag V, et al. An open-label, multicenter, phase I/II study of JNJ-40346527, a CSF-1R inhibitor, in patients with relapsed or refractory Hodgkin lymphoma[J]. Clin Cancer Res, 2015, 21: 1843-1850.

https://doi.org/10.1158/1078-0432.CCR-14-1845

[52]

Johnson M, Dudek AZ, Sukari A, et al. ARRY-382 in combination with pembrolizumab in patients with advanced solid tumors: results from a phase 1b/2 study[J]. Clin Cancer Res, 2022, 28: 2517-2526.

https://doi.org/10.1158/1078-0432.CCR-21-3009

[53]

Caldwell TM, Ahn YM, Bulfer SL, et al. Discovery of vimseltinib (DCC-3014), a highly selective CSF1R switch-control kinase inhibitor, in clinical development for the treatment of tenosynovial giant cell tumor (TGCT)[J]. Bioorg Med Chem Lett, 2022, 74: 128928.

https://doi.org/10.1016/j.bmcl.2022.128928

[54]

Jeon Y, Kang H, Yang Y, et al. A novel selective Axl/Mer/CSF1R kinase inhibitor as a cancer immunotherapeutic agent targeting both immune and tumor cells in the tumor microenvironment[J]. Cancers, 2022, 14: 4821.

https://doi.org/10.3390/cancers14194821

[55]

Sun Y, Yang L, Hao X, et al. Phase I dose-escalation study of chiauranib, a novel angiogenic, mitotic, and chronic inflammation inhibitor, in patients with advanced solid tumors[J]. J Hematol Oncol, 2019, 12: 9.

https://doi.org/10.1186/s13045-018-0695-0

[56]

Xu M, Wang Y, Xia R, et al. Role of the CCL2-CCR2 signalling axis in cancer: mechanisms and therapeutic targeting[J]. Cell Prolif, 2021, 54: e13115.

https://doi.org/10.1111/cpr.13115

[57]

Fein MR, He XY, Almeida AS, et al. Cancer cell CCR2 orchestrates suppression of the adaptive immune response[J]. J Exp Med, 2020, 217: e20181551.

https://doi.org/10.1084/jem.20181551

[58]

Qian BZ, Li J, Zhang H, et al. CCL2 recruits inflammatory monocytes to facilitate breast-tumour metastasis[J]. Nature, 2011, 475: 222-225.

https://doi.org/10.1038/nature10138

[59]

Nywening TM, Wang-Gillam A, Sanford DE, et al. Targeting tumour-associated macrophages with CCR2 inhibition in combination with FOLFIRINOX in patients with borderline resectable and locally advanced pancreatic cancer: a single-centre, open-label, dose-finding, non-randomised, phase 1b trial[J]. Lancet Oncol, 2016, 17: 651-662.

https://doi.org/10.1016/S1470-2045(16)00078-4

[60]

Flores-Toro JA, Luo D, Gopinath A, et al. CCR2 inhibition reduces tumor myeloid cells and unmasks a checkpoint inhibitor effect to slow progression of resistant murine gliomas[J]. Proc Natl Acad Sci U S A, 2020, 117: 1129-1138.

https://doi.org/10.1073/pnas.1910856117

[61]

Brana I, Calles A, Lorusso PM, et al. Carlumab, an anti-C-C chemokine ligand 2 monoclonal antibody, in combination with four chemotherapy regimens for the treatment of patients with solid tumors: an open-label, multicenter phase 1b study[J]. Target Oncol, 2015, 10: 111-123.

https://doi.org/10.1007/s11523-014-0320-2

[62]

Hu QQ, Wen ZF, Huang QT, et al. CC chemokine receptor 2 (CCR2) expression promotes diffuse large B-cell lymphoma survival and invasion[J]. Lab Invest, 2022, 102: 1377-1388.

https://doi.org/10.1038/s41374-022-00824-5

[63]

Li X, Yao W, Yuan Y, et al. Targeting of tumour-infiltrating macrophages via CCL2/CCR2 signalling as a therapeutic strategy against hepatocellular carcinoma[J]. Gut, 2017, 66: 157-167.

https://doi.org/10.1136/gutjnl-2015-310514

[64]

Veillette A, Chen J. SIRPα-CD47 immune checkpoint blockade in anticancer therapy[J]. Trends Immunol, 2018, 39: 173-184.

https://doi.org/10.1016/j.it.2017.12.005

[65]

Matlung HL, Szilagyi K, Barclay NA, et al. The CD47-SIRPα signaling axis as an innate immune checkpoint in cancer[J]. Immunol Rev, 2017, 276: 145-164.

https://doi.org/10.1111/imr.12527

[66]

Logtenberg MEW, Scheeren FA, Schumacher TN. The CD47-SIRPα immune checkpoint[J]. Immunity, 2020, 52: 742-752.

https://doi.org/10.1016/j.immuni.2020.04.011

[67]

Zhang W, Huang Q, Xiao W, et al. Advances in anti-tumor treatments targeting the CD47/SIRPα axis[J]. Front Immunol, 2020, 11: 18.

https://doi.org/10.3389/fimmu.2020.00018

[68]

Russ A, Hua AB, Montfort WR, et al. Blocking "don't eat me" signal of CD47-SIRPα in hematological malignancies, an in-depth review[J]. Blood Rev, 2018, 32: 480-489.

https://doi.org/10.1016/j.blre.2018.04.005

[69]

Ansell SM, Maris MB, Lesokhin AM, et al. Phase I study of the CD47 blocker TTI-621 in patients with relapsed or refractory hematologic malignancies[J]. Clin Cancer Res, 2021, 27: 2190-2199.

https://doi.org/10.1158/1078-0432.CCR-20-3706

[70]

Zeidan AM, Deangelo DJ, Palmer J, et al. Phase 1 study of anti-CD47 monoclonal antibody CC-90002 in patients with relapsed/refractory acute myeloid leukemia and high-risk myelodysplastic syndromes[J]. Ann Hematol, 2022, 101: 557-569.

https://doi.org/10.1007/s00277-021-04734-2

[71]

Jalil AR, Andrechak JC, Discher DE. Macrophage checkpoint blockade: results from initial clinical trials, binding analyses, and CD47-SIRPα structure-function[J]. Antib Ther, 2020, 3: 80-94

[72]

Sikic BI, Lakhani N, Patnaik A, et al. First-in-human, first-in-class phase I trial of the anti-CD47 antibody Hu5F9-G4 in patients with advanced cancers[J]. J Clin Oncol, 2019, 37: 946-953.

https://doi.org/10.1200/JCO.18.02018

[73]

Tan M, Zacher N, French R, et al. Guidance for transfusion management in patients receiving magrolimab therapy (anti-CD47 monoclonal antibody)[J]. Intern Med J, 2022, 52: 2165-2171.

https://doi.org/10.1111/imj.15934

[74]

Advani R, Flinn I, Popplewell L, et al. CD47 blockade by Hu5F9-G4 and rituximab in non-Hodgkin's lymphoma[J]. N Engl J Med, 2018, 379: 1711-1721.

https://doi.org/10.1056/NEJMoa1807315

[75]

Hao Y, Zhou X, Li Y, et al. The CD47-SIRPα axis is a promising target for cancer immunotherapies[J]. Int Immunopharmacol, 2023, 120: 110255.

https://doi.org/10.1016/j.intimp.2023.110255

[76]

Karnell JL, Rieder SA, Ettinger R, et al. Targeting the CD40-CD40L pathway in autoimmune diseases: humoral immunity and beyond[J]. Adv Drug Deliv Rev, 2019, 141: 92-103.

https://doi.org/10.1016/j.addr.2018.12.005

[77]

Bullock TNJ. CD40 stimulation as a molecular adjuvant for cancer vaccines and other immunotherapies[J]. Cell Mol Immunol, 2022, 19: 14-22.

https://doi.org/10.1038/s41423-021-00734-4

[78]

Liu PS, Chen YT, Li X, et al. CD40 signal rewires fatty acid and glutamine metabolism for stimulating macrophage anti-tumorigenic functions[J]. Nat Immunol, 2023, 24: 452-462

[79]

Suttles J, Stout RD. Macrophage CD40 signaling: a pivotal regulator of disease protection and pathogenesis[J]. Semin Immunol, 2009, 21: 257-264.

https://doi.org/10.1016/j.smim.2009.05.011

[80]

Vonderheide RH, Burg JM, Mick R, et al. Phase I study of the CD40 agonist antibody CP-870, 893 combined with carboplatin and paclitaxel in patients with advanced solid tumors[J]. Oncoimmunology, 2013, 2: e23033.

https://doi.org/10.4161/onci.23033

[81]

Furman RR, Forero-Torres A, Shustov A, et al. A phase I study of dacetuzumab (SGN-40, a humanized anti-CD40 monoclonal antibody) in patients with chronic lymphocytic leukemia[J]. Leuk Lymphoma, 2010, 51: 228-235.

https://doi.org/10.3109/10428190903440946

[82]

De Vos S, Forero-Torres A, Ansell SM, et al. A phase II study of dacetuzumab (SGN-40) in patients with relapsed diffuse large B-cell lymphoma (DLBCL) and correlative analyses of patient-specific factors[J]. J Hematol Oncol, 2014, 7: 44.

https://doi.org/10.1186/1756-8722-7-44

[83]

Hussein M, Berenson JR, Niesvizky R, et al. A phase I multidose study of dacetuzumab (SGN-40; humanized anti-CD40 monoclonal antibody) in patients with multiple myeloma[J]. Haematologica, 2010, 95: 845-848.

https://doi.org/10.3324/haematol.2009.008003

[84]

Johnson P, Challis R, Chowdhury F, et al. Clinical and biological effects of an agonist anti-CD40 antibody: a cancer research UK phase I study[J]. Clin Cancer Res, 2015, 21: 1321-1328.

https://doi.org/10.1158/1078-0432.CCR-14-2355

[85]

Kaczanowska S, Joseph AM, Davila E. TLR agonists: our best frenemy in cancer immunotherapy[J]. J Leukoc Biol, 2013, 93: 847-863.

https://doi.org/10.1189/jlb.1012501

[86]

Fitzgerald KA, Kagan JC. Toll-like receptors and the control of immunity[J]. Cell, 2020, 180: 1044-1066.

https://doi.org/10.1016/j.cell.2020.02.041

[87]

Hagemann T, Lawrence T, Mcneish I, et al. "Re-educating" tumor-associated macrophages by targeting NF-kappaB[J]. J Exp Med, 2008, 205: 1261-1268.

https://doi.org/10.1084/jem.20080108

[88]

Juvekar A, Manna S, Ramaswami S, et al. Bortezomib induces nuclear translocation of IκBα resulting in gene-specific suppression of NF-κB-dependent transcription and induction of apoptosis in CTCL[J]. Mol Cancer Res, 2011, 9: 183-194.

https://doi.org/10.1158/1541-7786.MCR-10-0368

[89]

Klichinsky M, Ruella M, Shestova O, et al. Human chimeric antigen receptor macrophages for cancer immunotherapy[J]. Nat Biotechnol, 2020, 38: 947-953.

https://doi.org/10.1038/s41587-020-0462-y

[90]

Sloas C, Gill S, Klichinsky M. Engineered CAR-macrophages as adoptive immunotherapies for solid tumors[J]. Front Immunol, 2021, 12: 783305.

https://doi.org/10.3389/fimmu.2021.783305

[91]

Zhang X, Ji L, Li MO. Control of tumor-associated macrophage responses by nutrient acquisition and metabolism[J]. Immunity, 2023, 56: 14-31.

https://doi.org/10.1016/j.immuni.2022.12.003

[92]

Vitale I, Manic G, Coussens LM, et al. Macrophages and metabolism in the tumor microenvironment[J]. Cell Metab, 2019, 30: 36-50.

https://doi.org/10.1016/j.cmet.2019.06.001

[93]

Roux C, Jafari SM, Shinde R, et al. Reactive oxygen species modulate macrophage immunosuppressive phenotype through the up-regulation of PD-L1[J]. Proc Natl Acad Sci U S A, 2019, 116: 4326-4335.

https://doi.org/10.1073/pnas.1819473116

[94]

Xia Y, Rao L, Yao H, et al. Engineering macrophages for cancer immunotherapy and drug delivery[J]. Adv Mater, 2020, 32: e2002054.

https://doi.org/10.1002/adma.202002054

[95]

Jin X, Liu Z, Yang D, et al. Recent progress and future perspectives of immunotherapy in advanced gastric cancer[J]. Front Immunol, 2022, 13: 948647.

https://doi.org/10.3389/fimmu.2022.948647

[96]

Pitt JM, Marabelle A, Eggermont A, et al. Targeting the tumor microenvironment: removing obstruction to anticancer immune responses and immunotherapy[J]. Ann Oncol, 2016, 27: 1482-1492.

https://doi.org/10.1093/annonc/mdw168

[97]

Boutilier AJ, Elsawa SF. Macrophage polarization states in the tumor microenvironment[J]. Int J Mol Sci, 2021, 22: 6995.

https://doi.org/10.3390/ijms22136995

[98]

Luo M, Wang X, Wu S, et al. A20 promotes colorectal cancer immune evasion by upregulating STC1 expression to block "eat-me" signal[J]. Signal Transduct Target Ther, 2023, 8: 312.

https://doi.org/10.1038/s41392-023-01545-x

[99]

Yunna C, Mengru H, Lei W, et al. Macrophage M1/M2 polarization[J]. Eur J Pharmacol, 2020, 877: 173090.

https://doi.org/10.1016/j.ejphar.2020.173090

[100]

Cassetta L, Pollard JW. Targeting macrophages: therapeutic approaches in cancer[J]. Nat Rev Drug Discov, 2018, 17: 887-904.

https://doi.org/10.1038/nrd.2018.169

2023年第58卷第12期

PDF下载

260

117

引用本文

BibTeX

文章信息

doi: 10.16438/j.0513-4870.2023-1138

接收时间：2023-10-07
首发时间：2025-11-21
出版时间：2023-12-12

补充材料

相关文章

文章信息

作者

出版历史

收稿日期：2023-10-07
修回日期：2023-11-01

基金

北京市自然科学基金资助项目(7212157)

中国医学科学院医学与健康科技创新工程(2021-I2M-1-029)

中国医学科学院医学与健康科技创新工程(2022-I2M-JB-011)

作者信息

中国医学科学院、北京协和医学院药物研究所, 北京市药物靶点研究与新药筛选重点实验室, 北京 100050

通讯作者:

*王金华, Tel: 86-10-63165313, E-mail: wjh@imm.ac.cn

参考文献

分享链接

https://castjournals.cast.org.cn/joweb/yxxb/CN/10.16438/j.0513-4870.2023-1138

分享至

全文二维码

扫描看全文

引用本文

BibTeX

本文的引用情况

2种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Type	Drug candidate	Clinical stage	Indication	Combination treatment	NCT number
CSF1R inhibitor	PLX3397 (Plexxikon)	Phase I	Unresectable sarcoma	Sirolimus	NCT02584647
Phase I/IIa	Advanced melanoma and other solid tumors	Pembrolizumab	NCT02452424
Phase Ib/II	Metastatic breast cancer	Eribulin	NCT01596751
Phase Ib/II	Glioblastoma	Radiation therapy and temozolomide	NCT01790503
BLZ945 (Novartis)	Phase I/II	Advanced solid tumors	PDR001	NCT02829723
CSF1R monoclonal antibody	LY3022855 (IMC-CS4; Eli Lilly)	Phase I/II	Melanoma	Vemurafenib and cobimetinib	NCT03101254
Emactuzumab (RO5509554/RG7155; Roche)	Phase II	Platinum-resistant ovarian, fallopian tube, or primary peritoneal cancer	Paclitaxel and bevacizumab	NCT02923739
Phase III	Tenosynovial giant cell tumor	NA	NCT05417789
Phase Ib	Relapsed or refractory non-Hodgkin lymphoma	Atezolizumab	NCT03369964
Phase I	Advanced solid tumors	Atezolizumab	NCT02323191
Phase I	Advanced solid tumors	RO7009789	NCT02760797
AMG820 (Amgen)	Phase Ib/II	Select advanced solid tumor cancer	Pembrolizumab	NCT02713529
ARRAY-382 (Pfizer)	Phase I/II	Advanced solid tumors	Pembrolizumab	NCT02880371
Cabiralizumab (Bristol Myers Squibb)	Phase Ib/II	Triple-negative breast cancer	Nivolumab with neoadjuvant chemotherapy	NCT04331067
CD47/SIRPα monoclonal antibody	Hu5F9-G4 (Stanford University)	Phase Ib/II	Solid tumors and advanced colorectal cancer	Cetuximab	NCT02953782
Phase Ib/II	Urothelial carcinoma	Multiple immunotherapy-based treatments	NCT03869190
	BI 754091 (OSE Immunotherapeutics)	Phase I	Advanced solid tumours	BI 754091	NCT03990233
CD47 fusion protein	TTI-621 (Trillium)	Phase I	Hematologic malignancies and selected solid tumors	Nivolumab or rituximab	NCT02663518
Maplirpacept (Pfizer)	Phase I	Advanced hematological malignancies	Azacitidine, venetoclax, carfilzomib, dexamethasone, anti-CD20 targeting agent, isatuximab	NCT03530683
ALX148 (ALX Oncology)	Phase II	Advanced head and neck squamous cell carcinoma	Pembrolizumab	NCT04675294
Phase II	Advanced head and neck squamous cell carcinoma	Pembrolizumab and chemotherapy	NCT04675333
Chemokine inhibitor	Carlumab (CCL2 antibody; Centocor)	Phase II	Metastatic castrate-resistant prostate cancer	NA	NCT00992186
BMS-813160 (CCR2/CCR5 antagonist; Bristol Myers Squibb)	Phase II	Advanced renal cell carcinoma	Nivolumab	NCT02996110
Phase I/II	Advanced solid tumors	Chemotherapy or nivolumab	NCT03184870
Phase II	Non-small cell lung cancer or hepatocellular carcinoma	Nivolumab	NCT04123379
PF-4136309 (CCR2 antagonist; Pfizer)	Phase II	Borderline resectable and locally advanced pancreatic adenocarcinoma	FOLFIRINOX	NCT01413022
Maraviroc (CCR5 antagonist, Pfizer)	Phase I	Metastatic colorectal cancer	Pembrolizumab	NCT03274804
Phase I	Advanced metastatic colorectal and pancreatic cancer	Nivolumab and ipilimumab	NCT04721301
CD40 antibody	CP-870, 893 (Pfizer; UPenn)	Phase I	Solid tumors	NA	NCT02225002
Phase I	Metastatic solid tumors	Paclitaxel and carboplatin	NCT00607048
Phase I	Pancreatic carcinoma	Gemcitabine	NCT01456585
SEA-CD40 (Seagen)	Phase I	Advanced malignancies	Pembrolizumab, gemcitabine, and nab-paclitaxel	NCT02376699
APX005M (Apexigen)	Phase I	Advanced melanoma or renal cell carcinoma	Nivolumab and ipilimumab	NCT04495257
Phase I	Metastatic melanoma	Pembrolizumab	NCT02706353
Phase II	Esophageal and gastroesophageal junction cancers	Chemoradiation	NCT03165994
Phase I/II	Metastatic pancreatic adenocarcinoma	Gemcitabine and nab-paclitaxel with or without nivolumab	NCT03214250
RO7009789 (Roche)	Phase I	Metastatic solid tumors	Vanucizumab or bevacizumab	NCT02665416
Phase I	Pancreatic carcinoma	Nab-paclitaxel and gemcitabine	NCT02588443
CDX-1140 (Roswell Park Cancer Institute)	Phase I	Unresectable and metastatic solid tumors	Radiotherapy, CDX-301 and poly-ICLC	NCT04616248
NG-350A adenoviral vector (PsiOxusTherapeutics Ltd)	Phase I	Metastatic or advanced epithelial tumours	Pembrolizumab	NCT05165433
TLR3 agonist	Hiltonol (Oncovir, Inc.)	Phase II	Solid tumors	Dendritic cells	NCT01734564
Poly-ICLC (Ludwig Institute for Cancer Research)	Phase I/II	Biopsy-accessible cancers	Tremelimumab and IV durvalumab	NCT02643303
BO-112 (Highlight Therapeutics)	Phase II	Colorectal or gastric cancer	Pembrolizumab	NCT04508140
BO-112 (Highlight Therapeutics)	Phase II	Unresectable malignant melanoma	Pembrolizumab	NCT04570332
TLR7 agonist	SHR2150 (Chinese PLA General Hospital)	Phase I/II	Unresectable/metastatic solid tumors	Chemotherapy plus PD-1 or CD47 antibody	NCT04588324
TransCon (Ascendis Pharma)	Phase I/II	Advanced or metastatic solid tumors	Pembrolizumab	NCT04799054
BDC-1001 (Bolt Biother)	Phase I/II	Advanced HER2-expressing solid tumors	Nivolumab	NCT04278144
TLR9 agonist	CMP-001 (Checkmate Pharmaceuticals)	Phase II	Melanoma	Nivolumab	NCT04401995

Type

Drug candidate

Clinical stage

Indication

Combination treatment

NCT number

CSF1R inhibitor

PLX3397 (Plexxikon)

Phase I

Unresectable sarcoma

Sirolimus

NCT02584647

Phase I/IIa

Advanced melanoma and other solid tumors

Pembrolizumab

NCT02452424

Phase Ib/II

Metastatic breast cancer

Eribulin

NCT01596751

Phase Ib/II

Glioblastoma

Radiation therapy and temozolomide

NCT01790503

BLZ945 (Novartis)

Phase I/II

Advanced solid tumors

PDR001

NCT02829723

CSF1R monoclonal antibody

LY3022855 (IMC-CS4; Eli Lilly)

Phase I/II

Melanoma

Vemurafenib and cobimetinib

NCT03101254

Emactuzumab (RO5509554/RG7155; Roche)

Phase II

Platinum-resistant ovarian, fallopian tube, or primary peritoneal cancer

Paclitaxel and bevacizumab

NCT02923739

Phase III

Tenosynovial giant cell tumor

NCT05417789

Phase Ib

Relapsed or refractory non-Hodgkin lymphoma

Atezolizumab

NCT03369964

Phase I

Advanced solid tumors

Atezolizumab

NCT02323191

Phase I

Advanced solid tumors

RO7009789

NCT02760797

AMG820 (Amgen)

Phase Ib/II

Select advanced solid tumor cancer

Pembrolizumab

NCT02713529

ARRAY-382 (Pfizer)

Phase I/II

Advanced solid tumors

Pembrolizumab

NCT02880371

Cabiralizumab (Bristol Myers Squibb)

Phase Ib/II

Triple-negative breast cancer

Nivolumab with neoadjuvant chemotherapy

NCT04331067

CD47/SIRPα monoclonal antibody

Hu5F9-G4 (Stanford University)

Phase Ib/II

Solid tumors and advanced colorectal cancer

Cetuximab

NCT02953782

Phase Ib/II

Urothelial carcinoma

Multiple immunotherapy-based treatments

NCT03869190

BI 754091 (OSE Immunotherapeutics)

Phase I

Advanced solid tumours

BI 754091

NCT03990233

CD47 fusion protein

TTI-621 (Trillium)

Phase I

Hematologic malignancies and selected solid tumors

Nivolumab or rituximab

NCT02663518

Maplirpacept (Pfizer)

Phase I

Advanced hematological malignancies

Azacitidine, venetoclax, carfilzomib, dexamethasone, anti-CD20 targeting agent, isatuximab

NCT03530683

ALX148 (ALX Oncology)

Phase II

Advanced head and neck squamous cell carcinoma

Pembrolizumab

NCT04675294

Phase II

Advanced head and neck squamous cell carcinoma

Pembrolizumab and chemotherapy

NCT04675333

Chemokine inhibitor

Carlumab (CCL2 antibody; Centocor)

Phase II

Metastatic castrate-resistant prostate cancer

NCT00992186

BMS-813160 (CCR2/CCR5 antagonist; Bristol Myers Squibb)

Phase II

Advanced renal cell carcinoma

Nivolumab

NCT02996110

Phase I/II

Advanced solid tumors

Chemotherapy or nivolumab

NCT03184870

Phase II

Non-small cell lung cancer or hepatocellular carcinoma

Nivolumab

NCT04123379

PF-4136309 (CCR2 antagonist; Pfizer)

Phase II

Borderline resectable and locally advanced pancreatic adenocarcinoma

FOLFIRINOX

NCT01413022

Maraviroc (CCR5 antagonist, Pfizer)

Phase I

Metastatic colorectal cancer

Pembrolizumab

NCT03274804

Phase I

Advanced metastatic colorectal and pancreatic cancer

Nivolumab and ipilimumab

NCT04721301

CD40 antibody

CP-870, 893 (Pfizer; UPenn)

Phase I

Solid tumors

NCT02225002

Phase I

Metastatic solid tumors

Paclitaxel and carboplatin

NCT00607048

Phase I

Pancreatic carcinoma

Gemcitabine

NCT01456585

SEA-CD40 (Seagen)

Phase I

Advanced malignancies

Pembrolizumab, gemcitabine, and nab-paclitaxel

NCT02376699

APX005M (Apexigen)

Phase I

Advanced melanoma or renal cell carcinoma

Nivolumab and ipilimumab

NCT04495257

Phase I

Metastatic melanoma

Pembrolizumab

NCT02706353

Phase II

Esophageal and gastroesophageal junction cancers

Chemoradiation

NCT03165994

Phase I/II

Metastatic pancreatic adenocarcinoma

Gemcitabine and nab-paclitaxel with or without nivolumab

NCT03214250

RO7009789 (Roche)

Phase I

Metastatic solid tumors

Vanucizumab or bevacizumab

NCT02665416

Phase I

Pancreatic carcinoma

Nab-paclitaxel and gemcitabine

NCT02588443

CDX-1140 (Roswell Park Cancer Institute)

Phase I

Unresectable and metastatic solid tumors

Radiotherapy, CDX-301 and poly-ICLC

NCT04616248

NG-350A adenoviral vector (PsiOxusTherapeutics Ltd)

Phase I

Metastatic or advanced epithelial tumours

Pembrolizumab

NCT05165433

TLR3 agonist

Hiltonol (Oncovir, Inc.)

Phase II

Solid tumors

Dendritic cells

NCT01734564

Poly-ICLC (Ludwig Institute for Cancer Research)

Phase I/II

Biopsy-accessible cancers

Tremelimumab and IV durvalumab

NCT02643303

BO-112 (Highlight Therapeutics)

Phase II

Colorectal or gastric cancer

Pembrolizumab

NCT04508140

BO-112 (Highlight Therapeutics)

Phase II

Unresectable malignant melanoma

Pembrolizumab

NCT04570332

TLR7 agonist

SHR2150 (Chinese PLA General Hospital)

Phase I/II

Unresectable/metastatic solid tumors

Chemotherapy plus PD-1 or CD47 antibody

NCT04588324

TransCon (Ascendis Pharma)

Phase I/II

Advanced or metastatic solid tumors

Pembrolizumab

NCT04799054

BDC-1001 (Bolt Biother)

Phase I/II

Advanced HER2-expressing solid tumors

Nivolumab

NCT04278144

TLR9 agonist

CMP-001 (Checkmate Pharmaceuticals)

Phase II

Melanoma

Nivolumab

NCT04401995
