Cr含量对低Cu/Mg比Al-Cu-Mg-Ag合金微观组织和力学性能的影响
收藏切换
PDF下载
杨国强 , 刘志义 , 柏松 , 李苏望 , 曹靖
矿冶工程杂志 | 材料 2025,45(2): 193-196
收起
收藏切换
矿冶工程杂志 | 材料 2025, 45(2): 193-196
Cr含量对低Cu/Mg比Al-Cu-Mg-Ag合金微观组织和力学性能的影响
全屏
杨国强 , 刘志义 , 柏松, 李苏望, 曹靖
作者信息
  • 中南大学　材料科学与工程学院，湖南　长沙　410083

    • 杨国强（1999—），男，四川眉山人，硕士，主要从事铝合金微合金化研究。E-mail：

通讯作者:

刘志义（1962—），男，湖南邵阳人，教授，博士研究生导师，主要从事铝合金的基础研究及应用技术开发。E-mail：
Effect of Cr Content on Microstructure and Mechanical Properties of Al-Cu-Mg-Ag Alloy with a Low Cu/Mg Ratio
Guoqiang YANG , Zhiyi LIU , Song BAI, Suwang LI, Jing CAO
Affiliations
  • School of Materials Science and Engineering, Central South University, Changsha 410083, Hunan, China
出版时间: 2025-04-01 doi: 10.3969/j.issn.0253-6099.2025.02.034
文章导航
收藏切换
摘要
收起

研究了Cr含量（质量分数）对低Cu/Mg比Al-Cu-Mg-Ag合金微观组织和力学性能的影响。结果表明：在低Cu/Mg比Al-Cu-Mg-Ag合金中添加Cr，合金中形成了Al-Cr相和Al1.6TiCr0.4相；Cr含量由0.17%提高到0.22%，合金的抗拉强度由463 MPa提高到484 MPa，提升了4.5%；屈服强度由288 MPa提高到319 MPa，提升了10.8%。合金力学性能的提升主要来源于Cr的固溶强化和S′相的析出强化。

微合金化  /  Cu/Mg比  /  固溶强化  /  析出强化  /  Cr  /  Al-Cu-Mg-Ag合金  /  析出相  /  欠时效  /  力学性能

The effect of Cr content in mass fraction on the microstructure and mechanical properties of Al-Cu-Mg-Ag alloy with a low Cu/Mg ratio was investigated. Results indicate that after an addition of Cr to the Al-Cu-Mg-Ag alloy with low Cu/Mg ratio, phases of Al-Cr and Al1.6TiCr0.4 are generated in the alloy; with Cr content from 0.17% up to 0.22%, the alloy has its tensile strength improved from 463 MPa to 484 MPa (a 4.5% increase), and its yield strength enhanced from 288 MPa to 319 MPa (a 10.8% increase). The enhancement in mechanical properties is attributed to solid solution strengthening by Cr and precipitation strengthening by S′ phases.

microalloying  /  Cu/Mg ratio  /  solid solution strengthening  /  precipitation strengthening  /  Cr  /  Al-Cu-Mg-Ag alloy  /  precipitate  /  under-aging  /  mechanical property
杨国强, 刘志义, 柏松, 李苏望, 曹靖. Cr含量对低Cu/Mg比Al-Cu-Mg-Ag合金微观组织和力学性能的影响. 矿冶工程杂志, 2025 , 45 (2) : 193 -196 . DOI: 10.3969/j.issn.0253-6099.2025.02.034
Guoqiang YANG, Zhiyi LIU, Song BAI, Suwang LI, Jing CAO. Effect of Cr Content on Microstructure and Mechanical Properties of Al-Cu-Mg-Ag Alloy with a Low Cu/Mg Ratio[J]. Mining and Metallurgical Engineering, 2025 , 45 (2) : 193 -196 . DOI: 10.3969/j.issn.0253-6099.2025.02.034
正文
收起
Al-Cu-Mg-Ag合金因其优良的耐热性能和抗蠕变性能，广泛应用于航空航天领域和石油工业，但该合金存在热稳定性和耐腐蚀性较差的缺点[1-2]。学者们利用微合金化和优化热处理工艺等改善其性能。目前对Al-Cu-Mg-Ag合金力学性能的研究主要集中在高Cu/Mg比Al-Cu-Mg-Ag合金的主要析出相θ′相和Ω相[3-7]，而对低Cu/Mg比Al-Cu-Mg-Ag合金的主要析出相S（Al2CuMg）相的研究很少。Cr作为铝合金常用的微合金化元素，广泛添加在Al-Zn-Mg-Cu合金中[8-10]。郭帅[11]研究了Cr的微合金化对低Cu/Mg比Al-Cu-Mg合金的性能影响，但由于其Cr添加量较少，合金中未发现含Cr相。本文在此基础上，继续增加Cr添加量，研究Cr在低Cu/Mg比Al-Cu-Mg-Ag合金中的存在形式，并研究增加Cr添加量对低Cu/Mg比Al-Cu-Mg-Ag合金微观组织和力学性能的影响，以期促进含Cr的Al-Cu-Mg-Ag合金在石油和航天工业方面的应用。
1　实验方法
收起
实验原料主要为工业高纯铝、纯镁、纯银和Al-50Cu（元素前数据表示该元素的质量分数，下同）、Al-10Mn、Al-4Cr、Al-6Ti、Al-4Zr中间合金，通过熔炼、铸造，制备了Cr添加量分别为0.17%和0.22%的2种合金，分别命名为A合金和B合金，其化学成分见表1。
对A、B合金铸锭进行双级均匀化处理：420 ℃/24 h+480 ℃/48 h，空冷至室温；然后在空气炉内将铸锭加热至410 ℃并保温2 h，立即轧制成厚约2.5 mm的薄板；对A、B合金薄板样品进行500 ℃/1 h固溶处理和170 ℃/3 h欠时效处理，所得样品分别命名为UA、UB。
分别采用扫描电镜、透射电镜观察合金的微观组织和沉淀颗粒；在HV-10B型仪器上测试合金显微硬度，载荷5 kg，加载时间10 s；在WOW-50E型试验机上进行室温拉伸试验，拉伸速率2 mm/min。
2　实验结果与讨论
收起
2.1　合金时效硬化行为

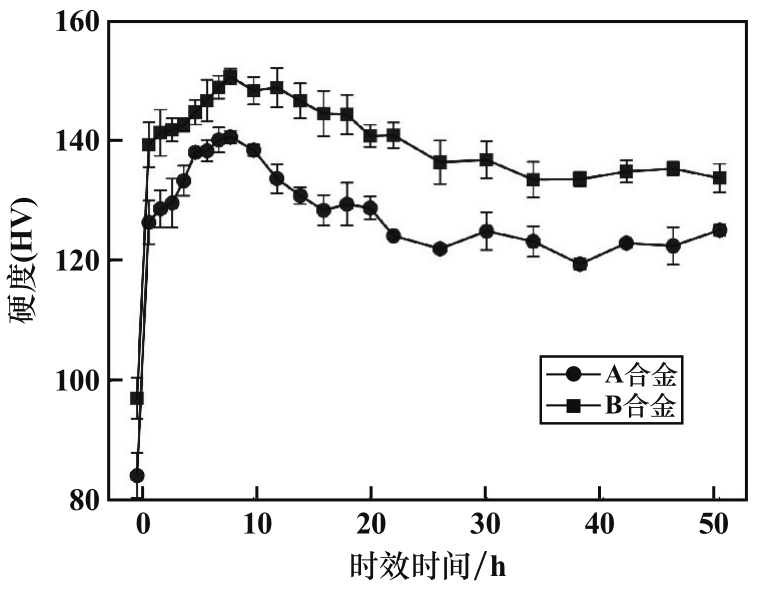

经500 ℃/1 h固溶处理后，170 ℃下不同Cr含量（质量分数，下同）Al-Cu-Mg-Ag合金时效硬化曲线如图1所示。随着时效时间增加，A、B合金硬度都呈现先增加后降低的趋势，并且各时效时间下B合金的硬度均高于A合金的硬度。固溶处理后A合金的硬度值为84.2HV，B合金的硬度值为97HV，B合金表现出更强的固溶强化效应。时效8 h，A、B合金的硬度均到达时效峰值硬度，分别为140HV、150HV。继续延长时效时间，2种合金的硬度总体呈下降趋势。可以看出，增加Cr添加量可以使合金时效硬度提高，这归因于Cr的固溶强化效应。
2.2　合金拉伸性能

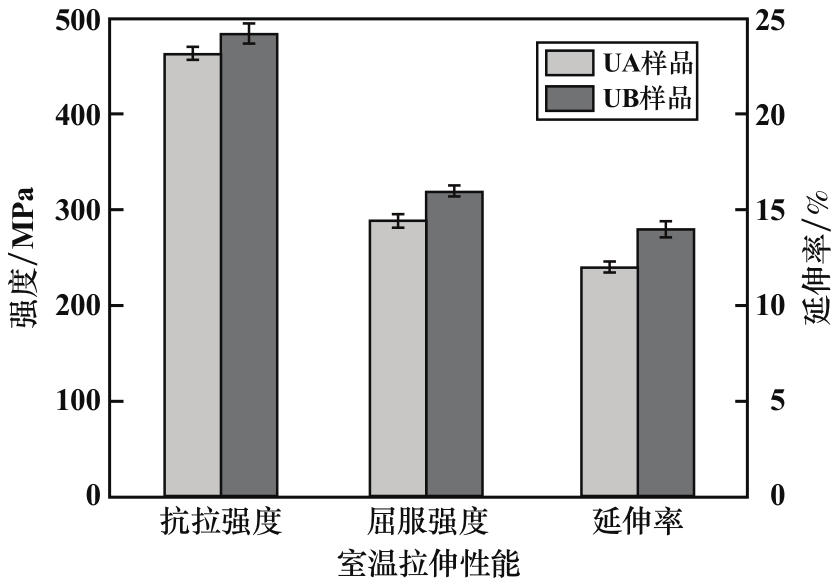

欠时效态下不同Cr含量Al-Cu-Mg-Ag合金室温拉伸性能如图2所示。随着Cr含量从0.17%增加到0.22%，合金抗拉强度从463 MPa提高到484 MPa，提高了4.5%；屈服强度从288 MPa提高到319 MPa，提高了10.8%；延伸率也有所提升。由此可见，随着微合金化程度提高，合金拉伸性能提高。
2.3　合金物相分析

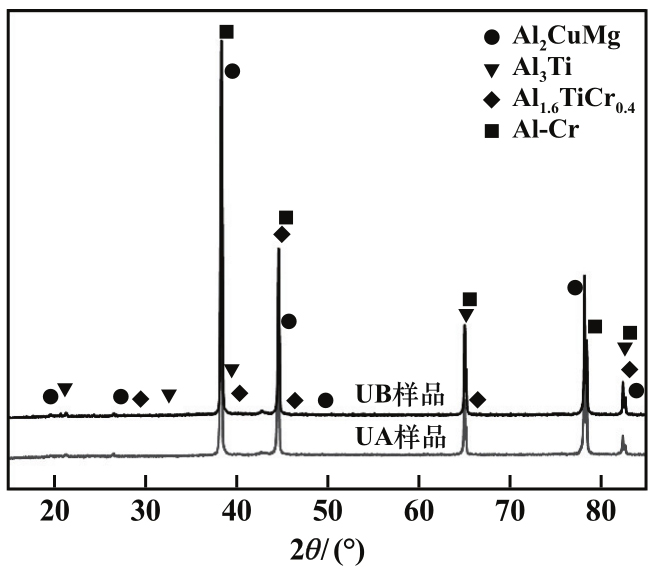

欠时效态下不同Cr含量Al-Cu-Mg-Ag合金的XRD图谱如图3所示。从图3可知，UA、UB样品相组成几乎没有区别，都由于Cr的加入而形成了Al1.6TiCr0.4相和Al-Cr相。另外，合金中还有Al2CuMg、Al3Ti存在。
2.4　合金显微组织分析
不同Cr含量Al-Cu-Mg-Ag铸态合金的显微组织见图4。由图4可见，A、B铸态合金的晶粒尺寸并无明显差异，SEM形貌表现为典型的枝晶偏析特征，晶粒呈现等轴状。对图4中合金的第二相粒子进行了EDS分析，结果如表2所示。由表2可知，第二相粒子主要为Alx（Cu，Mn，Fe，Cr）和Al2CuMg相。Fe、Cr、Mn元素表现为互相聚集的状态，即Mn含量高的第二相其中Fe和Cr含量也相对较高。由于Cr的添加，A、B铸态合金中均形成了Alx（Cu，Mn，Fe，Cr）粒子，但晶粒大小并没有明显差异。
2.5　合金TEM分析
图5为UA、UB样品沿<100>α轴的明场图像和相应的选区电子衍射（SAED）图。可以看出，晶粒内部存在一些粗大的棒状T相（Al20Cu2Mn3）。在相应的SAED图中可以看见变体的S相（Al2CuMg）衍射斑点，由于样品为欠时效状态，为了了解Cr的添加对低Cu/Mg比Al-Cu-Mg-Ag合金相关析出相的大小和分布的影响，对UA、UB试样进行了TEM分析，结果见图5。合金中可能有S″和S′同时存在，本文暂不做区分，统一认为是S′相。未长大的短针状S′相大多为弥散分布，还有一些S′相在T相与Al基体的界面周围析出。对UA、UB样品沿<100>α轴的亮场图像中的短针状S′相（尺寸太小近乎看作球状）进行了面积分数和尺寸统计，结果如表3所示。UB样品中析出的S′相较UA样品析出的S′相的数量更多，尺寸更大。由此可以看出，提高Cr含量，可以使合金中S′析出相数量增加，从而提高合金性能。
2.6　讨论与分析
微合金化主要通过细化晶粒、影响强化相析出或形成相关金属间化合物影响合金的力学性能[12-17]。在微观组织结构上，Al合金中添加Cr元素会形成Al-Cr相（如Al7Cr、Al11Cr2、Al45Cr7等）和富含Cr、Fe、Mn、Cu的粒子[13-18]。文献[19]在Al-Mg-Si合金中添加0.07% Cr，诱导形成了Al45Cr7相，其作为α-Al的异质形核点，细化了晶粒。文献[11]在低Cu/Mg比Al-Cu-Mg合金中进行Cr的微合金化，却未发现明显的晶粒细化现象。在低Cu/Mg比的Al-Cu-Mg-Ag合金中，本文将Cr添加量从0.17%提高到0.22%，Cr添加量的增加并未导致明显的晶粒细化（图4）。提高Cr含量可以使S′相含量增加、尺寸增大（图5和表3），这是由于Cr以弥散粒子的形式作为异质形核点，促进了S′相的形核析出，在相同时间的欠时效状态下，UB样品的S′相的含量更多、尺寸更大，进而使UB样品室温下的拉伸强度和屈服强度更优。
在力学性能上，UB样品的硬度、拉伸强度、屈服强度均优于UA样品。考虑Cr元素添加影响欠时效Al-Cu-Mg-Ag合金力学性能的强化机制，其理论屈服强度[20-21]可估计为：
式中：σ0为纯铝的晶格摩擦应力；ΔσHP、ΔσSS、ΔσP分别为由晶界、固溶体原子和沉淀物引起的屈服强度增量。
细晶强化主要是晶粒尺寸差异引起的强度变化，由于两合金的晶粒大小基本没有差异，细晶强化对两合金所做出的贡献并无差距，可视为ΔσHP（UA）≈ΔσHP（UB）。
固溶强化增量可由固溶强化屈服强度增量的方程[21-22]来分析：
式中：ci为固溶体中溶质元素i的浓度，%；ki为相应的固溶体强化效率；m为与合金相关的常数，对于Al-Cu-Mg-Ag合金，m=1。在本实验中两合金的固溶强化增量的差异主要由Cr含量决定。cCr（UA）<cCr（UB），相对应的固溶体强化效率不变，则有ΔσSS（UA）<ΔσSS（UB）。
合金中的S′相尺寸太小，近似看作很小的圆形，忽略尺寸因素的影响，沉淀强化增量的分析方程[20]可表示为：
式中M、Δμ和fV分别为Al的泰勒因子、相与基体之间的剪切模量、颗粒的体积分数。本文以S′相的面积分数近似替代其体积分数，则有fV（UA）<fV（UB），沉淀强化增量ΔσP（UA）<ΔσP（UB）。
再将公式（2）、（3）所得结论代入公式（1）中，即可得：，这与实验结果吻合。
3　结论
收起
1）在低Cu/Mg比Al-Cu-Mg-Ag合金中添加0.17%Cr和0.22%Cr，都会形成Al1.6TiCr0.4相和Al-Cr相，且两者晶粒尺寸相差不大；相对于含0.17%Cr的合金，相同欠时效状态下，含0.22%Cr的合金中析出数量更多、粒径更大的S′相，表现出更优的力学性能。
2）Cr含量由0.17%提高到0.22%，合金抗拉强度由463 MPa提高到484 MPa，提升了4.5%；屈服强度由288 MPa提高到319 MPa，提升了10.8%。合金强化机制是Cr元素的固溶强化效应和S′（Al2CuMg）相的析出强化效应。
文献
收起
参考文献 引证文献
排序方式：
[1]
TOLGA D, COSTAS S. Recent developments in advanced aircraft aluminium alloys[J]. Materials and Design, 2013, 56: 862-871.
[2]
SUN Z G, MA Y L, MA S M, et al. Mechanical properties and corrosion resistance enhancement of 2024 aluminum alloy for drill pipe after heat treatment and Sr modification[J]. Materials Today Communications, 2023, 36: 16805.
[3]
LIN Y, XIA Y, JIANG Y, et al. Precipitation hardening of 2024-T3 aluminum alloy during creep aging[J]. Materials Science Engineering: A, 2013, 565: 420-429.
[4]
徐浩楠, 杜翥, 何雨, 等. Al-Cu-Mg-Ag耐热铝合金研究进展[J]. 信息记录材料, 2022, 23(10): 8-10.
XU Haonan, DU Zhu, HE Yu, et al. Research progress on Al-Cu-Mg-Ag heat-resistant aluminum alloys[J]. Information Recording Materials, 2022, 23(10): 8-10.
[5]
胡奇, 郭一鸣, 章立钢, 等. Mg、Si含量对Al-Cu-Mg-Ag-Si合金析出相的影响[J]. 矿冶工程, 2024, 44(1): 143-146.
HU Qi, GUO Yiming, ZHANG Ligang, et al. Effects of Mg and Si contents on precipitates in Al-Cu-Mg-Ag-Si alloys[J]. Mining and Metallurgical Engineering, 2024, 44(1): 143-146.
[6]
谢浩宇, 刘志义, 赵娟刚, 等. 稀土Er对Al-Cu-Mg-Ag合金微观组织和力学性能的影响[J]. 矿冶工程, 2022, 42(1): 140-143.
XIE Haoyu, LIU Zhiyi, ZHAO Juangang, et al. Effect of rare earth Er on microstructure and mechanical properties of Al-Cu-Mg-Ag alloys[J]. Mining and Metallurgical Engineering, 2022, 42(1): 140-143.
[7]
王鹏, 刘冠华, 刘志义. 固溶温度对Al-Cu-Mg-Ag合金显微组织与力学性能的影响[J]. 矿冶工程, 2019, 39(6): 115-119.
WANG Peng, LIU Guanhua, LIU Zhiyi. Effect of solution treatment temperature on microstructure and mechanical properties of Al-Cu-Mg-Ag alloys[J]. Mining and Metallurgical Engineering, 2019, 39(6): 115-119.
[8]
WANG M, HUANG L P, CHEN K H, et al. Influence of minor combined addition of Cr and Pr on microstructure, mechanical properties and corrosion behaviors of an ultrahigh strength Al-Zn-Mg-Cu-Zr alloy[J]. Micron, 2017, 104: 80-88.
[9]
KENNETH C A, ROBBY F G, PIYADA S, et al. Microstructure evolution and localized corrosion susceptibility of an Al-Zn-Mg-Cu-Zr 7xxx alloy with minor Cr addition[J]. Materials, 2023, 16(3): 946.
[10]
FANG H, CHAO H, CHEN K. Effect of Zr, Er and Cr additions on microstructures and properties of Al-Zn-Mg-Cu alloys[J]. Materials Science Engineering: A, 2014, 610: 10-16.
[11]
郭帅. 油井管用Al-Cu-Mg-(Ag)合金耐热、耐腐蚀机理研究[D]. 长沙: 中南大学, 2022.
GUO Shuai. Research on mechanisms of heat and corrosion resistance of Al-Cu-Mg-(Ag) alloys for oil well pipe[D]. Changsha: Central South University, 2022.
[12]
BAI S, YI X, LIU G, et al. Effect of Sc addition on the microstructures and age-hardening behavior of an Al-Cu-Mg-Ag alloy[J]. Materials Science Engineering: A, 2019, 756: 258-267.
[13]
MALEKAN M, EMAMY M, MOSSAYEBI N, et al. Effects of Al3Ni and Al7Cr intermetallics and T6 heat treatment on the microstructure and tensile properties of Al-Zn-Mg-Cu alloy[J]. Journal of Materials Engineering and Performance, 2020, 29(5): 3432-3442.
[14]
王建. Cr、Sc对Al-Cu-Mg-Ag合金的组织与性能的影响[D]. 郑州: 郑州大学, 2015.
WANG Jian. The influence of Cr and Sc on the microstructure and the mechanical properties of Al-Cu-Mg-Ag alloys[D]. Zhengzhou: Zhengzhou University, 2015.
[15]
LING K, CHEN J W, RAN H W, et al. Effect of V additions on the microstructure and mechanical properties of Al-Cu-Mg-Ag alloy[J]. Materials Today Communications, 2022, 33: 10497.
[16]
FERRAGUT R, DUPASQUIER A, MACCHI C E, et al. Vacancy-solute interactions during multiple-step ageing of an Al-Cu-Mg-Ag alloy[J]. Scripta Materialia, 2008, 60(3): 137-140.
[17]
XU H, DONG Y, BAI S, et al. Effect of small Sn addition on the initial strengthening and microstructural evolution of an Al-Cu-Mg-Ag alloy[J]. Journal of Alloys and Compounds, 2023, 943: 169167.
[18]
TRUDONOSHYN O, PRACH O, RANDELZHOFER P, et al. Heat treatment of the new high-strength high-ductility Al-Mg-Si-Mn alloys with Sc, Zr and Cr additions[J]. Materialia, 2021, 15: 100981.
[19]
WANG X, MA P K, MENG Z Y, et al. Effect of trace Cr alloying on centerline segregations in sub-rapid solidified Al-Mg-Si (AA6061) alloys fabricated by twin-roll casting[J]. Materials Science Engineering: A, 2021, 825: 141896.
[20]
WANG J, LIU Z Y, BAI S, et al. Microstructure evolution and mechanical properties of the electron-beam welded joints of cast Al-Cu-Mg-Ag alloy[J]. Materials Science and Engineering: A, 2020, 801: 140363.
[21]
KURMANAEVA L, TOPPING D T, WEN H, et al. Strengthening mechanisms and deformation behavior of cryomilled Al-Cu-Mg-Ag alloy[J]. Journal of Alloys and Compounds, 2015, 632: 591-603.
[22]
GAZIZOV M, KAIBYSHEV R. Precipitation structure and strengthening mechanisms in an Al-Cu-Mg-Ag alloy[J]. Materials Science Engineering: A, 2017, 702: 29-40.
