基于LS-DYNA的楔形切割拉槽爆破数值模拟研究及应用
收藏切换
PDF下载
陈帮洪 1 , 陈星明 2 , 武尚荣 1 , 费志文 1
矿冶工程杂志 | 采矿 2025,45(2): 47-53
收起
收藏切换
矿冶工程杂志 | 采矿 2025, 45(2): 47-53
基于LS-DYNA的楔形切割拉槽爆破数值模拟研究及应用
全屏
陈帮洪1 , 陈星明2, 武尚荣1, 费志文1
作者信息
  • 1.昆明有色冶金设计研究院股份公司，云南　昆明　650231
  • 2.西南科技大学　环境与资源学院，四川　绵阳　621010

    • 陈帮洪（1984—），男，四川乐山人，硕士，助理工程师，主要从事地下采矿及岩石力学方面的研究工作。E-mail：

Numerical Simulation of Blasting with Wedge Cut Based on LS-DYNA Software and Its Application
Banghong CHEN1 , Xingming CHEN2, Shangrong WU1, Zhiwen FEI1
Affiliations
  • 1.Kunming Engineering & Research Institute of Nonferrous Metallurgy Co., Ltd., Kunming 650231, Yunnan, China
  • 2.School of Environment and Resource, Southwest University of Science and Technology, Mianyang 621010, Sichuan, China
出版时间: 2025-04-01 doi: 10.3969/j.issn.0253-6099.2025.02.008
文章导航
收藏切换
摘要
收起

某矿西二采区采用无底柱分段崩落法开采，1 546 m分段楔形切割拉槽存在拉槽高度过大导致爆破效果不佳的问题。针对该问题进行了楔形切割拉槽爆破研究。基于RHT本构模型标定矿岩参数，采用LS-DYNA软件，运用流固耦合算法，确定矿岩损伤阈值为0.4；对比分析不同拉槽宽度方案的爆破成槽效果，结果表明：拉槽高度固定为23 m时，矿岩有效损伤率随着拉槽宽度增加呈单峰曲线变化；最佳拉槽宽度为24 m，此时矿岩有效损伤率达到峰值0.692 5。基于该参数设计拉槽方案，现场试验结果表明，爆破成形空间达标率超过85%，爆堆块度分布合理，安息角约40°。

无底柱分段崩落法  /  切割拉槽  /  RHT  /  本构模型  /  数值模拟  /  损伤  /  拉槽爆破

The western No.2 mining area of a certain mine adopts the non-pillar sublevel caving in mining, and excessive wedge cut height in the 1 546 m sublevel leads to poor blasting effect. To address this problem, blasting with wedge cut was specially studied. Firstly, the rock parameters were calibrated based on the RHT constitutive model and the damage threshold of the rock was determined to be 0.4 by a fluid-structure interaction analysis with the LS-DYNA software. A comparative analysis of the cut blasting effects with different cut width shows that with the cut height fixed at 23 m, the effective damage rate of the rock presents a unimodal distribution with an increase in cut width. The optimal cut width is found to be 24 m, with which the effective damage rate of the rock can reach a peak value of 0.692 5. Based on these parameters, the on-site application of designed cutting scheme indicates that over 85% of blast-forming space can meet the requirement, presenting a reasonable fragment distribution of muck pile, with the angle of repose at approximately 40°.

non-pillar sublevel caving method  /  cut  /  RHT  /  constitutive model  /  numerical simulation  /  damage  /  cut blasting
陈帮洪, 陈星明, 武尚荣, 费志文. 基于LS-DYNA的楔形切割拉槽爆破数值模拟研究及应用. 矿冶工程杂志, 2025 , 45 (2) : 47 -53 . DOI: 10.3969/j.issn.0253-6099.2025.02.008
Banghong CHEN, Xingming CHEN, Shangrong WU, Zhiwen FEI. Numerical Simulation of Blasting with Wedge Cut Based on LS-DYNA Software and Its Application[J]. Mining and Metallurgical Engineering, 2025 , 45 (2) : 47 -53 . DOI: 10.3969/j.issn.0253-6099.2025.02.008
正文
收起
切割拉槽作为无底柱分段崩落法开采的核心环节，直接影响矿石回采率与开采安全性。矿山一般采用切割平巷+天井的施工方式形成切割拉槽，但该方法工程量大、施工复杂，尤其在软破碎矿体中易引发安全事故[1-2]。此外，工作面浮石堆积、通风不良等问题进一步威胁作业安全。楔形切割拉槽法采用多进路开挖同步形成大型切割槽，可有效克服以上问题，显著提升施工效率并简化流程。然而，楔形切割拉槽法受爆破夹制效应制约，对布孔参数与起爆精度要求严苛，需通过优化孔网布置和爆破参数改善岩体破碎形态，为后续爆破创造有效自由面，才能提升整体爆破效果。
为提高切割拉槽效率与爆破效果，众多学者系统探究了炮孔对称性、掏槽方式、节理特征等对爆破效果的影响[3-7]，并进行了现场验证，在动力学分析、裂纹扩展机理等方面取得显著进展，但仍存在以下不足：试验验证与工程应用转化不足，理论体系尚未完善；多样化的切割拉槽布置方式缺乏普适性验证与推广；数值模拟多直接引用标准材料参数，未充分考虑实际岩体特性对爆破过程的动态影响。
基于此，本文以某矿西二采区为工程背景，采用LS-DYNA软件，运用流固耦合算法，对不同楔形拉槽布置方式的爆破损伤范围进行数值模拟，通过标定合理材料模型参数，结合数值模拟与现场试验，优化布孔方案，为选取高效、安全的楔形切割拉槽布置方式提供依据。
1　材料本构参数确定及验证
收起
1.1　流固耦合算法

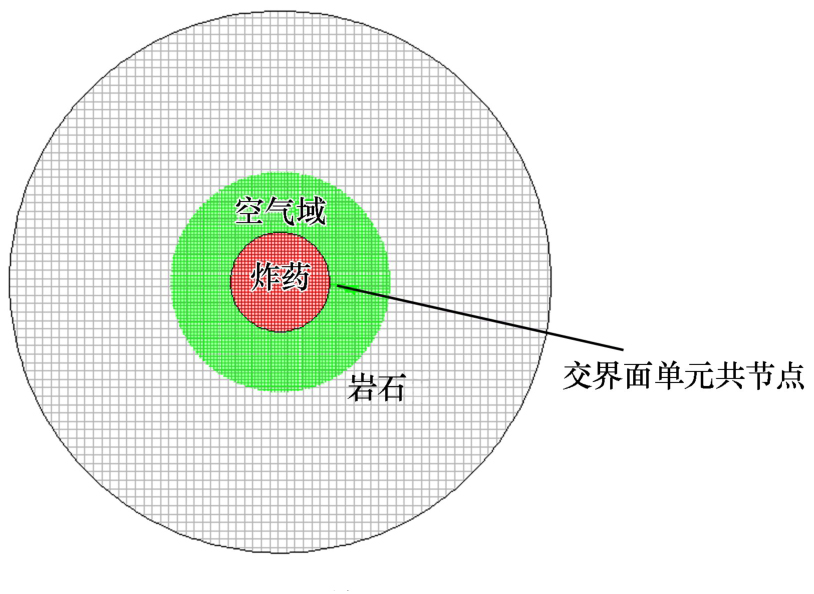

采用流固耦合（ALE）算法对爆破进行数值模拟，该方法能有效解决大变形条件下爆破损伤问题。首先构建炸药与空气域的耦合体系，其中空气域被定义为ALE多物质空间，以模拟动态流动；其次，建立炸药单元与岩石单元之间的动态相互作用，通过共节点连接方式实现炸药与空气域单元的界面耦合。流固耦合算法爆炸数值模拟如图1所示。
1.2　材料模型参数确定
1.2.1　岩石材料模型
采用RHT（Riedel-Hiermaier-Thoma）本构模型为材料模型，该模型考虑了爆破动荷载作用下岩石材料的破坏强度对冲击压力、应变速率、应变硬化和损伤软化的影响，适用于岩体爆破损伤演化数值模拟[8]。根据相关研究[9]理论计算得到某矿西二采区矿岩物理力学参数以及RHT本构模型材料参数见表1～2。
1.2.2　炸药及空气材料模型
炸药爆破时会生成高温、高压气体。本文采用JWL EOS模型预测爆轰压力，其计算公式如下[10]：
式中：P为爆轰压力；V为爆轰产物相对体积；E0为爆轰产物比内能；A、B、R1、R2、ω均为JWL参数。矿山楔形拉槽采用2#岩石粉状乳化炸药，状态方程参数如表3所示。
ALE算法采用*MAT_NULL空气材料作为空物质材料模型，使用*EOS_LINEAR_POLYNOMIAL状态方程表征材料热动力学性质，状态方程为：
式中：P1为气体膨胀压强，kPa；μ为空气材料比体积；C0～C6均为空气材料状态方程参数，取值如表4所示。
1.3　矿岩参数验证及损伤阈值确定
1.3.1　矿岩压碎区与裂隙区半径计算
为验证数值模拟中材料参数与建模方法的合理性，基于某矿无底柱分段崩落法实际工程参数（2#岩石粉状乳化炸药、孔径80 mm，参数详见表5），进行楔形拉槽爆破压碎区与裂隙区半径数值模拟结果与理论值的对比。
损伤岩体耦合装药条件下，柱状药包爆炸冲击波造成的压碎区半径R1计算公式[11]为：
式中：D0为岩石初始损伤值；μc为岩石损伤后的泊松比，μc=μa（1-16Cd/9），μa为岩石损伤前的泊松比；Cd为损伤引起的裂纹密度；α为岩体应力波衰减指数，取2.25；ρ为岩石密度，kg/m3；C为岩石中冲击波传播速度，m/s；V0为炸药爆速，m/s；ρ0为炸药密度，kg/m3；k为等熵指数，取2.1；B0为某点应力状态相关系数；σcd为岩石单轴动态抗压强度，MPa。
爆生气体对岩体的作用是一个准静态过程。忽略裂隙体积，根据爆轰热力学理论以及裂隙区岩体应力状态和损伤定义，柱状耦合装药条件下爆生气体静态作用下的裂隙区半径计算公式[12]为：
式中：R2为爆生气体与冲击波作用下裂隙区半径，m；Py为裂隙区岩石内气体压力，取0.6Pc，Pc为透射入岩石的冲击波初始压力，MPa；D′为岩石二次损伤因子，取0.3；β为裂隙岩体应力波衰减指数，β=2-bD0，b为侧向应力系数；σtd为岩石动态单轴抗拉强度，MPa。
根据表5和公式（3）～（5），计算得到楔形拉槽爆破压碎区和裂隙区半径如表6所示。
1.3.2　参数验证模型建立

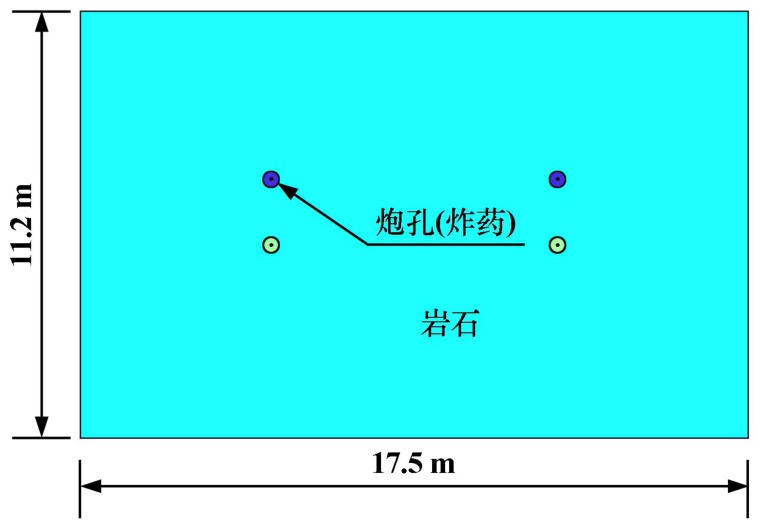

为了分析楔形孔爆破过程中爆生气体和爆炸应力波共同作用过程，采用LS-DYNA软件建立楔形孔二维准平面应变模型，见图2，模型尺寸长17.5 m，宽11.2 m；楔形孔排距1.2 m，间距7.5 m，耦合装药直径8 cm，空气域直径取5倍装药直径，为40 cm。边界条件为透射边界。
1.3.3　模拟结果及分析

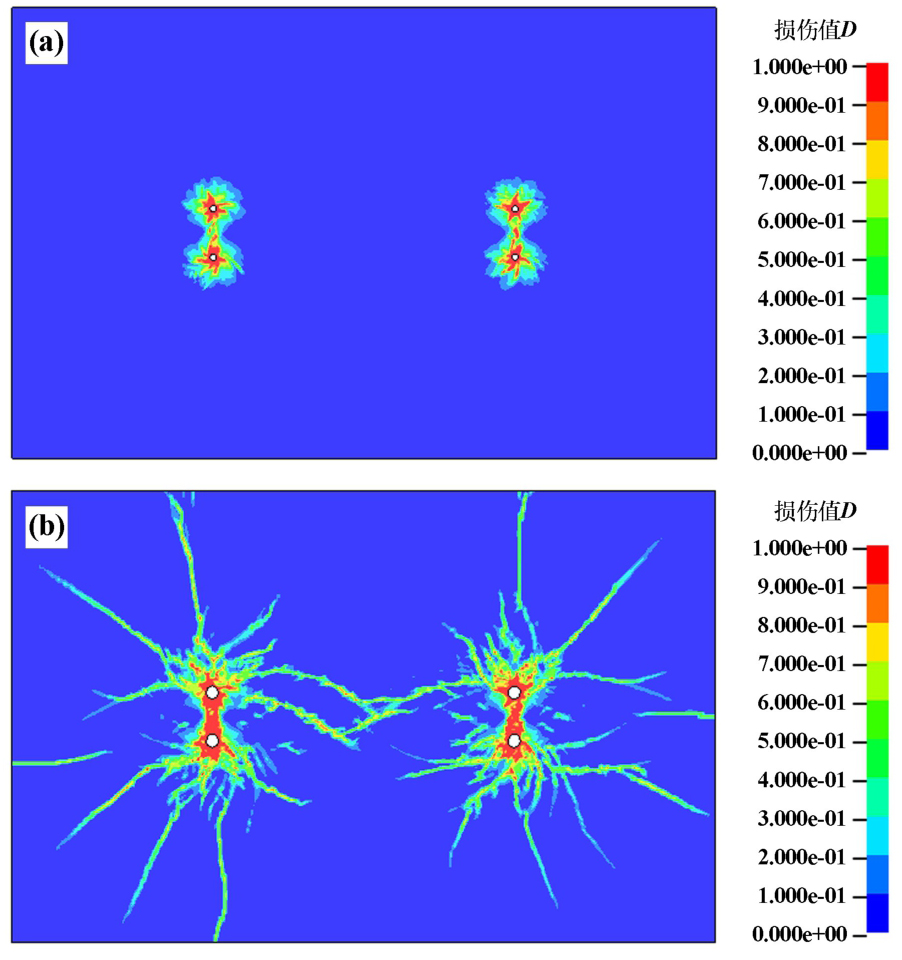

楔形孔同步起爆时的爆破损伤演化特征如图3所示。相邻炮孔因间距较小产生贯穿效应，孔壁周围形成高损伤区（损伤值D=1）；压碎区表现为冲击波引发的径向塑性压缩损伤，裂隙区表现为由应力波衰减与爆生气体“气楔作用”共同诱导的放射状裂纹网络[13]。模拟结果中损伤分区的力学机制与实际爆破理论高度吻合，验证了RHT岩石本构模型参数的可靠性。
为确定岩石爆破损伤的有效阈值，结合压碎区与裂隙区动态响应特征进行分析。根据爆炸能量衰减规律，裂隙区因应力波与爆生气体作用形成贯通裂纹，但损伤程度随能量耗散逐步降低；弹性振动区仅引发岩石力学参数弱化，无宏观破坏。这表明当损伤值超过临界阈值时，岩石才会发生不可逆破坏。
LS-PREPOST软件后处理损伤分布范围如图4所示。由图4可得，0.7<D<1时，损伤区完全缺失裂隙带且压碎区半径为0.11 m（<0.14 m），显著偏离理论值，表明该阈值过大；0.4<D<1时，损伤分布呈现完整的径向裂隙网络（位于裂隙区理论半径内），压碎区半径为0.13 m，虽略大于计算值（虚线圆域），但考虑网格尺寸限制导致的微裂隙模拟偏差，该阈值下损伤分区与表6数据吻合度高。

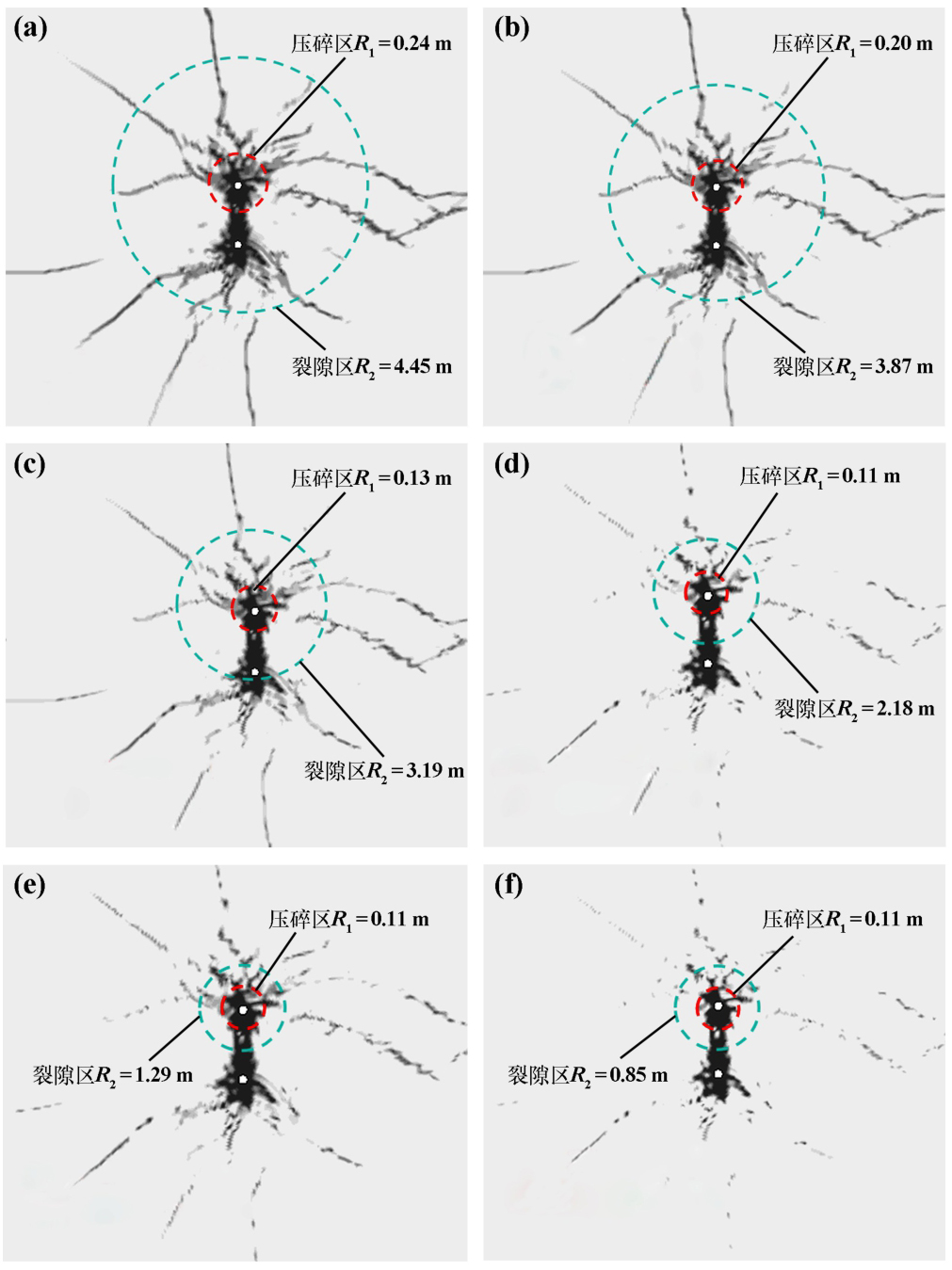

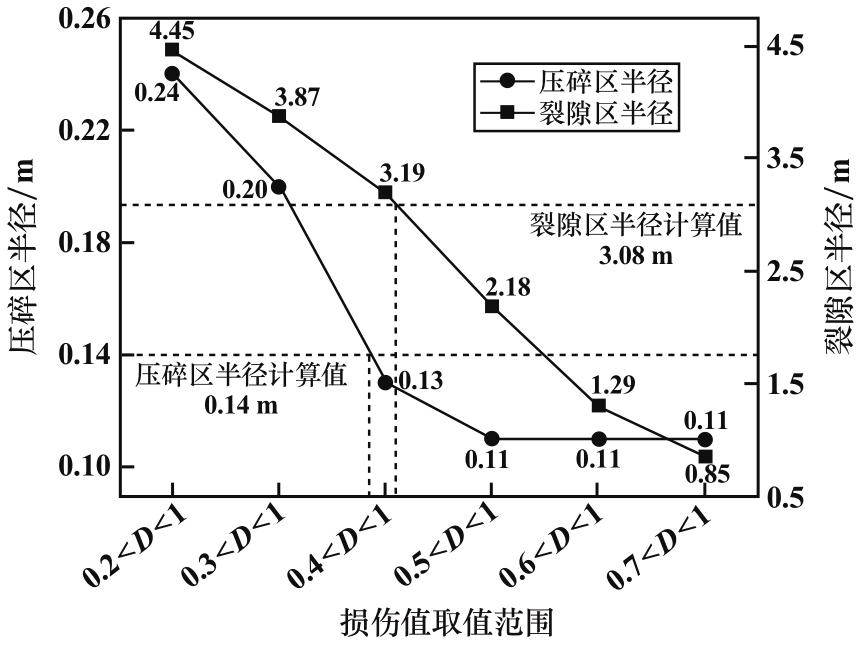

矿岩不同损伤范围楔形孔压碎区和裂隙区变化如图5所示。0.4<D<1时，压碎区与裂隙区半径值与理论预测较为一致，进一步验证其作为有效损伤阈值的合理性。损伤阈值D=0.4可定义为矿岩爆破损伤的临界阈值。
2　楔形切割拉槽爆破方案
收起
2.1　孔底距确定
扇形炮孔单孔破岩面积最大时，孔底距a与裂隙区半径R2的关系[11]为：
按照某矿西二采区楔形切割拉槽参数布置，炮孔倾角大于45°时，根据式（6），取实际孔底距为3.7 m布孔，炮孔密集系数为1.559。
2.2　切割拉槽爆破方案建立
炸药单耗2.8 kg/m3，反向起爆，连续耦合装药，长短交错的“W”形堵塞方式，拉槽高度固定为23 m，拉槽宽度15～30 m，每隔3 m建立一个模型，共计6个模型，每个模型总装药量Qw和装药长度L见表7。
2.3　数值模型建立

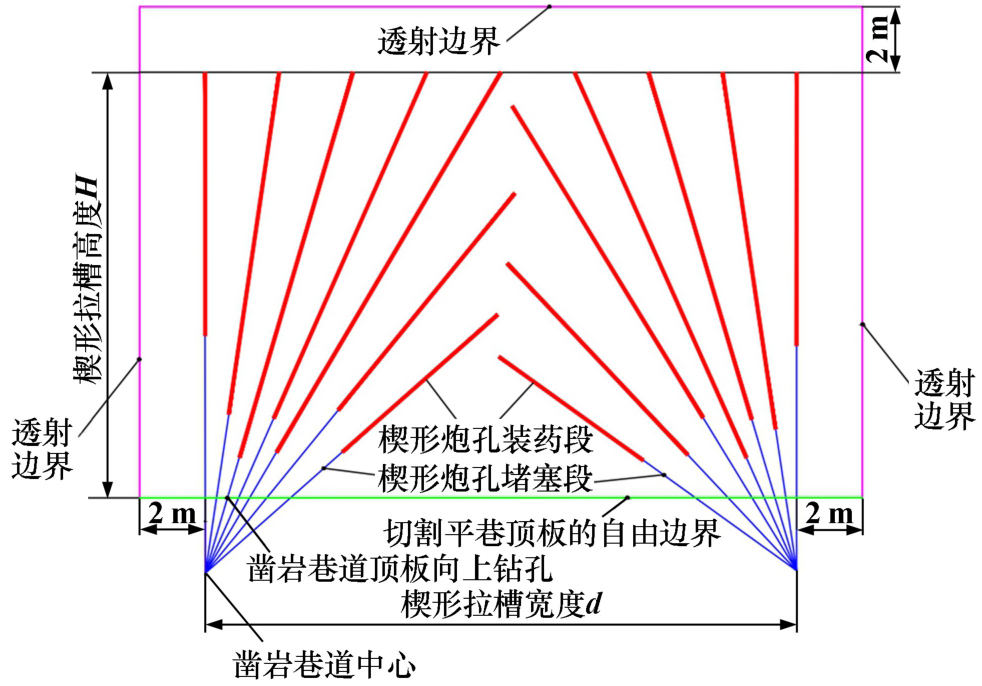

切割拉槽爆破模型如图6所示，模型由切割平巷顶板、两侧垂直孔及顶部楔形孔所组成。楔形炮孔的布孔中心位于切割平巷中心线和进路中心线交点。模型计算采用g-cm-μs单位制，设定岩石、炸药、空气域网格单元尺寸分别为6、3、4 cm。
3　楔形切割拉槽爆破数值模拟
收起
3.1　爆破原始损伤演化情况

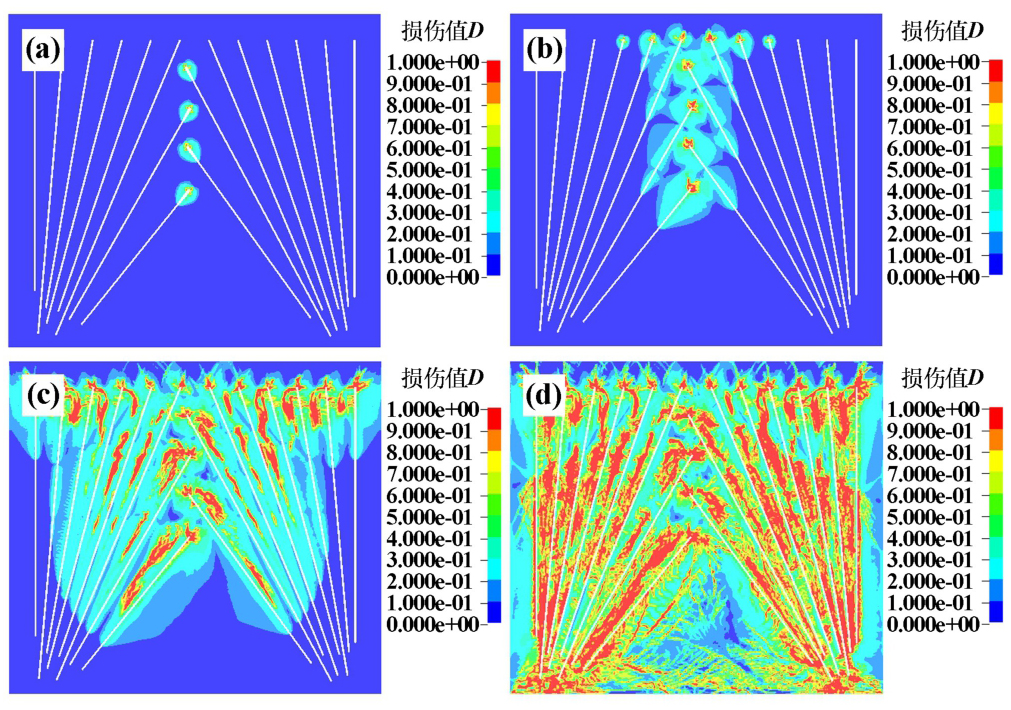

各时段爆破原始损伤演化情况如图7所示，炸药从掏槽底部起爆，爆炸后应力波以锥形体形式向自由面传播，由于楔形掏槽底部炮孔距离比较近，990 s时应力波阵面发生叠加，叠加后的波阵面以弧形形式向自由面传播，炮孔底部附近岩石受到的压应力大于其抗压强度，呈现压缩破坏形态。反向起爆应力波从顶部向自由面附近发生反射、叠加，使得拉槽顶部区域岩石破坏更显著。
3.2　有效损伤率变化规律

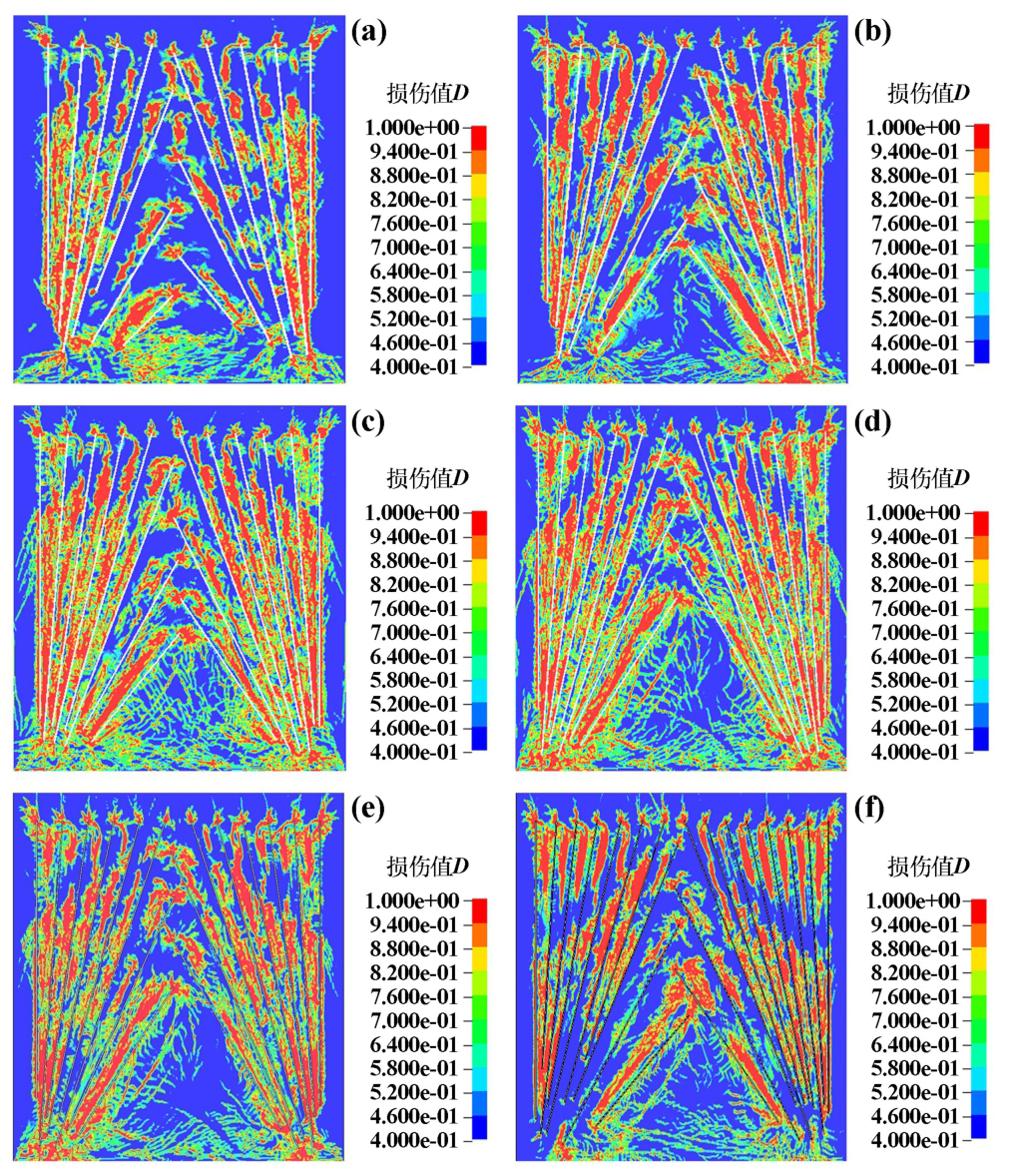

不同拉槽方案下最终有效损伤分布如图8所示。
由图8可知，岩石有效损伤区形状大体一致。受布孔方式的限制，靠近自由面炮孔有效损伤区分布更为密集（楔形拉槽模型两侧），导致爆破能量在炮孔间产生叠加效应，自由面应力波产生反射拉伸破坏，使得模型在靠近自由面区域以及炮孔间有效损伤区范围显著增大。
各模型有效损伤区分布存在一定差异，主要是模型宽度不同导致炮孔倾角变化。随着拉槽宽度的增加，炮孔倾角逐渐变小，能量叠加区域发生相应变化，具体表现为各模型顶部及中心处有效损伤区随着拉槽宽度增大先增大后减小。如图8（e）、（f）所示，模型中部和顶部的部分区域损伤值低于0.4，可视为未发生有效损伤，可推断这些区域未发生岩石破坏。
采用有效损伤率表征不同拉槽宽度条件下的拉槽爆破效果。有效损伤率是指拉槽爆破平面模型中有效损伤（0.4<D<1）区域面积与整个拉槽爆破模型区域面积的比值。根据图8，计算得到各方案有效损伤率如表8所示。
表8表明，拉槽高度23 m条件下，楔形拉槽区域有效损伤率随着拉槽宽度增加呈先升后降趋势。这主要是拉槽宽度变化导致楔形孔布置角度调整，进而改变爆破应力波的传播导向特性，不同宽度下爆生气体的压力分布差异引发岩石破碎与抛掷空间不均衡。基于ORIGIN软件GaussAmp模型对有效损伤率-拉槽宽度数据进行拟合，建立有效损伤率Q与拉槽宽度d的定量关系方程，具体表达式为：
4　现场试验验证
收起
4.1　切割拉槽方案

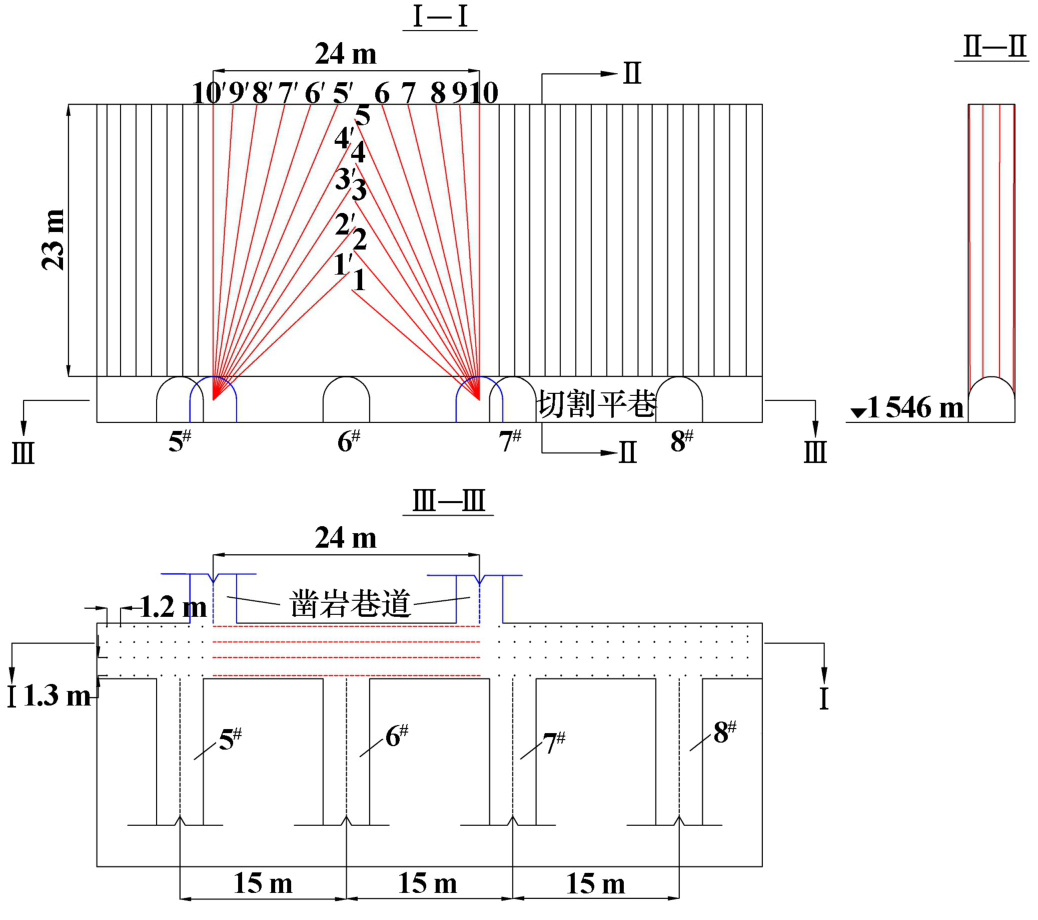

某矿山1 546 m分段首次楔形切割拉槽位于4#～8#进路端部的矿岩交界面。该拉槽净高度23 m，拉槽宽度24 m，炮孔布置如图9所示，炮孔直径80 mm，以6#进路中心为界，右侧为1～10排炮孔，左侧为1′～10′排炮孔，每排布置4个中深孔。
4.2　拉槽空间质量

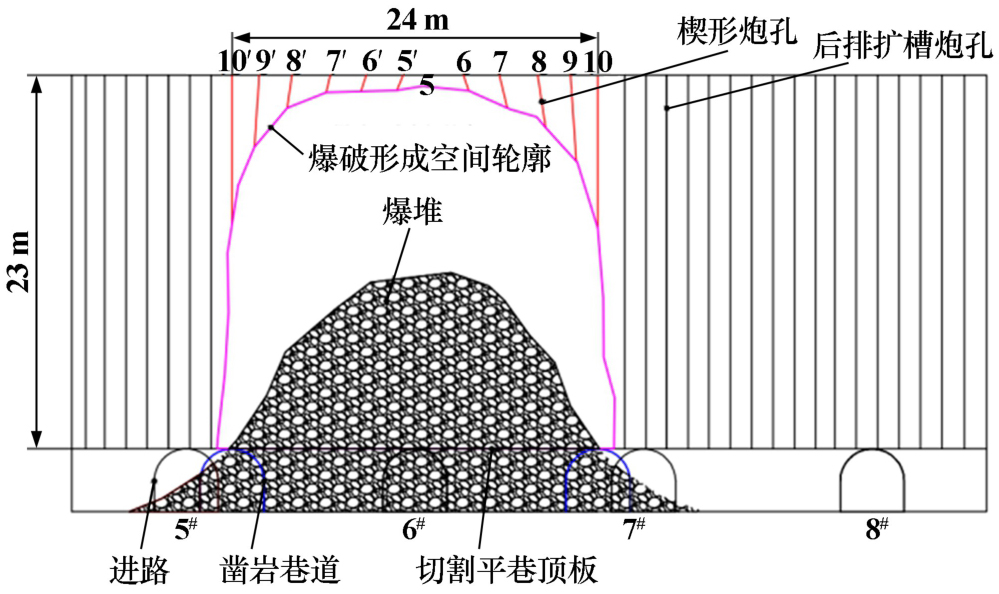

拉槽爆破后，观测楔形拉槽成槽的空间形态，实测底部宽度约25 m，高度约20 m，如图10所示。计算得出爆破形成空间面积535 m2，体积2 675 m3，超过设计拉槽空间的85%。假设矿岩松散系数为1.23，推算出本次爆破的爆堆体积约为3 291 m3。现场统计拉槽后累计出矿量580铲，铲运机斗容为6 m3，折合爆堆体积约3 480 m3，与推测的爆堆体积相差不大，从侧面表明推测的拉槽空间形态与实际形成空间相差不大。
4.3　爆堆形态及块度大小分析

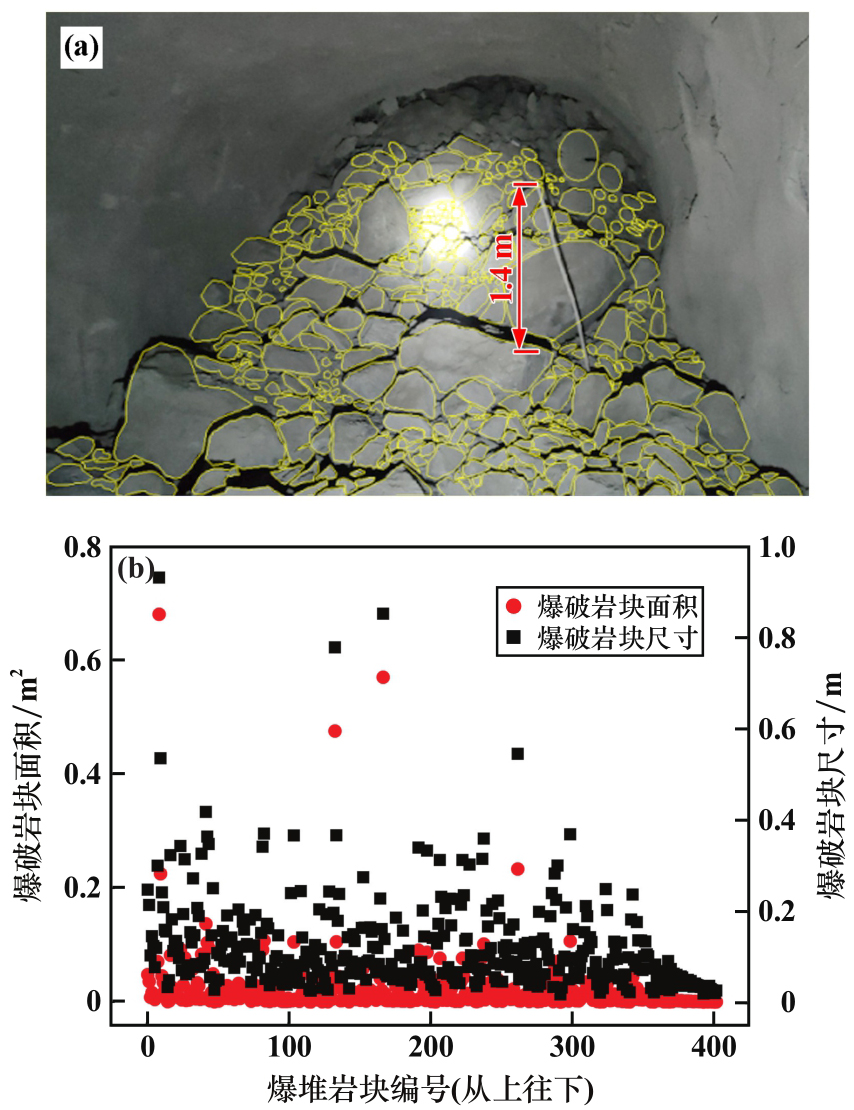

在切割平巷中观测爆破后爆堆形态，爆堆自然安息角约40°。对6#进路拉槽爆破爆堆照片进行处理，并分析爆堆块度，如图11所示。由图11可知，爆破大块主要分布在爆堆中下区域，爆破块度面积范围为0～0.68 m2，主要分布在0～0.2 m2；等效尺寸范围为0～0.93 m，主要分布在0～0.3 m。对爆破块度尺寸分布进行分级，结果如表9所示。由表9可知，块度大于0.3 m的矿石仅占36.29%，而块度小于0.3 m的小块和粉状矿石占63.71%，小型块度矿石居多，表明切割拉槽爆破效果较好，达到了预期目标。
5　结论
收起
1）基于理论分析与经验参数标定，确定采区矿岩RHT本构模型参数，采用LS-DYNA软件，运用流固耦合算法进行数值模拟，对比压碎区/裂隙区理论半径与损伤分布特征，最终确定该矿区爆破有效损伤阈值为0.4<D<1。
2）楔形切割拉槽爆破数值模拟揭示了不同拉槽宽度下爆破损伤演化规律，有效损伤率随着拉槽宽度增加呈单峰曲线变化，即拉槽高度一定时，随着拉槽宽度增大，楔形拉槽区域有效损伤率呈现先增大后减小的变化特性。
3）拉槽宽度24 m时矿岩有效损伤率达到峰值0.692 5，现场试验结果表明该方案爆破成形空间达标率超85%，爆堆块度分布合理，安息角约40°，验证了RHT本构模型参数体系与损伤阈值选取的可靠性。
文献
收起
参考文献 引证文献
排序方式：
[1]
郭东明, 李旭鹏, 王汉军, 等. 益新煤矿中心大空孔掏槽爆破现场试验研究[J]. 中国矿业, 2016, 25(4): 82-86.
GUO Dongming, LI Xupeng, WANG Hanjun, et al. Field test on center big empty hole in cut blasting in Yixin Coal Mine[J]. China Mining Industry, 2016, 25(4): 82-86.
[2]
魏可心, 徐振洋, 王雪松, 等. 填塞长度对岩体爆破损伤效果的影响研究[J]. 矿冶工程, 2024, 44(3): 16-21.
WEI Kexin, XU Zhenyang, WANG Xuesong, et al. Influence of stemming length on damage effect of rock blasting[J]. Mining and Metallurgical Engineering, 2024, 44(3): 16-21.
[3]
张袁娟, 王凤凰, 王幸荣. 预裂缝宽度对爆破效果影响研究[J]. 矿冶工程, 2024, 44(2): 31-33.
ZHANG Yuanjuan, WANG Fenghuang, WANG Xingrong. Influence of pre-split fracture width on blasting effect[J]. Mining and Metallurgical Engineering, 2024, 44(2): 31-33.
[4]
何松林, 杨仁树, 丁晨曦, 等. 金属矿山硬岩巷道分阶段掏槽爆破数值模拟研究[J]. 煤炭科学技术, 2024, 52(增刊1): 37-46.
HE Songlin, YANG Renshu, DING Chenxi, et al. Numerical simulation of phased cut blasting in hard rock roadway of metal mine[J]. Coal Science and Technology, 2024, 52(S1): 37-46.
[5]
蒋克文, 王海亮, 郭建, 等. 大空孔直眼掏槽有效应力分布规律模拟研究[J]. 煤炭技术, 2023, 42(7): 30-34.
JIANG Kewen, WANG Hailiang, GUO Jian, et al. Simulation study on effective stress distribution law of large empty hole straight cut[J]. Coal Technology, 2023, 42(7): 30-34.
[6]
费鸿禄, 邓政, 蒋安俊, 等. 硬岩巷道深孔掏槽数值模拟与试验研究[J]. 爆破, 2019, 36(1): 29-37.
FEI Honglu, DENG Zheng, JIANG Anjun, et al. Numerical simulation and experimental study on deep hole cutting in hard rock roadway[J]. Blasting, 2019, 36(1): 29-37.
[7]
钱至桥, 赵明生, 池恩安, 等. 复式楔形掏槽在大断面隧道掘进中的应用研究[J]. 爆破, 2024, 41(2): 86-95.
QIAN Zhiqiao, ZHAO Mingsheng, CHI En'an, et al. Application of double wedge cutting in large cross-section tunnel excavation[J]. Blasting, 2024, 41(2): 86-95.
[8]
李洪超. 岩石RHT模型理论及主要参数确定方法研究[D]. 北京: 中国矿业大学(北京), 2017.
LI Hongchao. Rock RHT model theory and determination method of main parameters[D]. Beijing: China University of Mining and Technology (Beijing), 2017.
[9]
李洪超, 陈勇, 刘殿书, 等. 岩石RHT模型主要参数敏感性及确定方法研究[J]. 北京理工大学学报, 2018, 38(8): 779-785.
LI Hongchao, CHEN Yong, LIU Dianshu, et al. Study on the sensitivity and determination method of main parameters of rock RHT model[J]. Journal of Beijing Institute of Technology, 2018, 38(8): 779-785.
[10]
谭铖, 姜维, 姚囝. 切割拉槽中深孔孔内分段爆破数值模拟[J]. 工程爆破, 2023, 29(6): 52-60.
TAN Cheng, JIANG Wei, YAO Nan. Numerical simulation of segmented blasting in deep hole of cutting groove[J]. Engineering Blasting, 2023, 29(6): 52-60.
[11]
刘智权. 大间距无底柱分段崩落法回采爆破参数的研究[D]. 武汉: 武汉科技大学, 2005.
LIU Zhiquan. Study on blasting parameters of large spacing sublevel caving method without sill pillar[D]. Wuhan: Wuhan University of Science and Technology, 2005.
[12]
林杰, 刘少光, 李广斌, 等. 基于灰色关联理论深孔切割槽爆破块度影响因素分析及参数优化[J]. 矿冶工程, 2023, 43(5): 6-10.
LIN Jie, LIU Shaoguang, LI Guangbin, et al. Influencing factors analysis and parameter optimization for rock fragmentation by deep-hole cut blasting based on grey correlation analysis[J]. Mining and Metallurgical Engineering, 2023, 43(5): 6-10.
[13]
王卫华, 刘洋, 张理维, 等. 基于RHT模型双孔同时爆破均质岩体损伤的数值模拟[J]. 黄金科学技术, 2022, 30(3): 414-426.
WANG Weihua, LIU Yang, ZHANG Liwei, et al. Numerical simulation of homogeneous rock mass damage by double-hole simultaneous blasting based on RHT model[J]. Gold Science and Technology, 2022, 30(3): 414-426.
2025年第45卷第2期
PDF下载
84
41
引用本文
BibTeX
文章信息
doi: 10.3969/j.issn.0253-6099.2025.02.008
  • 接收时间：2024-10-27
  • 首发时间：2026-03-19
  • 出版时间：2025-04-01
补充材料
相关文章
文章信息
作者
出版历史
  • 收稿日期：2024-10-27
基金
作者信息
    1.昆明有色冶金设计研究院股份公司，云南　昆明　650231
    2.西南科技大学　环境与资源学院，四川　绵阳　621010
参考文献
分享链接
https://castjournals.cast.org.cn/joweb/kygczz/CN/10.3969/j.issn.0253-6099.2025.02.008
分享至
全文二维码

扫描看全文

引用本文
BibTeX
本文的引用情况
2种不同金属材料的力学参数
科
Family		 属数
Number of
genus		 种数
Number of
species		 占总种数比例
Percentage of
total species (%)		 属
Genus		 种数
Number of
species		 占总种数比例
Percentage of total
species (%)
鹅膏菌科Amanitaceae 2 11 5.26 鹅膏菌属 Amanita 10 4.78
小菇科 Mycenaceae 2 12 5.74 丝盖伞属 Inocybe 5 2.39
多孔菌科 Polyporaceae 8 14 6.70 蜡蘑属 Laccaria 5 2.39
红菇科 Russulaceae 3 23 11.00 小皮伞属 Marasmius 6 2.87
小菇属 Mycena 11 5.26
光柄菇属 Pluteus 5 2.39
红菇属 Russula 17 8.13
栓菌属 Trametes 5 2.39
关闭全屏
相关链接
论文
最新文章
热读文章
热点专题
内参
蓝皮书
产业发展报告
传播力报告
期刊分级目录
资讯
学术新闻
行业新闻
学术会议
行业会议
关于
关于我们
联系我们
北京市海淀区学院南路86号
100081
010-62199257
qkjq@cast.org.cn

中国科学技术协会版权所有 京ICP 备10216604号-4 海淀分局备案 1101084647
科技导报社主办 中国科协信息中心技术支持
