某高硫低品位铜矿浮选试验研究
收藏切换
PDF下载
范宛惠 , 谢蕾 , 郭泽 , 张汉泉 , 余洪
矿冶工程杂志 | 选矿 2024,44(4): 185-188
收起
收藏切换
矿冶工程杂志 | 选矿 2024, 44(4): 185-188
某高硫低品位铜矿浮选试验研究
全屏
范宛惠 , 谢蕾, 郭泽, 张汉泉, 余洪
作者信息
  • 武汉工程大学 资源与安全工程学院，湖北 武汉 430205

    • 范宛惠（1998—），男，安徽阜阳人，硕士研究生，主要研究方向为矿物加工。E-mail：

通讯作者:

余洪（1986—），男，四川达州人，博士，副教授，主要从事矿物加工、固废资源化利用等研究。E-mail：
Investigation on Flotation of Low-Grade High-Sulfer Copper Ore
Wanhui FAN , Lei XIE, Ze GUO, Hanquan ZHANG, Hong YU
Affiliations
  • School of Resources and Safety Engineering, Wuhan Institute of Technology, Wuhan 430205, Hubei, China
出版时间: 2024-08-01 doi: 10.3969/j.issn.0253-6099.2024.04.035
文章导航
收藏切换
摘要
收起

安徽某高硫低品位铜矿硫品位41.30%、铜品位0.53%，易氧化，选矿指标不稳定。为了改善铜硫分离效果，研究了磨矿细度、药剂种类和药剂用量等对浮选指标的影响。结果表明，磨矿细度-0.074 mm粒级占83.88%，采用一粗二精二扫闭路浮选流程，以CaO+Na2S为组合抑制剂、Z-200为捕收剂、2#油为起泡剂，获得了铜品位15.27%、回收率80.96%的技术指标。试验结果可为高硫低品位铜矿浮选回收铜提供参考。

低品位  /  高硫铜矿  /  铜硫分离  /  组合抑制剂

A low-grade high-sulfur copper ore from Anhui Province has a sulfur grade of 41.30% and a copper grade of 0.53%. It is difficult to control the flotation index of this easy-to-oxidize ore. To improve the Cu/S separation effect, the influence of grinding fineness, reagent type and reagent dosage on copper flotation index was investigated. A closed-circuitflotation process including one stage of roughing, two stages of cleaning and two stages of scavenging was adopted to treat the ore with a grinding fineness of 83.88% -0.074 mm, with CaO and Na2S as a combined depressant, Z-200 as the collector and terpenic oil as the frother. It is found that a copper concentrate grading 15.27% Cu at 80.96% recovery can be obtained. This experimental study can provide a reference for flotation separation of copper from low-grade high-sulfur copper ore.

low grade  /  high-sulfur copper ore  /  Cu/S separation  /  combined depressant
范宛惠, 谢蕾, 郭泽, 张汉泉, 余洪. 某高硫低品位铜矿浮选试验研究. 矿冶工程杂志, 2024 , 44 (4) : 185 -188 . DOI: 10.3969/j.issn.0253-6099.2024.04.035
Wanhui FAN, Lei XIE, Ze GUO, Hanquan ZHANG, Hong YU. Investigation on Flotation of Low-Grade High-Sulfer Copper Ore[J]. Mining and Metallurgical Engineering, 2024 , 44 (4) : 185 -188 . DOI: 10.3969/j.issn.0253-6099.2024.04.035
正文
收起
铜是国民经济建设中重要的有色金属资源，广泛应用于电气、化工、钢铁、国防等领域[1-2]。自然界中已发现的主要含铜矿物有黄铜矿、辉铜矿和斑铜矿，其中黄铜矿占70%左右[3]。黄铜矿天然可浮性较好，在工业上常采用浮选富集分离。随着世界铜产量和需求量不断增长，铜矿在不断开采中逐渐呈现贫、细、杂的特点，入选铜矿石品位从20世纪初的1.5%～4.0%降到现在的0.4%，预期会持续降低[4]。如何从低品位复杂难选铜矿石中选出铜，已成为铜资源开发利用的重要内容。
安徽某高硫铜矿以硫为主，伴生铜、金、银、铁等多种金属元素[5]，其中铜主要以黄铜矿形式存在，伴生黄铁矿，硫含量高，矿石易氧化，且浮选过程中难免离子Cu2+与黄铁矿表面会发生反应，改变其可浮性，使铜硫分离更加困难[6]，目前对这种硫品位极高的矿石浮选研究较少。为了提高精矿铜品位与回收率，本文采用优先浮选工艺对该地区矿石进行试验设计与研究，在工艺矿物学研究基础上，结合已有铜矿浮选流程，确定合理的药剂制度，较好实现了该矿石资源的综合利用，可为现场工业化试验提供可靠的数据支持。
1 原矿性质与试验方法
收起
1.1 原矿性质
安徽某高硫铜矿原矿化学多元素分析结果见表1。由表1可知，原矿中除铁之外可利用的有价元素为硫、铜，含有少量金、银，主要脉石矿物为石英。
对原矿进行AMICS面扫描法分析，结果见表2。由表2可知，原矿主要由黄铁矿、赤铁矿、黄铜矿等金属矿物组成，脉石矿石主要由石英、长石类矿物（包括钾长石和钠长石）和方解石组成，此外还含有少量的白云石、黑云母、辉石、生石膏、橄榄石、绿泥石。
黄铜矿为矿石中主要有价铜矿物。黄铜矿呈它形粒状，粒径0.01～0.80 mm，多与三期白云石一起呈细脉状分布，部分交代黄铁矿。以单体解离态形式存在的黄铜矿占比为70.10%，其余黄铜矿则与其他矿物形成共生关系或包裹关系。黄铜矿嵌布特征分析结果如表3所示。
黄铁矿为矿石中主要有价硫矿物，且与黄铜矿表面性质相似，如何将其与黄铜矿浮选分离是回收铜的重点。黄铁矿主要呈半自形-近半自形粒状，较少量显它形粒状、微粒状、棱角状，少量呈尘点状，粒径0.01～3.00 mm，多呈集合体状聚集分布。一期黄铁矿颗粒细小，呈微粒状、尘点状，与白云石、赤铁矿分布在一起，或残留于二期白云石粒内；二期黄铁矿晶型好，颗粒大，多呈条带状聚集分布或与二期白云石混杂分布，局部显破碎状。黄铁矿单体解离度为88.07%，其余黄铁矿则与其他矿物呈共生关系或包裹关系。黄铁矿的嵌布特征分析结果如表4所示。
1.2 试验方法
采用QM（BM）系列Ф150×50智能球磨机磨矿，磨矿浓度50%；使用XFGⅡ5-35型浮选机浮选。试验所用药剂包括Z-200（工业级）、CaO（分析纯）、硫酸（分析纯）、硫化钠（分析纯）等。浮选原则流程见图1。
2 结果与讨论
收起
2.1 磨矿细度试验

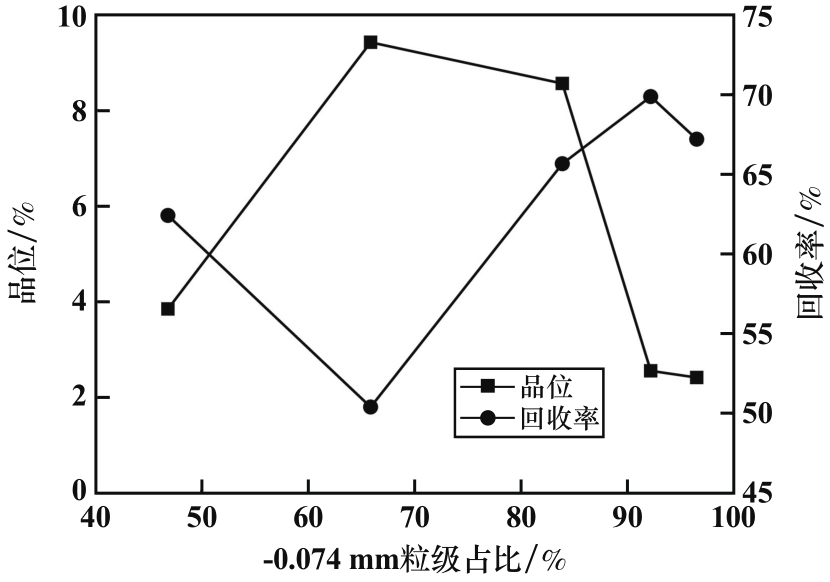

合适的磨矿细度是获得良好浮选指标的关键。在抑制剂CaO用量6 000 g/t、捕收剂Z-200用量75 g/t、起泡剂2#油用量90 g/t条件下，探究了磨矿细度对浮选指标的影响，结果见图2。由图2可知，随着给矿粒度减小，精矿产率增大，精矿Cu品位先增大后减小，回收率先减小后增大再减小，磨矿细度-0.074 mm粒级占83.88%时，精矿Cu品位和Cu回收率均较高，分别为8.55%和65.63%。综合考虑，确定磨矿细度-0.074 mm粒级占83.88%。
2.2 捕收剂试验

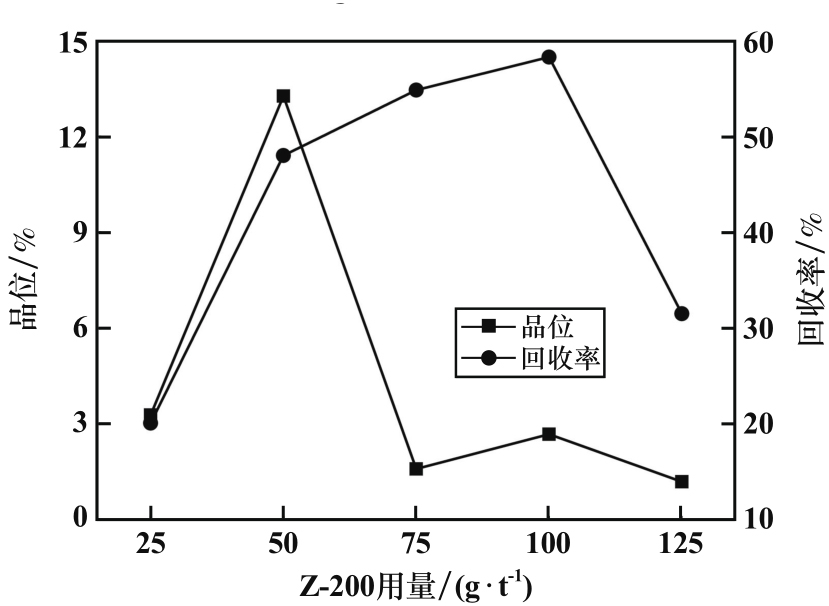

常用的黄铜矿捕收剂多为硫氮类、黄药、黑药及其衍生物等[7]。与黄药、黑药相比，硫氮类捕收剂捕收性能相近，但选择性更好、浮选效率更快。Z-200作为一种常用的硫氮类捕收剂，具有选择性好、捕收性强的优点。在磨矿细度-0.074 mm粒级占83.88%、CaO用量6 000 g/t、2#油用量90 g/t条件下，进行了捕收剂Z-200用量试验，结果见图3。由图3可知，随着粗选Z-200用量增加，精矿Cu品位和回收率先增大后减小。Z-200用量50 g/t时，精矿Cu品位为13.27%、Cu回收率为48.02%。综合考虑品位、回收率及成本，确定适宜的捕收剂用量为50 g/t。
2.3 抑制剂试验
原矿中硫含量达41.30%，浮选过程中黄铜矿与黄铁矿无法有效分离。为了提高铜精矿品位和回收率，需使用抑制剂对原矿进行选择性抑制。铜硫分离常用的无机抑制剂包含氧化钙、硫化钠等，有机抑制剂包含羧甲基纤维素等[8-10]。
2.3.1 单一抑制剂试验

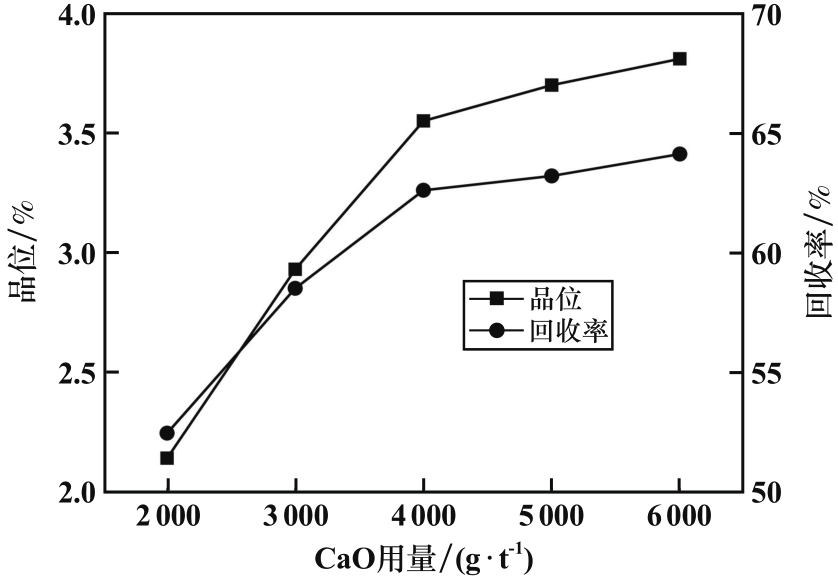

在磨矿细度-0.074 mm粒级占83.88%、Z-200用量50 g/t、2#油用量90 g/t条件下，以CaO为抑制剂，CaO用量对浮选指标的影响见图4。由图4可知，随着CaO用量增加，精矿Cu品位和回收率均增大，CaO用量6 000 g/t时，一次粗选精矿Cu品位和回收率分别为3.81%和64.12%。
2.3.2 组合抑制剂
原矿硫品位较高，磨矿后易被氧化，抑制剂用量较小时，容易发生跑槽现象。使用氧化类抑制剂时需对原矿进行深度氧化，用量大，不利于生产。为了进一步抑制硫、提高精矿铜品位与回收率，选择CaO+Na2S作为组合抑制剂。组合抑制剂可去除矿浆中的难免离子Cu2+，避免其活化黄铁矿，也可在还原气氛下解吸黄铁矿表面吸附的黄药[11]。

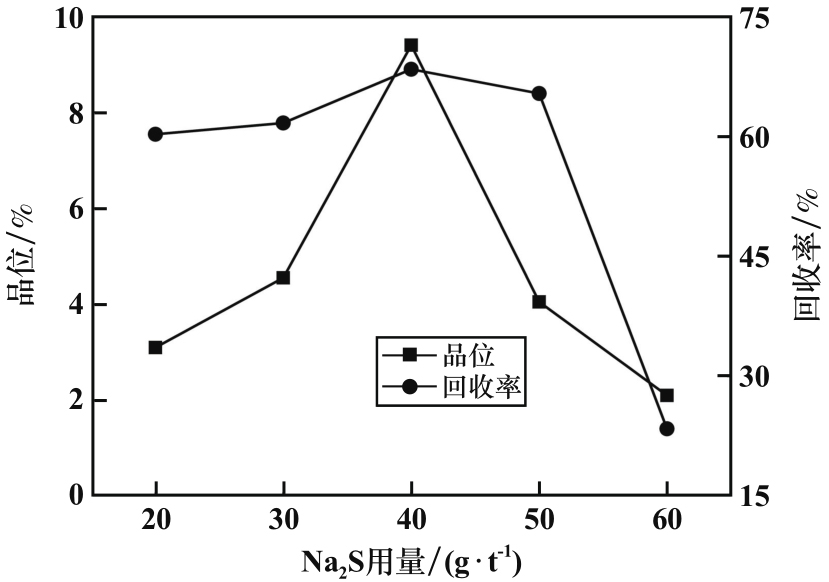

在CaO用量6 000 g/t、Z-200用量50 g/t、2#油用量90 g/t条件下，研究了Na2S用量对浮选指标的影响，结果见图5。由图5可知，随着Na2S用量增加，精矿Cu品位和回收率均先增大后减小，Na2S用量40 g/t时，精矿Cu品位和回收率均达到最大值，分别为9.4%和68.39%。CaO+Na2S为组合抑制剂时，较少用量的Na2S可取得良好的抑制效果。同时试验过程中对抑制剂的添加方式进行了探索，采取分段加药和在磨矿阶段添加的方式，均未发现有明显效果，因此抑制剂用量是决定选矿指标的关键因素。
2.4 起泡剂试验

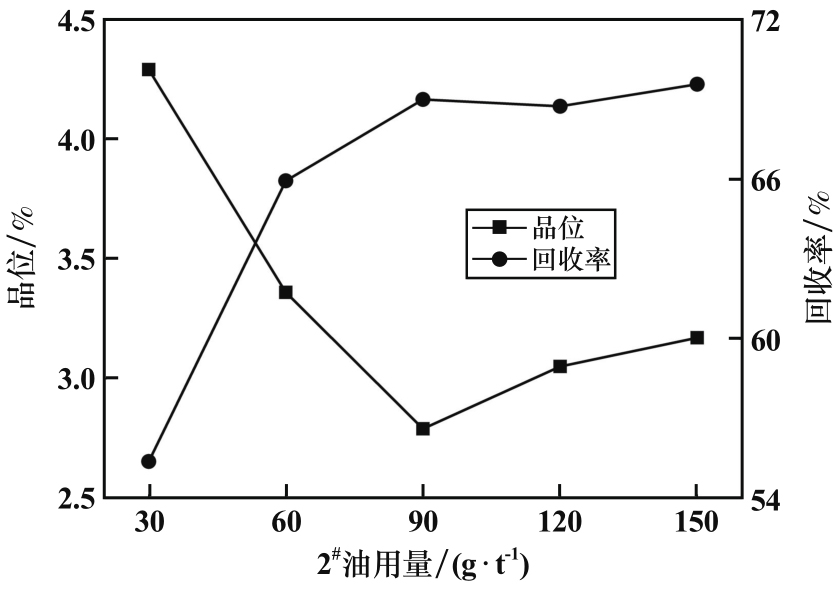

起泡剂可以改善泡沫稳定性、泡沫层厚度、气泡结构和大小等，在矿物浮选中有着重要作用[12]。在磨矿细度-0.074 mm粒级占83.88%、Z-200用量50 g/t、CaO+Na2S用量6 000 g/t+40 g/t条件下，研究了起泡剂2#油用量对浮选效果的影响，结果见图6。由图6可知，随着2#油用量增加，精矿Cu品位先减小后增大，Cu回收率一直增大。2#油用量30 g/t时，Cu品位达到最大值，为4.29%；2#油用量大于90 g/t后，Cu回收率趋于稳定。综合考虑精矿品位和回收率，适宜的2#油用量为60 g/t。
2.5 闭路试验

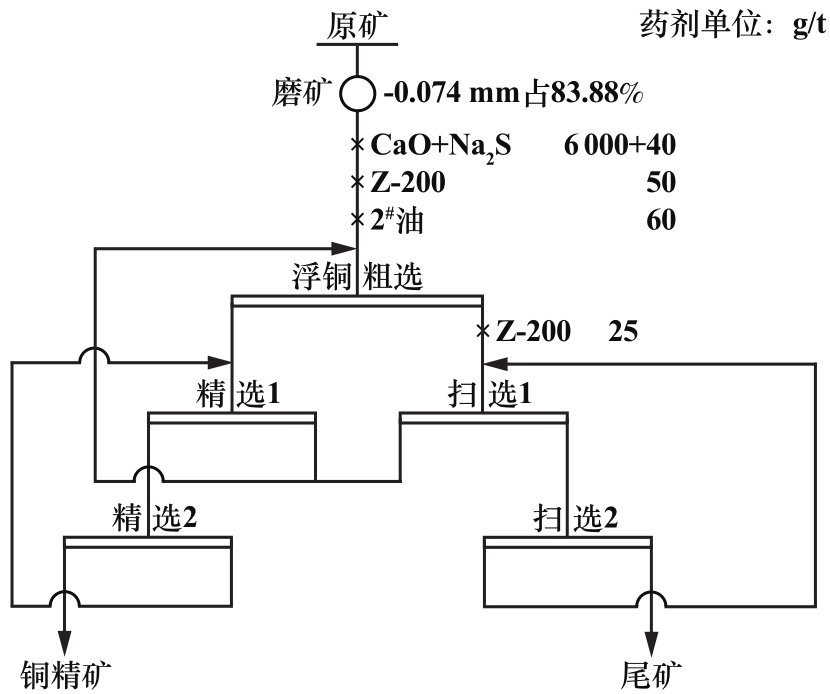

在条件试验基础上，进行了一粗两精两扫全流程闭路浮选试验，工艺流程见图7。磨矿细度-0.074 mm粒级占83.88%，使用CaO+Na2S（用量6000 g/t+40 g/t）为组合抑制剂、Z-200为捕收剂（粗选用量50 g/t、扫选1用量25 g/t）、2#油为起泡剂（用量60 g/t），闭路试验获得了铜品位15.36%、铜回收率81.73%的铜精矿。经分析发现，浮选尾矿中主要矿物为黄铁矿和磁性铁矿物，后续可通过活化浮选回收硫后，再进行弱磁选回收磁性铁矿物，实现资源综合利用。
3 结语
收起
1）安徽某铜矿中铜主要以黄铜矿形式存在，单体解离态存在的黄铜矿占70.10%，硫品位41.30%，属于易氧化的高硫低品位铜矿石。矿石成分复杂且共生关系密切，主要含有价矿物黄铁矿、赤铁矿和黄铜矿等，脉石矿石主要为石英、长石类矿物和方解石，此外还有少量白云石、黑云母、辉石等，其余黄铜矿与其他矿物形成共生关系或者包裹关系。
2）磨矿细度-0.074 mm粒级占83.88%，以CaO和Na2S为组合抑制剂、Z-200为捕收剂、2#油为起泡剂，采用一粗两精两扫闭路浮选流程，在原矿铜品位0.53%条件下，获得了铜品位15.36%、回收率81.73%的铜精矿产品，有效抑制了大量硫进入精矿，改善了生产指标。
基金
收起
  • 国家自然科学基金(51704212)
文献
收起
参考文献 引证文献
排序方式：
[1]
王进明, 董发勤, 王肇嘉, 等. 四川某微细粒铜铁矿选矿试验研究[J]. 矿冶工程, 2021, 41(2): 48-51.
[2]
唐鑫, 简胜, 张晶, 等. 某含钼高硫矽卡岩型铜矿选矿试验研究[J]. 有色金属(选矿部分), 2023(3): 49-57.
[3]
张宇, 邵拥军, 刘忠法, 等. 安徽铜陵新桥铜硫铁矿床成矿地质条件及矿床成因分析[J]. 中南大学学报(自然科学版), 2014, 45(10): 3489-3498.
[4]
王磊, 李孟乐, 邹玉超, 等. 黄铜矿浮选体系晶态/无定形二氧化硅的流变特性与夹带行为[J]. 工程科学学报, 2023, 45(8): 1272-1280.
[5]
谢巧勤, 陈天虎, 范子良, 等. 铜陵新桥硫铁矿床中胶状黄铁矿微尺度观察及其成因探讨[J]. 中国科学：地球科学, 2014, 44(12): 2665-2674.
[6]
周利华. 某复杂铜硫矿浮选分离与综合回收试验研究[J]. 矿冶工程, 2020, 40(1): 77-80.
[7]
黄真瑞, 钟宏, 王帅, 等. 黄铜矿浮选工艺及捕收剂研究进展[J]. 应用化工, 2013, 42(11): 2048-2051.
[8]
曾维能, 任浏祎, 曹雨琪, 等. 黄铜矿与磁黄铁矿浮选分离行为及机理研究[J]有色金属(选矿部分), 2020(6): 30-35.
[9]
毕云霄, 余攀, 丁湛, 等. 黄铁矿浮选抑制剂的研究进展[J]. 矿产保护与利用, 2020, 40(4): 157-166.
[10]
CAO Z, CHEN X M, PENG Y J. The role of sodium sulfide in the flotation of pyrite depressed in chalcopyrite flotation[J]. Minerals Engineering, 2018, 119: 93-98.
[11]
LEE R L J, CHEN X, PENG Y. Flotation performance of chalcopyrite in the presence of an elevated pyrite proportion[J]. Minerals Engineering, 2022, 177: 107387.
[12]
谷艳玲, 冯其明, 欧乐明. 起泡剂对硫化矿浮选的影响[J]. 矿冶工程, 2013, 33(4): 52-55.
