低品位铌矿石超常富集选矿试验研究
收藏切换
PDF下载
周瑜林
矿冶工程杂志 | 选矿 2025,45(4): 63-67
收起
收藏切换
矿冶工程杂志 | 选矿 2025, 45(4): 63-67
低品位铌矿石超常富集选矿试验研究
全屏
周瑜林
作者信息
  • 长沙矿冶研究院有限责任公司，湖南　长沙　410012

    • 周瑜林（1983—），女，湖南岳阳人，博士，高级工程师，主要研究方向为铁及铁基共伴生矿产资源开发利用。E-mail：

Beneficiation Experiment of Low Grade Niobium Ore for Super Enrichment
Yulin ZHOU
Affiliations
  • Changsha Research Institute of Mining and Metallurgy Co Ltd, Changsha 410012, Hunan, China
出版时间: 2025-08-01 doi: 10.3969/j.issn.0253-6099.2025.04.011
文章导航
收藏切换
摘要
收起

对白云鄂博西矿区某低品位铌矿石进行了超常富集选矿试验研究，采用磁选-重选抛尾预富集，获得Nb2O5品位2.61%的铌粗精矿；铌粗精矿经浮选去除硫化矿后，采用捕收剂CYN-7和抑制剂CYD-2浮选回收铌矿物，达到铌矿物与脉石矿物的高效分离。结果表明，在给矿Nb2O5品位0.06%、磨矿细度－0.074 mm粒级占85%条件下，采用磁选-重选抛尾、反浮选脱硫、一粗三精正浮选选铌流程，最终可获得Nb2O5品位22.37%、Nb2O5回收率33.64%的铌精矿。

白云鄂博铌矿  /  铌铁矿  /  超常富集  /  浮选  /  铌  /  捕收剂  /  抑制剂

A beneficiation experiment for super enrichment was carried out with the low-grade niobium ore from western zone of Bayan Obo mine. In the experiment, a process of magnetic separation followed by gravity concentration for tailings discarding was firstly adopted for pre-concentration, and the obtained rougher concentrate grading 2.61% Nb2O5 was subjected to a reverse flotation for desulfuration, followed by a direct flotation with CYN-7 as a collector and CYD-2 as a depressant for recovering Nb minerals, resulting in efficient separation between Nb and other gangue minerals. It is found that the raw ore grading 0.06% Nb2O5, with a grinding fineness of－0.074 mm 85% is treated by magnetic separation and gravity concentration for tailings discarding, followed by a reverse flotation for desulfuration, and a direct flotation consisting of one stage of roughing and three stage of cleaning. As a result, a Nb concentrate grading 22.37% Nb2O5 at 33.64% recovery can be finally obtained.

Bayan Obo niobium ore  /  niobite  /  super enrichment  /  flotation  /  niobium  /  collector  /  depressant
周瑜林. 低品位铌矿石超常富集选矿试验研究. 矿冶工程杂志, 2025 , 45 (4) : 63 -67 . DOI: 10.3969/j.issn.0253-6099.2025.04.011
Yulin ZHOU. Beneficiation Experiment of Low Grade Niobium Ore for Super Enrichment[J]. Mining and Metallurgical Engineering, 2025 , 45 (4) : 63 -67 . DOI: 10.3969/j.issn.0253-6099.2025.04.011
正文
收起
铌具有熔点高、抗腐蚀性能强、低温下超导性能好等特点，广泛应用于高强度钢筋材料、高温合金材料、超导材料等，是现代工业和尖端技术中不可缺少的重要关键金属。美国地质调查局资料显示，1994—2022年世界铌产品总量总体保持增长趋势[1]。全球铌资源分布相对集中，巴西和加拿大的铌资源占世界铌资源总量的90%以上，也是世界主要铌生产国，2022年巴西铌产量占全球铌产量的91%（71 000 t），加拿大铌产量占8%[2]。
目前，全球主要经济体的铌供应都高度依赖进口，欧盟[3]、美国[4]和中国[5]都将铌列为重点保障的关键原材料、关键矿产。我国铌资源储量较为丰富，储量（以Nb2O5计）达到了927万t[6]，其中白云鄂博Fe-REE-Nb矿床是我国最大的铌储量基地，铌储量（以Nb2O5计）达到了660万t，约占全国铌储量的71%，但因铌品位低、铌矿物与其他矿物之间共生关系复杂，未能开发利用形成实际生产能力[7]。
推动白云鄂博铌矿资源的有效开发和利用，对解决我国铌资源开发“卡脖子”问题具有重要而深远的意义。本文对白云鄂博西矿区某低品位铌矿资源进行铌选矿研究，取得了突破性进展，试验指标先进。
1　矿石性质
收起
试验所用矿样来自白云鄂博西矿区低品位铌矿石，其化学多元素、矿物组成和铌矿物含量及Nb元素分布分析结果分别见表1～3。由表1～2可知，该矿中Nb2O5品位仅0.06%，长石、云母、绿泥石、辉石-闪石、石英等硅酸盐类脉石矿物含量达到55.05%，白云石、方解石等碳酸盐类脉石矿物含量34.38%，其次还有多种铁矿物和稀土矿物等，矿物组成十分复杂。由表3可知，该矿的铌元素主要分布于铌铁矿中，其次在易解石中，再次在烧绿石中，铌在三者中总分布率为98.04%。
2　试验原则流程及试验药剂
收起

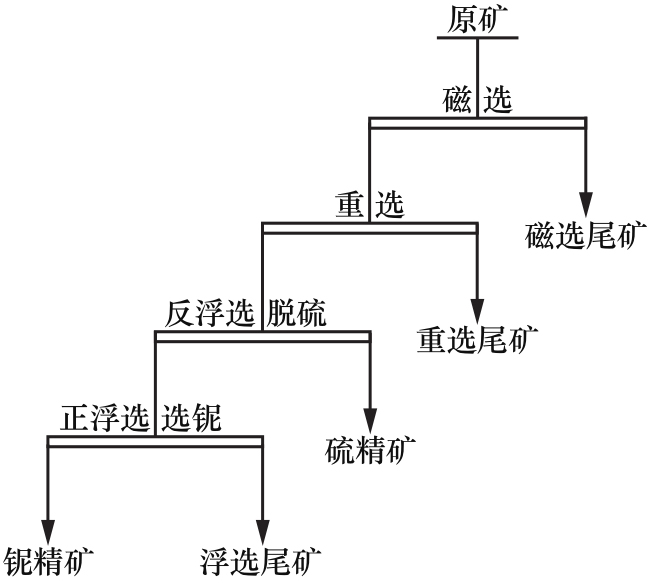

试验矿样中脉石矿物种类多、含量大，主要包含硅酸盐矿物长石、云母、绿泥石、辉石-闪石以及碳酸盐矿物白云石、方解石等，高效预选脱除硅酸盐、碳酸盐脉石对提高铌矿分选效率具有重要作用。磁选是白云鄂博铌矿预选去除脉石较为常用且有效的方法[8]，试验矿样中主要铌矿物为弱磁性铌铁矿，采用强磁选可实现大量非磁性脉石矿物如长石、方解石、白云石等矿物的预抛尾；云母、绿泥石、辉石-闪石及白云石等具有一定弱磁性，易与铌铁矿一起进入强磁选精矿，但这些矿物密度相对较小，重选法是去除这部分脉石较好的方法；弱磁性黄铁矿密度较大，难以通过磁选-重选预选分离，可采用硫化矿浮选法有效去除黄铁矿。羟肟酸类捕收剂是铌矿物浮选的优良捕收剂[9]，在白云鄂博铌矿浮选研究中常表现出较好的选择性，可显著提高铌矿正浮选分选效率。综合考虑，确定低品位复杂铌矿选矿原则流程为：磁选-重选抛尾、反浮选脱硫、正浮选选铌。试验原则流程如图1所示。
试验所用抑制剂包括市购的工业品氟硅酸氨、腐殖酸钠、草酸以及自主研发的抑制剂CYD-2，捕收剂包括市购的LN-2（N-十二烷基-N，N-二甲基磷酸）、辛硫基羟肟酸以及自主研发的CYT-38A（C5～9烷基羟肟酸）和CYN-7（C6～12烷基羟肟酸）。
3　试验结果与讨论
收起
3.1　预选试验

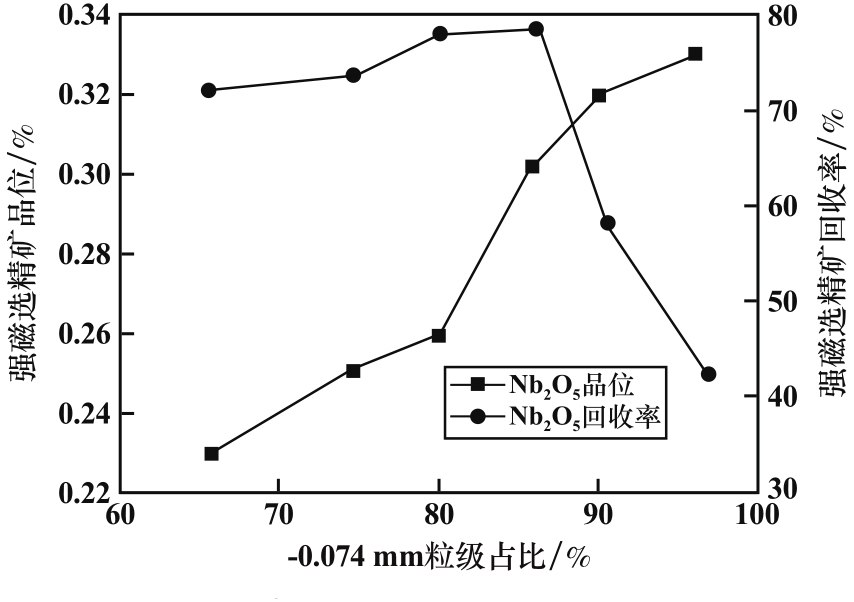

试验矿样中含有少量磁铁矿，对弱磁选去除磁铁矿后的弱磁选尾矿再进行强磁选，可提高强磁选效率。在弱磁选磁场强度0.15 T、强磁选粗选磁场强度1.5 T条件下，考察了磨矿细度对磁选效果的影响，结果如图2所示。由图2可知，磨矿细度－0.074 mm粒级占65.0%～96.0%条件下，随着磨矿细度增加，强磁选精矿Nb2O5品位从0.23%提高到0.33%；但随着磨矿细度增加，强磁选精矿Nb2O5回收率先升后降，其主要原因是过磨产生大量极微细粒铌铁矿，难以使用磁选捕获回收，铌矿物损失较大。磨矿细度－0.074 mm粒级占86.80%条件下，经弱磁选-强磁选，可获得Nb2O5品位0.30%、回收率78.59%的强磁选精矿。
采用MLA对强磁选精矿进行矿物组成及含量分析，结果见表4。结果表明，强磁选精矿中主要脉石矿物为白云石和云母，其次为绿泥石、辉石-闪石、方解石，这些矿物密度均小于铌铁矿、易解石、烧绿石等铌矿物，可采用重选去除这些脉石矿物。
采用摇床重选法，对强磁选精矿进行分选，效果显著，可得到Nb2O5品位2.61%的铌粗精矿，重选尾矿Nb2O5品位为0.095%。
采用MLA对重选精矿进行矿物组成及含量分析，结果见表5。由表5可知，重选精矿中铌矿物含量达到3.29%，主要脉石矿物为辉石-闪石、云母，其次为白云石-方解石，尤为显著的是，重选精矿中（磁）黄铁矿含量较高，达到了21.77%，需要进行浮选去除。
经过调整硫化矿浮选药剂种类及用量，最终在丁基黄药200 g/t、Z-200用量50 g/t条件下进行硫化矿浮选，可获得Nb2O5品位3.24%、作业回收率95.80%的铌精矿，同时可产出S品位45.23%、Nb2O5品位0.28%的硫精矿。重选精矿反浮选脱硫试验结果见表6。
3.2　铌矿浮选试验
白云鄂博低品位铌矿石磁选-重选预选以及浮选脱硫后进入铌矿浮选，铌矿浮选给矿中主要脉石为硅酸盐和碳酸盐矿物，其次还有少量稀土矿和钛铁矿，为实现铌矿物的高效分选，进行了铌矿捕收剂和抑制剂种类和用量以及流程结构试验。
3.2.1　铌浮选捕收剂种类和用量试验
Araxa矿、Ctalao矿以及Niobec矿等铌矿山的浮选实践中均采用胺类捕收剂[10]，但据文献报道[11]，胺类捕收剂对烧绿石、铌铁矿等铌矿物与石英、钾长石、霓石-辉石、黑云母等硅酸盐矿物的浮选分离效果不理想。羟肟酸类、膦酸类和胂酸类捕收剂对铌有较强的选择性作用，在铌矿物与硅酸盐矿物浮选分离中表现优良，且相对膦酸类和胂酸类捕收剂，羟肟酸类捕收剂具有显著的环境友好性[12]。本研究选用羟肟酸类药剂作为铌矿浮选捕收剂。

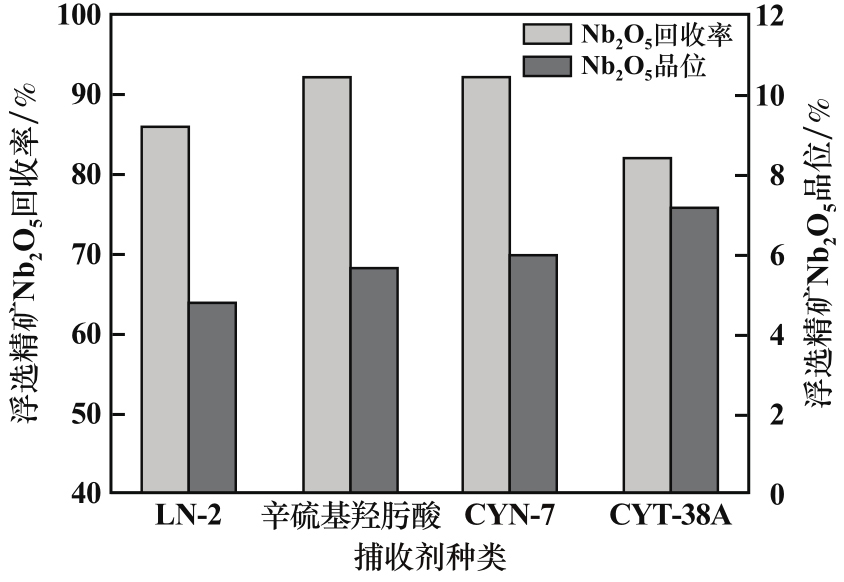

抑制剂氟硅酸氨用量1500 g/t、捕收剂用量500 g/t，采用一次粗选的浮选流程，进行了捕收剂LN-2、辛硫基羟肟酸、CYT-38A、CYN-7的铌浮选对比试验，捕收剂种类对铌浮选效果的影响见图3。结果表明，CYT-38A一次粗选铌精矿Nb2O5品位超过了7.00%，但铌回收率相对较低；辛硫基羟肟酸、CYN-7对铌的浮选回收率高，均达到90%以上，但CYN-7相对辛硫基羟肟酸浮选铌精矿品位更高。确定以CYN-7为捕收剂进行铌矿浮选。

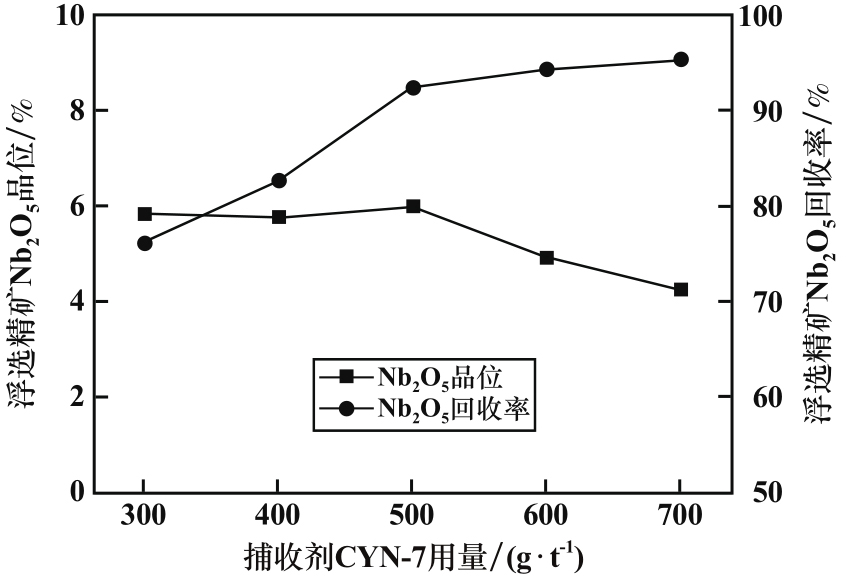

相同条件下，进行了捕收剂CYN-7用量试验，结果见图4。由图4可以看出，随着CYN-7用量增加，铌浮选粗精矿Nb2O5作业回收率显著增加，但CYN-7用量超过500 g/t后，再增加CYN-7用量，Nb2O5作业回收率变化较小，且铌精矿Nb2O5品位显著下降。适宜的CYN-7用量为500 g/t，此时浮选精矿Nb2O5品位达到6.00%，Nb2O5作业回收率为92.37%。
3.2.2　铌浮选抑制剂种类和用量试验

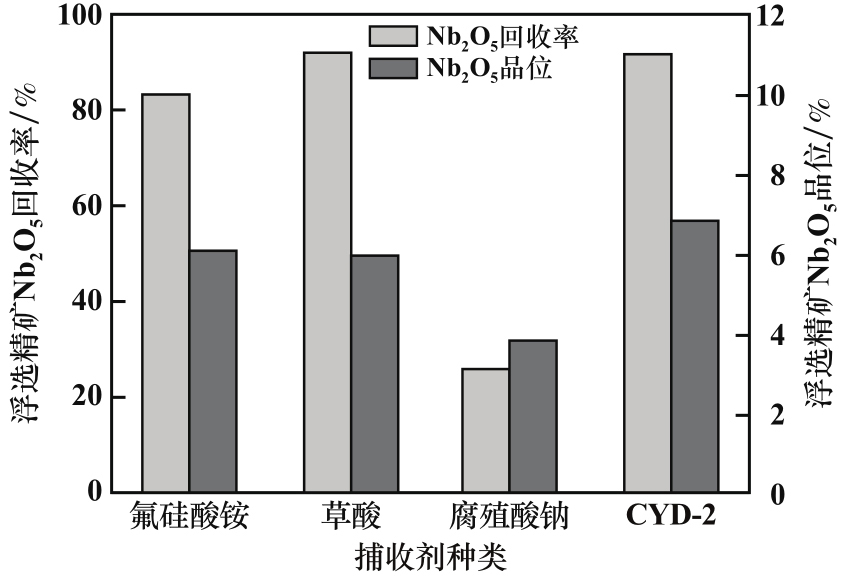

铌浮选给矿中含有辉石-闪石、云母、白云石、方解石、磷灰石等多种不同性质脉石矿物，为实现多种脉石的抑制，抑制剂种类的选择尤为重要。捕收剂CYN-7用量500 g/t，抑制剂用量1 500 g/t，对比了氟硅酸铵、腐殖酸钠、草酸和CYD-2等多种抑制剂对铌浮选效果的影响，结果见图5。从图5可以看出，腐殖酸钠在铌矿物浮选过程中具有较强的抑制作用，但选择性较差；氟硅酸铵、草酸和CYD-2在铌矿物浮选中均具有较好的选择性抑制作用，其中CYD-2选择性抑制效果更好。选择CYD-2作为本次铌浮选的脉石抑制剂。

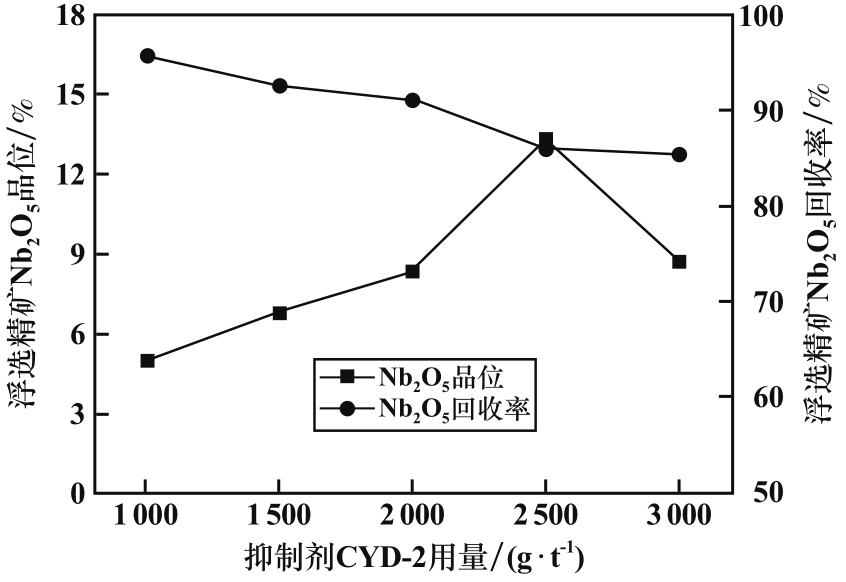

相同条件下，进行了抑制剂CYD-2用量试验，结果见图6。由图6可以看出：随着CYD-2用量增加，铌浮选粗精矿回收率逐渐降低，Nb2O5品位显著增加；CYD-2用量超过2 500 g/t后，再增加CYD-2用量，浮选铌粗精矿Nb2O5品位和回收率均降低。适宜的抑制剂CYD-2用量为2 500 g/t，此时浮选精矿Nb2O5品位达到13.30%，Nb2O5作业回收率为85.98%。
3.3　闭路试验

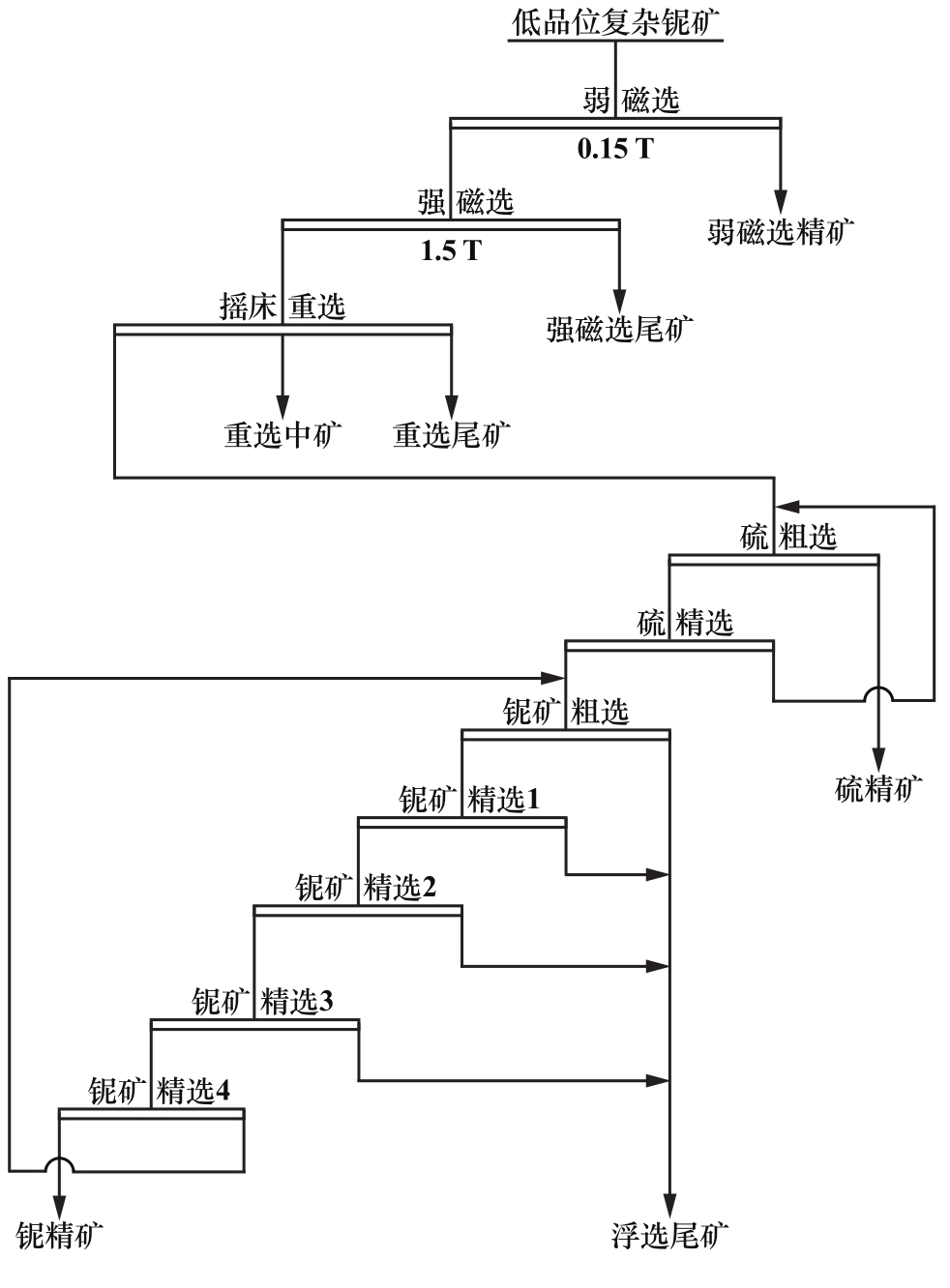

在条件试验基础上，进行了预选-铌浮选闭路流程试验，结果见表7，试验流程见图7。试验工艺条件为：磨矿细度－0.074 mm粒级占85%，弱磁选磁场强度0.15 T，强磁选磁场强度1.5 T；硫化矿浮选粗选丁基黄药用量150 g/t、Z-200用量50 g/t，硫化矿浮选精选丁基黄药用量100 g/t、Z-200用量50 g/t；铌浮选粗选CYN-7用量500 g/t、CYD-2用量2 500 g/t，铌精选1、精选2、精选3、精选4 CYD-2用量分别为500、300、200、100 g/t。闭路试验可以获得Nb2O5品位22.37%、回收率33.64%的铌精矿。
4　结论
收起
1）白云鄂博西矿区白云岩型铌矿石Nb2O5品位0.06%，铌主要以铌铁矿形式存在，铌矿物嵌布粒度细，与其伴生矿物共生紧密。
2）采用磁选-重选可预先抛除产率超过90%的尾矿；磁选-重选抛尾、反浮选脱硫、正浮选选铌闭路试验可获得Nb2O5品位22.37%、回收率33.64%的铌精矿。
基金
收起
  • 国家自然科学基金(92062223)
  • 国家重点研发计划(2020YFC1909103)
文献
收起
参考文献 引证文献
排序方式：
[1]
尹兆波, 高利坤, 饶兵. 我国铌矿资源概况及选矿技术进展[J]. 矿产保护与利用, 2024, 44(1): 115-125.
YIN Zhaobo, GAO Likun, RAO Bing. Overview of niobium resources and progress in mineral processing technology in China[J]. Conservation and Utilization of Mineral Resources, 2024, 44(1): 115-125.
[2]
邓攀, 陈玉明, 叶锦华, 等. 全球铌钽资源分布概况及产业发展形势分析[J]. 中国矿业, 2019, 28(4): 63-68.
DENG Pan, CHEN Yuming, YE Jinhua, et al. Study on the resource distribution and industry development of global niobium and tantalum[J]. China Mining Magazine, 2019, 28(4): 63-68.
[3]
Study on the review of the list of critical raw materials executive summary[R]. European Commission, 2017. http://ec.europa.eu/docsroom/documents/25421.
[4]
Final list of critical minerals 2018[R]. U. S. Department of the Interior, 2018. https://www.federalregister.gov/documents/2018/05/18/2018-10667/final-list-of-critical-minerals-2018.
[5]
王安建, 王高尚. 全球矿产资源形式报告(2021)[R]. 北京: 中国地质调查局/中国地质科学院全球矿产资源战略研究中心, 2021.
WANG Anjian, WANG Gaoshang. Report on the global mineral resources situation (2021)[R]. Beijing: China Geological Survey/Global Mineral Resources Strategy Research Center, Chinese Academy of Geological, 2021.
[6]
王汝成, 车旭东, 邬斌, 等. 中国铌钽锆铪资源[J]. 科学通报, 2020, 65(33): 3763-3777.
WANG Rucheng, CHE Xudong, WU Bin, et al. Critical mineral resources of Nb, Ta, Zr, and Hf in China[J]. Chinese Science Bulletin, 2020, 65(33): 3763-3777.
[7]
王维维, 杨占峰, 候少春, 等. 白云鄂博铌资源特征及开发利用新进展[J]. 矿产保护与利用, 2020, 40(5): 49-53.
WANG Weiwei, YANG Zhanfeng, HOU Shaochun, et al. Characteristics of Bayan Obo niobium resources and new progress in its development and utilization[J]. Conservation and Utilization of Mineral Resources, 2020, 40(5): 49-53.
[8]
陈宏超, 刘文丽, 曾永杰, 等. 白云鄂博矿选别工艺研究发展及应用现状[J]. 包钢科技, 2025, 51(1): 13-19.
CHEN Hongchao, LIU Wenli, ZENG Yongjie, et al. Development and application status of beneficiation technology study of baiyuneboite[J]. Science & Technology of Baotou Steel, 2025, 51(1): 13-19.
[9]
毕冉, 李侠, 张倩. OHA及OHA与亚油酸钠复配对铌铁矿浮选的影响试验[J]. 有色金属(选矿部分), 2021(6): 107-111.
BI Ran, LI Xia, ZHANG Qian. Effect of OHA and OHA combined with sodium linoleate on niobite flotation[J]. Nonferrous Metals (Mineral Processing Section), 2021(6): 107-111.
[10]
艾永亮, 范光. 世界主要烧绿石资源及选矿技术特点[J]. 中国矿业, 2015, 24(4): 130-133.
AI Yongliang, FAN Guang. Resources status and mineral processing of pyrochlore[J]. China Mining Magazine, 2015, 24(4): 130-133.
[11]
许海峰, 周瑜林, 卢翔, 等. 铌矿浮选药剂研究进展[J]. 矿冶工程, 2022, 42(6): 50-56.
XU Haifeng, ZHOU Yulin, LU Xiang, et al. Research progress of niobium ore flotation reagents[J]. Mining and Metallurgical Engineering, 2022, 42(6): 50-56.
[12]
黎洁, 谢贤, 吕晋芳, 等. 铌矿资源概述及选矿技术研究进展[J]. 金属矿山, 2021(2): 120-126.
LI Jie, XIE Xian, LYU Jinfang, et al. Overview of niobium resources and research progress in mineral processing technology[J]. Metal Mine, 2021(2): 120-126.
