基于MBSE的智能汽车信息物理系统建模方法^*

PDF下载

徐天啸 , 梁浩 , 赵静 , 高小栋 , 闫涵

汽车文摘 | 2023年中国汽车工程学会年会优秀论文（选登） 2023,(10): 1-16

收起

汽车文摘 | 2023年中国汽车工程学会年会优秀论文（选登） 2023, (10): 1-16

基于MBSE的智能汽车信息物理系统建模方法^*

全屏

徐天啸, 梁浩, 赵静, 高小栋, 闫涵

作者信息

国汽(北京)智能网联汽车研究院有限公司, 北京 100176

Modeling Method for Intelligent Vehicle Cyber-Physical System Based on MBSE^*

Tianxiao Xu, Hao Liang, Jing Zhao, Xiaodong Gao, Han Yan

Affiliations

China Intelligent and Connected Vehicles (Beijing) Research Institute Co., Ltd., Beijing 100176

Tian xiao XU is now a System Architecture Senior Engineer of Cyber-Physical Systems Division in China Intelligent and Connected Vehicles (Beijing) Research Institute Co., Ltd. His research interests include Model-based Systems Engineering (MBSE), Cyber-Physical Systems and Systems architecture.

Hao Liang is the director of Cyber-Physical Systems Division in China Intelligent and Connected Vehicles (Beijing) Research Institute Co., Ltd. His research interests include Model-based Systems Engineering (MBSE), Cyber-Physical Systems and Digital Twin Technology.

Jing Zhao is currently working at China Intelligent and Connected Vehicles (Beijing) Research Institute Co., Ltd as a System Architecture Engineer. Her main research interests include Model-based Systems Engineering (MBSE) and Cyber-Physical Systems of rail traffic.

Xiao-dong Gao is a System Architecture Engineer of Cyber-Physical Systems Division in China Intelligent and Connected Vehicles (Beijing) Research Institute Co., Ltd. His research interests include Model-based Systems Engineering (MBSE) and Autono-mous Vehicle Control Technology.

Han Yan is currently working at the China Intelligent and Connected Vehicles (Beijing) Research Institute Co., Ltd as a System Architecture Engineer. Her main research interests include Model-based Systems Engineering (MBSE) and Intelligent High-speed Information Physics Architecture.

出版时间: 2023-10-05 doi: 10.19822/j.cnki.1671-6329.20230202

文章导航

摘要

收起

智能车辆信息物理系统（IVCPS）可以基于道路和车辆信息资源实时控制车辆的运行轨迹，在降低车辆能耗方面具有很大潜力。然而，目前对基于云的预测巡航控制（CPCC）体系结构的研究忽略了体系结构实现和应用的可行性，没有对体系结构的合理性进行验证。为建立IVCPS体系结构与应用验证之间的联系，促进IVCPS多领域、多学科协同设计、联合仿真、系统集成，提出了基于模型系统工程（MBSE）的IVCPS建模方法。首先，构建了IVCPS的整体分层体系结构，明确了各层体系结构的构成要素。然后选择系统建模语言（SysML）作为建模工具，构建了需求-功能-逻辑-参数（RFLP）建模框架。最后，以IVCPS云预测巡航控制系统为例，利用RFLP框架对CPCC系统的需求、功能、逻辑和参数进行建模和分析。模拟结果证明MBSE可以实现对CPCC系统的需求分析、功能分解、逻辑架构设计和系统参数标定进行统一建模，促进CPCC系统理论架构的仿真验证，并能够测试、分析CPCC架构对于智能网联汽车的运行轨迹优化和油耗降低效果。本研究旨在为提高IVCPS系统建模的交互性、可重用性和兼容性奠定基础。

关键词

基于模型系统工程 / 智能车辆信息物理系统 / 系统建模语言 / 基于云的预测巡航控制

Abstract

收起

The Intelligent Vehicle Cyber-Physical System (IVCPS) can control the operation trajectory of vehicles based on road and vehicle information resources in real time, which has great potential in reducing vehicle energy consumption. However, the current studies on Cloud-Based Predictive Cruise Control (CPCC) architecture ignore the feasibility of architecture implementation and application, without verifing the rationality of the architecture. To establish the links among architecture, application and verification, promote multi-domain and multi-disciplinary collaborative design, joint simulation as well as system integration in IVCPS, this paper proposes the modeling method of IVCPS based on Model-Based Systems Engineering (MBSE). Firstly, the overall layered architecture of IVCPS is constructed and the elements of each layer of the architecture are clarified. Then Systems Modeling Language (SysML) is utilized as the modeling tool and the Requirement analysis-Functional analysis-Logical analysis-Parametric calibration (RFLP) modeling framework is constructed. Finally, a typical scenario of CPCC system within IVCPS is taken as an example. The RFLP framework is utilized to model and analyze the requirements, functions, logics and parametric calibration of the CPCC system. The modeling results prove that MBSE can realize the unified modeling of the requirement analysis, function decomposition, logical architecture design and system parameter calibration of the CPCC system, promote simulation verification of the theoretical architecture of the CPCC system and be able to test and analyze the effectiveness of the CPCC architecture in optimizing the running trajectory and reducing fuel consumption of intelligent connected vehicles. This study lays a foundation for improving the interactivity, reusability and compatibility of IVCPS system modeling.

Key words

Model-based Systems Engineering / Intelligent Vehicle Cyber-Physical System / System Modeling Language / Cloud-based Predictive Cruise Control

引用本文

徐天啸, 梁浩, 赵静, 高小栋, 闫涵. 基于MBSE的智能汽车信息物理系统建模方法^*. 汽车文摘, 2023 , (10) : 1 -16 . DOI: 10.19822/j.cnki.1671-6329.20230202

Tianxiao Xu, Hao Liang, Jing Zhao, Xiaodong Gao, Han Yan. Modeling Method for Intelligent Vehicle Cyber-Physical System Based on MBSE^*[J]. Automotive Digest, 2023 , (10) : 1 -16 . DOI: 10.19822/j.cnki.1671-6329.20230202

正文

收起

ICV Intelligent and Connected Vehicle

IVCPS Intelligent Vehicle Cyber-Physical System

CCS Cloud-based Control System

TBSE Text-Based Systems Engineering

MBSE Model-Based Systems Engineering

SysML Systems Modeling Language

RFLP Requirement analysis-Functional analysis-

Logical analysis-Parametric calibration

CPCC Cloud-Based Predictive Cruise Control

0 Introduction

收起

Under the rapid development of information technologies, vehicles are developing in the direction of intelligence and connecting, the application of Cyber-Physical System (CPS) in the Intelligent and Connected Vehicle (ICV) field becomes an important research topic^[1-2]. Intelligent Vehicle Cyber-Physical System (IVCPS) obtains real-time information of roads, traffic and vehicles from the Cloud-based Control System (CCS), uses the computing ability of the cloud to quickly calculate the driving strategy of the car and transmit it to the ICV. This control mode can significantly improve the safety of vehicle driving and reduce energy consumption, which is of great significance for the development of vehicles in the direction of low carbon and energy saving^[3-4].

At present, research on CPS, ICV and CCS focuses on network architecture and control algorithms. Xia et al.^[5] designed an intelligent transportation network physical control system based on CCS, the simulation results show that the system improves the dynamic performance of the traffic control system. Based on CPS theory, Li et al.^[2] proposed CCS architecture for ICVs, which is committed to connecting the 2 main fields of intelligent transportation system and ICV, aiming to accelerate the development of ICV. For control algorithms, Li et al.^[6] solved the optimal speed using accurate vehicle and fuel consumption models on a cloud computing platform and developed field experiments. Li et al.^[7] performed predictive cruise control for heavy duty commercial vehicles on the highway by predicting slope information. Gao et al.^[8] considered the influence of intersection queuing length and dissipation time on vehicle driving, proposed a queuing dissipation time estimation model, which saves bus energy consumption and reduces waiting time. The above studies have achieved many good results. However, the research on architecture is often only theoretical from the perspective of requirements, it ignores the feasibility of application, the research on models and algorithms often needs to first determine the fixed architecture and specific scenarios, when the elements of the architecture or scene change, the model and algorithm need to be adjusted. Therefore, it is necessary to realize the collaborative design, joint simulation and system integration of IVCPS, so that the requirements, architecture, model, algorithm and application of IVCPS are coordinated, the compatibility and reusability of the architecture are improved. Systems engineering-based methods can solve modeling problems of such multi-domain, multi-disciplinary complex systems.

The traditional system engineering field uses the Text-Based Systems Engineering (TBSE) method^[9-10], which realizes the task assignment, information interaction between departments and information exchange among different disciplines through a series of documents, tables, drawings and diagrams, such as operation documents, specifications, interface definition documents and architecture specifications. However, TBSE has the disadvantages of poor requirements traceability, insufficient reuse and scalability. In recent years, MBSE^[11-13] is proposed to address these disadvantages and gradually becomes a popular method in the field of systems engineering modeling. MBSE uses the model to express the requirements, design, analysis and verification process of a system in the whole life cycle. MBSE can realize the digital and graphical expression of the system through the model so as to improve the efficiency of system design. Many research institutions have explored the application of MBSE theory in various industries, different modeling languages, tools and processes are proposed, such as Harmony SE method^[14], object-oriented systems engineering method^[15] as well as Magic-grid method^[16], et al. These studies are applied mainly in the fields of aerospace^[17], nuclear energy^[18] and automated factories^[19]. There is no public research in fields of ICV and CPS.

To address the engineering modeling issue of complex systems of IVCPS, this paper proposes a modeling method for IVCPS based on MBSE. Firstly, the overall architecture of IVCPS is clarified, the "V" model of the IVCPS architecture is established. Then, a system modeling process based on requirement-function-logic-parameter is proposed, it realizes the forward design and modeling of IVCPS architecture. Finally, the typical application scenario case of IVCPS proved that the proposed MBSE method can realize the transmission of status, data, the layer-by-layer progression and correlation from requirements to solutions, make the high traceability of functions and architectures to requirements. The modeling of multidisciplinary and multi-domain complex systems under a unified architecture is completed, which effectively improves the interactivity, reusability and compatibility of IVCPS system modeling.

The paper is structured as follows. Section 1 introduces the overall architecture of IVCPS. Section 2 proposes the modeling method and process of IVCPS based on MBSE. Section 3 gives the cases of IVCPS modeling based on MBSE. Section 4 concludes the paper.

1 Overall Architecture of IVCPS

收起

IVCPS is a typical complex cyber-physical system that integrates automotive, transportation, information and communication systems. To perform sensing, decision-making, planning and control, this system connects the physical layer and the cyber layer. At the cyber layer, the applications of decision-making and control algorithms for vehicles and traffic lights can comprehensively improve the safety and efficiency of vehicle driving and traffic flow. The overall architecture of IVCPS is shown in the Fig.1.

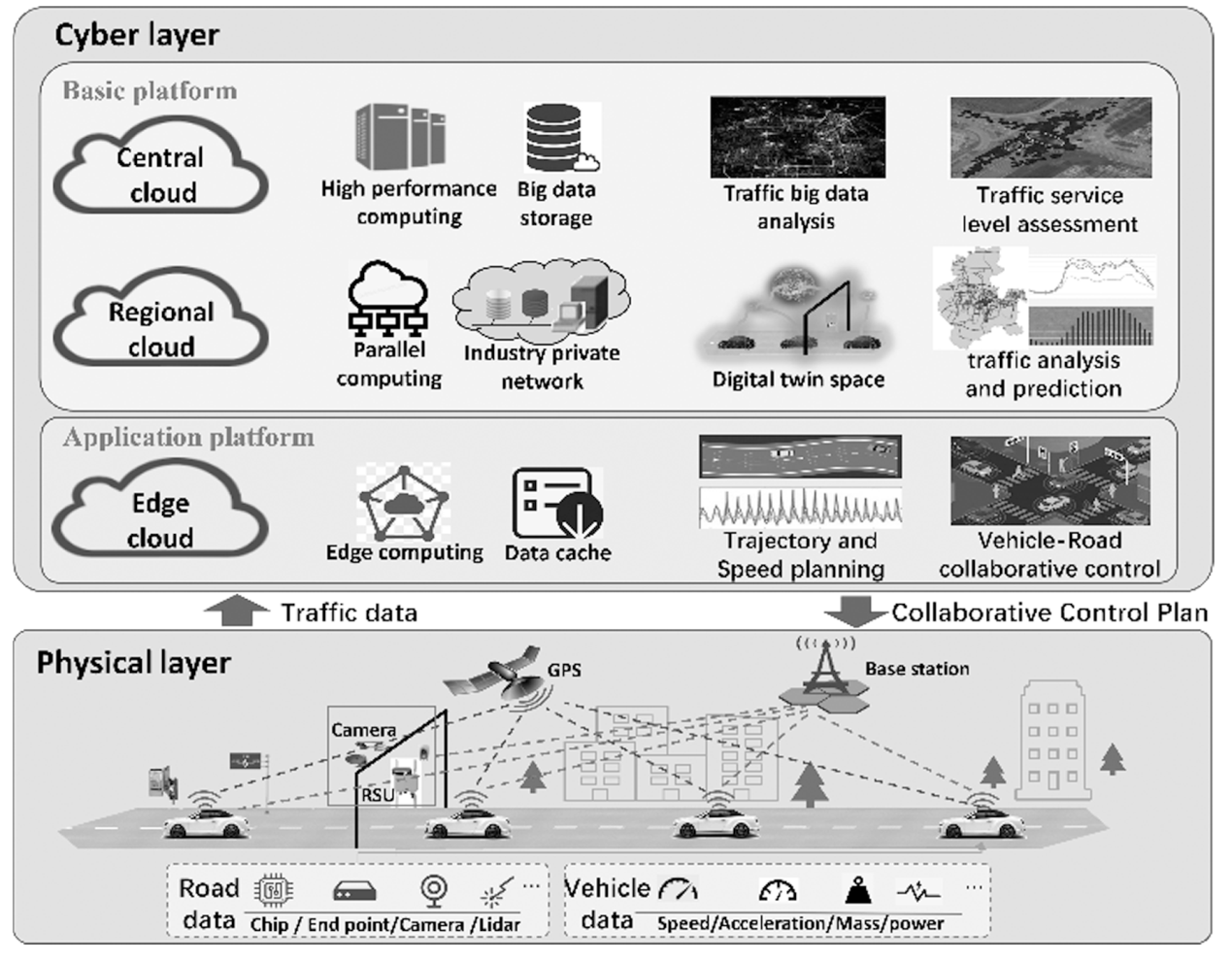

The cyber layer, also known as the cloud control platform, consists of 2 parts: the basic platform and the application platform. The basic platform is divided into central cloud and regional cloud according, which can effectively collect and process real-time road traffic data provided by vehicles and roadside sensing infrastructure. Regional clouds provide parallel computing and wide-area communication to run real-time collaborative applications on a regional scale, such as an entire city. The central cloud is capable of high-performance computing and big data storage, mainly running non-real-time applications that serve the entire country. The application platform obtains the dynamic data of vehicles and traffic from the basic platform, deploys applications to improve the transportation system, integrates ICV driving applications, intelligent transportation applications, industry management and service applications based on big data. The physical layer mainly includes ICVs and roadside infrastructure, the cloud control platform collects vehicle dynamic data from ICVs, while other traffic dynamic data is obtained through roadside infrastructures.

2 IVCPS Modeling Theory Based on MBSE

收起

This section introduces the IVCPS modeling theory, tools and process based on MBSE, explains each operation in the modeling method in detail.

2.1 MBSE Modeling Language and Tools

The basis of MBSE is a standardized modeling language. The traditional commonly used language is UML. With the increasing complexity of system modeling, research institutions have extended UML to meet the needs of complex system modeling, and established a new modeling language SysML that is superior to UML. SysML can meet the requirements of system description, design, analysis and verification in multiple fields including hardware, software, information and manufacturing. Therefore, this paper chooses SysML as the modeling language for IVCPS.

Another important element of MBSE modeling is the modeling tool, which needs to ensure the consistency and integrity of the model when the model is changed. SysML-based modeling tools include CATIA Magic, Rhapsody, Enterprise Architect, et al. Among them, CATIA Magic has powerful functions, convenient conditions and moderate implementation costs, its research team is deeply involved in the research and development of SysML standards, which is convenient for further expansion research in the future. Therefore, CATIA Magic is utilized as a modeling tool in this paper.

2.2 IVCPS Modeling Theory

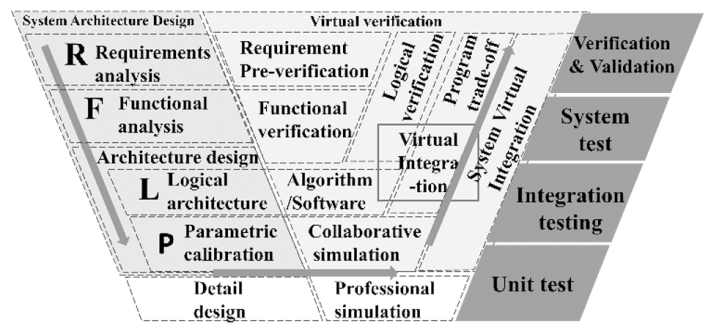

The MBSE-based IVCPS architecture design process is based on the typical development process of MBSE V model, as shown in Fig.2. The V model includes the whole process of requirement development, system architecture design, simulation, verification and validation test.

The left of the V model is the forward design process, which graphically describes system requirement analysis, functional analysis, architecture design and professional simulation. The right is the verification process from the bottom up, the system model established in the left part is verified by algorithms and software. This paper focuses on the left side of the system architecture design in Fig.2, verification test and other related works will be gradually improved in future works.

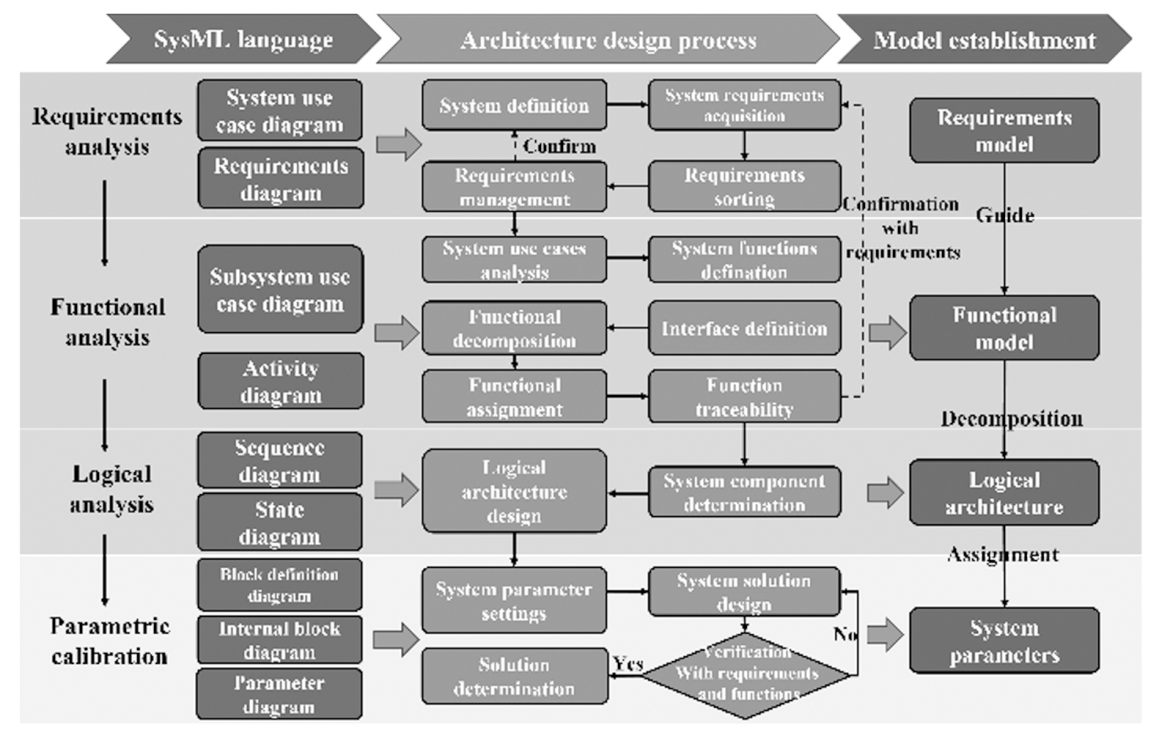

The process of MBSE follows the Requirement analysis-Functional analysis-Logical analysis-Parametric calibration (i.e. the RFLP process). Requirement analysis defines the requirements of each level of IVCPS (i.e., system level, subsystem level, block level and component level) from multiple levels. Functional analysis designs the various functions in the system architecture according to the requirements of each system level and subsystem level. Based on the analysis of requirements and functions, the Logical architecture establishes a architecture that can realize the functions of the system. Parametric calibration provides system solutions and performs multi-dimensional parameter calibration and index issuance to verify and implement the entire system solution. The details of RFLP are shown in Fig.3.

Requirement analysis sorts out the requirements of each element of the system and establishes the traceability relationship between the requirements and the system elements. At the same time, it establishes the traceability relationship between top-level requirements, sub-requirements and sub-requirements aim to ensure the consistency of design. Finally, the requirement traceability matrix and requirement coverage rate are used to determine whether the requirements have been met, so as to establish a complete requirements model.

Functional analysis divides system activities based on different requirements, establishes accurate system use cases to correlate system elements, requirements and functions. Then, the use cases at different levels are decomposed step by step to complete the mutual traceability of system requirements and functions. Finally, the activity diagram is used to describe the implementation process of the system function and indicate the input and output parameters of each activity node in the activity process. The activity diagram can grasp the associated information of system requirements and ensure that when the top-layer requirements change, the relevant requirements can be quickly located and the impact of requirements changes in the system can be analyzed.

Logical analysis establishes an internal block diagram and defines the system logical architecture according to the decomposition results of the system function. Then it defines the subsystems and functional blocks that make up the system, constructs the state diagram and sequence diagram at the same time to clarify the state parameters and information interaction of the subsystems and internal blocks.

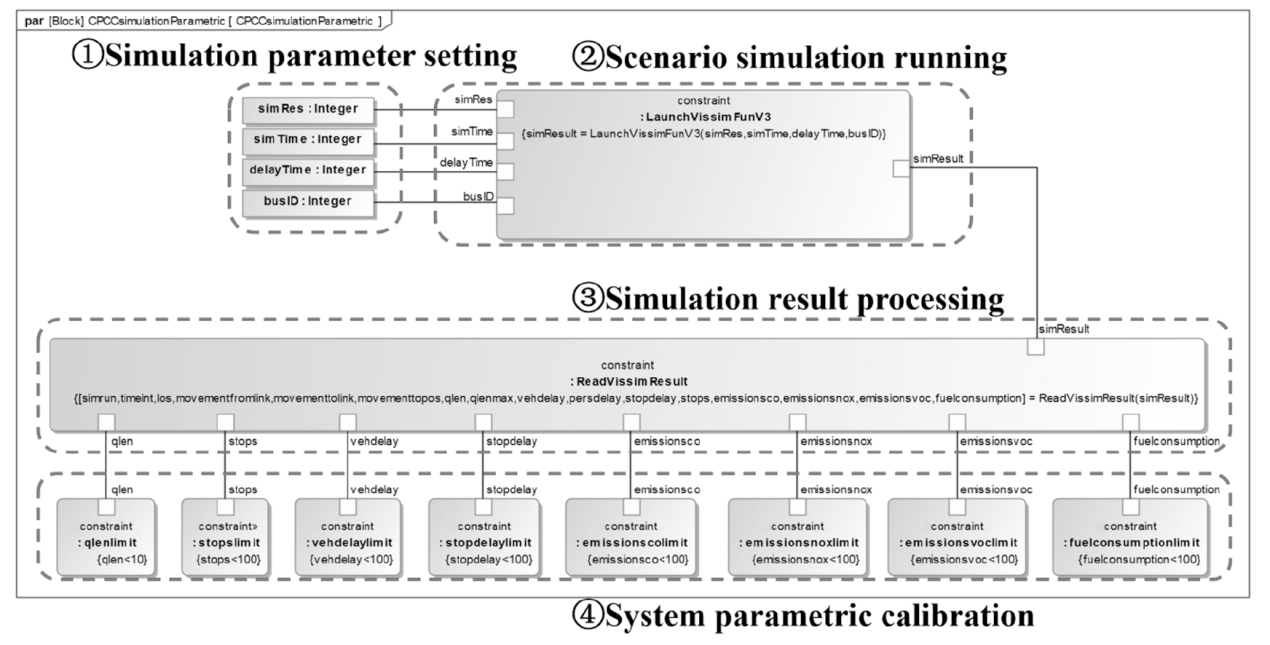

Parametric calibration uses parameter diagrams and block definition diagrams to describe the hierarchy of system, subsystem and internal blocks of the system as well as the interaction relationship between system parameters and information. At the system level, according to the system operation plan and strategic requirements, it is necessary to determine the key performance parameters of system, then decompose and distribute the key performance parameters to each subsystem to form an architecture scheme that meets the system requirements. Furthermore, each system requirement is modeled one by one until all requirements can be met, subsystems at all levels are associated and combined from bottom to system level to form the architecture design scheme of the entire system. The architecture is integrated with other models for simulation purpose, the optimal parameter calibration scheme is selected as the final scheme of the system according to the evaluation results.

3 The Case of IVCPS Modeling Using MBSE

收起

3.1 IVCPS application Scenario Description

IVCPS has different definitions from different positions and perspectives: Vehicle-Road Cloud Integration System (VRCIS), Intelligent and Connected Vehicle System (ICVS) and Cloud-Based Predictive Cruise Control System (CPCC). Most of the current research focuses on ICV under cloud-based condition, this paper studies the CPCC scenarios for the adaptive control strategy of ICV under cloud control system.

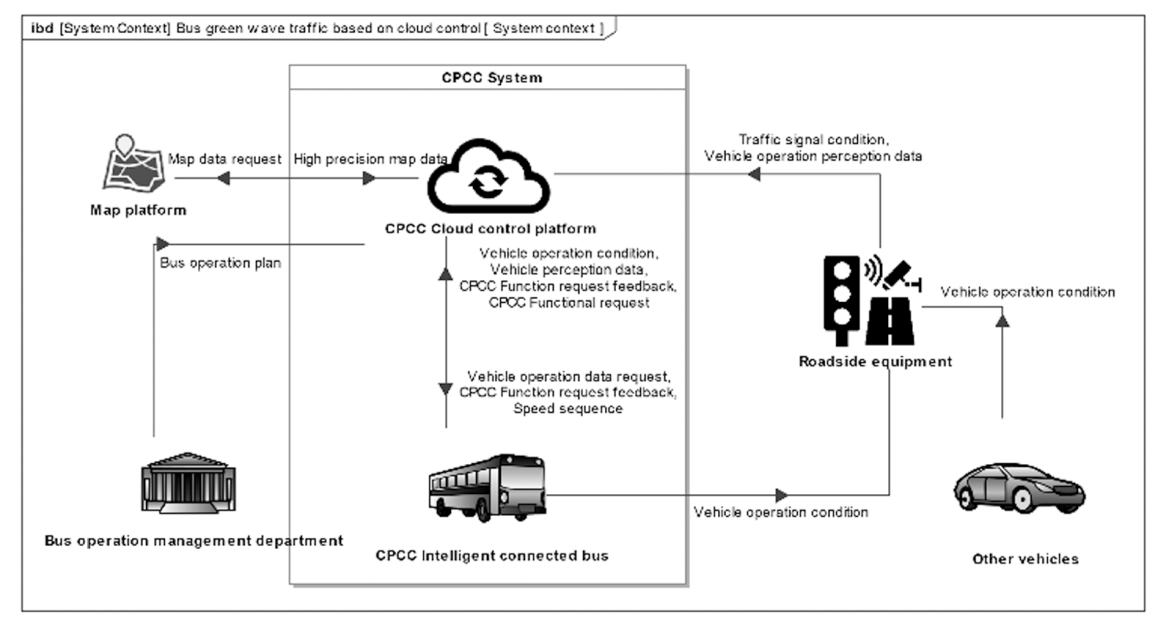

The CPCC is shown in Fig.4, including CPCC cloud control platform, intelligent and connected buses, roadside equipment, map platform, other vehicles and operation management departments as other systems that interact with the CPCC system in the operating environment. In this scenario, the intelligent and connected bus sends vehicle operation data to the cloud control platform, generates adaptive cruise speed and feedback command execution data according to the vehicle speed planning sequence and vehicle end point equipment, the cloud control platform updates the bus driving strategy in real time based on the vehicle operation data feedback. As a complex system, the model establishment of CPCC involves the coordination and cooperation of multiple subsystems and multiple elements, its system modeling needs to realize the integration of CPCC top-level architecture framework design, system requirements analysis, function assignment of various subsystems, logical design, system parameters calibration, simulation algorithm development and parameter management.

3.2 Requirement Analysis

According to RFLP modeling process, the first step is requirement analysis. The purpose of requirement analysis is to obtain the requirements of stakeholders in the system, clarify the system definition, design requirements and constraints from users’ needs, realize the categorical, hierarchical optimization organization and management of requirements. CPCC involves vehicles, transportation, communications, maps and other fields. In order to ensure cross-field coordination and universality in various fields, this paper refers to some exist architecture framework, such as the US Department of Defense Architecture Framework, the UK Department of Defense Architecture Framework, the Open Organization Architecture Framework, et al., proposes a framework as shown in Fig.5.

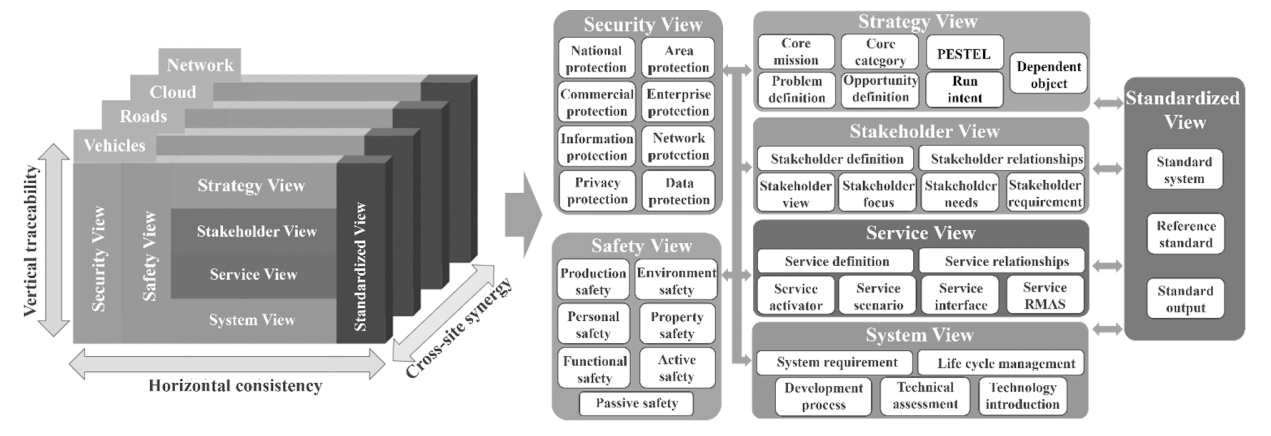

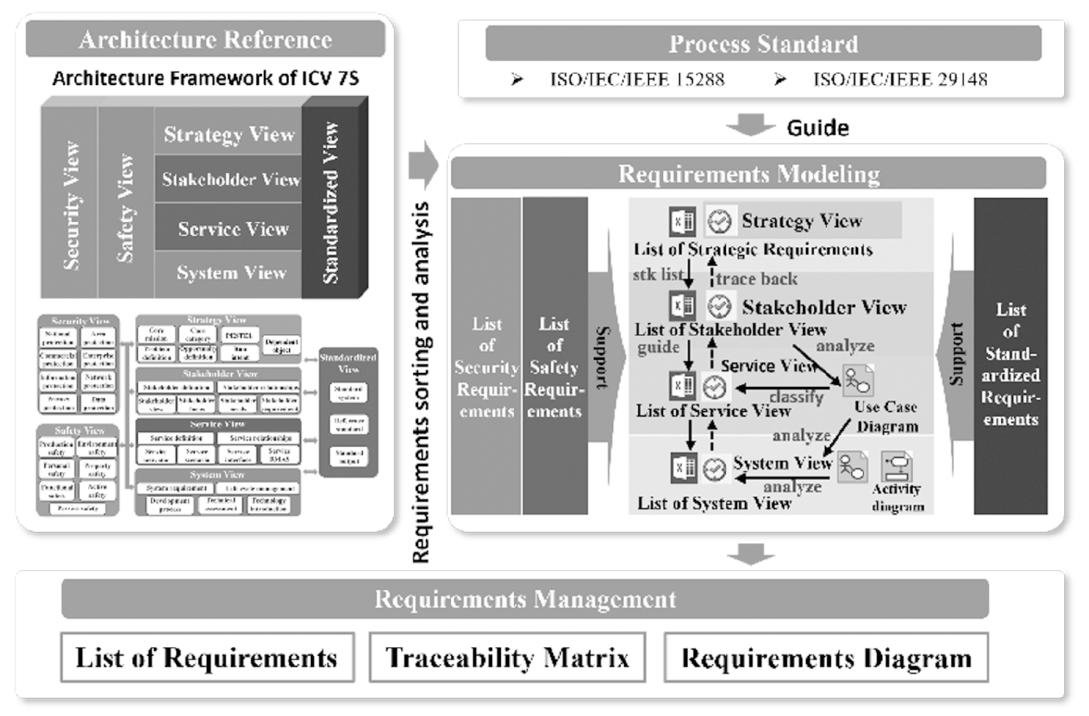

The framework consists of 7 levels: strategy, stakeholders, standardization services, security, protection and system. Horizontally, it aims to ensure the consistency of the requirements of each dimension; Vertically, it aims to ensure top-down granularity of requirements within the 4 views of strategy, stakeholders, service, system and bottom-up traceability of requirements within the 4 views. It is further possible to reach consensus on the positions of different members.

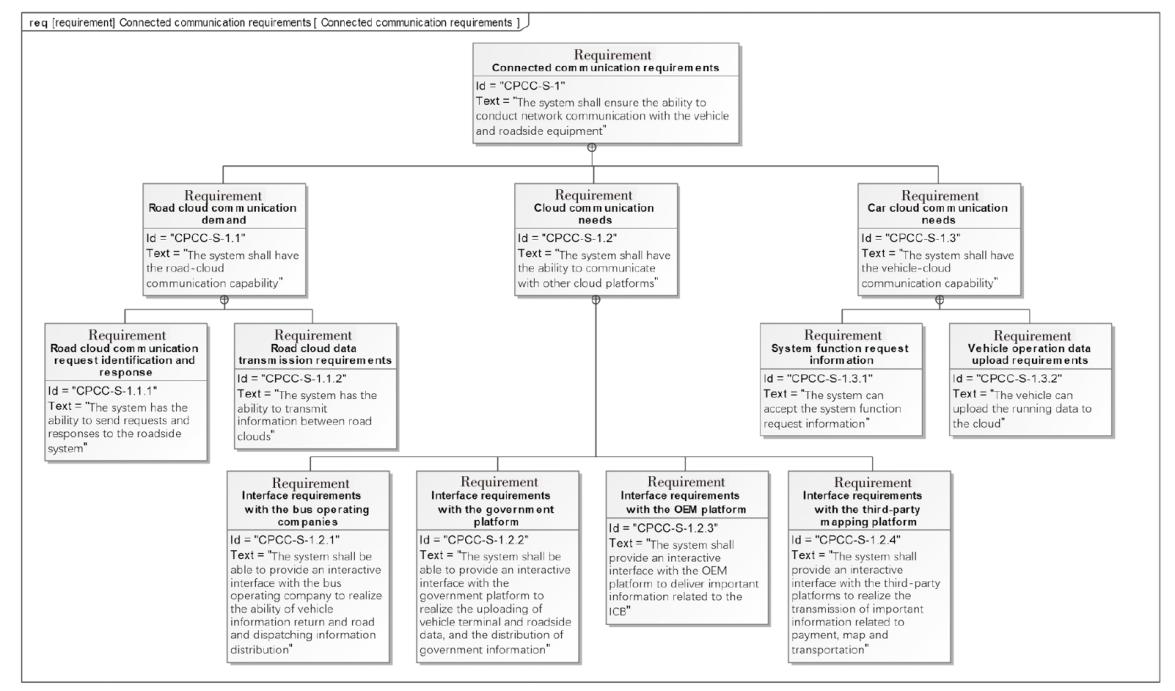

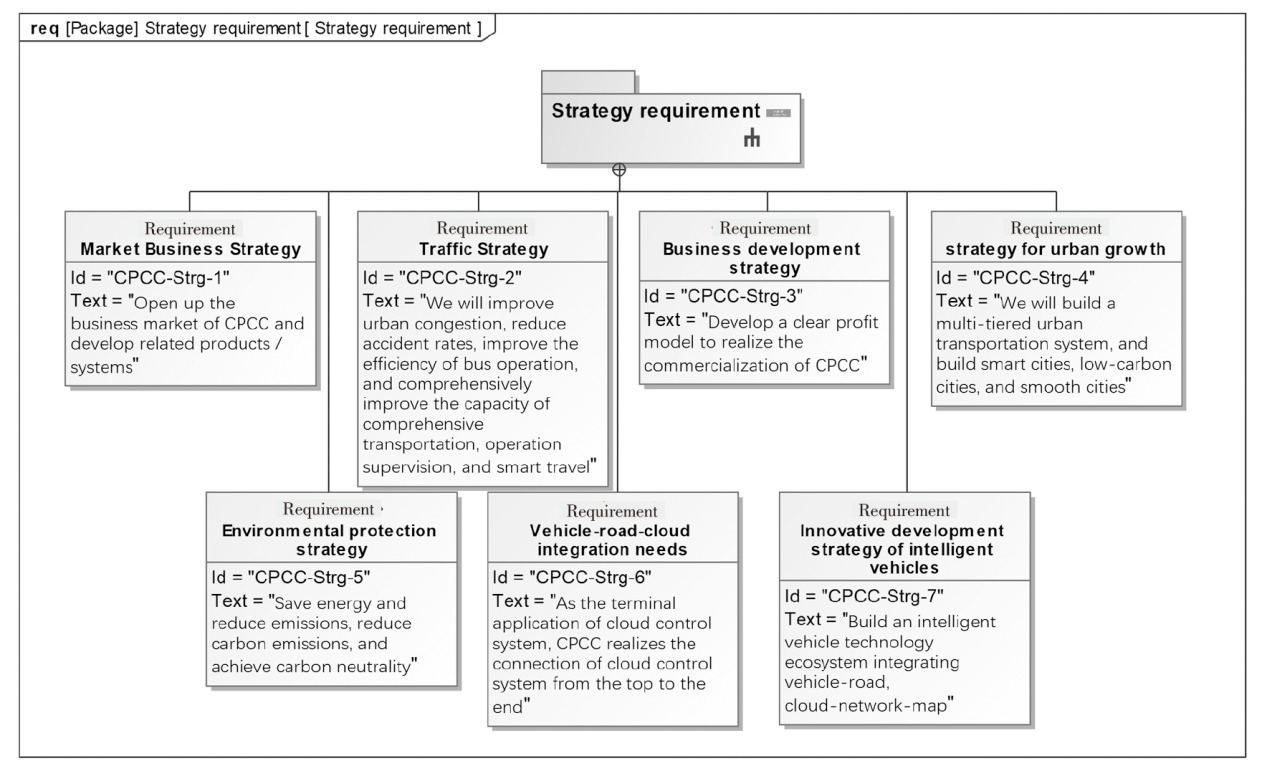

After the requirements are defined, the requirements model is established by using the SysML. The process is shown in Fig.6. Firstly, the ICV system framework is analyzed and sorted out. Moreover, various requirements that need to be met are clarified, the requirements are sorted out according to the process specifications. After the requirements are clarified, modeled, the correlation between the various requirements is then clarified according to the requirements list, such as the stakeholder requirements need to be determined according to the strategic requirements list, then the service requirements and system requirements are guided, a clear traceability relationship is formed between the various requirements to verify whether the requirements are met. In this process, it is necessary to analyze and describe the requirements with the help of requirement lists, requirement diagrams, use case diagrams and activity diagrams to achieve the overall modeling of requirements. According to the above method, the top-level requirements list and requirements diagram of the CPCC are shown in Tab.1 and Fig.7 respectively.

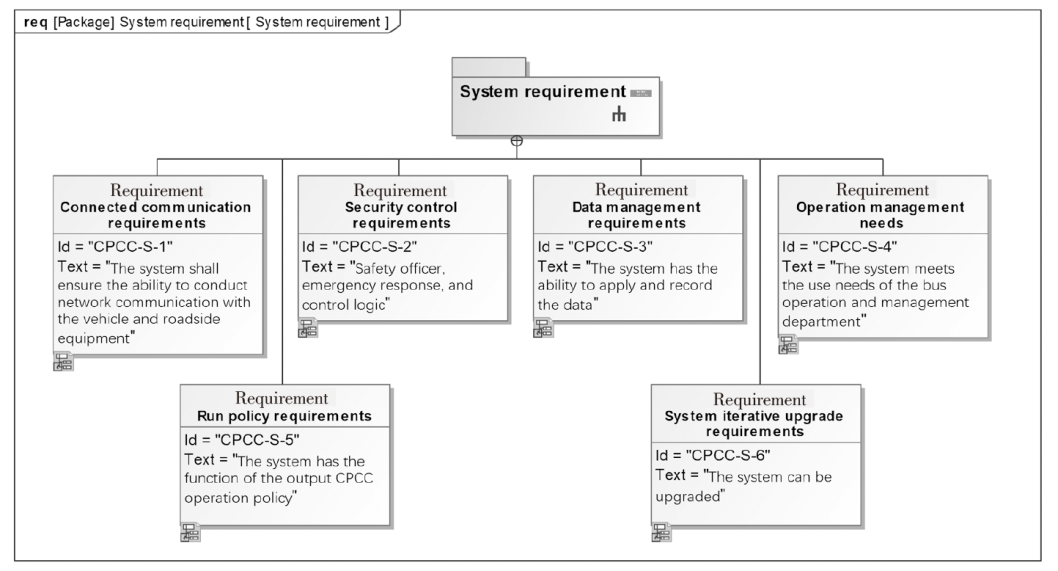

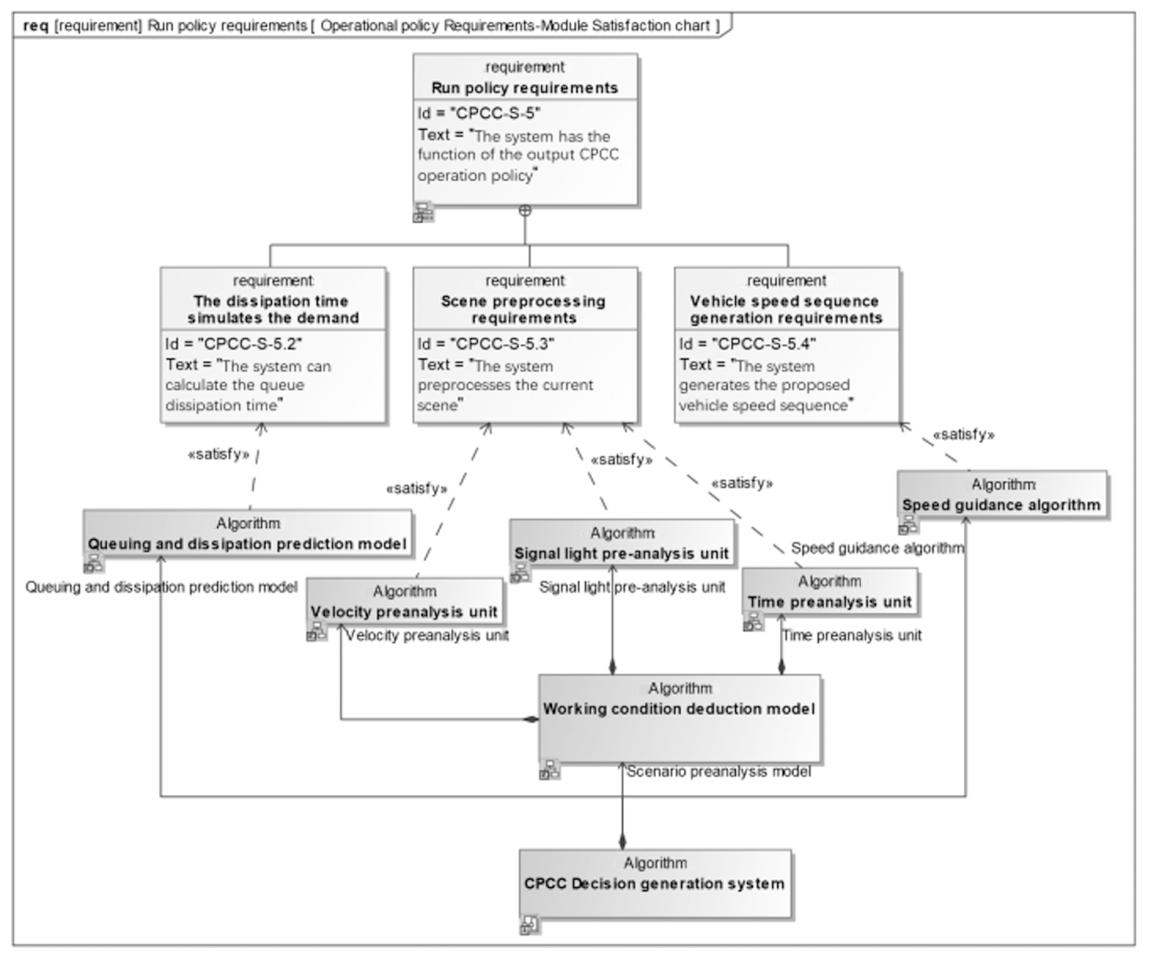

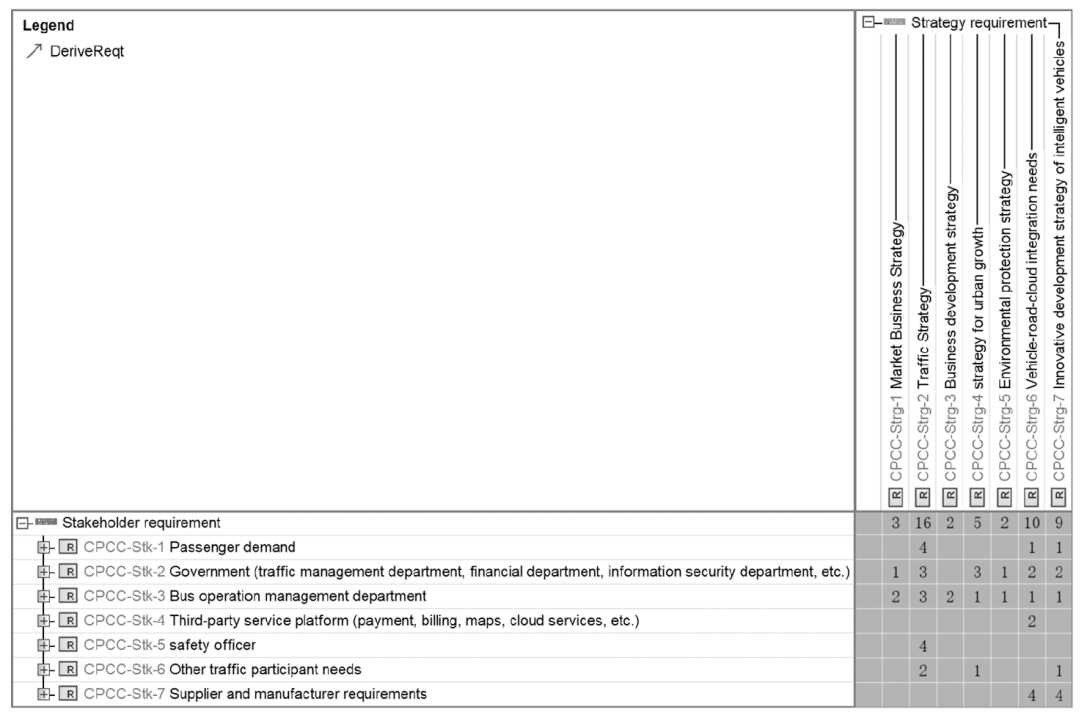

After the top-level requirements are determined, the 7 types of requirements should be decomposed in details, taking the system requirements as an example, the information is mostly based on tables or documents, so in the process of establishing the system requirements model, the documents are organized into an itemized requirements list (Tab.2) and converted into a requirements diagram (Fig.8). The connection with the cross-circle endpoint in Fig.8 represents the composition or decomposition relationship between the requirements, the graphic at the end of the non-cross circular break point is used to describe the requirements in more detail, the system requirements model includes sub-requirements in 6 aspects, such as network communication requirements and security control requirements. Sub-requirements can be further subdivided. For example, network communication requirements can be divided into road cloud communication requirements, cloud communication requirements and vehicle cloud communication requirements (Fig.9). The requirements diagram shown in Fig.8 and Fig.9 not only realizes the graphical modeling of each requirement, but also uses decomposition, traceability and other correlations to manage the requirements, such as strategy-stakeholder requirements traceability relationship as shown in Fig.10. Through the requirements traceability matrix can intuitively and clearly obtain the logical relationship between requirements. The above is an example of system requirement modeling, the requirements modeling of the remaining 6 levels also follows the same process and methodology, so as to complete the requirements modeling of the entire system.

When there are new tasks or changes in design requirements, the graphical and intuitive CPCC system model built based on SysML can easily and quickly complete the operations by querying, adding, removing and modifying the model. SysML significantly improves the reusability of model and design information, reduces operational redundancy and enhances the efficiency of model.

3.3 Functional Analysis

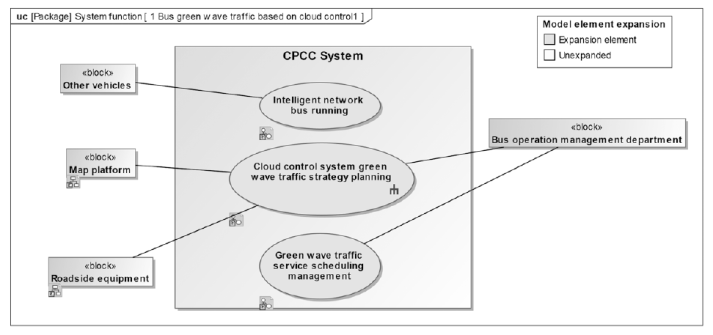

Based on the system requirements model, a functional model of CPCC system is established. The relationship between participants and use cases in the CPCC system is described by the use case diagram of SysML. More specifically, using activity diagram is helpful to refine the process of describing the relevant functions of the system. While, using the state diagram is helpful to analyze the state of the relevant components of the system in operation. The process of functional analysis modeling is shown in Fig.11. CPCC system includes intelligent and connected bus driving, cloud control platform green-wave traffic strategy planning and green-wave traffic scheduling management, according to the target function and participant relationship design, its use case diagram is shown in Fig.12, each use case corresponds to one target function of the system. The following takes the cloud control platform green-wave traffic strategy planning function as an example.

The green-wave traffic strategy planning function includes 10 sub-functions, such as obtaining bus operation data, obtaining bus operation plan, identifying traffic flow and identifying signal lights. Its use case diagram is shown in Fig.13(a). The relevant parties of CPCC system include intelligent networked buses, bus operation management departments, map platforms and roadside equipment. Then, the use case diagram is expanded and defined separately. Taking the function of obtaining bus operation data in the 10 sub-functions as an example, its function is expanded as shown in Fig.13. Fig.13(b) describes the activity of obtaining bus operation data, the CPCC cloud control platform requests bus operation data, then intelligent and connected bus processes the request and send operation data to the cloud control platform, the cloud control platform receives the driving data and uses the regional cloud for processing. The received driving data is decomposed to obtain specific parameters such as vehicle position, speed and ID, outputted to the next associated function. The above is only the modeling process of one sub-function, the remaining sub-functions follow the same modeling method and process. Finally, the established functional model elements are traced to the requirement model, as shown in Fig.13(c), so that requirements, stakeholders and system functions are related to each other.

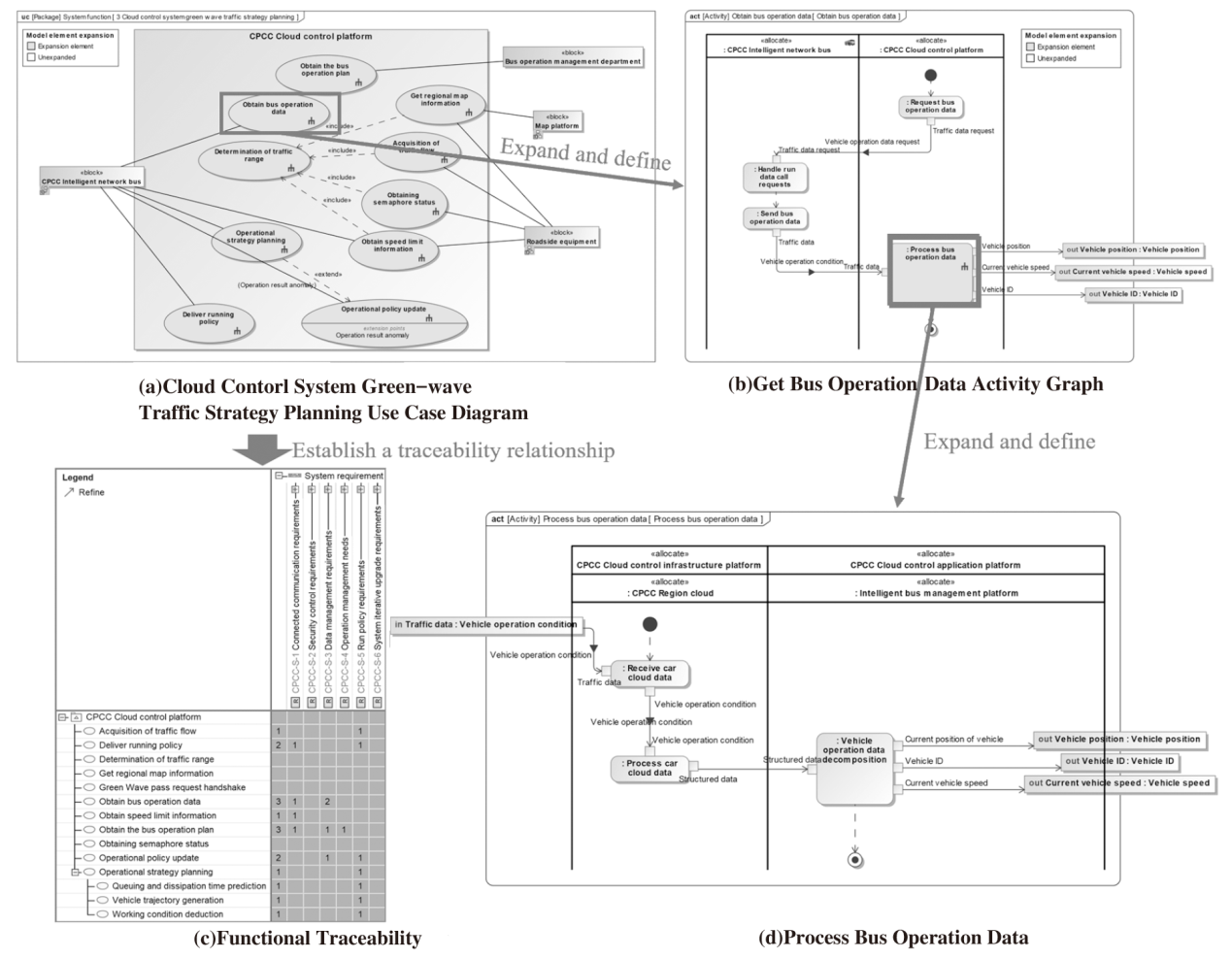

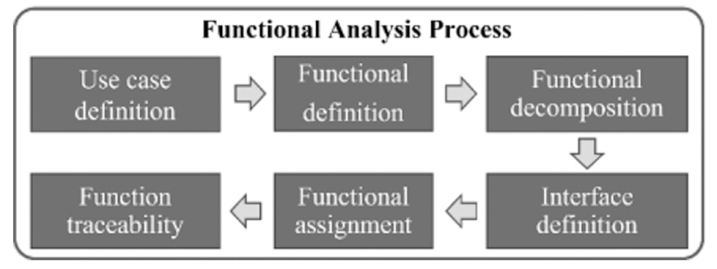

The above functional analysis process uses the activity diagram to specifically describe the implementation process of the green-wave traffic strategy planning function of the CPCC system cloud control platform, which indicates the input and output parameters of each activity node of the cloud control platform in the traffic strategy planning process, so that the source and subsequent associated information of each system demand can be mastered.

3.4 Logical Analysis

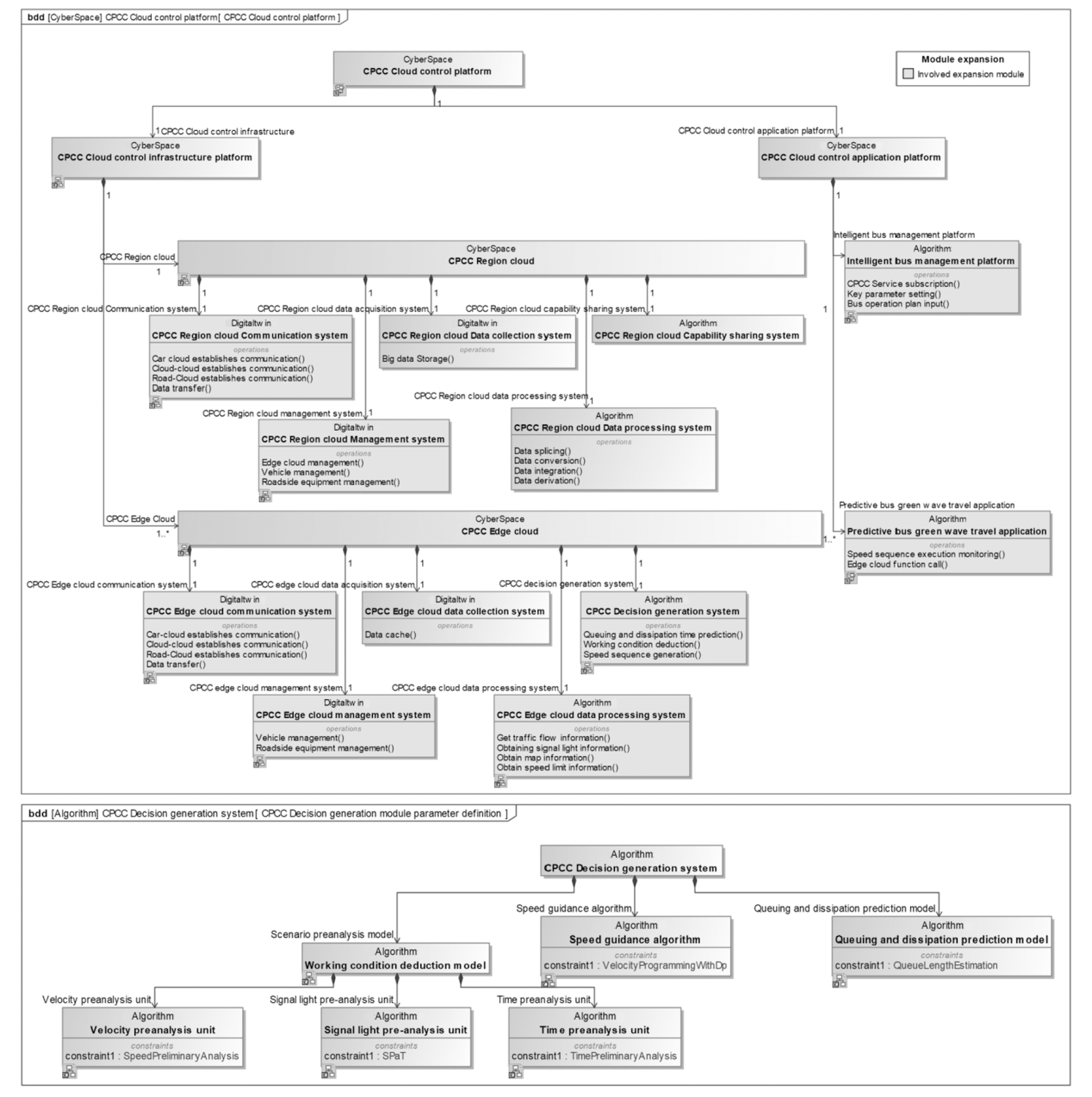

The functional analysis determines of the CPCC system behaviors. Then the logical analysis will establish the data interaction interface and data flow types for the system behavior based on the results of the requirements analysis and functional analysis. Firstly, the logical analysis defines the logical structure of the system using the block definition diagram, uses the internal block diagram to define the internal structure and attributes of each subsystem. Then it clarifies the connection relationship between the blocks in the system. Finally, it determines the relationship among blocks and external material, data and energy. The process of logical analysis can be divided into 3 steps:

(1) Summarize the decomposed logical components to form a system composition.

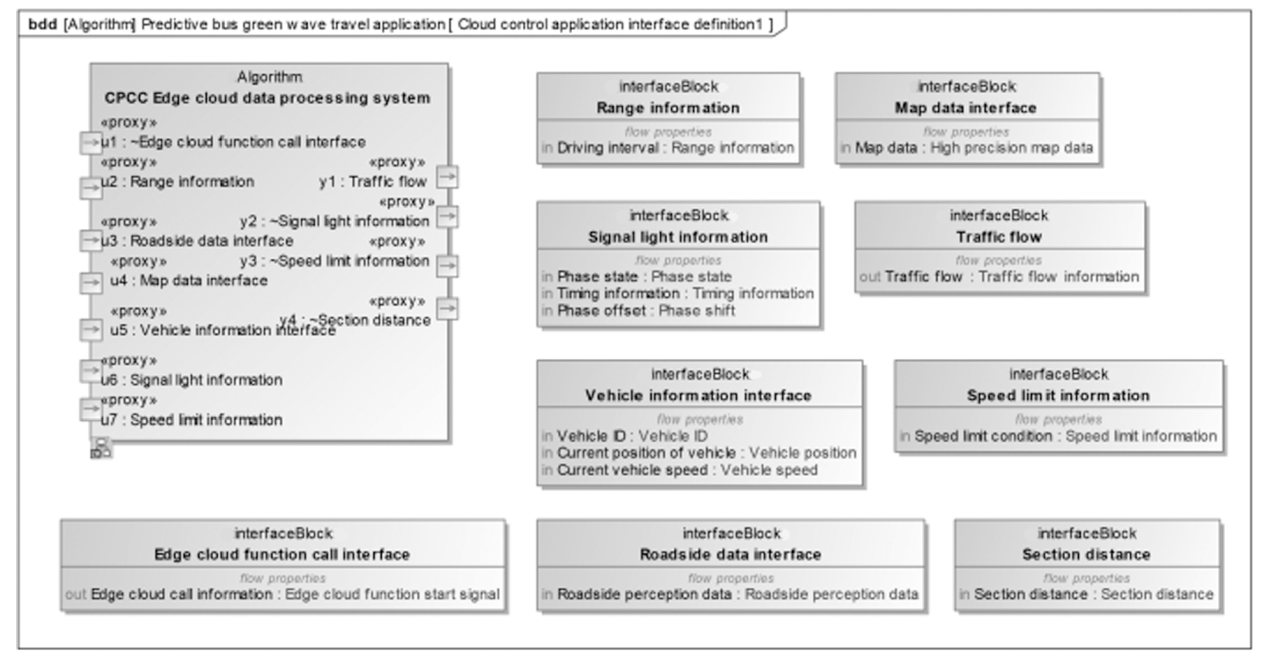

(2) Define the logical components interface and its flow attributes according to the matching functional interface and object flow.

(3) Determine the association relationship of the logical components of the system.

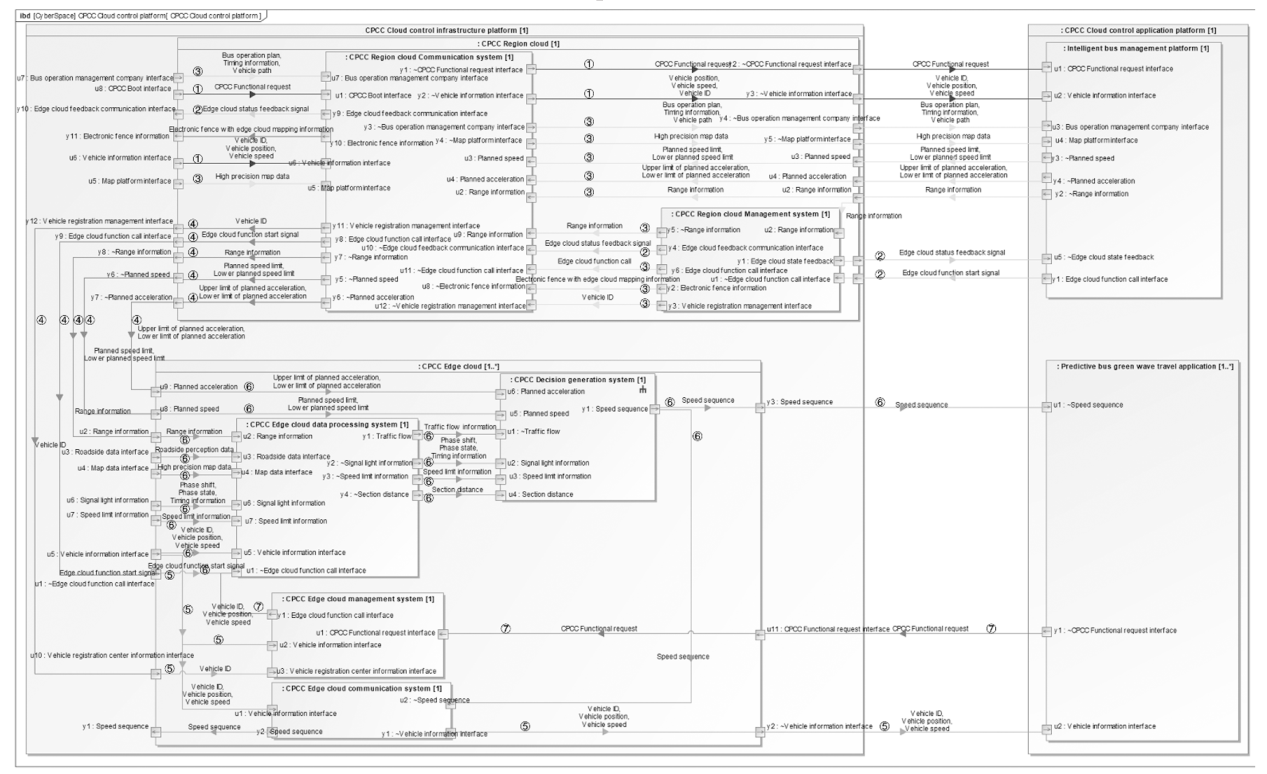

The cloud control platform green-wave traffic strategy planning function described in the above section is an example, its function is realized in the CPCC cloud control platform and the definition diagram of the CPCC cloud control platform block is shown in Fig.14, including the cloud control application platform and the cloud control basic platform. Moreover, the cloud control application platform includes intelligent bus management platform, predictive bus green wave traffic application block and other blocks. The predictive bus green wave traffic application block can be decomposed into data processing, decision generation and policy execution monitoring sub-blocks, the decision generation sub-block can be further decomposed.

After establishing the architecture of CPCC cloud control platform, the interactive interface of each component, substance and information is clearly defined according to the definition diagram. Taking the data processing system, decision generation system, policy implementation monitoring block as examples, their interface definition is shown in Fig.15. The defined interface describes various physical parameters, such as map information, vehicle information, traffic flow, signal light information, roadside information, et al., and indicating the information interaction relationship of 3 sub-blocks of data processing, decision generation and strategy implementation monitoring. The established model relationships can analyze whether all system requirements have been met, as shown in Fig.16. Finally, the association relationship between each component of CPCC cloud control system is determined by the internal block diagram, as shown in Fig.17, the interface definition and interaction relationship of each block inside the CPCC cloud control basic platform and the cloud control application platform are obtained. The explanation of the functions of each stage in Fig.17 is shown in Tab.3.

3.5 Parametric Calibration

After the logical architecture design and model construction are completed, it is necessary to calibrate the model parameters, generate multiple scenario simulation test schemes and choose the best one to realize the in-the-loop verification for system architecture, so as to realize the application of system functions and logic.

The parameter calibration process of CPCC system is shown in Fig.18.

(1) The first step is to set the parameter limit value range in the architecture model and adjust the system scenario simulation parameter settings.

(2) The second step is to run the scenario simulation model, output the evaluation parameters and process the results.

(3) The third step is to evaluate the system design and allocate indicators.

(4) In the fourth step, the simulation results of the complex large system are sent to the key parameters in the member system to achieve the distribution of system operation indicators.

The system parametric calibration method establishes the simulation verification interface block diagram by SysML. Then, SysML is utilized to realize the unified call and control of the whole process of multiple simulation software. Furthermore, the CPCC system architecture should be optimized from multiple dimensions, it is necessary to realize the scheme trade-off under the specific position dimension of the CPCC system. Finally, the optimal architecture and implementation scheme are selected to meet the operation requirements of complex large systems, the key parameters of member systems such as vehicles, roads, clouds and networks are calibrated.

Repeat the above process for each subsystem and subblock of the CPCC system until every function and every requirement in the system is met, finally a CPCC system architecture model can be formed after verification, confirmation, weighing and evaluation.

4 Conclusions

收起

This paper studies the application of MBSE method to IVCPS modeling and architecture design:

(1) The RFLP modeling process is utilized to realize the MBSE system modeling of IVCPS, including 4 stages of requirement analysis, functional analysis, logical analysis and parametric calibration. The system model is constructed by applying SysML and Catia Magic to realize the visualization and intuitive description, to form an integrated system architecture with requirement-function-logic-parameter progressing and related layer by layer.

(2) The system requirements of IVCPS are sorted out through requirement analysis and requirement diagram, the traceability matrix is used to establish the requirement traceability relationship between different levels.

(3) Through functional analysis and use case diagram, several functions to meet the requirements of the IVCPS system are determined, the relevant activities carried out by the functions are analyzed by applying the activity diagram, the correlation and traceability relationship of the functions and requirements are established.

(4) Through logical architecture design and sequence diagram, the logical architecture, which meets the system requirements and realizes the system functions, is designed.

(5) Through parametric calibration, block definition diagram, internal block diagram and parameter diagram, the logical architecture is clarified and realized, the traceability matrix of system requirements and parameters is established to ensure the consistency of design information and requirements.

(6) The results show that the MBSE method has guiding significance for solving the modeling problems of IVCPS complex system, which can enhance the traceability of requirement information, ensure the consistency of design information and requirements, improve the reusability of models and the scalability of architecture, improve the efficiency of overall modeling and architecture design as well.

基金

收起

参考文献

收起

文献

收起

参考文献引证文献

排序方式：

[1]

, CHANG

, LI

, et al. Cloud control system for intelligent and connected vehicles and its application[J]. Automotive Engineering, 2020, 42(12): 1595-1605.

[2]

, LI

, CHANG

, et al. Principles and typical applications of cloud control system for intelligent and connected vehicles[J]. Journal of Automotive Safety and Energy, 2020, 11(3): 261-275.

[3]

CHU

, WUNIRI

, DU

, et al. Cloud control system architectures, technologies and applications on intelligent and connected vehicles: a review[J]. Chinese Journal of Mechanical Engineering, 2021: 34(1): 3-25.

[4]

YANG

, ZHANG

, CAO

, et al.: Implementation for a cloud battery management system based on the CHAIN framework[J]. Energy and AI, 2021, 5(9): 100088.

[5]

XIA

Y Q

, YAN

, WANG

X J

, et al. Intelligent transportation cyber-physical cloud control systems[J]. Acta Automatica Sinica, 2019 45(1): 132-142.

[6]

, LI

, GAO

B L

, et al. Predictive Adaptive Cruise Control for Heavy-duty Vehicle based on Cloud Control System[C]// 2022 IEEE 25th International Conference on Intelligent Transportation Systems (ITSC). Macau, China: IEEE, 2022: 9-11.

[7]

, WAN

, GAO

B L

, et al. Predictive cruise control for heavy trucks based on slope information under cloud control system[J]. Journal of Systems Engineering and Electronics, 2022, 33(4): 812-826.

[8]

GAO

, CHEN

, LIU

, et al. Predictive Cruise Control under Cloud Control System for Urban Bus Considering Queue Dissipation Time[J]. IEEE Transactions on Intelligent Vehicles, 2023, 8(4): 2639-2649.

[9]

GRÖNNINGER

, KRAHN

, RUMPE

, et al. Text based modeling[C/OL]// Proceedings of the 4th International Workshop on Software Language Engineering, Nashville, (2007-10)[2023-09-04]. https://arxiv.org/ftp/arxiv/papers/1409/1409.6623.pdf. https://arxiv.org/ftp/arxiv/papers/1409/1409.6623.pdf

[10]

SIMPSON

T W

, FRECKER

, BARTON

R R

, et al. Graphical and text-based design interfaces for parameter design of an I-beam, desk lamp, aircraft wing, and job shop manufacturing system[J]. Engineering with Computers, 2007, 23(2):93-107.

[11]

MADNI

, SIEVERS

. Model-based systems engineering: Motivation, current status, and research opportunities[M]. Disciplinary Convergence in Systems Engineering Research. Springer,

Cham

, 2017: 311-325.

[12]

HERNANDEZ

, RODRIGUEZ

, DIAZ

, et al. Model Based Engineering of Process Plants using SysML[J]. Computer Aided Chemical Engineering, 2016, 38: 1281-1286.

[13]

MADNI

, MADNI

, LUCERO

. Leveraging Digital Twin Technology in Model-Based Systems Engineering[J]. Systems, 2019, 7(1): 7.

[14]

ZHANG

, CAO

Y F

, ZHUANG

L K

. Electric Servo Parameters Description and Design Based Harmony-SE[J]. Aviation Precision Manufacturing Technology, 2018, 54(2):10-15.

[15]

DONG

W F

, HUANG

G M

. Application Research on CNI System Architecture Definition Based on OOSEM[J]. Avionics Technology, 2018, 49(4): 29-33.

[16]

LIU

, LIU

, ZHUANG

, et al. Construction method of shop-floor digital twin based on MBSE[J]. Journal of Manufacturing Systems, 2021, 60(2): 93-118.

[17]

LINDSEY

, ALIMARDANI

, GALLO

. Reliability analysis of complex NASA systems with model-based engineering[C]// 2020 Annual Reliability and Maintainability Symposium (RAMS). California, USA: IEEE, 2020: 27-30.

[18]

NGUYEN

T T

, DOWNAR

, VILIM

. A probabilistic model-based diagnostic framework for nuclear engineering systems[J]. Annals of Nuclear Energy, 2020 149: 107767.

[19]

AKUNDI

, LOPEZ

. A review on application of model-based systems engineering to manufacturing and production engineering systems[J]. Procedia Computer Science, 2021, 185: 101-108.

2023年第卷第10期

PDF下载

152

引用本文

BibTeX

文章信息

doi: 10.19822/j.cnki.1671-6329.20230202

首发时间：2026-01-04
出版时间：2023-10-05

补充材料

相关文章

文章信息

作者

出版历史

基金

*National Key R&D Program of China(Grant No. 2021YFB2501000)

作者信息

国汽(北京)智能网联汽车研究院有限公司, 北京 100176

参考文献

分享链接

https://castjournals.cast.org.cn/joweb/qcwz/CN/10.19822/j.cnki.1671-6329.20230202

分享至

全文二维码

扫描看全文

引用本文

BibTeX

本文的引用情况

2种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

ID	Name	Text
CPCC-Strg-1	Market Business Strategy	Open up the business market of CPCC and develop related products / systems
CPCC-Strg-2	Traffic Strategy	We will improve urban congestion, reduce accident rates, improve the efficiency of bus operation, and comprehensively improve the capacity of comprehensive transportation, operation supervision, and smart travel
CPCC-Strg-3	Business development strategy	Develop a clear profit model to realize the commercialization of CPCC
CPCC-Strg-4	strategy for urban growth	We will build a multi-tiered urban transportation system, and build smart cities, low-carbon cities, and smooth cities
CPCC-Strg-5	Environmental protection strategy	Save energy and reduce emissions, reduce carbon emissions, and achieve carbon neutrality
CPCC-Strg-6	Vehicle-road-cloud integration needs	As the terminal application of cloud control system, CPCC realizes the connection of cloud control system from the top to the end
CPCC-Strg-7	Innovative development strategy of intelligent vehicles	Build an intelligent vehicle technology ecosystem integrating vehicle-road, cloud-network-map

Name

Text

CPCC-Strg-1

Market Business Strategy

Open up the business market of CPCC and develop related products / systems

CPCC-Strg-2

Traffic Strategy

CPCC-Strg-3

Business development strategy

Develop a clear profit model to realize the commercialization of CPCC

CPCC-Strg-4

strategy for urban growth

We will build a multi-tiered urban transportation system, and build smart cities, low-carbon cities, and smooth cities

CPCC-Strg-5

Environmental protection strategy

Save energy and reduce emissions, reduce carbon emissions, and achieve carbon neutrality

CPCC-Strg-6

Vehicle-road-cloud integration needs

As the terminal application of cloud control system, CPCC realizes the connection of cloud control system from the top to the end

CPCC-Strg-7

Innovative development strategy of intelligent vehicles

Build an intelligent vehicle technology ecosystem integrating vehicle-road, cloud-network-map

ID	Name	Text
CPCC-S-1	Connected communication requirements	The system shall ensure the ability to conduct network communication with the vehicle and roadside equipment
CPCC-S-2	Security control requirements	Safety officer, emergency response, and control logic
CPCC-S-3	Data management requirements	The system has the ability to apply and record the data
CPCC-S-4	Operation management needs	The system meets the use needs of the bus operation and management department
CPCC-S-5	Run policy requirements	The system has the function of the output CPCC operation policy
CPCC-S-6	System iterative upgrade requirements	The system can be upgraded

Name

Text

CPCC-S-1

Connected communication requirements

The system shall ensure the ability to conduct network communication with the vehicle and roadside equipment

CPCC-S-2

Security control requirements

Safety officer, emergency response, and control logic

CPCC-S-3

Data management requirements

The system has the ability to apply and record the data

CPCC-S-4

Operation management needs

The system meets the use needs of the bus operation and management department

CPCC-S-5

Run policy requirements

The system has the function of the output CPCC operation policy

CPCC-S-6

System iterative upgrade requirements

The system can be upgraded

Stage name	Line number	Functional explanation
Function request	①	Establish a vehicle-regional cloud connection relationship, the regional cloud receives function requests and information from the vehicles, forwards them to the intelligent bus management platform.
Cloud control platform function self- check	②	After receiving the function requests, the cloud control platform implements the self-check, the intelligent bus management platform sends a call signal to the regional cloud management system, the regional cloud management system performs the function self-check and feedback it to the cloud control application and the vehicle.
Function preparation	③	After the cloud control platform is self-checked, the regional cloud checks the vehicle service and issues the key parameters and driving range information of the controlled vehicle according to key information such as map data and bus operation plan. The regional cloud management system finds the edge cloud according to the driving interval information and sends the segmented driving zone information and vehicle information to the edge cloud.
Functional data assignment	④	The cloud control basic platform sends the edge cloud function start signal to the edge cloud in the operating area and sends key information data such as vehicle ID, driving range information, planning speed and acceleration.
Vehicle-Edge Cloud Connection	⑤	According to the vehicle positioning information, the edge cloud IP address is accessed, real-time information such as vehicle ID, location and speed is sent, the edge cloud management system identifies the vehicle identity through information comparison and forwards the real-time vehicle information to the predictive bus green-wave traffic application by the communication system.
Vehicle speed sequence generation	⑥	After the vehicle is connected with the edge cloud, the data processing system processes the relevant data of the regional cloud, roadside equipment and map platform, sends the results to the decision-making system. decision-making system generates a speed sequence and transmits it to the target vehicle and the green-wave traffic application of the predicted bus.
Algorithm iteration	⑦	After the speed sequence is issued, the vehicle uploads real-time vehicle operation data, the predictive bus green-wave traffic application checks the execution of the speed sequence and decides whether to update the algorithms.

Stage name

Line number

Functional explanation

Function request

①

Establish a vehicle-regional cloud connection relationship, the regional cloud receives function requests and information from the vehicles, forwards them to the intelligent bus management platform.

Cloud control platform function self- check

②

Function preparation

③

Functional data assignment

④

Vehicle-Edge Cloud Connection

⑤

Vehicle speed sequence generation

⑥

Algorithm iteration

⑦
