多塔大底盘层间隔震结构地震响应控制研究
收藏切换
PDF下载
刘谦敏 , 苗启松 , 閤东东 , 陈曦
地震工程与工程振动 | 2024,44(4): 148-156
收起
收藏切换
地震工程与工程振动 | 2024, 44(4): 148-156
多塔大底盘层间隔震结构地震响应控制研究
全屏
刘谦敏 , 苗启松, 閤东东, 陈曦
作者信息
  • 北京市建筑设计研究院股份有限公司，北京 100045

    • 刘谦敏（1986—），女，高级工程师，硕士，主要从事结构减隔震设计研究。E-mail：

Seismic responses control of inter-story isolated multi-tower structure with a large chassis
Qianmin LIU , Qisong MIAO, Dongdong GE, Xi CHEN
Affiliations
  • Beijing Institute of Architectural Design Co, Ltd, Beijing 100045, China
doi: 10.13197/j.eeed.2024.0414
文章导航
收藏切换
摘要
收起

探讨不同响应控制方法对层间隔震建筑抗震性能的影响，并识别不同方法在提升层间隔震建筑抗震性能方面的优劣，进而为层间隔震结构地震响应控制设计提供参考。基于一多塔大底盘层间隔震结构工程案例，分别考虑在隔震层和大底盘中加入黏滞阻尼器以及增加大底盘刚度这3种方案，基于Perform-3D建立了3种设计案例和原型结构的弹塑性分析模型，对比分析了4个结构的地震响应，从而识别出3种设计方案对多塔大底盘层间隔震结构地震响应的控制效果。研究结果表明：对隔震层位移和大底盘楼面加速度控制效果最优的方案是在隔震层中设置黏滞阻尼器，但该方案会导致塔楼的地震响应显著增加；对大底盘层间位移角以及塔楼层间位移角和楼面加速度的控制效果最优的方案是增加大底盘刚度。对于塔楼的层间位移角，3种方案均无明显控制效果。

多塔大底盘层间隔震结构  /  黏滞阻尼器  /  刚度  /  地震响应

Study the influence of different seismic response control methods on the seismic performance of inter-story isolated multi-tower structure with a large chassis, identify the advantages of different methods in improving the seismic performance, and then provide reference for the seismic response control of such structures. Three control schemes were designed based on a real engineering practice of such building, including adding viscous fluid dampers in the isolation system, adding viscous fluid dampers in the large chassis, and increasing the stiffness of the large chassis. The elastic-plastic finite element models of three control schemes and the prototype structure were established by using the Perform-3D. The seismic responses of these four structures were analyzed and compared, and the control effects of three control schemes on the seismic responses were identified. The following conclusions are drawn that introducing viscous dampers to isolation system is an optimal scheme for controlling the displacement of isolation system and floor acceleration of large chassis, but it significantly increased the seismic responses of tower. The control effects of increasing the stiffness of large chassis on the inter-story drift ratio of large chassis, as well as on the inter-story drift ratio and floor acceleration of tower are the best. All three schemes have negligible control effects on the inter-story drift ratio of tower.

inter-story isolated multi-tower structure with a large chassis  /  viscous damper  /  stiffness  /  seismic response
刘谦敏, 苗启松, 閤东东, 陈曦. 多塔大底盘层间隔震结构地震响应控制研究. 地震工程与工程振动, 2024 , 44 (4) : 148 -156 . DOI: 10.13197/j.eeed.2024.0414
Qianmin LIU, Qisong MIAO, Dongdong GE, Xi CHEN. Seismic responses control of inter-story isolated multi-tower structure with a large chassis[J]. Earthquake Engineering and Engineering Dynamics, 2024 , 44 (4) : 148 -156 . DOI: 10.13197/j.eeed.2024.0414
正文
收起
0　引言
收起
地铁作为我国城市的重要公共交通系统之一，已在全国近50座城市内开展建设，合理利用车辆段上部空间，开发地铁上盖建筑，成为实现以交通为导向的综合发展模式的重要手段。该类建筑由大底盘和盖上塔楼两部分组成，大底盘多为列车停放层，塔楼多为住宅或商业楼，为满足建筑上下部功能需求，并保证建筑的抗震性能，现有设计多在底盘和塔楼之间设置一层隔震层，形成多塔大底盘层间隔震建筑。
层间隔震技术旨在利用隔震层降低地震作用，吸收地震能量，降低结构地震响应。大量研究表明，采用层间隔震设计的结构，其上部结构地震响应显著降低，但下部结构的地震响应降低效果不明显，甚至会超出非隔震结构地震响应[1-5]。为进一步提升层间隔震结构的控制效果，众多学者探索了在隔震层中加入黏滞阻尼器、改变上下部结构刚度等方法对该类结构抗震性能的影响[6-10]。谭平等[11]在一大底盘双塔楼层间隔震结构的隔震层中设置黏滞阻尼器后发现隔震层位移得到显著降低，大底盘的响应得到一定程度控制，但塔楼的响应与层间隔震结构相比有所增加。吴曼林等[12]研究了隔震层阻尼对大底盘多塔楼层间隔震结构抗震性能的影响，发现隔震层阻尼越大对底盘的地震响应控制效果越好，而塔楼顶部加速度呈现先减小后增大趋势。范重等[13]研究了在隔震层中设置黏滞阻尼器对塔楼减震系数和大底盘剪重比的影响，发现设置黏滞阻尼器后可降低大底盘的地震作用，但是会导致塔楼减震系数增加。杨威[14]通过调整塔楼和大底盘的刚度建立了系列分析案例，发现随着塔楼刚度增大，结构周期变长、抗侧能力加强，随着底盘刚度增大，结构周期缩短、抗侧能力增强。对于不同方法对层间隔震结构抗震性能的影响已有了初步的研究，但是目前的研究对于上部塔楼和下盖的弹塑性能行为考虑不足，对于不同控制方案的控制效果也未进行系统的对比性研究，使得不同方法在提升层间隔震建筑抗震性能方面的优劣还尚不明确。
为明确不同控制方案对多塔大底盘层间隔震结构地震响应的影响，本研究以一多塔大底盘层间隔震建筑工程实例为原型结构，分别考虑了在隔震层和大底盘加入黏滞阻尼器以及增加底盘刚度的方案，基于有限元软件Perform-3D建立了2种混合控制结构、1种增加大底盘刚度结构和原型结构的弹塑性分析模型，对比了原型隔震结构和3种控制方案的塔楼、隔震层和下盖地震响应，分析了各个方案在地震响应控制方面的优劣。研究成果可为该类大底盘多塔楼层间隔震结构地震响应控制设计提供参考。
1　原型案例
收起
1.1　工程概况

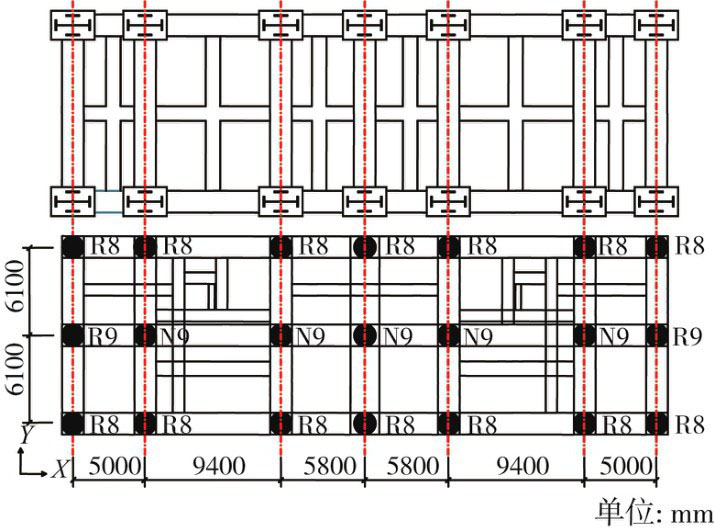

原型结构为一地铁上盖层间隔震结构，如图1所示。结构所在场地的抗震设防烈度为8度（0.2 g），场地类别为二类，设计地震分组为第2组。该结构由大底盘、隔震层和盖上塔楼组成。大底盘（第1~2层）为2层的型钢混凝土框架结构，并在底盘2层中塔楼投影范围内设置钢支撑，一层层高为12 m，二层层高为4.8 m，平面图如图1（b）所示。盖上塔楼为2栋完全相同的钢筋混凝土剪力墙结构，塔楼（第4~14层）共11层，层高为3.15 m，平面图如图1（c）所示，结构构件尺寸如表1所示。底盘和塔楼的刚度比为2.0，GB 50011—2001《建筑抗震设计规范》[15]中明确规定该值不宜小于2.0。在两栋塔楼和大底盘之间分别设有一个2.2 m高的隔震层（第3层），隔震层位置对应于图1（b）中底盘2层阴影部分。2个隔震层采用相同的设计方案，如图2所示。图中R8表示直径为800 m的铅芯橡胶支座，R9表示直径为900 mm的铅芯橡胶支座，N9表示直径为900 mm的铅芯橡胶支座。隔震支座的力学性能参数如表2所示，隔震层屈重比为2.5%。
1.2　结构地震响应

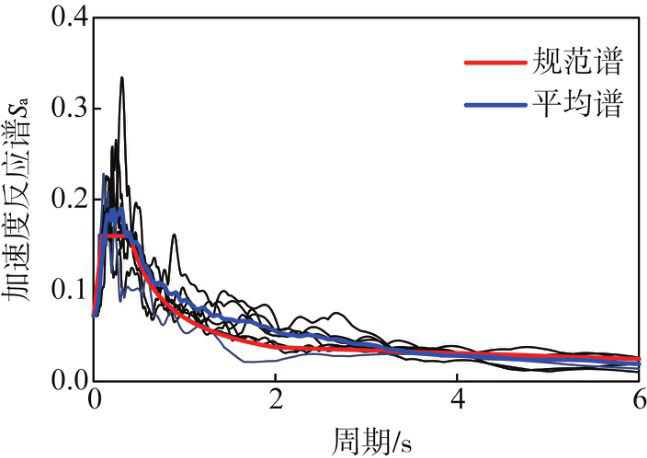

采用有限元软件Perform-3D建立结构的分析模型，梁、柱、剪力墙和连梁采用纤维模型模拟[16-19]，隔震支座采用Seismic Isolator、Rubber Type单元模拟。模态分析得到结构的周期和阵型如表3所示。根据结构一阶周期选取了5条天然地震动和2条人工地震动，地震动加速度反应谱与规范设计反应谱对比如图3所示。由图可知，各地震动加速度反应谱值与规范反应谱值在一阶周期点处最大误差不超过35%，平均误差不超过20%，满足统计意义上相符。

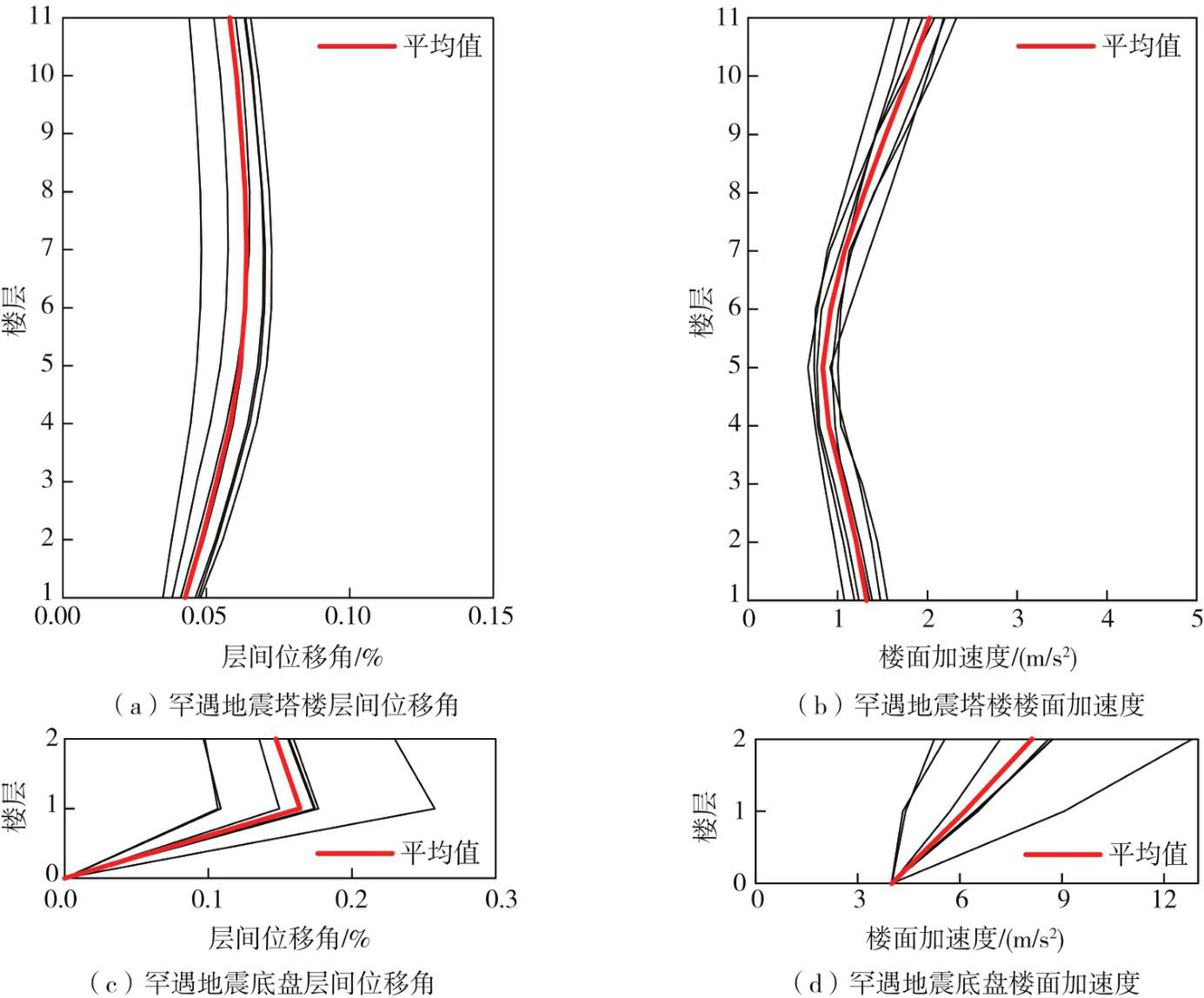

将上述地震动沿结构Y轴方向输入，进行罕遇地震下的时程分析，得到的结构层间位移角和楼面绝对加速度分布图如图4所示。塔楼的最大层间位移角（θmax）为1/1552，出现在第11层，小于剪力墙结构的规范限值1/120；大底盘的θmax为1/527，出现在第1层，小于框架结构的规范限值1/100。塔楼的最大楼层绝对加速度（amax）为1.64 m/s2，出现在第14层，大底盘的amax为8.61 m/s2，出现在第2层。
2　案例设计
收起
从地铁上盖层间隔震结构地震响应数据中可以看出，由于对塔楼采用了隔震设计，塔楼处于弹性状态，楼面绝对加速度显著降低，底盘的层间位移角接近弹性限值，但结构构件仍具有一定程度损伤，并且楼面绝对加速度的放大效果显著，为此本研究分别采用减震技术和增加底盘刚度的方法来降低底盘的地震响应。黏滞阻尼器作为目前工程中常用的减震装置之一，其可有效降低结构的层间位移角和楼面加速度，因此在本研究中被用来降低底盘的地震响应，本章节分别考虑了在隔震层中设置黏滞阻尼器（案例1）和在大底盘中设置黏滞阻尼器（案例2）这2种方案。增加底盘刚度的案例命名为案例3。通过对3个研究案例进行对比研究，识别出3种控制方法对大底盘和塔楼地震响应控制效果的差异。
2.1　隔震层减震案例

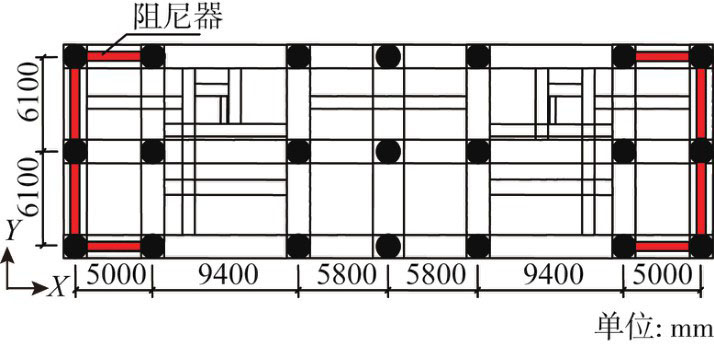

设计案例1中分别在2个隔震层中各布置8个黏滞阻尼器，分布位置如图5所示，其力学性能指标见表4。

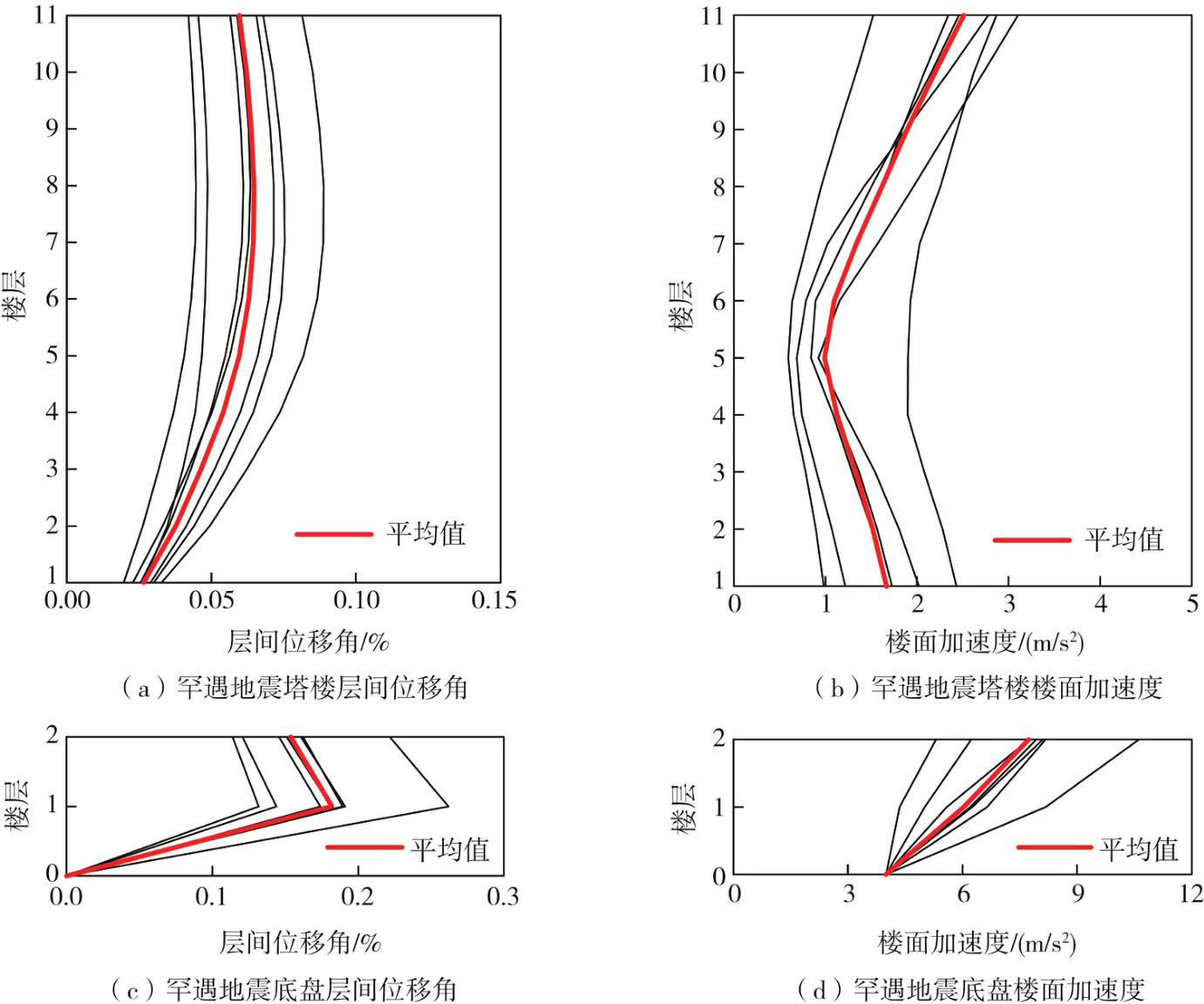

同样采用Perform-3D建立案例1的弹塑性分析模型，其中黏滞阻尼器采用Damper-Exponential单元模拟。采用1.2节选取的7条地震动沿结构Y向输入，时程分析得到的结构罕遇地震下的层间位移角和楼面加速度分布如图6所示。塔楼和大底盘的θmax分别为1/894和1/560，出现在第11层和第1层；amax分别为3.52、7.43 m/s2，出现在第14层和第2层。
2.2　大底盘减震案例

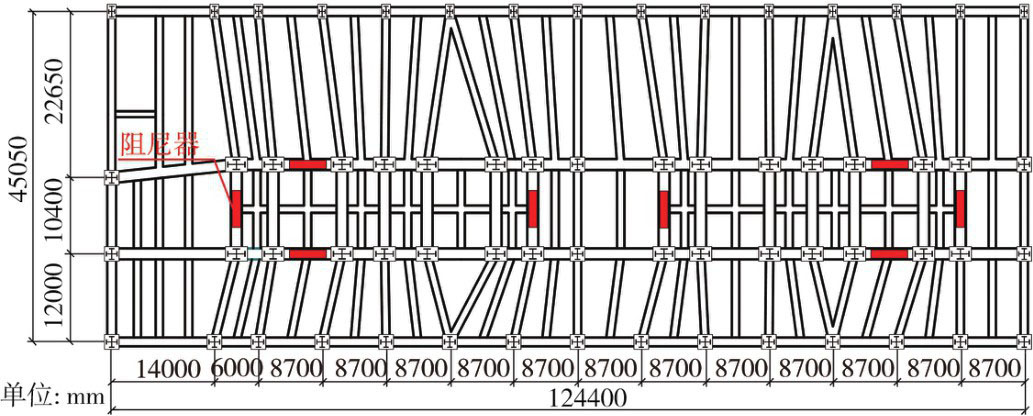

设计案例2中分别在大底盘第1层和第2层中各布置8个黏滞阻尼器，分布位置如图7所示，力学性能指标如表5所示。

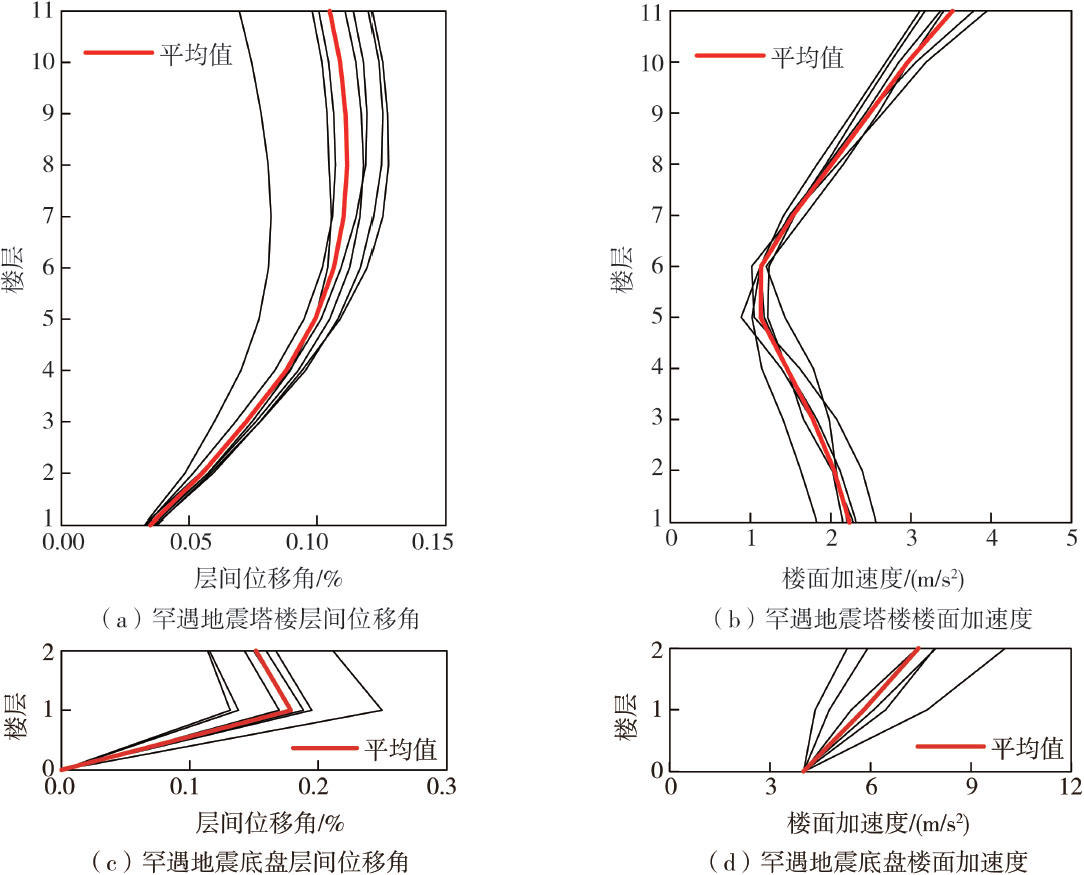

基于Perform-3D软件，采用1.2节选取的7条地震动沿结构Y向输入，时程分析得到的结构罕遇地震下的层间位移角和楼面加速度分布如图8所示。塔楼和大底盘的θmax分别为1/1544和1/550，出现在第10层和第1层；amax分别为2.51、7.73 m/s2，出现在第14层和第2层。
2.3　增加底盘刚度案例
设计案例3通过增加大底盘结构构件的截面尺寸来增加底盘刚度，原型结构和本设计案例的截面尺寸对比如表6所示，案例3的底盘和塔楼刚度比为2.6。

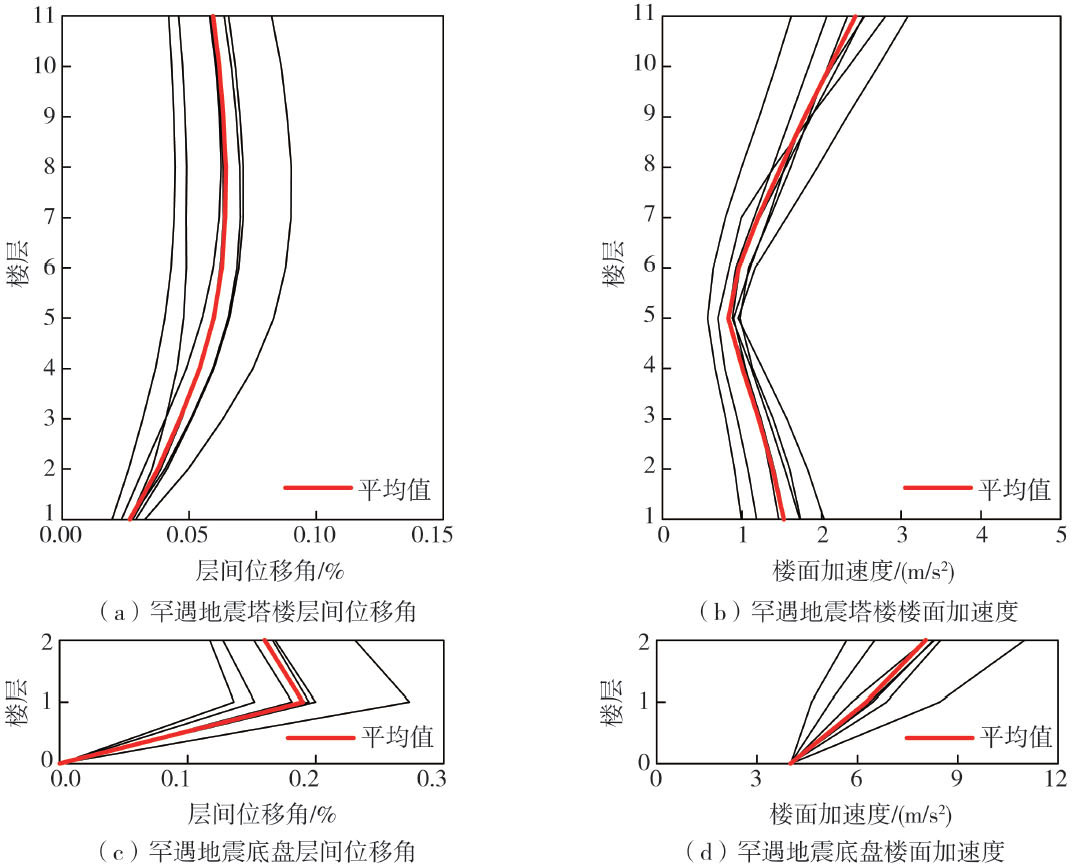

基于Perform-3D软件，采用1.2节选取的7条地震动沿结构Y向输入，时程分析得到的结构罕遇地震下的层间位移角和楼面加速度分布如图9所示。塔楼和大底盘的θmax分别为1/1562和1/610，出现在第12层和第1层；amax分别为2.02 m/s2和8.13 m/s2，出现在第14层和第2层。
3　地震响应对比
收起
原型案例、案例1、案例2和案例3在设防和罕遇地震下的层间位移角和楼面加速度对比如表7所示，由表可知：
1）与原型隔震结构相比，在隔震层中设置黏滞阻尼器案例（案例1）中大底盘的θmax和amax比原型案例分别降低了5.8%和7.6%；塔楼的θmax和amax比原型案例分别增加了73.7%和45.5%，隔震层位移降低了19%。在隔震层中设置黏滞阻尼器可以显著控制隔震层位移，虽然对大底盘的地震响应有一定的控制效果，但是会导致塔楼的地震响应显著增加。
2）与原型隔震结构相比，在大底盘中设置黏滞阻尼器案例（案例2）中大底盘的θmax和amax比原型案例分别降低了4.2%和3.9%；塔楼的θmax和amax比原型案例分别增加了0.6%和3.7%，隔震层位移增加了5.8%。在大底盘中设置黏滞阻尼器可对大底盘地震响应有一定的控制效果，增加了隔震层位移，对塔楼的地震响应无明显影响。
3）与原型隔震结构相比，增加大底盘刚度案例（案例3）中大底盘的θmax比原型案例降低了13.7%，但amax比原型案例增加了1.1%；塔楼的θmax和amax比原型案例分别降低了0.6%和16.5%，隔震层位移降低了3.7%。增加大底盘刚度可显著控制大底盘的层间位移角和塔楼的楼面绝对加速度，隔震层位移轻微降低，对大底盘的楼面绝对加速度和塔楼的层间位移角无明显影响。
通过对比案例1、案例2和案例3，发现对于大底盘的层间位移角，增加大底盘刚度的控制效果优于在隔震层设置黏滞阻尼器和在大底盘设置黏滞阻尼器；对于大底盘的楼面加速度，在隔震层设置黏滞阻尼器优于在大底盘设置黏滞阻尼器，而增加大底盘刚度会放大该地震响应。对于塔楼的层间位移角，增加大底盘刚度和在大底盘设置黏滞阻尼器对该响应无明显影响，但在隔震层设置黏滞阻尼器会显著放大该响应；对于塔楼的楼面加速度，仅增加大底盘刚度案例存在控制效果，在大底盘设置黏滞阻尼器对该响应无明显影响，但在隔震层设置黏滞阻尼器会显著放大该响应；对于隔震层位移，在隔震层设置黏滞阻尼器优于增加大底盘刚度，而在大底盘设置黏滞阻尼器会放大该响应。
4　结论
收起
为识别现有控制方案对地铁上盖层间隔震结构大底盘、隔震层和塔楼的地震响应控制效果，本文分别在隔震层和大底盘中设置黏滞阻尼器，形成了2种混合控制案例，以及一个增加大底盘刚度的控制案例，随后基于Perform-3D建立了原型结构和3种控制方案结构的弹塑性分析模型，对比分析了原型隔震结构、2种混合减震结构和一个增加大底盘刚度结构的地震响应。得到主要结论如下：
1）在隔震层设置黏滞阻尼器，可显著控制隔震层位移（19%），一定程度降低大底盘地震响应，层间位移角和楼面绝对加速度的控幅在5.8%和7.6%，但会显著增加塔楼的地震响应，最大层间位移角和楼面绝对加速度的增幅在73.7%和45.5%，该方案对隔震层位移和大底盘的楼面加速度控制效果最优。
2）在大底盘设置黏滞阻尼器，对大底盘地震响应可以起到一定的控制作用，层间位移角和楼面绝对加速度的控幅在4.2%和3.9%，一定程度增加了隔震层位移（5.8%），对塔楼地震响应无明显影响。
3）增加大底盘刚度，可显著降低大底盘的层间位移角和塔楼的楼面绝对加速度，控幅分别在13.7%和16.5%，轻微降低了隔震层位移（3.7%），对其他响应无明显影响。其对大底盘的楼面加速度和塔楼的层间位移角和楼面加速度控制效果最优。
基金
收起
  • 国家自然科学基金项目(52278289)
文献
收起
参考文献 引证文献
排序方式：
[1]
赵新卫，栾锡富，彭凌云. 层间隔震技术在地铁车辆段大平台上部土地开发上的应用研究[J]. 世界地震工程，2005，21(2):110-114.
ZHAO Xinwei, LUAN Xifu, PENG Lingyun. Research on storey isolation technology applied to exploitation of the land above the platform of the car depot for Ba-wang-Fen subway[J]. World Earthquake Engineering, 2005, 21(2): 110-114. (in Chinese)
[2]
崔俊伟，范重，杨开，等. 大底盘多塔楼层间隔震性能研究[J]. 建筑结构，2019，49(增刊2):393-399.
CUI Junwei, FAN Zhong, YANG Kai, et al. Study on story isolation of multi-tower structure with large chassis[J]. Building Structure, 2019, 49 (S2): 393-399. (in Chinese)
[3]
李清，薛耀东，王永花，等. 大底盘双塔结构层间隔震技术的抗震性能分析[J]. 科学技术与工程，2017，17(1):85-91, 114.
LI Qing, XUE Yaodong, WANG Yonghua, et al. Seismic performance analysis of story isolated twin tower structure with large base[J]. Science Technology and Engineering, 2017, 17(1): 85-91, 114. (in Chinese)
[4]
尚泽宇，吴垠龙，张晓丹，等. 层间隔震在地铁车辆基地上盖开发中的应用[J]. 建筑结构，2017，47(8):98-101.
SHANG Zeyu, WU Yinlong, ZHANG Xiaodan, et al. Application of interlayer seismic isolation in upper cover development above metro vehicle base[J]. Building Structure, 2017, 47(8): 98-101. (in Chinese)
[5]
李绿宇，国巍，蒋丽忠，等. 沈阳地铁车辆段上盖双子楼隔震性能的振动台试验研究[J]. 振动与冲击，2017，36(6):56-62, 74.
LI Lvyu, GUO Wei, JIANG Lizhong, et al. Shaking table tests on the isolation performance of two buildings built on the top head of Shenyang metro depot[J]. Journal of Vibration and Shock, 2017, 36(6): 56-62, 74. (in Chinese)
[6]
乔云龙，王自法. 黏滞阻尼器对高层钢结构地震易损性的影响[J]. 地震工程与工程振动，2020，40(1):205-212.
QIAO Yunlong, WANG Zifa. Effect of viscous damper on seismic vulnerability of high-rise steel structures[J]. Earthquake Engineering and Engineering Dynamics, 2020, 40(1): 205-212. (in Chinese)
[7]
付仰强，张同亿，丁猛，等. 高烈度地震区某超高层结构减震分析与设计[J]. 建筑结构，2020，50(21):84-88, 105.
FU Yangqiang, ZHANG Tongyi, DING Meng, et al. Energy-dissipated analysis and design on a super high-rise structure in high seismic precautionary intensity area[J]. Building Structure, 2020, 50(21): 84-88, 105. (in Chinese)
[8]
周颖，乔甦阳，舒展. 设置黏滞阻尼器的钢结构实用减震设计方法[J]. 地震工程与工程振动，2022，42(1):1-10.
ZHOU Ying, QIAO Suyang, SHU Zhan. Practical energy dissipation design of steel structures with viscous dampers[J]. Earthquake Engineering and Engineering Dynamics, 2022, 42(1): 1-10. (in Chinese)
[9]
邹胜利，王红群，唐旭阳，等. 渭南市中心西片区档案馆混合减震设计分析[J]. 建筑结构，2022，52(11):105-110.
ZOU Shengli, WANG Hongqun, TANG Xuyang, et al. Analysis of mix-dissipation design in Weinan Central West District Archives[J]. Building Structure, 2022, 52(11): 105-110. (in Chinese)
[10]
吴迈，刘政，袁继强，等. 粘滞阻尼器在既有建筑抗震加固中的应用[J]. 工程抗震与加固改造，2020，42(6):90-95.
WU Mai, LIU Zheng, YUAN Jiqiang, et al. Application of viscous dampers in existing buildings seismic strengthening[J]. Earthquake Resistant Engineering and Retrofitting, 2020, 42(6): 90-95. (in Chinese)
[11]
谭平，周福霖. 大平台多塔楼结构的隔震减震控制[J]. 广州大学学报（自然科学版），2007，6(5):77-82.
TAN Ping, ZHOU Fulin. Seismic isolation and response control of multi-tower structure on a large platform[J]. Journal of Guangzhou University (Natural Science Edition), 2007, 6(5): 77-82. (in Chinese)
[12]
吴曼林，谭平，唐述桥，等. 大底盘多塔楼结构的隔震减震策略研究[J]. 广州大学学报（自然科学版），2010，9(2):83-89.
WU Manlin, TAN Ping, TANG Shuqiao, et al. Seismic isolation strategies for multi-tower structures with a large podium[J]. Journal of Guangzhou University (Natural Science Edition), 2010, 9(2): 83-89. (in Chinese)
[13]
范重，崔俊伟，薛浩淳，等. 地铁上盖结构隔震效果研究[J]. 工程力学，2021，38(增刊1):77-88.
FAN (Chong|Zhong), CUI Junwei, XUE Haochun, et al. Study on the isolation effect of subway cover structures[J]. Engineering Mechanics, 2021, 38(S1): 77-88. (in Chinese)
[14]
杨威. 大底盘多塔结构的设计分析与抗震研究[D]. 武汉：武汉理工大学，2014.
YANG Wei. Design analysis of large multi-tower chassis structure and seismic research[D]. Wuhan: Wuhan University of Technology, 2014. (in Chinese)
[15]
GB 50011—2001建筑抗震设计规范[S]. 北京：中国建筑工业出版社，2010.
GB 50011—2001 Code for seismic design of buildings[S]. Beijing: China Architecture & Building Press, 2010. (in Chinese)
[16]
LI A Q, YANG C T, XIE L L, et al. Research on the rational yield ratio of isolation system and its application to the design of seismically isolated reinforced concrete frame-core tube tall buildings[J]. Applied Sciences, 2017, 7(11): 1191.
[17]
尹传印，解琳琳，李爱群，等. 基于抗规和隔规的RC框架隔震结构设计对比[J]. 工程力学，2019，36(9):197-204, 212.
YIN Chuanyin, XIE Linlin, LI Aiqun, et al. Comparison on the seismic design of base-isolated RC frames using two Chinese codes[J]. Engineering Mechanics, 2019, 36(9): 197-204, 212. (in Chinese)
[18]
杨参天，解琳琳，李爱群，等. 适用于高层隔震结构的地震动强度指标研究[J]. 工程力学，2018，35(8):21-29.
YANG Cantian, XIE Linlin, LI Aiqun, et al. Intensity measures for seismically isolated tall buildings[J]. Engineering Mechanics, 2018, 35 (8): 21-29. (in Chinese)
[19]
解琳琳，王心宇，李爱群，等. 地铁上盖层间隔震建筑设计研究[J]. 工程力学，2022，39(7):39-48.
XIE Linlin, WANG Xinyu, LI Aiqun, et al. The design of inter-story isolated buildings built on top of metro depots[J]. Engineering Mechanics, 2022, 39(7): 39-48. (in Chinese)
2024年第44卷第4期
PDF下载
76
41
引用本文
BibTeX
文章信息
doi: 10.13197/j.eeed.2024.0414
  • 接收时间：2023-10-10
  • 首发时间：2026-03-30
补充材料
相关文章
文章信息
作者
出版历史
  • 收稿日期：2023-10-10
  • 修回日期：2024-03-26
基金
国家自然科学基金项目(52278289)
作者信息
    北京市建筑设计研究院股份有限公司，北京 100045
参考文献
分享链接
https://castjournals.cast.org.cn/joweb/dzgcygczd/CN/10.13197/j.eeed.2024.0414
分享至
全文二维码

扫描看全文

引用本文
BibTeX
本文的引用情况
2种不同金属材料的力学参数
科
Family		 属数
Number of
genus		 种数
Number of
species		 占总种数比例
Percentage of
total species (%)		 属
Genus		 种数
Number of
species		 占总种数比例
Percentage of total
species (%)
鹅膏菌科Amanitaceae 2 11 5.26 鹅膏菌属 Amanita 10 4.78
小菇科 Mycenaceae 2 12 5.74 丝盖伞属 Inocybe 5 2.39
多孔菌科 Polyporaceae 8 14 6.70 蜡蘑属 Laccaria 5 2.39
红菇科 Russulaceae 3 23 11.00 小皮伞属 Marasmius 6 2.87
小菇属 Mycena 11 5.26
光柄菇属 Pluteus 5 2.39
红菇属 Russula 17 8.13
栓菌属 Trametes 5 2.39
关闭全屏
相关链接
论文
最新文章
热读文章
热点专题
内参
蓝皮书
产业发展报告
传播力报告
期刊分级目录
资讯
学术新闻
行业新闻
学术会议
行业会议
关于
关于我们
联系我们
北京市海淀区学院南路86号
100081
010-62199257
qkjq@cast.org.cn

中国科学技术协会版权所有 京ICP 备10216604号-4 海淀分局备案 1101084647
科技导报社主办 中国科协信息中心技术支持
