循环微波辐射下含水煤体的孔隙结构演化机制
收藏切换
PDF下载
李贺 , 蒋训祁 , 鲁义 , 施式亮 , 路洁心 , 曹洁艳
中国安全科学学报 | 安全工程技术 2024,34(11): 99-107
收起
收藏切换
中国安全科学学报 | 安全工程技术 2024, 34(11): 99-107
循环微波辐射下含水煤体的孔隙结构演化机制
全屏
李贺 , 蒋训祁, 鲁义, 施式亮, 路洁心, 曹洁艳
作者信息
  • 湖南科技大学 资源环境与安全工程学院，湖南 湘潭 411201

    • 李贺 (1990—)，男，山东济宁人，博士，教授，博士生导师，主要从事煤基甲烷资源化开发与防灾、非常规油气安全高效开发、防火防爆与应急处置等方面的研究。E-mail：。

    鲁义，教授

    施式亮，教授

Evolution mechanism of pore structure of water-bearing coal under cyclic microwave radiation
He LI , Xunqi JIANG, Yi LU, Shiliang SHI, Jiexin LU, Jieyan CAO
Affiliations
  • School of Resource，Environment and Safety Engineering，Hunan University of Science and Technology，Xiangtan Hunan 411201，China
出版时间: 2024-11-28 doi: 10.16265/j.cnki.issn1003-3033.2024.11.0347
文章导航
收藏切换
摘要
收起

为更好利用微波增透技术安全高效地抽采煤层瓦斯，探究循环微波条件下煤体含水量变化对增透效果的影响，首先，通过核磁共振(NMR)技术获得表征煤样孔隙结构特征的横向弛豫时间(T2)谱和纵向弛豫时间(T1)-T2谱；然后，利用T2数据得到核磁特征参数，进一步明确循环微波辐射下煤体孔隙结构演化随含水量变化的情况；最后，基于循环微波增透机制，揭示不同含水煤体的孔隙结构演化机制。结果表明：循环微波辐射下，不同含水饱和度煤体的孔隙结构均得到明显改善，其中75%含水饱和度煤样具有比其他试验煤样更佳的增透效果。循环微波辐射促使孔隙向更大孔径演化过程中，煤体由于发生热破裂而出现孔隙堵塞现象，提高含水饱和度可以减少此现象出现；循环微波增透主要依靠热应力和气压驱动，随着煤体透气性的改善，微波增透效果有所减弱，煤体含水量的影响随之减弱。

煤层瓦斯  /  循环微波辐射  /  含水煤体  /  孔隙结构  /  核磁共振(NMR)

In order to better use microwave antireflection technology to safely and efficiently extract coal seam gas，and to explore the influence of coal moisture content change on the antireflection effect under cyclic microwave conditions，firstly，the transverse relaxation time (T2) spectrum and longitudinal relaxation time (T1) -T2 spectrum characterizing the pore structure characteristics of coal samples were obtained by NMR technology. Then，the characteristic parameters of nuclear magnetic resonance were obtained by using T2 data，and the change of pore structure evolution with water content under cyclic microwave radiation was further clarified. Finally，based on the mechanism of cyclic microwave permeability enhancement，the pore structure evolution mechanism of different water-bearing coal bodies was revealed. The results show that the pore structure of coal with different water saturation is obviously improved under cyclic microwave radiation，and the coal sample with 75% water saturation has a better antireflection effect than other test coal samples. In the process of cyclic microwave radiation promoting the evolution of pores to larger pores，pore blockage occurs due to the thermal fracture of coal，and increasing water saturation can reduce this phenomenon. The cyclic microwave anti-reflection mainly relies on thermal stress and air pressure. With the improvement of coal permeability，the effect of microwave anti-reflection is weakened，and the influence of coal water content is weakened.

coal seam gas  /  cyclic microwave radiation  /  water-contained coal  /  pore structure  /  nuclear magnetic resonance(NMR)
李贺, 蒋训祁, 鲁义, 施式亮, 路洁心, 曹洁艳. 循环微波辐射下含水煤体的孔隙结构演化机制. 中国安全科学学报, 2024 , 34 (11) : 99 -107 . DOI: 10.16265/j.cnki.issn1003-3033.2024.11.0347
He LI, Xunqi JIANG, Yi LU, Shiliang SHI, Jiexin LU, Jieyan CAO. Evolution mechanism of pore structure of water-bearing coal under cyclic microwave radiation[J]. China Safety Science Journal, 2024 , 34 (11) : 99 -107 . DOI: 10.16265/j.cnki.issn1003-3033.2024.11.0347
正文
收起
0 引言
收起
基于我国“富煤、贫油、少气”的国情，高效抽采煤层瓦斯，既能发挥煤矿资源在能源安全方面的兜底作用，又能保障煤矿安全[1-2]。但是，由于大量瓦斯被吸附在煤的微孔中，加之开采深度的增加，煤层瓦斯“高储低渗”特征愈加明显，使得瓦斯高效抽采利用受到严重制约[3]。
在新兴的煤层增透技术中，微波辐射增透技术因其热效率高、选择性加热、对环境友好等优点，受到不少学者的关注[4⇓⇓⇓-8]，其中，曹轩[6]研究了不同含水率煤样在微波辐射后的孔隙结构，发现提高含水率可以显著提升微波辐射致裂煤体的效果；LI He等[7]采用核磁共振(Nuclear Magnetic Resonance，NMR)等表征手段，开展煤层的微波增透技术研究，并指出微波辐射可促使孔裂隙在蒸气压作用下发生热膨胀，从而提高煤层的透气性；胡国忠等[8]基于NMR的定量表征方法，探究了微波辐射前后不同含水饱和度煤体的孔渗特性，认为水分蒸发形成的蒸气压对煤体孔隙的作用效果有限。
上述研究表明：煤体中的水分对微波增透效果的影响不可忽视，微波辐射能够使煤体快速升温，促进孔隙发育和瓦斯解吸。例如：马学舟等[9]采用力学试验等方法，探究了微波辐射对煤体的损伤弱化作用，提出了微波辐射可以促进煤体孔隙发育，并降低其冲击破坏的危险性；朱健等[10]利用自研装置进行不同层理方向的煤层微波增透试验，发现煤层层理对微波辐射增透效果的影响显著；林柏泉等[11]设计了煤的循环微波辐射试验，并据此研究微波辐射下煤体孔裂隙结构的演化特征，结果表明：微波辐射可促进煤体孔隙结构扩展；杨新乐等[12]利用数值模拟手段探究脉动微波循环加热对煤层气开采的影响，得出脉动微波循环加热能促进煤层瓦斯大量解吸的结论；HUANG Jinxin等[13]总结煤层微波增透技术的研究进展，详细讨论了煤阶、含水量和矿物成分等煤层特性对微波增透效果的影响，发现已有研究在哪种煤阶具有更高介电常数、提高含水量是否提高增透效果等方面仍存在争议。
然而，上述研究工作很多只关注连续微波辐射下的煤层增透效果；部分学者指出长时间连续微波辐射可能会对煤层瓦斯抽采造成的损害，如张连昆[14]指出，长时间的微波连续辐射会使煤原位热解，并且热解后的产物——焦油易使孔隙堵塞；董超等[15]的研究表明：过长时间的微波辐射会导致煤孔隙结构出现明显塌缩。相较于长时间连续微波辐射，循环微波辐射可以在保证微波增透效果的同时，克服微波快速加热带来的负面影响，但目前关于煤层的循环微波增透研究较少。
鉴于此，笔者拟在循环微波条件下，利用低场NMR探究不同含水煤体的孔隙结构演化机制，以期为理清含水量对循环微波增透效果的影响机制提供依据。
1 循环微波辐射含水煤体试验
收起
1.1 煤样制备
文中煤样取自安徽省祁南煤矿，根据NMR 检测要求，将煤样制成直径25 mm、高50 mm的圆柱试件，其工业分析结果见表1。循环微波辐射试验共使用20个煤样，分为4组，其中1组用于预试验，另外3组用于重复试验。
1.2 试验装置与步骤
使用微波管式炉，微波输出功率10~1 400 W，且连续可调，微波频率为2.45 GHz。由于循环微波辐射的作用，使得煤样的最大含水率在微波处理后有所变化。因此，为保证试验煤样的含水量在循环微波处理中始终保持同一条件，用含水饱和度梯度代替含水率梯度，并设置0%、25%、50%、75%、100%共5个梯度代表煤体的不同水分吸收程度，以揭示循环微波辐射下不同含水煤体的孔隙结构演化特性。
煤样的NMR检测过程依照国家标准《煤和岩石孔径分布的测定 核磁共振法》[16]进行，主要试验方案及流程如下：
1) 对原煤进行核磁检测。将目标含水饱和度为0%、25%、50%、75%、100%的煤样分别标记为M0、M25、M50、 M 7 5、M100。在不影响检测结果的前提下，利用干燥箱将煤样在50 ℃下恒温干燥24 h，得到完全干燥时的重量。利用真空饱和加压装置对煤样进行1 MPa、24 h充分饱水处理，之后进行NMR检测。
2) 得到不同含水饱和度煤样。在与步骤1)相同的饱水条件下，保证煤样达到100%饱水状态。将试验煤样在50 ℃恒温条件下干燥不同时间，使其含水饱和度达到目标状态。干燥过程中，每隔15 min称1次试验煤样质量，接近目标含水饱和度时每隔5 min称重1次，确保煤样的含水饱和度与目标值相差不超过1%。
3) 对煤样进行微波处理。将煤样放入工业微波炉中，启动仪器，进行8 min、1 400 W额定功率微波辐射。由于工业微波炉的功率由0 W加载到1 400 W通常不超过15 s，可以将微波辐射功率全程视为1 400 W。由于试验条件下微波的场强和能域分布不均匀，为减少试验误差，所有煤样在同一位置接受微波辐射。
4) 对微波处理后的煤样进行NMR检测。对微波处理后的煤样进行与原煤相同的NMR检测。
重复步骤2)—4)的操作，如此循环3次。
1.3 基于NMR的孔隙结构检测方法
在煤的孔隙结构表征方面，NMR技术能够无损、快速、精准地实现煤的全尺度孔隙检测[17]。文中采用低场NMR仪，通过检测煤样中的含1H流体在外加磁场下的弛豫时间，从而得到含1H流体所在孔隙的相关信息。试验煤样中的含1H流体为水。
在实验室条件下，煤体中含1H流体的横向弛豫时间(T2，ms)与孔径的关系可以表示为：
1 T 2 = ρ S V = F S · ρ × 1 r → T 2 ∝ r
式中： ρ为表面弛豫强度，通常视为固定值，取10 μm/s;S/V为孔隙的比表面积，m2/m3;FS为孔形状因子，柱状孔隙时其值取2; r为孔径，μm。
由式(1)可知：T2与r成正比，即T2值越大，所对应的孔隙r越大。因此，利用得到的T2，可以了解煤样中的孔径分布、孔隙连通性、孔喉区间分布等孔隙结构特征[18-19]。利用煤样饱水T2谱和离心T2谱得到T2截止值，T2截止值变化在一定程度上可以反映出煤体中的孔隙闭合程度的变化。

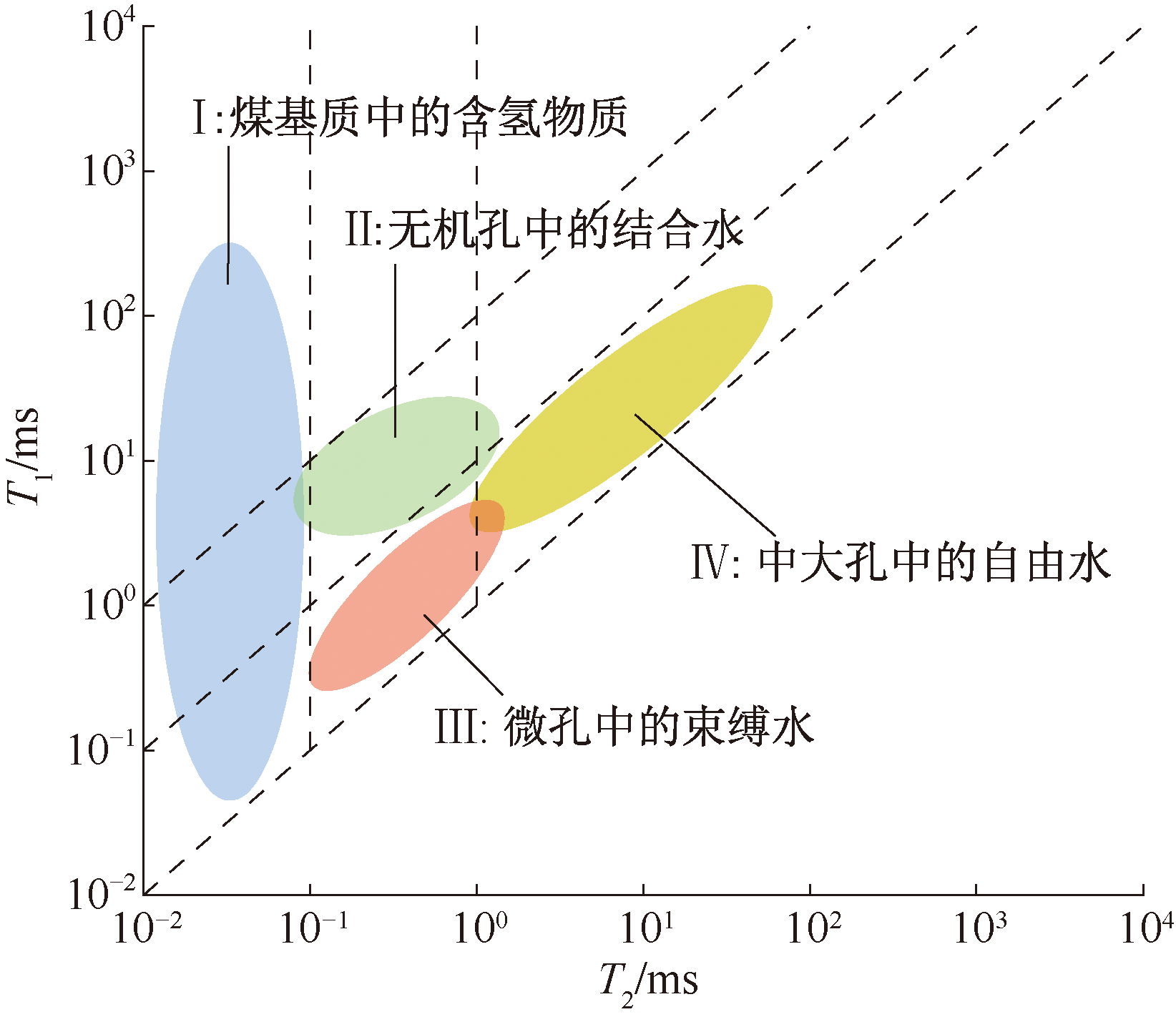

T2谱对于流体特性的识别存在一定误差，而T2与纵向弛豫时间(T1)结合形成的T1-T2谱可以更准确地区分不同含1H流体和同一含1H流体的不同相态(结合水、束缚水和自由水等)。在文中的T1-T2谱中，不同区域信号表示的含1H流体类型如图1所示[20]。
2 含水煤体孔隙结构演化机制
收起
2.1 NMR波谱分析
2.1.1 T2谱曲线分析

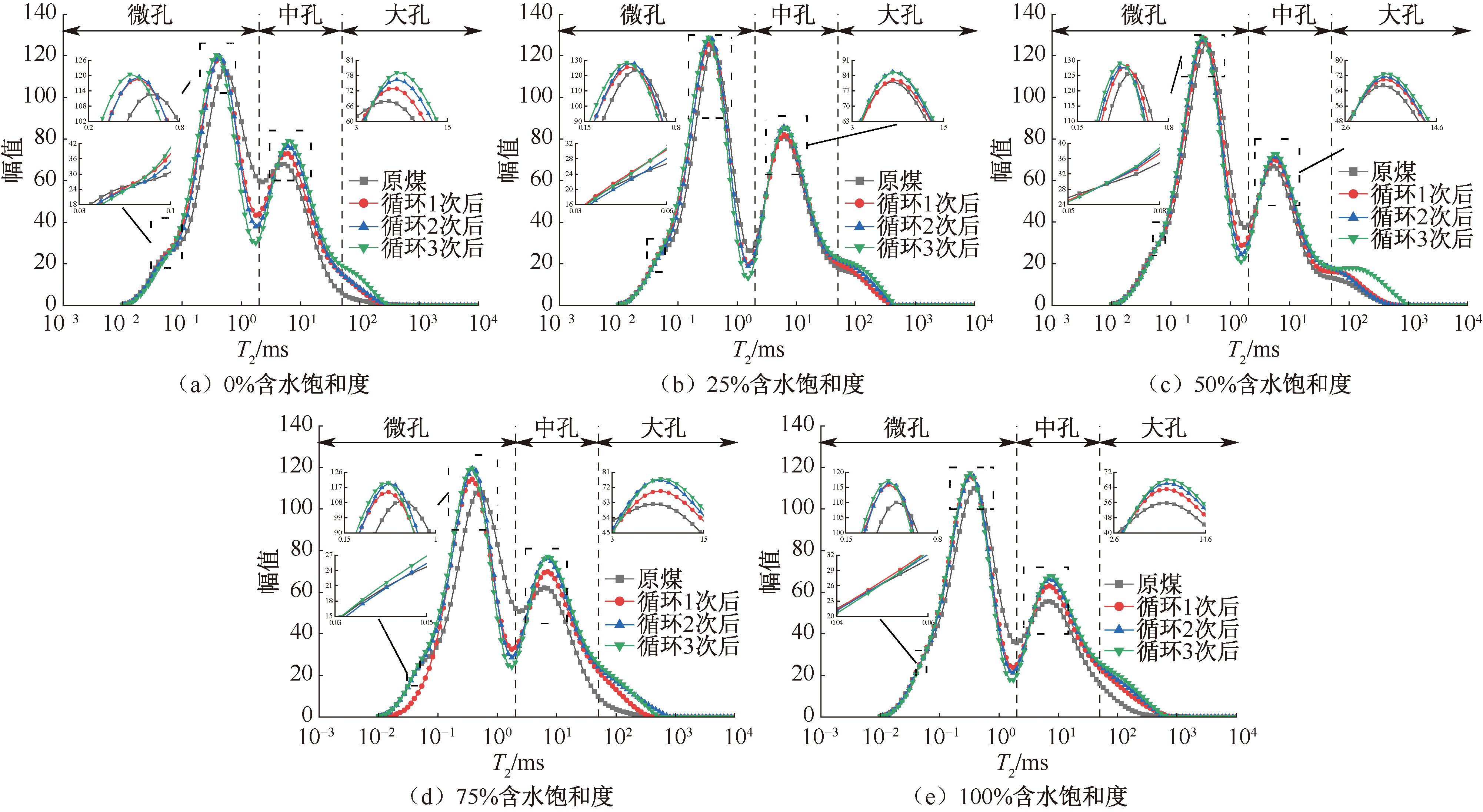

微波辐射前后煤样的T2谱演化情况如图2—图6所示。根据相关研究[21-22]，笔者将不同孔径孔隙与T2谱曲线的对应关系分为3个区域，其中微孔对应T2<2 ms，中孔对应2 ms≤T2≤50 ms，T2>50 ms则对应大孔。由图2可知：在原煤中，微孔和中孔的发育程度均较高。大孔发育则存在差异，其中，M25和M50原煤的大孔发育较为明显，对应的T2谱曲线形成了肩峰结构。
随着微波循环次数的增加，不论含水饱和度的高低，微孔、中孔和大孔区间的T2峰值均呈增长趋势，其中微孔区间的T2峰值在增加的同时其对应的孔径减小。微孔与中孔的融合度则随着微波循环次数的增加而降低。由此可知：循环微波主要促使介于微孔与中孔之间的孔隙通道更迭为孔径更大的孔隙结构，同时微孔侧由于热破裂发生孔隙拓展，使得微孔区间的T2峰值不减反增但对应的孔径减小。

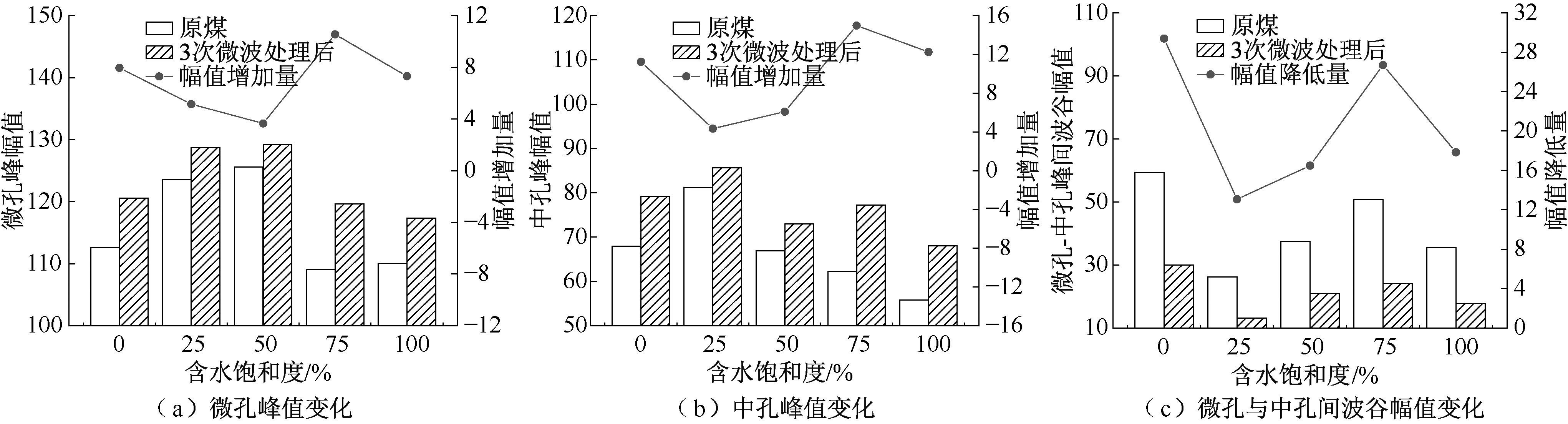

循环微波辐射后微孔峰、中孔峰及两峰间波谷的幅值变化情况如图3所示。循环微波辐射后，M0—M100煤的微孔峰幅值增加3.66~10.56，中孔峰幅值增加4.35~14.98，两峰间波谷幅值降低13.07~29.41。不论含水饱和度高低，3种幅值的变化均呈“减—增—减”趋势，说明较低含水饱和度反而会使循环微波辐射效果有所减弱，过高的含水饱和度也不利于循环微波辐射的增透效果进一步提高。
2.1.2 T2谱面积分析
T2谱面积变化可以反映煤中不同孔体积的演化特征。根据煤中不同孔隙的瓦斯吸附特点，分别求取以微孔为代表的吸附孔和以中、大孔为代表的渗流孔的T2谱面积，二者相加得到总孔隙的T2谱面积。计算得到的T2谱面积见表2。
由表2可知：M0—M100原煤的渗流孔占比为32%~42%，经过循环微波处理后，渗流孔占比增长为42%~44%。循环微波对煤体中的孔隙尤其是渗流孔起扩孔和开孔作用，从而使渗流孔占比提高，这对提高瓦斯抽采效率具有积极作用。在循环微波作用后，M75煤的T2谱总面积增加了12.56%，增长幅度最大，说明高含水饱和度可以促进微波增透效果。但是，M100煤的T2谱总面积增长率为8.88%，略高于M0煤的7.42%，低于M75煤。这表明含水饱和度越高，并不意味着循环微波辐射对含水煤体的增透效果越好。
在第2次微波循环后，M0和M50煤的总孔隙体积分别出现了0.34%和0.49%的轻微降幅，说明循环微波对含水煤体中孔隙的作用机制较为复杂，导致单轮微波处理效果具有波动性。
循环微波处理后，除M25煤外，含水饱和度越低，煤样的吸附孔体积总降幅越大。然而，煤样的渗流孔体积总增幅并非随含水饱和度增加而一直增加，最大增幅为M75煤的47.97%。由此可知：在含水煤体孔隙演化更迭时，含水饱和度越低，存在的塌孔现象越明显。因此，循环微波辐射下煤体水分的蒸发流动，对孔隙的疏通、扩容具有重要意义。M25煤的吸附孔体积在循环微波辐射后出现0.83%轻微增幅，考虑到M25原煤检测数据反映其较好的孔隙发育程度，说明循环微波增透效果随着煤样渗透性的提高出现一定程度的减弱。
2.2 二维T1-T2谱分析

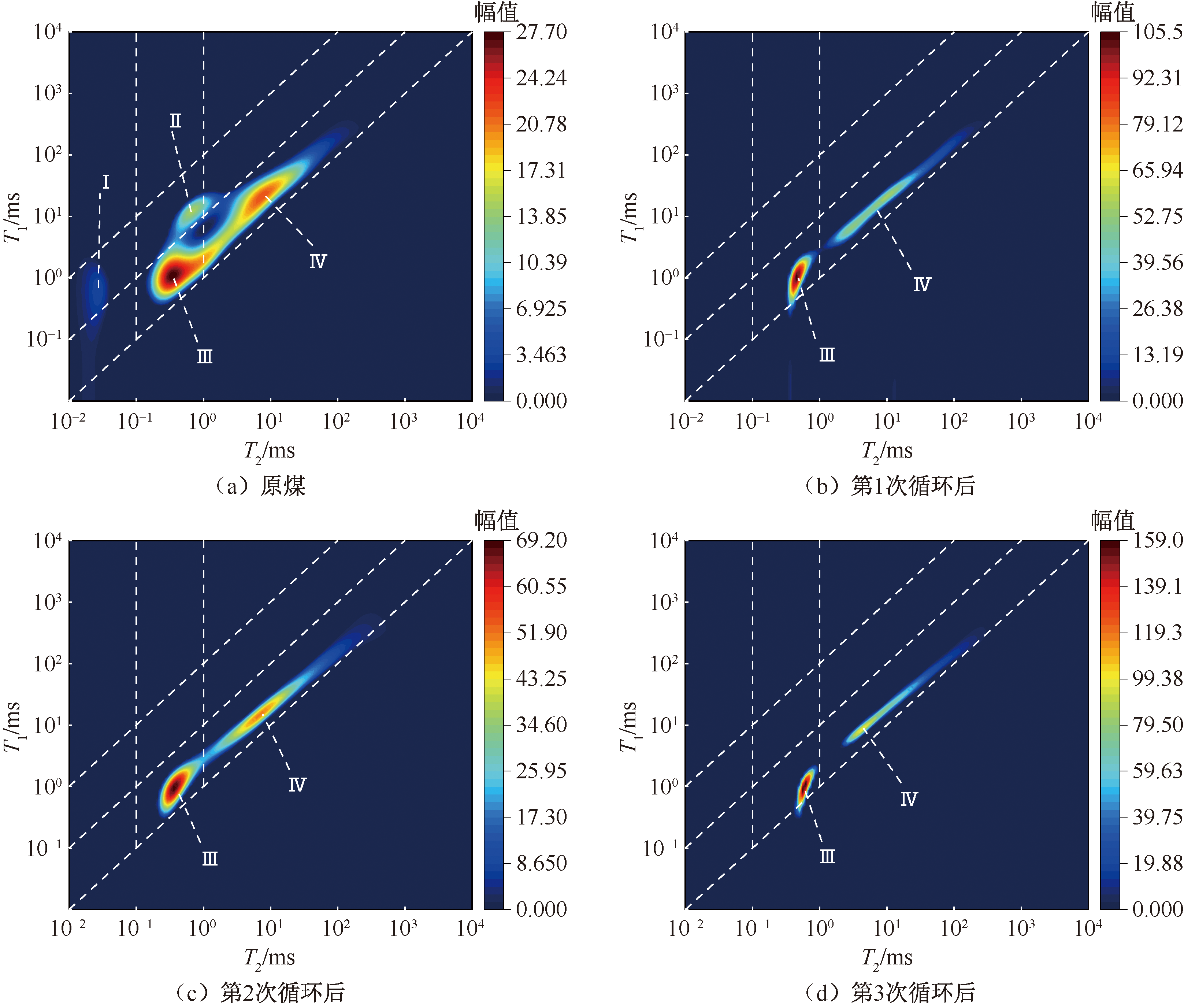

M75的T1-T2谱变化情况如图4所示。由于微孔在煤体孔隙结构中占据主导地位，循环微波处理后束缚水信号变化幅度显著强于自由水。循环微波辐射下，M75煤的束缚水信号峰值由27.7先增至105.5，又减至69.2，之后又激增到159.0，呈现“增—减—增”趋势。这说明第1次微波处理后，新生成的微孔中有相当部分未与其他孔隙贯通，造成束缚水信号更集中。当存在一定水分时，在下1轮微波辐射过程中，微孔内能够形成足够的蒸气压促进孔隙连通，使束缚水信号区域有所恢复，信号峰值有所回落。第3次微波处理后，又有未贯通的微孔生成，束缚水信号再次激增。

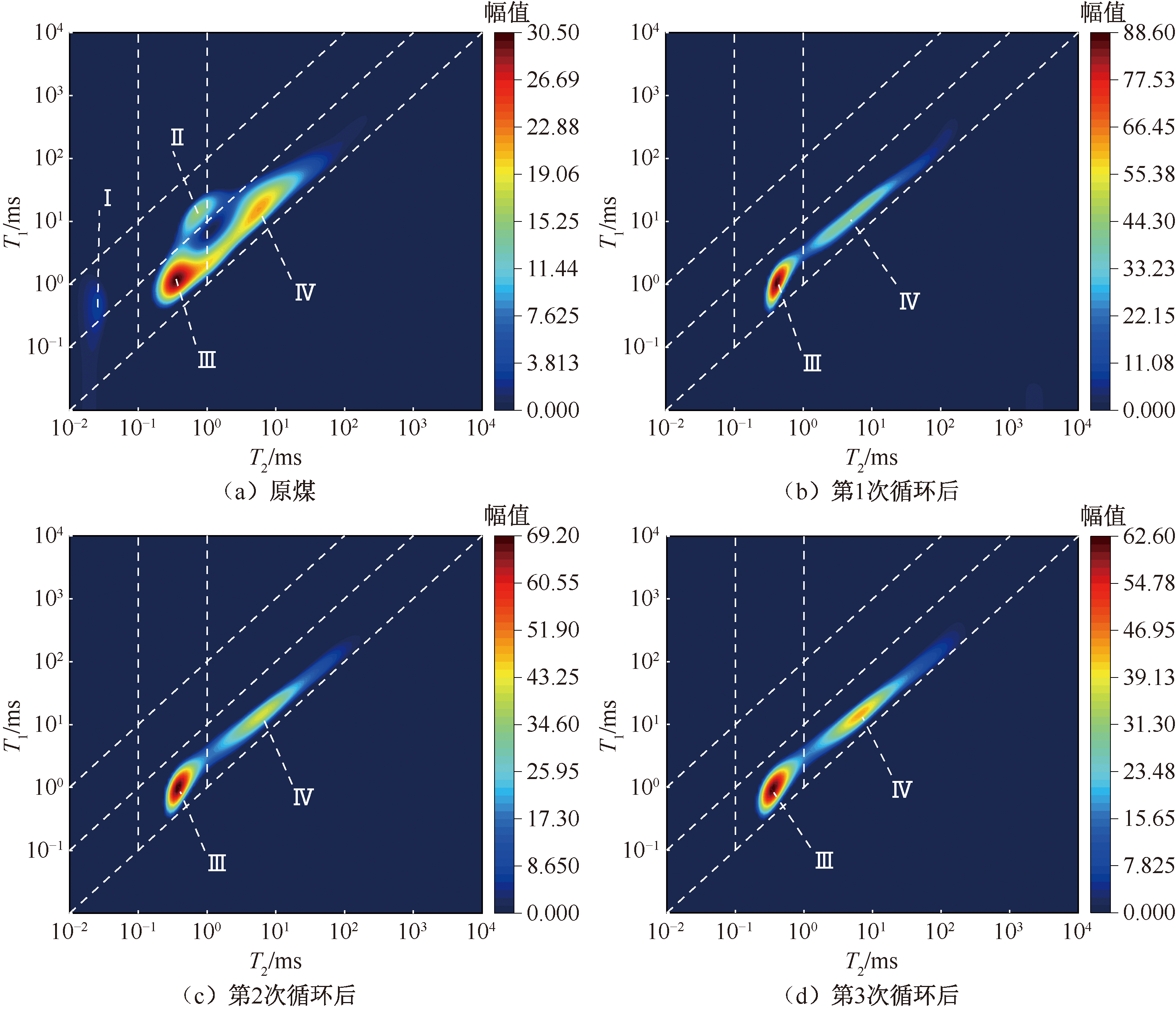

M0的T1-T2谱变化情况如图5所示。M0煤的信号峰值在第1次微波处理后最高，在之后2轮微波处理后有一定回落，这表明当煤样干燥时，生成的未贯通孔隙数量较多，而煤基质热破裂促进孔隙贯通的效果有限。由此可见：循环微波辐射下煤体水分蒸发形成的蒸气压有利于促进孔隙贯通，为煤层瓦斯渗流提供更多通道。
2.3 核磁特征参数分析
2.3.1 孔喉分布

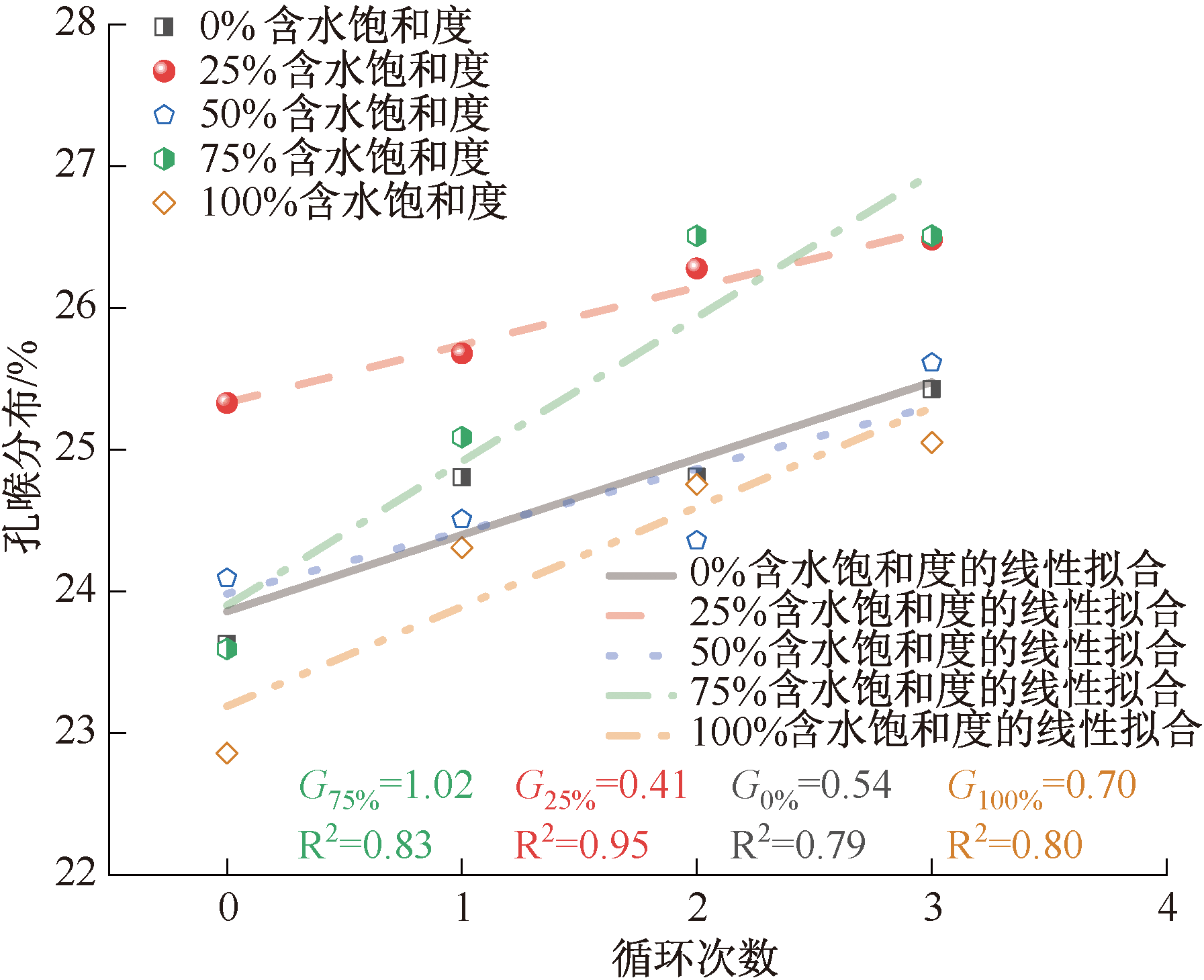

总孔喉分布的变化情况及其线性拟合结果如图6所示。由图6可知：不同含水饱和度条件下，煤样受微波辐射后孔喉均出现增长，总孔喉分布由22.86%~25.33%增至25.05%~26.51%。
M25、M50煤线性拟合斜率小于M0(0.54)，而M75、M100大于M0。以含水饱和度50%为界，高含水饱和度情况下水分吸收微波能为进一步提高增透效果提供驱动力，低含水饱和度下煤体中的水分反而单纯消耗微波能量，使增透效果有所降低。M75和M100煤线性拟合的斜率分别为1.02和0.7，说明过高的含水饱和度在消耗更多微波能的同时无法促进微波增透效果的进一步提升，反而使这种促进效果有所回降。
M25煤的线性拟合度最好，达到了0.95。M0、M75和M100煤的线性拟合效果较好，但不及M25煤。 结合前面的分析，说明随着煤样渗透性提高，循环微波的增透效果趋于稳定。M50煤在第2次微波作用后，孔喉出现异常减少，导致拟合度较低。
为了更好地分析煤样中的孔喉分布变化特征，将孔喉分为微孔喉、小孔喉和大孔喉3种区间，其中，微孔喉半径r<0.1 μm，小孔喉半径为0.1≤r<2.5 μm，大孔喉半径为2.5≤r<25 μm。

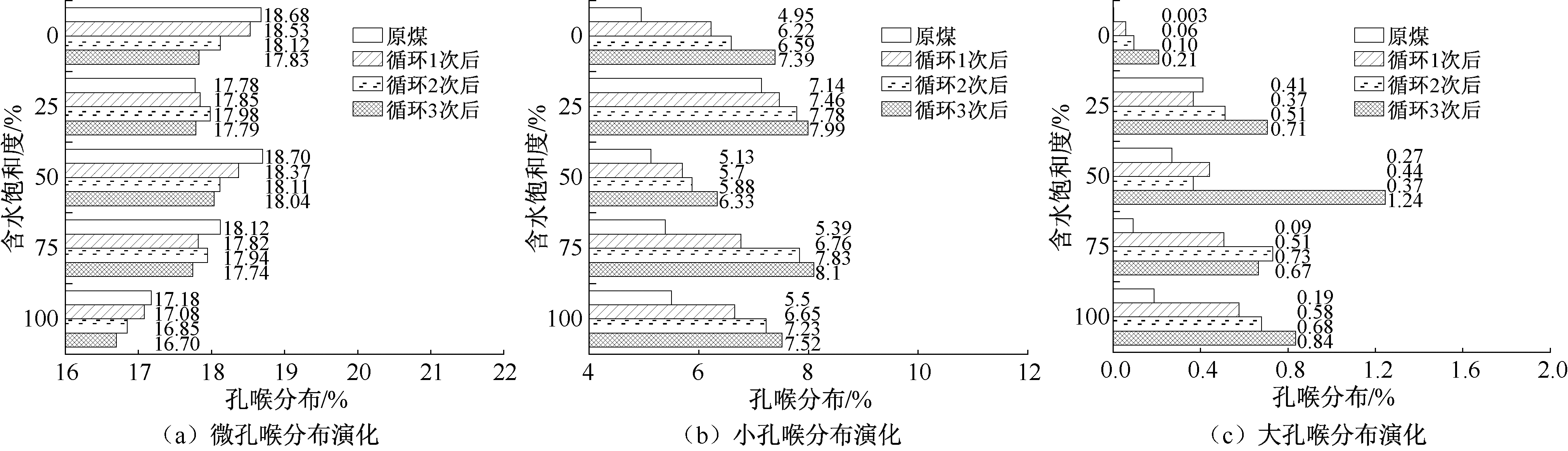

不同区间孔喉的分布变化情况如图7所示，由图7可知：经过循环微波辐射后，除M25煤外其余煤样的微孔喉均减少，而所有煤样的小孔喉和大孔喉均增加。其中M25煤的微孔喉先在2轮微波作用后有所增加，然后在第3轮微波作用后降至与原煤几乎相同的水平，表明循环微波整体上促使小孔径孔喉向更大孔径更迭，但当煤样的孔隙发育情况较好时，这种促进效果迅速减弱。
2.3.2 T2截止值

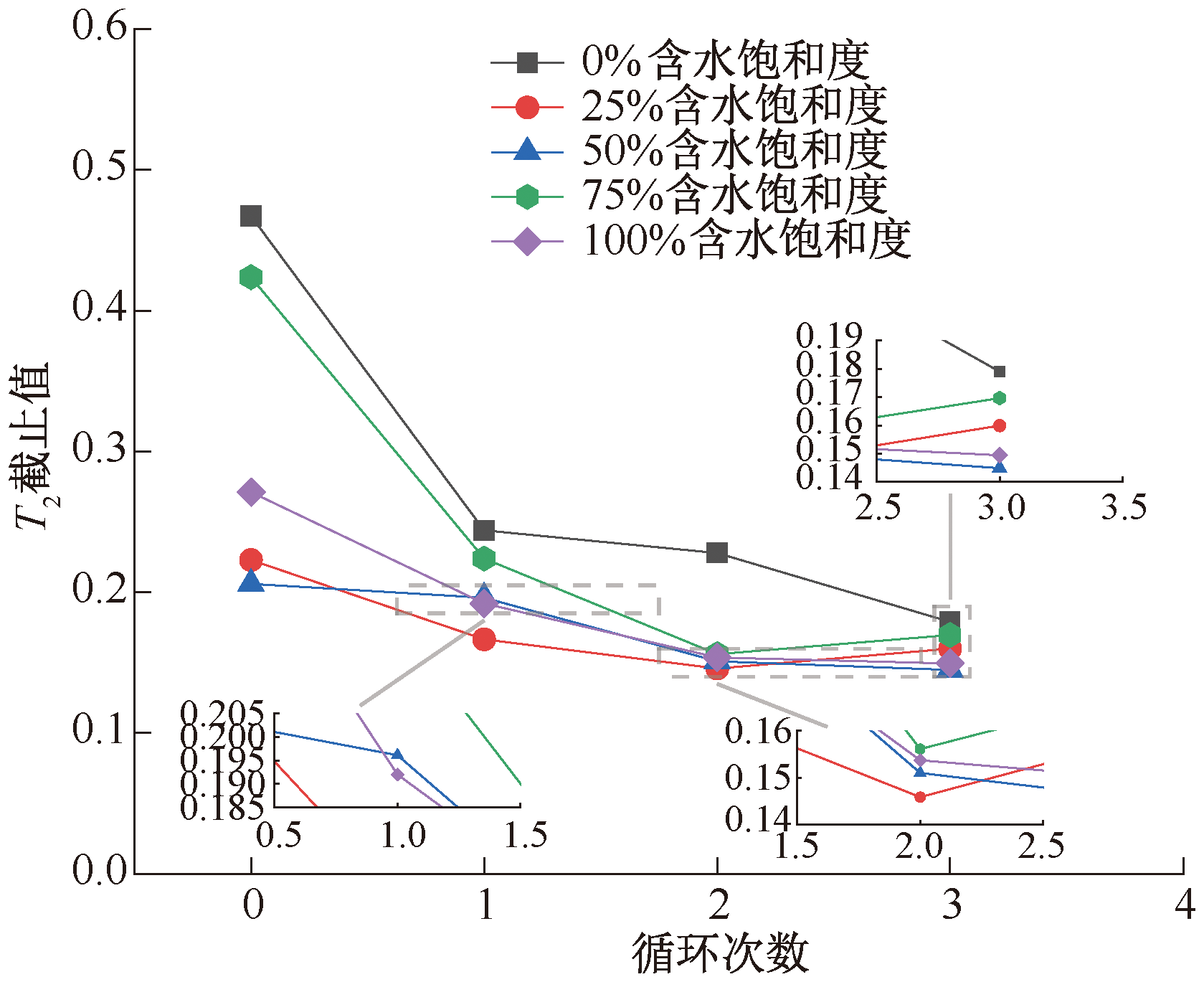

煤样的T2截止值演化特征如图8所示。T2截止值越高，孔隙闭合度越高。M0和M75原煤的T2截止值均达大于0.4，明显高于其他煤样。第1次微波处理后，M0和M75煤的T2截止值降至0.2~0.25之间，二者降幅显著大于其他煤样。之后2轮的微波处理中，M0和M75煤的T2截止值整体降幅与其他煤样保持同一水平。第3次微波处理后，M25和M75煤的T2截止值有小幅回升，这表明微孔孔径减小，以及微孔-中孔的连通性减弱影响了孔隙开放度的提高。由此可见：循环微波辐射形成的反复热冲击可以提高含水煤体的孔隙开放度，而且孔隙闭合度越高，作用效果越明显，含水饱和度因素则没有明显影响。
2.4 循环微波作用机制分析
微波对煤的非均匀加热导致煤体内部出现温度 差异，形成热应力作用。文中试验的T2谱分析表明热应力会导致煤体内部发生热膨胀以及热破裂，从而促进孔隙的扩展发育[23]。但是，热应力对煤体孔隙的作用具有两面性。表2中不同孔体积的变化特征就说明煤体的热破裂会导致部分孔隙出现堵塞现象，导致单轮微波处理效果具有波动性。
煤体中的水作为强极性分子，对微波能的吸收作用一般强于周围的煤基质，在促进热应力形成的同时，较高饱和度的水分蒸发也会形成一定的蒸气压，为孔隙的扩展发育进一步提供气压驱动。试验结果表明：M75煤的增透效果优于M100煤，说明这种气压驱动的增透效果有限。由于煤样中的挥发分含量较高，微波对煤的非均匀加热导致煤基质局部热解，既进一步推动热破裂，生成的挥发性气体又能在孔隙闭合度低时提供额外的气压驱动。
循环微波辐射下，低渗透煤体在高含水饱和度时，气压驱动与热应力共同作用显著提高其渗透性。随着渗透性提高，水分的流动性增强，导致其形成的气压驱动迅速减弱。此时循环微波辐射的增透机制有所简化并减弱，其增透效果趋于稳定。
文中试验是在无载荷条件下进行循环微波辐射下含水煤体的孔隙结构演化机制的研究，与实际地下煤层受载荷情况存在一定差异。后续考虑模拟煤层受载荷条件下，探究循环微波辐射对含水煤体的增透作用机制，为下一步实际工程试验做好铺垫。
3 结论
收起
1) 循环微波辐射下，不同含水煤体中的总孔体积、总孔喉分布均明显增加。由线性拟合总孔喉分布的变化结果发现，高含水饱和度对循环微波的增透效果起促进作用，低含水饱和度则起抑制作用，但是过高的含水饱和度使这种促进效果有所回降。
2) 循环微波辐射下，煤样的T2谱演化特征、不同孔喉区间分布结果表明：循环微波辐射能促使孔径较小的孔隙向更大孔径更迭。诸多试验结果表明：孔隙演化过程中存在孔隙堵塞情况，而提高含水量有利于缓解此现象，促进孔隙贯通。
3) 循环微波辐射下，T2截止值较高的M0和M75原煤的降幅比其他煤样更明显，表明循环微波辐射可以提高煤体的孔隙开放度，而且孔隙度闭合度越高，微波的作用效果越明显。含水饱和度因素在其中没有展现出明显影响。
4) 循环微波的增透机制可以分为热应力作用和气压驱动2种。渗透性较低时，高含水饱和度煤体的气压驱动效果明显，与热应力共同作用促使煤体渗透性迅速提高。随着渗透性提高，煤体水分对循环微波的增透效果影响减弱。因此，在工程应用中，可以考虑在煤层中注入吸波剂，进一步提高循环微波增透技术的效果。
