艉轴大跨距轴系校中计算
收藏切换
PDF下载
谷志明 , 付宇 , 李珍 , 杨蓬勃
船舶力学 | 结构力学 2024,28(3): 435-441
收起
收藏切换
船舶力学 | 结构力学 2024, 28(3): 435-441
艉轴大跨距轴系校中计算
全屏
谷志明 , 付宇, 李珍, 杨蓬勃
作者信息
  • 广州船舶及海洋工程设计研究院，广州　510250

    • 谷志明（1982-），男，硕士，高级工程师，E-mail：

    付宇（1992-），女，工程师。

Shafting alignment calculation of large span propeller shafts
Zhi-ming GU , Yu FU, Zhen LI, Peng-bo YANG
Affiliations
  • Guangzhou Marine Engineering Corporation, Guangzhou 510250, China
出版时间: 2024-03-20 doi: 10.3969/j.issn.1007-7294.2024.03.011
文章导航
收藏切换
摘要
收起

中、小型船舶吃水较浅，其螺旋桨转速快、直径小、重量轻，一旦艉管前后轴承跨距较大，艉管后轴承支点位置就将超出标准给定的范围。本文基于有限元法，将轴系简化为Timoshenko梁单元建立有限元模型，考虑船舶轴系实际安装间隙和基于赫兹接触理论计算的载荷-刚度曲线，使用不同支撑位置和多种支撑模型对艉轴大跨距轴系进行校中计算对比。研究发现，对于艉轴大跨距的轴系，CB/Z 338-2005中对艉管后轴承支点位置的取值已不适合。如果轴承支点选取准确，则单点刚性支承、单点弹性支承、多点非线性弹性支承的轴承负荷计算结果相近。

轴系校中  /  艉轴大跨距  /  赫兹接触  /  轴承刚度

Small- and medium-sized ships have a shallow draft, but their propellers are fast in speed, small in diameter and light in weight. Once the span of the front and after stern tube bearings is large, the position of the after stern tube bearing fulcrum will exceed the range given by the standard. Based on the finite element method, the shafting was simplified into Timoshenko beam element to establish a finite element model. Considering the actual installation clearance of the ship shafting and the load stiffness curve calculated based on Hertz contact theory, the shafting alignment calculation of large span propeller shaft, which was based on different support positions and various support models, indicates that for the shafting with a large span of propeller shaft, the value of the fulcrum position of stern tube rear bearing in CB/Z 338-2005 is not suitable. If the bearing fulcrum exactitude is correct, the calculated bearing loads of single point rigid support, single point elastic support and multi-point nonlinear elastic support will have a similar result.

shafting alignment  /  large span of propeller shaft  /  Hertz contact  /  bearing stiffness
谷志明, 付宇, 李珍, 杨蓬勃. 艉轴大跨距轴系校中计算. 船舶力学, 2024 , 28 (3) : 435 -441 . DOI: 10.3969/j.issn.1007-7294.2024.03.011
Zhi-ming GU, Yu FU, Zhen LI, Peng-bo YANG. Shafting alignment calculation of large span propeller shafts[J]. Journal of Ship Mechanics, 2024 , 28 (3) : 435 -441 . DOI: 10.3969/j.issn.1007-7294.2024.03.011
正文
收起
0　引言
收起
近年来，业界主流论文较多围绕大型、超大型船舶轴系校中[1-4]展开研究，对中、小型船舶轴系校中研究较少，原因有三：一是中、小型船舶的轴系刚度较小，船体刚度较大，不易变形，同时艉部轴承长度较小，一般直线校中即可满足要求，中国船级社规范[5]允许螺旋桨轴直径小于250 mm的主推进轴系可不提交轴系校中计算书；二是在中、小型船舶的轴系校中计算中，艉部轴承被视为单点刚性支承[6-7]，降低了轴系校中计算的复杂性和难度，计算结果也基本符合中小型船舶轴系的真实情况；三是中小型船舶一般附加值较低，而且种类繁多，研究价值随之降低。
轴系校中计算经常使用的方法主要有：三弯矩法、传递矩阵法和有限元法[6]，这三种方法的理论基础均是经典力学方法，在本质上没有区别，但在具体实施过程中存在一定差异。魏海军等[8]利用传递矩阵法分析了艉轴多支承、油膜刚度。周瑞平等[9]通过对传统三弯矩方程在考虑外加力偶、轴段线性均布载荷以及轴段剪力变形影响等三方面的理论研究，提高了三弯矩校中的准确性。随着计算机的高速发展，有限元法计算速度和精度得到巨大的提升，另外随着商用有限元软件的升级迭代，有限元法的轴系校中变得越来越容易，而且也便于考虑船舶运行过程中的各种因素，如螺旋桨水动力、船体变形等[4，10]。

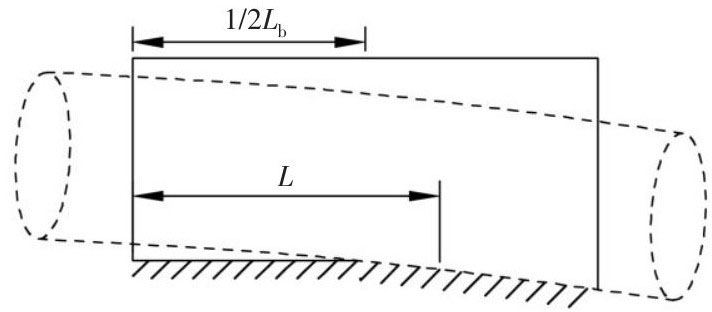

设艉管后轴承长度为Lb，L为支点距该轴承后端面的距离，大量文献均假定（或计算得出）艉管后轴承支承点在艉管后轴承的后半部分，比如在CB/Z 338-2005《船舶推进轴系校中》中，对白合金轴承，L =（1/7~1/3）Lb；铁梨木轴承，L =（1/4~1/3）Lb；橡胶轴承，L =（1/3~1/2）Lb。中国船级社的余华军[11]使用多点弹性支撑算出L =0.355Lb；大连海事大学的魏海军[8]研究了多点刚性支撑，结果表明采用刚性的模型去描述弹性的对象是不合理的，单点刚性支撑则选L =0.228Lb；张敏等[1]采用多点弹性支撑，将艉轴承沿长度方向分成N个分轴承，并假设每个分轴承刚度相等，为原轴承的1/N，算出L =0.43Lb；杨红军等[3]使用Hertz弹性接触模型描述轴承和轴的接触力学特性，但其首先假定L=0.25Lb。
本文选用有限元法，将轴系结构简化为Timoshenko梁单元，建立有限元模型，考虑船舶轴系实际安装间隙，使用单向受压的非线性弹簧代替常规的弹簧单元，并基于赫兹接触理论计算轴段的载荷-刚度曲线，使用多点非线性弹性支撑模型对艉轴大跨距轴系进行校中计算。根据实船轴系布置情况，得到轴承支承点位于轴承前半部分的结果，并对艉管后轴承使用多种不同支撑模型进行校中计算对比。研究结果对工程设计和计算具有参考意义。
1　有限元模型建立
收起
轴系结构通常可以简化为梁结构，本文选用Timoshenko梁单元，以广州船舶及海洋工程设计研究院设计的62 m沿海客船轴系校中计算为例，参照CB/Z 338-2005，将轴系看作放置在刚性铰支上的连续梁，其长度自螺旋桨轴末端面开始，至齿轮箱大齿轮轴端面止，梁上作用着均布载荷、集中载荷（包括螺旋桨和齿轮箱大齿轮重量）等，边界条件为自由端，建立有限元计算模型，见图1。
本船使用3台K50-M高速柴油机推进，采用三机三桨设计，单机额定功率为1342 kW，额定转速为1900 r/min，齿轮箱减速比为4.08：1，螺旋桨转速为466 r/min，其中左、右舷轴系全长为10.037 m，由艉轴、中间轴和齿轮箱的大齿轮轴组成，共有4个轴承。其中，艉管后轴承参数如表1所示。
艉管轴承采用油润滑，艉管后轴承支点位置取L =1/5Lb，艉管前轴承支点位置取轴承长度的中点。

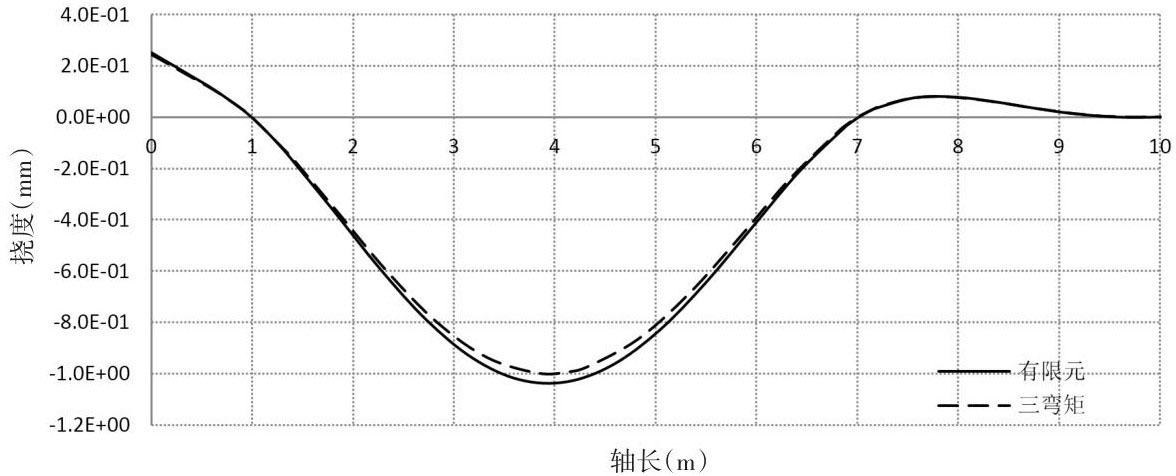

将有限元静态计算结果与CB/Z 338-2005中改进的三弯矩法进行对比，轴系挠度曲线见图2，轴承负荷见表2，可见二者结果基本一致，证明本文有限元模型有效。
由表2可知，齿轮箱后轴承支反力为负，说明齿轮箱后轴承脱空，这是规范所不允许的。而在艉管后轴承支点处，螺旋桨轴与艉管后轴承的相对倾角约为-3.35×10-4 rad，虽然没有超过3.5×10-4 rad，但其倾角为负值，观察图2可发现在艉管后轴承支点处，艉轴为上翘状态，而不是下垂状态。显然，如果艉轴为上翘状态，此时艉管后轴承支承点位置应位于艉管后轴承的前半部分才是合理的（图3），即L >1/2Lb，远远超出CB/Z 338-2005的建议取值。
2　艉轴后轴承等效支撑位置的计算
收起
2.1　多点弹性支撑模型的建立
在船舶轴系校中计算中，考虑螺旋桨的悬臂作用，白合金艉管后轴承的支点位置一般取：L =（1/7~1/3）Lb，但是这种等效处理计算结果不能完整地反映轴承长度方向上各点的负荷分布情况，显然也不适用于图3所示艉轴为上翘时的状态。为了提高轴系校中的准确性和有效性，将轴承沿长度方向分为n个轴承单元，如图3所示，其等效支点距离轴承后端面的距离为
式中：Fn为第n个分轴承处的负荷，Xn为第n个分轴承支点距轴承后端面的距离。
2.2　轴承安装间隙的处理
在轴系安装工艺中，根据轴径大小不同，一般要求轴承与轴之间有0.4~1.6 mm的安装间隙[12]，而在不少文献中轴承的支反力出现了负值[1-2]，但轴的挠度值并没有超过轴承的安装间隙，说明此处轴承虽然脱空，但并没有触及轴承上沿，所以轴承支反力应为0，而不是负值。

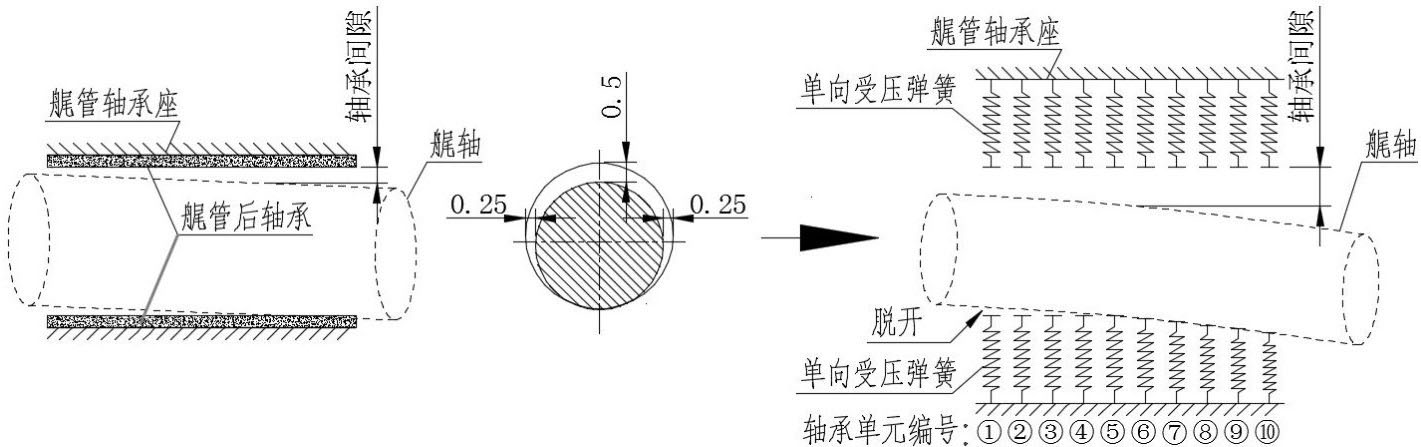

本文使用多点弹性支撑模型对艉管后轴承等效支撑位置进行计算，并做如下改进：在轴承的下沿和上沿分别设置对地的单向受压弹簧，当轴段脱空且挠度值小于轴承安装间隙（0.5 mm）时，弹簧保持自由，轴承支反力为0，整个模型如图4所示。
2.3　基于赫兹接触理论的轴承非线性刚度计算
法国船级社[13]对附加“ESA”弹性校中符号的船舶，提出在静态条件下可用赫兹接触理论计算轴承支反力。本文依据赫兹接触理论，结合有关刚度计算方法，直接计算出轴承单元的载荷-刚度曲线，并应用于后续的校中计算。

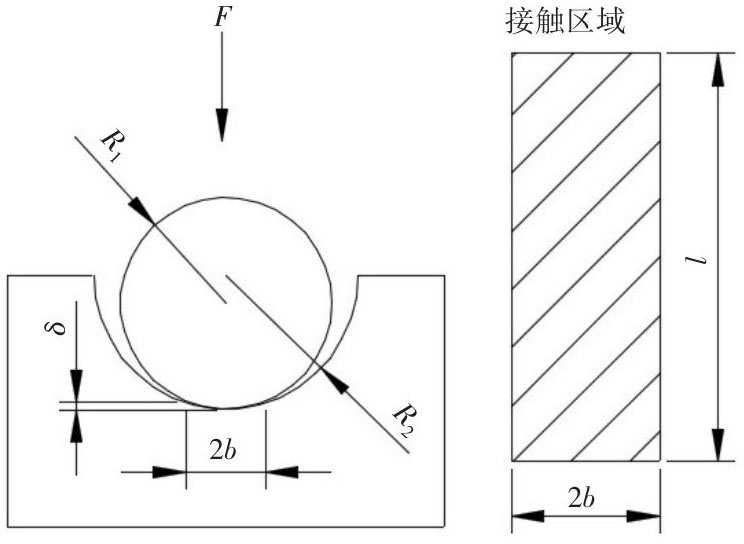

如图5所示，两长度为l的平行圆柱内接，R1 <R2，R1为钢轴，R2为白合金轴承，其弹性模量和泊松比分别E1、E2、μ1、μ2。圆柱在载荷F作用下发生挤压，接触线扩展成一个狭长的面，接触半宽b、最大接触应力Pmax和接触相对位移δ可由以下公式进行计算[14]，刚度k由式（5）给出。
式中：

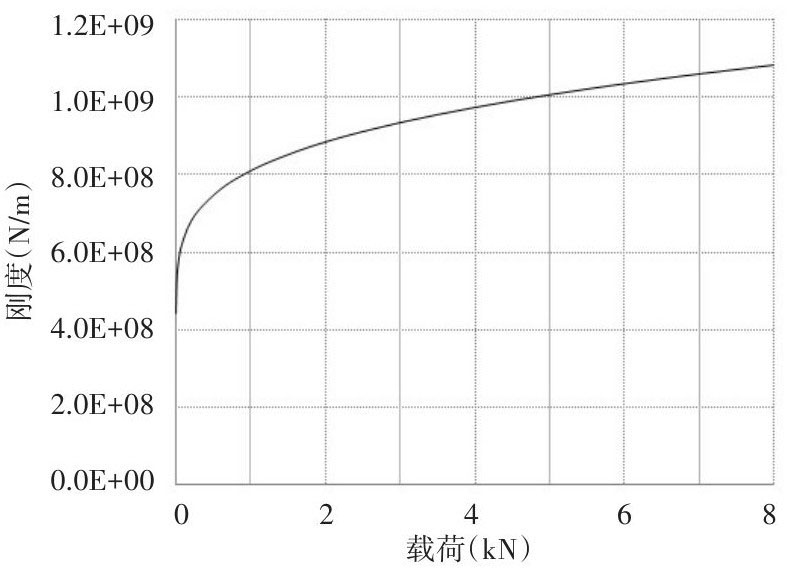

将第1章所述轴系艉管后轴沿长度方向分为10段，每段50 mm，段内忽略转角，可认为是两平行圆柱内接，轴承处轴直径为Ф200 mm，轴承与轴的安装间隙为0.5 mm。钢轴、白合金轴承的弹性模量和泊松比分别取206 GPa和0.3、48 GPa和0.285[15]。在静态条件下，用赫兹接触理论计算出单个轴承单元的载荷-刚度曲线，见图6，可见轴承刚度与载荷呈非线性关系。
2.4　多点弹性支撑模型轴承单元负荷、刚度和等效支点位置计算

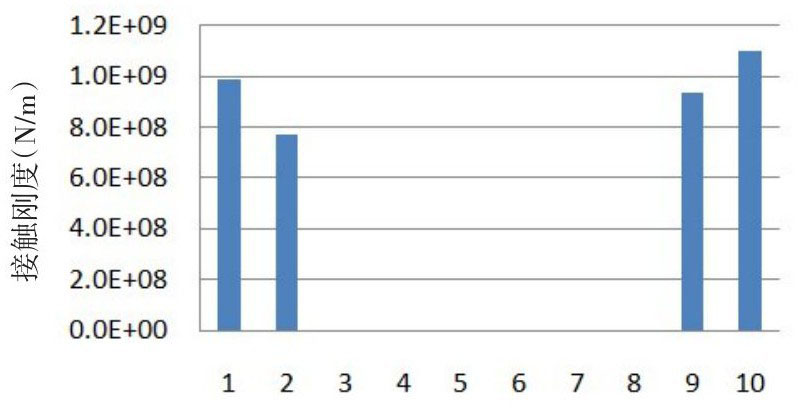

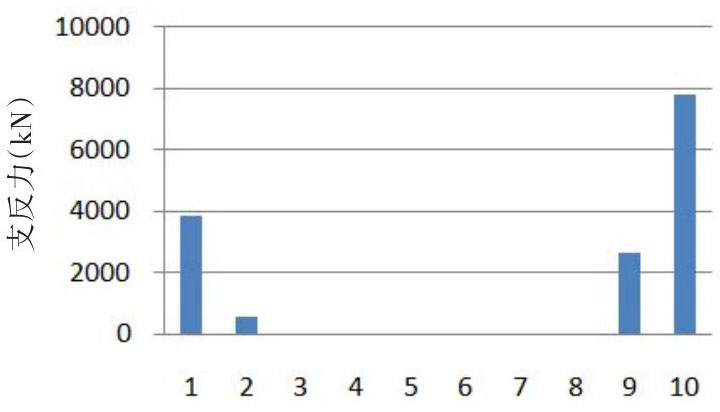

将上述刚度曲线应用到有限元模型，求得各轴承单元支反力和接触刚度，结果如图7和图8所示。其中，编号为③、④、⑤、⑥、⑦、⑧的轴承单元没有支反力，说明轴和轴承单元没有接触。将各刚度相加，得到艉管后轴承总接触刚度为3.8E+09 N/m，与文献[2，16]基本一致，同理可求得艉管前轴承总接触刚度约为2E+09 N/m。
本船齿轮箱大齿轮轴承为圆柱滚子轴承，同样使用赫兹接触理论结合式（5）可以计算出该圆柱滚子轴承的径向刚度[17]约为2E+09 N/m。将图7中各轴承单元负荷代入式（1），算得L =0.67Lb，即艉管后轴承等效支承点位置距该轴承后端面距离约为2/3轴承长度，符合本文第1章中有关支承点位置应位于艉管后轴承前半部分的判断。
为了检验单元体个数选取是否对等效支点的取值有影响，表3列出了2个、5个、10个、20个单元的计算结果对比。结果显示，单元体个数选取5个以上即可获得较高的精度。
3　艉轴大跨距轴系校中
收起
使用本文第1章的有限元模型，结合第2章的内容，分别对表4的几种情况进行静态校中计算，这里只对冷态进行验证，并对齿轮箱前、后轴承偏移相同的值进行求解。其中，艉管前轴承及齿轮箱前、后轴承均为单点支撑，支撑位置取轴承中点。单点弹性支撑时，艉管后轴承刚度取3.8E+09 N/m，艉管前轴承刚度取2E+09 N/m，齿轮箱轴承刚度取2E+09 N/m。10个点非线性弹性支撑刚度按图6选取。
表中“О”代表通过，“×”代表不通过，评判通过与否的标准[5]如下：
（1）在静态下，所有轴承为正负荷，即不出现轴承脱空现象；
（2）轴承负荷不小于相邻两跨距间所有重量总和的20％；
（3）齿轮箱大齿轮前、后轴承负荷之差不超过两轴承之间轴段与大齿轮重量之和的20%。
从表4中可以看出：①L =0.67Lb的解域和L =0.2Lb的解域没有重合区域，在L =0.2Lb时校中通过的轴承偏移取值，用在L =0.67Lb时则无法通过；②后面三种情况的解域则基本重合，说明在轴承支点选取正确的情况下，单点刚性支撑、单点弹性支撑、多点非线性弹性支撑三种模型的计算结果相差不大；③L=0.67Lb的解域大于L =0.2Lb的解域，能容纳较大的安装误差。
4　结论
收起
轴系静态校中计算中，艉管后轴承的等效支点位置取决于其前、后轴系的负荷分布。大型、超大型船舶一般采用大功率、低转速柴油机作为推进主机，并配以大直径轴系及超大、超重螺旋桨传递主机扭矩和螺旋桨推力，这时螺旋桨端的负荷大于前端，取L =（1/7~1/3）Lb是合理的。而中、小型船舶吃水较浅，螺旋桨直径小、转速快，导致螺旋桨端较轻，此时如果艉管前后轴承间距取得稍大，艉管后轴承等效支点距该轴承后端面的距离就将超出CB/Z 338-2005建议的（1/7~1/3）Lb。
实际上，轴承支点位置与轴的转速、螺旋桨设计、轴系具体布置、轴承润滑方式、所取轴承刚度都有关系，在静态和运转状态下也不相同。就本算例来说，艉轴前、后轴承之间轴的长径比为31，在其他条件不变的情况下，艉轴跨距缩短1.5 m，则艉管后轴承支点位于L =Lb/3，此时，艉轴前、后轴承之间轴的长径比为24。
本文基于有限元法，将轴系结构简化为Timoshenko梁单元，建立了有限元模型，并使用不同支撑点位置和多种支撑模型对艉轴大跨距轴系进行了校中计算。同时，考虑船舶轴系实际安装间隙，使用单向受压的非线性弹簧代替常规的弹簧单元，并基于赫兹接触理论计算轴段的载荷-刚度曲线。通过对比分析，得到以下结论：
（1）将艉管后轴承沿长度方向分成N个轴承单元后，每个分轴承单元刚度并不相等，而是与轴承载荷以及实际接触情况有关，单元体建议选取5个以上；
（2）在轴承支点选取正确的情况下，单点刚性支承、单点弹性支承和多点非线性弹性支承三者的各轴承总负荷计算结果相差不大，但是多点非线性弹性支承模型不仅可以给出轴承各处负荷分布，并且同时解决了轴承支点位置选取问题；
（3）对于艉轴大跨距的轴系（比如本算例中艉轴前后轴承之间轴的长径比大于24时），CB/Z 338-2005中对艉管后轴承支点位置的取值已不适合，按其取值可能会导致轴系合理校中结果不合理。此时如找到合适的轴承支点位置，则其刚性支撑模型的校中计算结果也仍然符合轴系的真实情况。
基金
收起
  • 广州船舶及海洋工程设计研究院“沿海钢铝混合单体豪华游船设计”(GCY4131)
文献
收起
参考文献 引证文献
排序方式：
[1]
张敏，张广辉，刘占生，等. 大型船舶推进轴系校中多点非线性弹性支承模型研究[J]. 船舶力学，2016，20(1-2): 176-183.
Zhang Min, Zhang Guanghui, Liu Zhansheng, et al. Research on large ship propulsion shafting alignment multi-nonlinear-elastic support model[J]. Journal of Ship Mechanics, 2016, 20(1-2): 176-183. (in Chinese)
[2]
周瑞平. 超大型船舶推进轴系校中理论研究[D]. 武汉：武汉理工大学，2005.
Zhou Ruiping. The theoretic studies on the propulsion shafting alignment of ultra-large vessels[D]. Wuhan: Wuhan University of Technology, 2005.
[3]
杨红军，李俊，刘镇剑，等. 基于Hertz弹性接触的船舶推进轴系非线性校中计算[J]. 船舶力学，2019，23(2): 218-226.
Yang Hongjun, Li Jun, Liu Zhenjian, et al. Non-linear alignment calculation of ship propulsion shaft based on Hertz contact theory[J]. Journal of Ship Mechanics, 2019, 23(2): 218-226. (in Chinese)
[4]
严新平，李志雄，刘正林，等. 大型船舶推进系统与船体耦合动力学研究综述[J]. 船舶力学，2013，17(4): 439-449.
Yan Xinping, Li Zhixiong, Liu Zhenlin, et al. Study on coupling dynamical theory for interaction of propulsion system and hull of large ships: A review[J]. Journal of Ship Mechanics. 2013, 17(4): 439-449. (in Chinese)
[5]
中国船级社.国内航行海船建造规范[S]. 2021.
China Classification Society. Code for construction of domestic seagoing ships[S]. 2021.
[6]
CB/Z 338-2005，船舶推进轴系校中[S]. 2005.
CB/Z338-2005，Propulsion shaft alignment of ship[S]. 2005.
[7]
徐立华，黄政，周瑞平，等. 《船舶推进轴系校中》国家标准修订的探讨[J]. 武汉船舶职业技术学院学报，2008，3: 38-41.
Xu Lihua, Huang Zheng, Zhou Ruiping, et al. The recension of "propulsion shaft alignment of ship"national standard[J]. Journal Wuhan Institute of Shipbuilding Technology, 2008, 3: 38-41. (in Chinese)
[8]
魏海军，王宏志，等. 船舶轴系校中多支承问题的研究[J]. 船舶力学，2001，5(1): 49-54.
Wei Haijun, Wang Hongzhi, et al. Study on multi-bearings of shipping shaft system alignment[J]. Journal of Ship Mechanics, 2001, 5(1): 49-54.(in Chinese)
[9]
周瑞平，姚世卫，张平，等. 三弯矩方程的理论研究及在轴系校中中的应用[J]. 武汉理工大学学报，2005(05)：76-79.
Zhou Ruiping, Yao Shiwei, Zhang Ping, et al. Theoretic studies of the three-moment equation and its application in the vessel's propulsion shafting alignment[J]. Journal of Wuhan University of Technology, 2005(05): 76-79. (in Chinese)
[10]
张敏. 转子-水润滑橡胶轴承轴系校中特性研究[D]. 哈尔滨：哈尔滨工业大学，2012.
Zhang Min. Research on alignment characteristics of a rotor water lubricated rubber bearing system[D]. Harbin: Harbin Institute of Technology, 2012. (in Chinese)
[11]
余华军. 轴系校中计算时水润滑艉管轴承的等效支点位置分析及影响[J]. 船海工程，2013，4(2): 87-89.
Yu Huajun, The equivalent fulcrum position and its impact of water-lubricated stern tube bearings in shaft alignment calculation[J]. Ship & Ocean Engineering, 2013, 4(2): 87-89. (in Chinese)
[12]
中国船舶工业集团公司，中国造船工程协会.船舶设计实用手册：轮机分册（第3版）[M]. 北京：国防工业出版社，2013.
CSSC, CSNAME. Practical manual for ship design: Turbine fascicule (3rd Edition)[M]. Beijing: National Defense Industry Press, 2013.
[13]
Bureau Veritas. Elastic shaft alignment (ESA)[S]. 2015.
[14]
Johnson K L, Contact mechanics[M]. U K: University of Cambridge, 1985.
[15]
李淑君. 应变电测法测定巴氏合金ZChSnSb11-6力学性能[J]. 科技创新与生产力，2014(07)：104-106.
Li Shujun. Measurement of mechanical properties of Babbitt ZChSnSb11-6 by strain electric method[J]. Sci-tech Innovation & Productivity, 2014(07): 104-106. (in Chinese)
[16]
陈之炎.船舶推进轴系振动[M].上海：上海交通大学出版社，1987.
Chen Zhiyan. Ship propulsion shafting vibration[M]. Shanghai: Shanghai Jiao Tong University Press, 1987.
[17]
吴昊，安琦，等. 弹流润滑圆柱滚子轴承径向刚度的计算[J].轴承，2008，4: 1-4.
Wu Hao，An Qi，et al. Calculation on stiffness of cylindrical roller bearing with EHL[J]. Bearin，2008，4: 1-4. (in Chinese)
