聚能切割钛合金中钛火消弭技术研究
收藏切换
PDF下载
韦众 1 , 王猛 1 , 谢强 1 , 李发耀 1 , 王天玺 1 , 王弈轩 1 , 宣海军 2 , 何泽侃 2
爆破 | 理论与技术探索 2025,42(2): 60-66
收起
收藏切换
爆破 | 理论与技术探索 2025, 42(2): 60-66
聚能切割钛合金中钛火消弭技术研究
全屏
韦众1 , 王猛1 , 谢强1, 李发耀1, 王天玺1, 王弈轩1, 宣海军2, 何泽侃2
作者信息
  • 1.安徽理工大学　化工与爆破学院，淮南　232001
  • 2.浙江大学　高速旋转机械实验室，杭州　310027

    • 韦众（2000-），男，安徽阜阳，硕士研究生，主要从事爆破理论与技术研究，（E-mail）。

    WEI Zhong (2000-), male, born in Fuyang city, Anhui province, postgraduate student, mainly engaged in the blasting theory and technology research, (E-mail).

通讯作者:

王猛（1974-），男，安徽淮南，博士、教授，主要从事爆炸力学、计算力学研究，（E-mail）。
Study on Titanium Fire Suppression Technology in Shaped Charge Cutting of Titanium Alloys
Zhong WEI1 , Meng WANG1 , Qiang XIE1, Fa-yao LI1, Tian-xi WANG1, Yi-xuan WANG1, Hai-jun XUAN2, Ze-kan HE2
Affiliations
  • 1.School of Chemical and Blasting Engineering, Anhui University of Science and Technology, Huainian 232001, China
  • 2.High-speed Rotating Machinery Laboratory, Zhejiang University, Hangzhou 310027, China
出版时间: 2025-06-01 doi: 10.3963/j.issn.1001-487X.2025.02.007
文章导航
收藏切换
摘要
收起

在航空发动机机匣包容试验中，钛合金叶片采用爆炸分离法定速飞脱时，存在明亮钛火现象，阻碍高速摄像捕捉叶片飞脱过程。为此，先分析了钛火产生机理，提出了阻碍层方法消弭聚能切割钛合金中的钛火。再用AUTODYN欧拉算法对此过程进行数值计算，探究阻碍层阻挡作用及消弭钛火可行性。最后通过实验定量分析4种材料阻碍层的钛火消弭效果。结果表明：0.1 mm厚铝箔和锡箔钛火消弭率分别为29.5%、24%，效果一般；0.1 mm厚紫铜片消弭率仅4.3%，效果较差；而0.1 mm厚铝硅酸盐涂层消弭率高达70.9%，效果最佳。总结了阻碍层消弭钛火机理，验证了其在聚能切割钛合金中的有效性，为聚能切割爆炸分离钛合金中钛火消弭提供了思路和方法。

聚能切割  /  钛合金  /  数值计算  /  钛火消弭  /  阻碍层

During aero-engine casing containment tests, the explosive separation method used to achieve the constant-speed fly-off of titanium alloy blades often produces a bright titanium fire phenomenon. This titanium fire obstructs high-speed camera recording of the blade fly-off process. To address this issue, this study analyzed the mechanism of titanium fire generation and proposed a barrier layer method to suppress titanium fire during shaped energy cutting of titanium alloys. Numerical simulations using the Euler algorithm in AUTODYN were conducted to evaluate the blocking effect of the barrier layer and its feasibility for titanium fire suppression. Experimental investigations were then performed to quantitatively assess the brightness reduction of titanium fire, comparing the effectiveness of four barrier materials. The results indicate that 0.1mm thick aluminum and titanium tin foil achieve titanium fire suppression rates of 29.5% and 24%, respectively, demonstrating moderate effectiveness. A 0.1 mm thick copper sheet shows poor performance with a suppression rate of only 4.3%, while a 0.1 mm thick aluminum silicate coating exhibits the best performance, achieving a suppression rate of 70.9%. This study has summarized the mechanism of titanium fire suppression suing barrier layers during shaped energy cutting of titanium alloy plates and validated the feasibility of the barrier layer method. The findings can provide a practical approach for titanium fire elimination in explosion separation processes involving shaped energy cutting of titanium alloys.

shaped energy cutting  /  titanium alloy  /  numerical calculation  /  titanium fire elimination  /  barrier layer
韦众, 王猛, 谢强, 李发耀, 王天玺, 王弈轩, 宣海军, 何泽侃. 聚能切割钛合金中钛火消弭技术研究. 爆破, 2025 , 42 (2) : 60 -66 . DOI: 10.3963/j.issn.1001-487X.2025.02.007
Zhong WEI, Meng WANG, Qiang XIE, Fa-yao LI, Tian-xi WANG, Yi-xuan WANG, Hai-jun XUAN, Ze-kan HE. Study on Titanium Fire Suppression Technology in Shaped Charge Cutting of Titanium Alloys[J]. Blasting, 2025 , 42 (2) : 60 -66 . DOI: 10.3963/j.issn.1001-487X.2025.02.007
正文
收起
航空发动机机匣包容试验是为了测试检验机匣对飞脱后转子叶片的容限[1]。郭明明等采用预制裂纹与线性聚能切割器爆破切割相结合的爆破飞脱方法进行了静态爆破切割实验[2]，证明了聚能切割爆炸分离航空发动机叶片方法具有较强的可行性和可靠性。陈刚对线性聚能射流爆炸分离钛合金进行研究[3]，探究了在一定开槽深度下成功分离钛合金板的方案。线性聚能切割器早已在采石、水下工程及石油等领域广泛应用[4,5]，且便于操作、精准可控，采用线性聚能切割器爆炸分离方法已经成为常用的航空发动机叶片飞脱方法。在采用爆炸分离的方法开展机匣包容试验时，要求记录转子叶片在特定转速和特定角度时断裂飞脱的情况。在使用高速摄像对叶片飞脱断裂过程进行拍摄时，爆炸分离瞬间产生的明亮钛火会遮蔽视场，阻碍观测记录。因此，必须尽量减少爆炸切断转子叶片过程中产生的钛火。
综上所述，目前尚缺乏针对航空发动机叶片聚能切割爆炸分离过程中钛火消减的研究。为此，本研究在分析聚能切割钛合金叶片产生钛火的机理后，提出使用轻薄阻碍层的方法消弭钛火，借助AUTODYN中欧拉方法模拟计算聚能切割TC4钛合金板过程中阻碍层的阻挡作用，并用4种材料开展钛火消弭实验研究，结合实验结果验证该方法的可行性。以期解决聚能切割钛合金叶片实验中钛火影响高速摄像拍摄的问题，同时为航空发动机机匣包容试验中爆炸分离钛合金叶片提供有效的钛火消弭方法。
1　钛火产生机理分析
收起

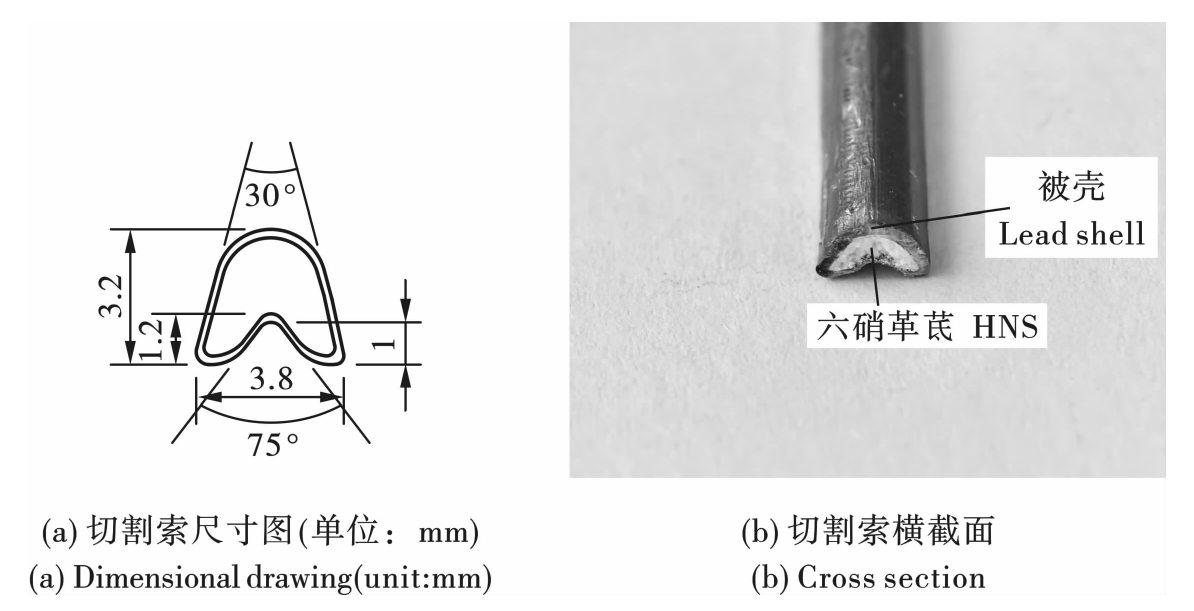

在爆炸分离钛合金实验中使用的聚能切割索的截面图尺寸及实物如图1所示，切割索的装药为六硝基茋(HNS)，被壳和药型罩均由铅合金一次拉拔成型。
在爆炸切割钛合金板材过程中，切割索中六硝基茋被引爆后，产生高温高压的爆轰产物挤压药型罩形成金属射流。金属射流速度远大于爆轰产物膨胀飞散速度，金属射流率先接触并侵彻钛合金板。爆轰产物的温度约为3700 ℃，随后与高温爆轰产物接触的钛合金温度立即升高[6]。当钛合金局部温度超过其燃点时，争夺置换空气中的氧及爆生气体产物如二氧化碳、一氧化碳、水等氧化物中的氧，发生氧化还原反应，产生明亮的钛火[7]。对钛合金叶片进行聚能切割爆炸分离时产生的明亮钛火现象如图2所示。
综上所述，爆炸分离钛合金过程中钛火的产生，主要归因于高温爆轰产物对钛合金表面的剧烈升温作用。因此，减少爆轰产物对钛合金的剧烈升温作用，使两者接触部分的大部分钛合金温度不能达到其燃点，可减少钛火的产生。一方面，降低爆轰产物温度可以达到上述目的，但是降低爆温的同时会减小装药的猛度。经过实验测试发现，直接降低爆温情况下钛火消弭效果甚微，而装药的猛度会大幅减小。另一方面，在不降爆温的情况下，使用阻碍层阻挡爆轰产物，可降低其对钛合金表面的升温作用。阻碍层在极短时间内阻挡爆轰气体，使其膨胀降温，从而大幅降低与钛合金接触后的升温作用，进而大幅度消减钛火。
分析钛火产生机理后发现，在聚能切割钛合金中采用阻碍层方法可以消弭钛火。具体而言，可寻找某种材料，涂覆或贴附在钛合金表面。在射流侵彻切割过程中，阻碍层可阻挡、延迟爆轰产物与钛合金接触，降低钛合金升温，从而消减钛火。阻碍层需薄而适之，以免过厚阻碍射流。聚能切割时，微小射流切刀先击穿阻碍层，再侵彻钛合金板，形成的微小切口仅容射流通过。爆轰产物膨胀至阻碍层时，会破坏阻碍层后才与钛合金接触，阻碍层使爆轰产物短时间内温度大幅下降，并且阻碍层在短时间内隔绝爆轰产物和空气的接触，使钛合金不能立即与高温爆轰产物发生反应，从而有效减少钛火产生。
根据金属介质的隔爆能力可知，铝、铜的隔爆性能良好[8]。由限氧热解制备生物炭的原理可知[9]，锡箔纸具有较好的隔热性能。此外，铝硅酸盐轻质且具有良好的耐热与阻燃性能[10]。由此，本文拟选用铝箔、紫铜片、锡箔、铝硅酸盐涂层作为阻碍层材料，以消弭钛火。
2　数值计算
收起
2.1　计算模型
在爆炸切割过程中，材料出现大变形量，属于求解大变形问题，更适宜用欧拉算法求解该过程[11]。为验证采用阻碍层方法消弭钛火的可行性，模拟计算了射流和爆轰产物对阻碍层、钛合金的作用的物理过程，以此分析阻碍层的作用机理。计算模型中TC4钛合金板的尺寸10 mm×10 mm，钛合金板居中开槽，凹槽的宽度为4.2 mm，深度为7 mm。为确保模拟的精确性，模型中网格的最小单元尺寸被设定为0.02 mm，整个模型的总网格数达到了250 000。阻碍层紧贴钛合金凹槽内侧隔绝聚能切割索与钛合金板的接触。将阻碍层材料选为厚度0.1 mm的紫铜。

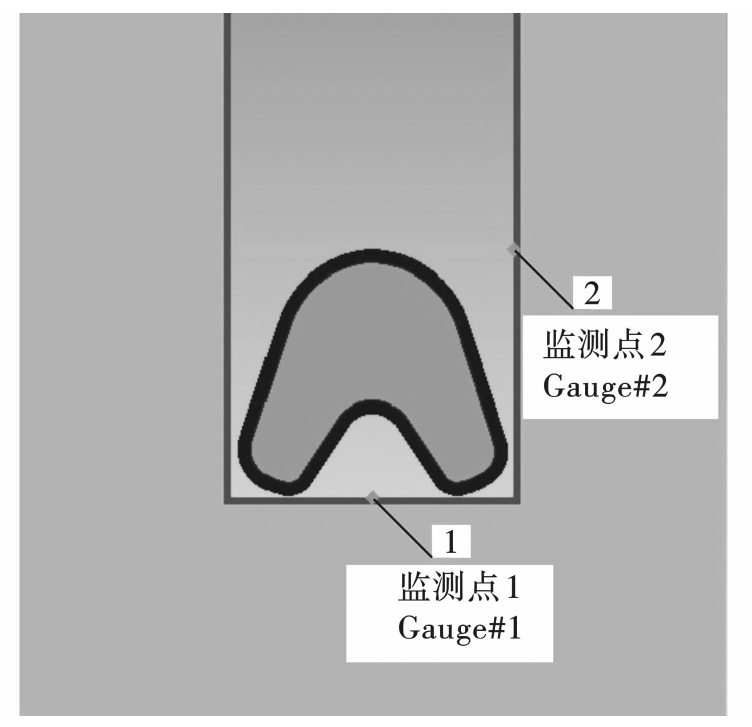

为探究阻碍层对爆轰产物的阻挡作用，在构建的模型中设置了两个监测点，用于监测聚能射流速度及爆轰产物膨胀速度随时间的动态变化情况。TC4钛合金板、聚能切割索及阻碍层材料的2D模型及其监测点如图3所示。
TC4钛合金板材、聚能装药外壳和钛火消弭材料采用Johnson－Cook材料模型参数，炸药采用JWL状态方程，TC4钛合金、紫铜、HNS等材料参数见表1~表4所示[12,13]。
2.2　计算结果与分析

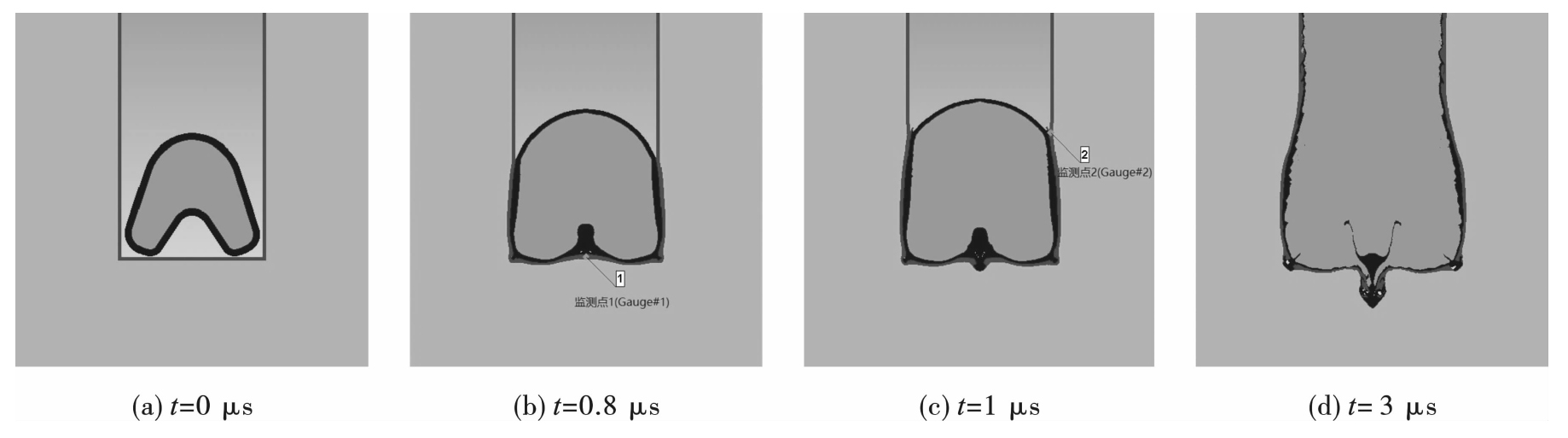

不同时刻聚能切割钛合金板的求解结果如图4所示。

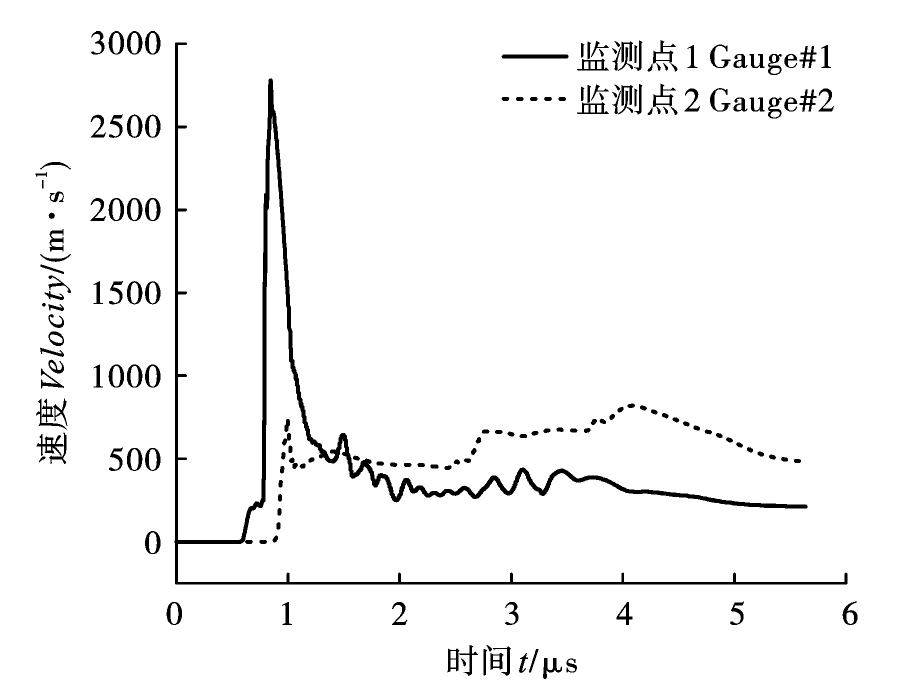

由图4和图5可知，切割索起爆后，射流在t＝0.8 μs开始侵彻紫铜阻碍层，此时射流到达监测点1，射流头部速度约为2780 m/s。爆轰产物在t＝1 μs时膨胀接触到凹槽两侧紫铜阻碍层，爆轰产物膨胀飞散到监测点2，其速度约为744 m/s，射流速度远大于爆轰产物的质点运动速度。在t＝3 μs时，细小射流切刀侵入钛合金中，且破坏紫铜阻碍层形成的切口较小。爆轰产物随后膨胀到达钛合金板底部监测点1，此时爆轰产物速度约为300 m/s。爆轰产物在膨胀中被紫铜层阻挡，破坏紫铜层后接触钛合金，在t＝3 μs时才有少量爆轰产物直接与钛合金表面接触。这一过程充分展现了紫铜阻碍层在延迟爆轰产物与钛合金接触、在短时间内隔绝爆轰产物和空气的接触，使钛合金不能立即与高温爆轰产物发生反应，降低高温爆轰产物对钛合金升温作用及阻挡减少氧化反应发生方面所发挥的关键作用。
当射流侵彻基本结束时，仍有部分紫铜贴附钛合金板凹槽表面。说明紫铜层在爆炸切割过程中，有效阻碍了爆轰产物与钛合金的接触，可以降低对钛合金表面的热升温作用，从而减少了钛火的产生。计算结果也可以验证采用阻碍层方法在聚能切割中消弭钛火的可行性。
3　实验
收起
3.1　材料与仪器设备
实验材料与仪器：TC4钛合金板(100 mm×60 mm×23 mm)、聚能切割索、电子雷管、0.1 mm厚铝箔、0.1 mm厚紫铜片、0.1 mm厚锡箔纸、铝硅酸盐(Na2[(AlO2)·2SiO2])、高速摄像机等。
3.2　实验过程
在综合考虑阻碍层材料的各项要求后，明确所选材料应具备不易燃或具有较好阻燃性的特点，并且其厚度需要尽可能小。基于这些标准，最终选择了4种材料进行钛火消弭实验，分别为铝箔、紫铜片、锡箔纸、铝硅酸盐涂层。特别地，对于铝硅酸盐材料，先将其用水调制成胶糊状，然后均匀地涂覆在待处理的钛合金表面上。待涂层中的水分完全蒸发并干燥后，再进行后续的钛火消弭实验。这种处理方法旨在充分发挥铝硅酸盐的阻燃特性，以达到有效消弭钛火的目的。

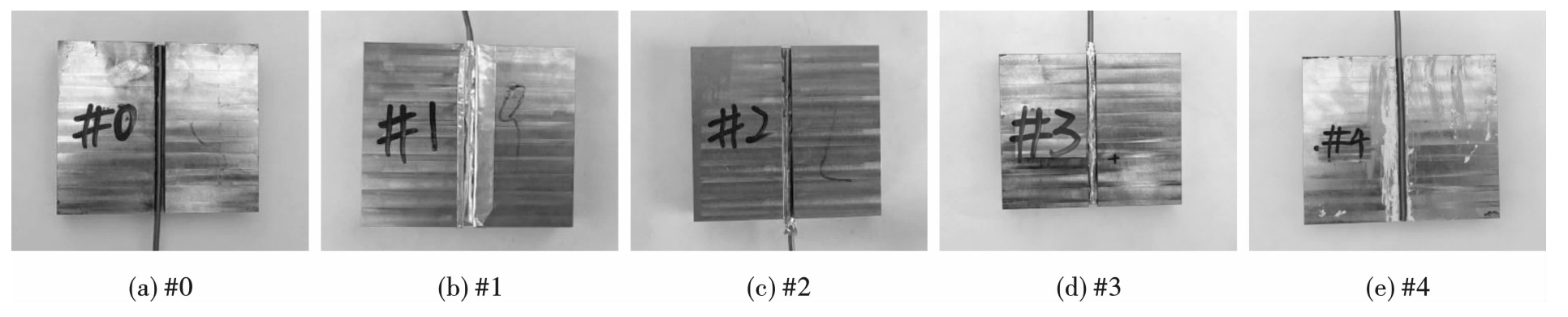

依次使用上述4种材料贴附或涂覆于TC4钛合金板的凹槽内侧，将聚能切割索紧贴凹槽底部放置并预留5 cm长超出凹槽，用阻碍层材料将聚能切割索与钛合金板隔开，装配后的钛合金板如图6所示。4种实验材料排序编号为#1~#4，空白对照实验编号为#0，共5组实验如表5所示。如此，便能够系统地评估不同阻碍层材料在钛火消弭效果上的差异，进而为选择最优的阻碍层材料提供科学依据。
使用胶带固定聚能切割索，并将电子雷管与超出凹槽的切割索绑紧。随后，将已经装配好切割索的待实验钛合金板放置于密闭实验室内的平台上，借助夹具将其稳稳地夹紧固定，并安装调试高速摄像，确保其能够精准捕捉实验过程中的关键细节。最后，按照按#0~#4的顺序依次实验并保存实验数据。
4　结果与讨论
收起
4.1　钛火测定结果

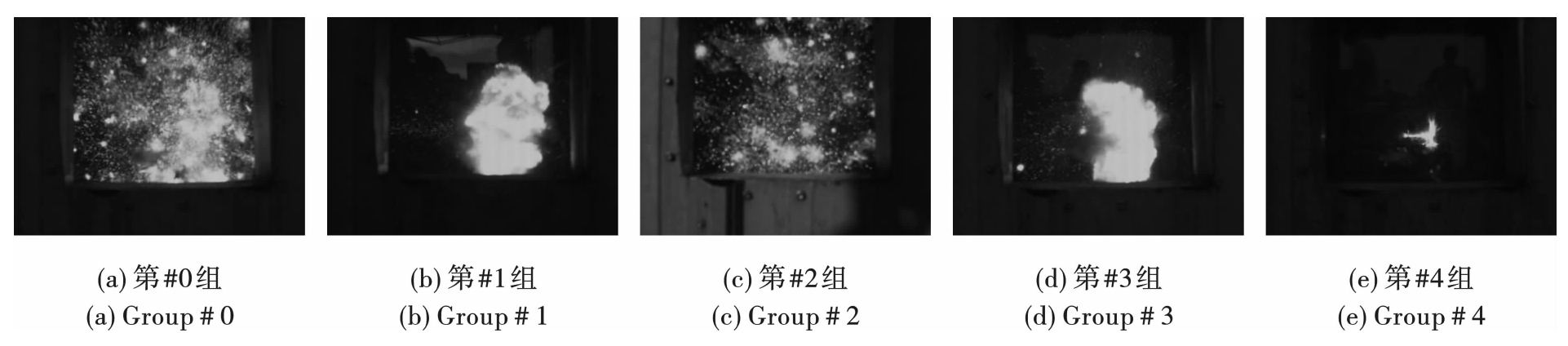

将上述5组实验中拍摄的爆炸切割钛合金过程中钛火图片进行对比，依次选取每组亮度最大的钛火图片如图7所示。
4.2　钛火亮度定量
图像的亮度值是指画面的明亮程度，单位是坎德拉每平方米(cd·m－2)或称nits。对于数字图像，亮度通常与像素的灰度值相关。在灰度图像中，亮度即灰度值，范围通常是0到255，其中0表示黑色，255表示白色。计算亮度时，可以直接读取或修改这些灰度值[14]。

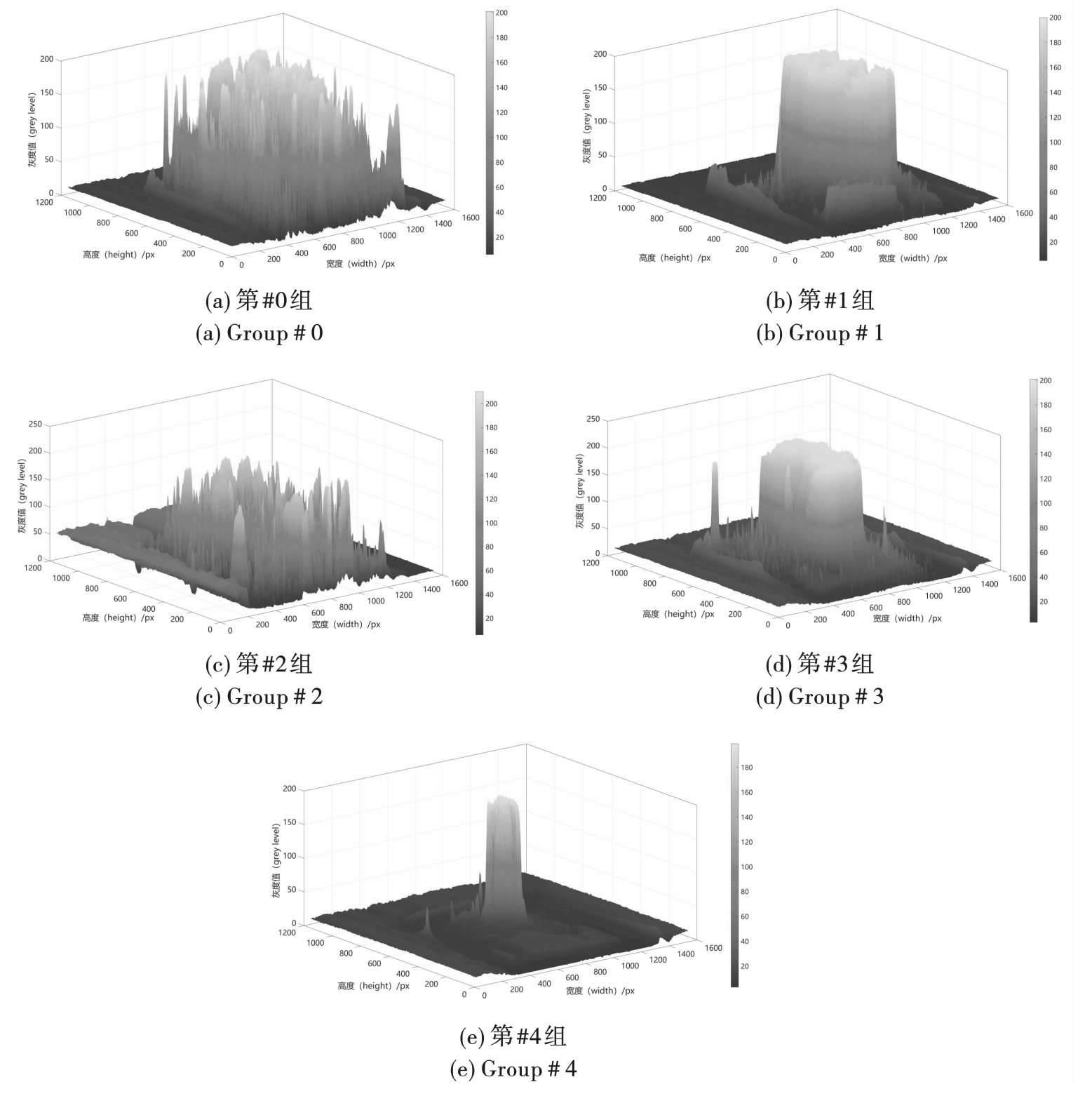

为对聚能切割钛合金中产生的钛火亮度进行定量化分析，采用高速摄像拍摄此过程中钛火图片。然后再对所得图像进行处理，得到不同图片亮度平均值。一般应用于图像亮度处理方法有使用专业图像处理软件、编程软件MATLAB，python等。如在MATLAB中先用imread函数读取图片文件，将彩色图片转换为灰度图片，再使用mean函数计算矩阵计算图片的像素亮度值的平均值，从而得到图片的平均亮度值[14]。
本次钛火消弭实验中，高速摄影的条件(位置、设置等)及钛合金板固定位置均一致，图片尺寸大小和背景也相同。因此，5张图片中钛火的平均亮度可反映不同防护材料的消弭效果。经MATLAB处理得到的各图像亮度平均值见表6，并绘制了钛火消弭结果灰度值三维图(图8)。
从表6和图8分析结果来看，所选用的4种实验材料均展现出了不同程度的钛火消弭效果。其中，0.1 mm厚铝硅酸盐涂层的钛火消弭效果最佳，其钛火消弭率高达70.9%，这说明了铝硅酸盐在钛火消弭过程中具有良好的阻燃性能。然后是0.1 mm厚铝箔和锡箔纸，其钛火消弭率分别为29.5%和24%，这表明铝箔和锡箔在钛火消弭过程中也具有一定的阻燃特性，能够在一定程度上有效抑制钛火的产生。然而，0.1 mm厚的紫铜片在钛火消弭效果上相对较弱，其钛火消弭率仅为4.3%，这反映出紫铜在钛火消弭过程中阻燃性能相对较差。综上所述，不同材料在钛火消弭效果上的差异明显，这些实验结果为后续选择更适合的阻碍层材料提供了重要的参考依据。
通过数值模拟分析，并结合钛火消弭实验所获得的结果，分析得出阻碍层消弭钛火的机理为：阻碍层能够有效阻挡并延缓爆轰产物、空气与钛合金的直接接触，从而显著降低爆轰产物导致的钛合金的剧烈升温效应和氧化反应。这一过程中阻碍层可以在短时间内隔绝爆轰产物和空气的接触，使钛合金不能立即与高温爆轰产物发生反应，且阻碍层的阻挡作用使得与爆轰产物接触之后的部分钛合金的温度未能达到燃点，两者综合作用有效降低了钛火的产生几率。此外，这一结果也证实了在聚能切割钛合金板材的过程中，采用阻碍层方法来消弭钛火的可行性。实验与模拟结果的相互印证，提供了一种切实有效的技术手段，可以用来解决航空发动机叶片聚能切割爆炸分离过程中钛火遮蔽视场的问题。
5　结论
收起
在分析聚能切割钛合金中钛火产生机理的基础上，通过数值计算并实验测试了4种材料的钛火消弭效果，开展了聚能切割钛合金中钛火消弭技术研究，结论如下：
(1)钛火消弭机理为：阻碍层阻挡爆轰产物、空气与钛合金的接触，延迟和减少爆轰产物对钛合金的剧烈升温作用及氧化反应的发生。
(2)采用轻薄阻碍层方法能有效消弭聚能切割TC4钛合金时产生的钛火。结果表明，0.1 mm厚铝箔、紫铜片、锡箔纸、铝硅酸盐涂层的钛火消弭率分别为29.5%、4.3%、24%、70.9%。其中，铝硅酸盐涂层的钛火消弭效果最佳。
(3)本研究为聚能切割钛合金叶片消弭钛火提供了有效方法，为航空发动机机匣包容试验中解决聚能切割分离叶片时钛火干扰观测问题提供了技术途径。
文献
收起
参考文献 引证文献
排序方式：
[1]
刘闯, 陈国栋, 黄福增, 等. 航空发动机机匣包容性试验研究[J]. 航空发动机, 2020, 46(3): 71-76.
LIU Chuang, CHENG Guo-dong, HUANG Fu-zeng, et al. Study on aero-engine casing containment test[J]. Aeroengine, 2020, 46(3): 71-76. (in Chinese)
[2]
郭明明, 吕登洲, 洪伟荣, 等. 航空发动机机匣包容试验叶片飞脱方法[J]. 航空发动机, 2016, 42(2): 73-76.
GUO Ming-ming, LV Deng-zhou, HONG Wei-rong. et al. Blade out methods of aeroengine case containment test[J]. Aeroengine, 2016, 42(2): 73-76. (in Chinese)
[3]
陈刚. 不同装药方式下爆炸分离TC4钛合金板的研究[D]. 淮南: 安徽理工大学, 2023.
CHEN Gang. Study on explosive separation of TC4 titanium alloy plate under different charging methods[D]. Huainan: Anhui University of Science and Technology, 2023. (in Chinese)
[4]
时党勇, 李裕春. 基于ANSYS/LS-DYNA进行显示动力分析[M]. 北京: 清华大学出版社, 2005: 44-50.
SHI Dang-yong, LI Yu-chun. Explicit dynamic analysis based on ANSYS/LSDYNA[M]. Beijing: Tsinghua University Press, 2005: 44-50. (in Chinese)
[5]
亨利奇J. 爆炸动力学及其应用[M]. 熊建国, 译. 北京: 科学出版社, 1987: 225-229.
HENRICH J. Explosion dynamics and its application[M]. Translated by XIONG Jian-guo. Beijing: Science Press, 1987: 225-229. (in Chinese)
[6]
张立, 吴红波. 爆破器材测试技术[M]. 合肥: 中国科学技术大学出版社, 2018: 377-389.
ZHANG Li, WU Hong-bo. Explosive materials testing technology.[M]. Hefei: Press of University of Science and Technology of China, 2018: 377-389. (in Chinese)
[7]
邵磊. 航空领域用典型钛合金的燃烧行为与机理研究[D]. 北京: 北京科技大学, 2022.
SHAO Lei. Combustion behavior and mechanism of typical titanium alloys for aircraft[D]. Beijing: University of Science and Technology Beijing, 2022. (in Chinese)
[8]
蔡瑞娇. 火工品设计原理[M]. 北京: 北京理工大学出版社, 2002: 324-329.
CAI Rui-jiao. Principles of explosive devices design[M]. Beijing: Beijing Institute of Technology Press, 2002: 324-329. (in Chinese)
[9]
葛丽炜, 夏颖, 刘书悦, 等. 热解温度和时间对马弗炉制备生物炭的影响[J]. 沈阳农业大学学报, 2018, 49(1): 95-100.
GE Li-wei, XIA Ying, LIU Shu-yue, et al. Effect of pyrolysis temperature and time on biochar production in a muffle furnace[J]. Journal of Shenyang Agricultural University, 2018, 49(1): 95-100. (in Chinese)
[10]
贾德昌, 何培刚, 苑景坤, 等. 铝硅酸盐聚合物及其复合材料研究进展[J]. 硅酸盐学报, 2017, 45(12): 1721-1737.
JIA De-chang, HE Pei-gang, YUAN Jing-kun, et al. Preparation and properties of aluminum silicate polymer composite foam material[J]. Journal of the Chinese Ceramic Society, 2017, 45(12): 1721-1737. (in Chinese)
[11]
门建兵, 蒋建伟, 王树有. 爆炸冲击数值模拟技术基础[M]. 北京: 北京理工大学出版社, 2015: 75-84.
MEN Jian-bing, JIANG Jian-wei, WANG Shu-you. Foundamentals of numerical simulation for explosion and shock problems[M]. Beijing: Beijing Institute of Technology Press, 2015: 75-84. (in Chinese)
[12]
辛春亮, 薛再清, 涂建, 等. 有限元分析常用材料参数手册[M]. 北京: 机械工业出版社, 2019.
XIN Chun-liang, XUE Zai-qing, TU Jian, et al. Manual of common material parameters for finite element analysis[M]. Beijing: Machinery Press, 2019. (in Chinese)
[13]
栗保华, 畅博, 张立建, 等. 装药密度对炸药JWL状态方程的影响[J]. 兵器装备工程学报, 2021, 42(1): 174-178.
JIA Bao-hua, CHANG Bo, ZHUANG Li-jian, et al. Effect of charge density on the explosive JWL equation of state[J]. Journal of Ordnance Equipment Engineering, 2021, 42(1): 174-178. (in Chinese)
[14]
杨丹, 赵海滨, 龙哲, 等. MATLAB图像处理实例详解[M]. 北京: 清华大学出版社, 2013.
YANG Dan, ZHAO Hai-bing, LONG Zhe, et al. MATLAB Image processing example details[M]. Beijing: Tsinghua University Press, 2013. (in Chinese)
