较完整硬质岩消聚能爆破数值模拟及应用
收藏切换
PDF下载
陈育权 1 , 李大中 1 , 李明泽 2 , 陈明 2
爆破 | 矿岩爆破 2025,42(2): 88-96
收起
收藏切换
爆破 | 矿岩爆破 2025, 42(2): 88-96
较完整硬质岩消聚能爆破数值模拟及应用
全屏
陈育权1 , 李大中1, 李明泽2, 陈明2
作者信息
  • 1.中国水利电力对外有限公司，北京　100120
  • 2.武汉大学　水资源工程与调度全国重点实验室，武汉　430072

    • 陈育权（1983-），男，安徽安庆人，高级工程师，从事水利水电工程项目管理工作，（E-mail）。

    CHEN Yu-quan (1983-), male, born in Anhui Anqing, senior engineer, engaged in water conservancy and hydropower engineering project management, (E-mail) .

通讯作者:

陈明（1977-），男，博士、教授，主要从事工程爆破与岩石动力学研究，（E-mail）。
Numerical Simulation and Application of Energy Dissipation Blasting for Relatively Intact Hard Rock
Yu-quan CHEN1 , Da-zhong LI1, Ming-ze LI2, Ming CHEN2
Affiliations
  • 1.China International Water & Electric Corp, Beijing 100120, China
  • 2.State Key Laboratory of Water Resources Engineering and Management, Wuhan University, Wuhan 430072, China
出版时间: 2025-06-01 doi: 10.3963/j.issn.1001-487X.2025.02.011
文章导航
收藏切换
摘要
收起

为探索在较完整硬质岩条件下，实现水电站溢洪道快速开挖的新方法。针对老挝南公1水电站溢洪道保护层的特殊开挖需求，提出了一种基于水耦合的新型消聚能爆破技术。该技术使炮孔内压力更大，引起的应力更强，有利于较硬质岩体的开挖。利用LS-DYNA软件进行仿真分析，反映了孔底堵塞段与水耦合装药可以增大炮孔壁荷载峰值，延长爆炸荷载的作用时间延长，进一步影响孔底较硬岩体的破碎。结果表明：采用孔底增设堵塞和水耦合装药的方案能够加深侧向损伤深度，延长荷载作用时间，从而在较完整的硬质岩中实现更有效的开挖成型。通过数值仿真和现场试验参数的综合评估，证实了该方案在实际工程中，可以提高一级消力池底板的开挖成型效果。

硬质岩  /  溢洪道开挖  /  消聚能爆破  /  数值仿真  /  开挖成型效果

A novel energy dissipation blasting technique based on water coupling is proposed to explore new methods for rapid excavation of spillway protection layers in hydropower stations under relatively intact hard rock conditions. This method specifically addresses the excavation requirements of the Nam Kong 1 Hydropower Station spillway in Laos. By increasing borehole pressure, the technique generates stronger stress, which is advantageous for excavating hard rock formations. Simulation analysis using LS-DYNA software demonstrates that coupling water-charged explosives with a blocked borehole bottom amplifies the peak load on the borehole walls and extends the explosive load duration, thereby improving the fragmentation of harder rock at the borehole bottom. Results indicate that the combination of bottom-hole blockage and water-coupled charges increases lateral damage depth and prolongs load application time, thus achieving more effective excavation and formation in relatively intact hard rock. Comprehensive evaluations based on numerical simulations and field test parameters confirm that this approach significantly improves the quality of excavation and formation of the first-stage stilling basin floor in practical engineering applications.

hard rock  /  spillway excavation  /  dissipation and accumulation energy blasting  /  numerical simulation  /  excavation shaping effect
陈育权, 李大中, 李明泽, 陈明. 较完整硬质岩消聚能爆破数值模拟及应用. 爆破, 2025 , 42 (2) : 88 -96 . DOI: 10.3963/j.issn.1001-487X.2025.02.011
Yu-quan CHEN, Da-zhong LI, Ming-ze LI, Ming CHEN. Numerical Simulation and Application of Energy Dissipation Blasting for Relatively Intact Hard Rock[J]. Blasting, 2025 , 42 (2) : 88 -96 . DOI: 10.3963/j.issn.1001-487X.2025.02.011
正文
收起
随着工业化进程的不断发展，工程爆破技术广泛应用于隧道开挖、采矿采石和边坡开挖等各个领域[1]。在水利水电工程建设中，基岩的开挖效果与高效率存在着重要矛盾。受冲击波与爆生气体的作用，基岩的爆破开挖会产生爆破振动、爆破粉尘以及爆破飞石等负面影响，导致爆破效果难以控制，同时会对结构内部产生动力扰动，从而形成损伤区。这不仅会延长工期，更会对工程安全稳定的运行产生影响。因此，对于开挖引起的损伤问题研究一直是岩石动力学的热点[2-4]。损伤区的大小与分布直接影响着爆破块石分布、边坡成型效果，因此，亟需开展关于如何在基岩开挖爆破过程中控制损伤区域的研究。
为了降低爆破荷载对基岩的影响，在邻近建基面的开挖成型过程中，国内外普遍采用了预留保护层的方法。在长期工程实践中，一系列的保护层控制开挖方法得以总结和形成。常见的岩石基础保护层开挖方法有以下四种方法：(1)传统的保护层分层爆破开挖法[5]；(2)孔底充填柔性垫层的小梯段孔间微差顺序起爆法[6]；(3)水平预裂法[7]；(4)保护层一次爆除的水平光面爆破法[8]，这些传统方法都存在局限性。目前，卢文波等[9]、胡浩然等和Liu等先后结合了白鹤滩水电站[10-12]，提出了一种在复合垫层保护下的水平建基面开挖和松砂缓冲层的消聚能爆破技术，成功地解决了白鹤滩水电站坝基快速开挖的技术难题。消聚能爆破方式的独特优势，使其成功地应用到其他工程[13,14]。但这些研究缺乏消聚能爆破技术对硬质岩的作用情况与讨论，需要进一步展开相关的研究与应用。
上述研究中的常规复合消聚能爆破技术对于非硬质岩具有较好的效果，但当岩体强度较高，传统的复合消聚能爆破技术在节理不发育的坚硬岩体中的应用有待优化。因此需要结合不同的开挖条件，设计不同的结构形式，寻求适用于溢洪道硬岩的复合消聚能爆破技术。本文结合南公1水电站溢洪道保护层开挖，首先进行了硬质岩消聚能爆破数值模拟分析，并将其应用到实际工程中，在溢洪道保护层基础开挖中取得了较好的效果。
1　工程概况
收起
南公1水电站位于老挝南部阿速坡省的南公河上，是老挝、越南、柬埔寨交界处的重要项目。该站距离阿速坡省城约53 km，距万象约958 km，距越南岘港约464 km，距泰国曼谷约1167 km。南公1水电站是二等大(2)型工程，主要用于发电，并兼具防洪、灌溉、交通、航运、旅游和促进地区经济发展的功能。工程包括首部枢纽和引水发电系统，首部枢纽由面板堆石坝、左岸溢洪道、左岸导流隧洞和右岸电站进水口组成；引水发电系统由电站进水口、引水隧洞、上游调压井、竖井、压力管道、地下厂房洞室群、尾水支洞、尾水隧洞和尾水出口等构成，布置在右岸，采用单洞两机布置方式。
主要挡水建筑为混凝土面板堆石坝，位于主河道，坝顶长400 m，宽8.8 m，高程为325.0 m，最大坝高90 m，上游坝坡为1∶1.4，下游坝坡为1∶1.35。溢洪道位于大坝左岸，包括引渠段、闸室段和泄槽段(设有三级消力池)，总长800 m，宽140 m，高程从EL.325 m降至EL.244 m。开挖量达260万m3，表明其开挖任务艰巨、时间紧迫。溢洪道设计泄洪量为8000 m3/s，采用无混凝土衬砌的边坡结构，承受巨大水压力，其开挖质量至关重要，是南公1水电站建设中的主要技术难题。
2　硬质岩消聚能爆破数值模拟分析
收起
2.1　复合消聚能爆破结构和材料

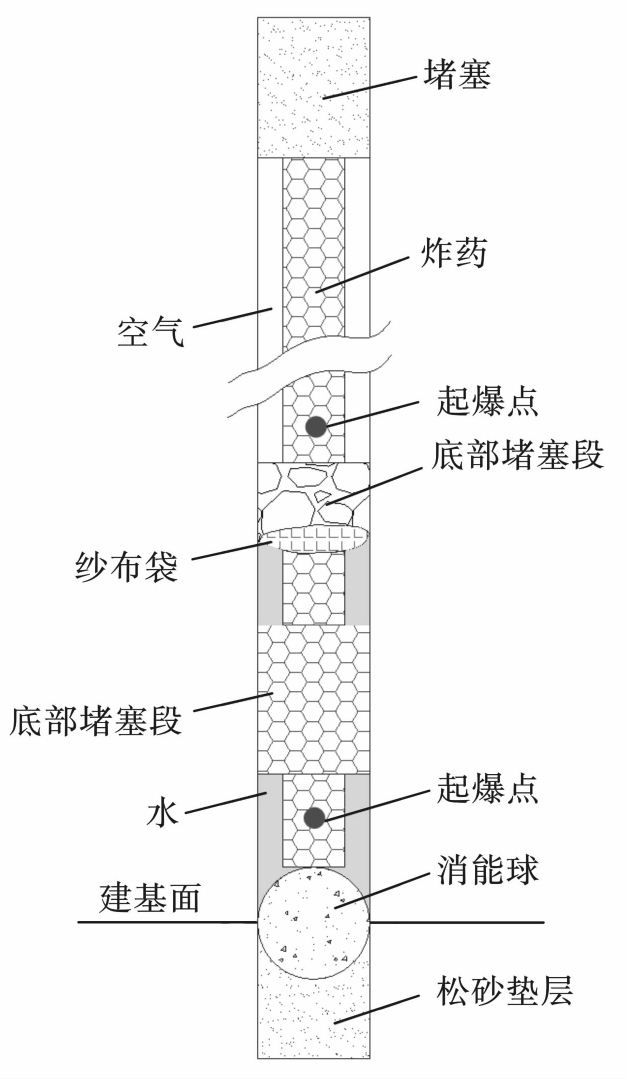

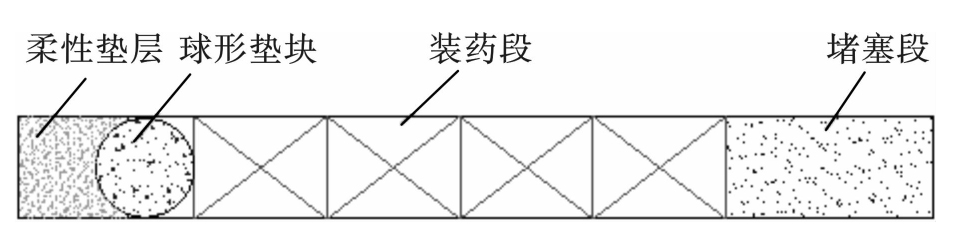

复合消聚能爆破结构如图1所示，在孔底柔性垫层的上方设置一高波阻抗垫块，考虑现场施工的可操作性，设计时考虑将高波阻抗垫块设置为球形。球形垫块结构的优势在于可以变滑动为滚动，减少垫块结构和孔壁的接触面积，遇到孔壁凸起和碎石时可以实现挤压滑落。此外，现场施工时，操作极其方便且不会出现卡孔情况。
复合消聚能爆破结构主要由上部高波阻抗球形消能垫块和底部柔性缓冲层组成。对于炮孔底部需要充填的柔性垫层材料，其主要作用是消能缓冲，进一步削弱爆炸能量，常用的垫层材料主要有松砂，钻孔岩屑，锯末，竹筒和泡沫材料等。考虑施工现场获取的难易程度以及在高温高压爆生气体作用下的稳定性，复合消聚能爆破优选钻孔岩屑或者松砂作为孔底柔性垫层材料。
2.2　硬岩复合消聚能爆破技术
结合新型复合消聚能爆破技术，考虑南公1水电站溢洪道硬质岩的特征，提出了适用于硬岩开挖的复合消聚能爆破技术，技术方案如图2所示。在孔底距离建基面1.5 m处设置一“底部堵塞段”，此底部堵塞段可采用现场的钻孔岩屑，同时底部堵塞段以下增设一段长度约为0.4 m的耦合装药段，并采用水耦合的装药结构、底部堵塞段以上采用常规的装药结构，上下两部分炸药分别用两发雷管进行引爆。消能球通过能量分散、荷载均衡等方式调整爆炸荷载的分布。
底部堵塞段能够有效隔绝底部炸药爆炸所产生的爆生气体，延长爆炸荷载作用时间；堵塞段以下设置的耦合装药段可以增大炮孔壁压力荷载，有助于充分破碎底部岩体；采用水耦合的装药结构，与空气耦合相比，水的可压缩性较小，传递爆炸能量的能力更强，使得孔壁爆炸荷载的峰值更大、衰减更慢，也可以帮助破碎孔底岩体，提高爆炸能量利用率。总体而言，与空气耦合装药相比，水耦合装药平衡状态时炮孔内压力要比爆轰气体充满炮孔时的气体压力大，引起的应力也更强，更利于炮孔底部岩体的破碎。
2.3　不同装药结构的爆破数值计算
2.3.1　计算模型及参数

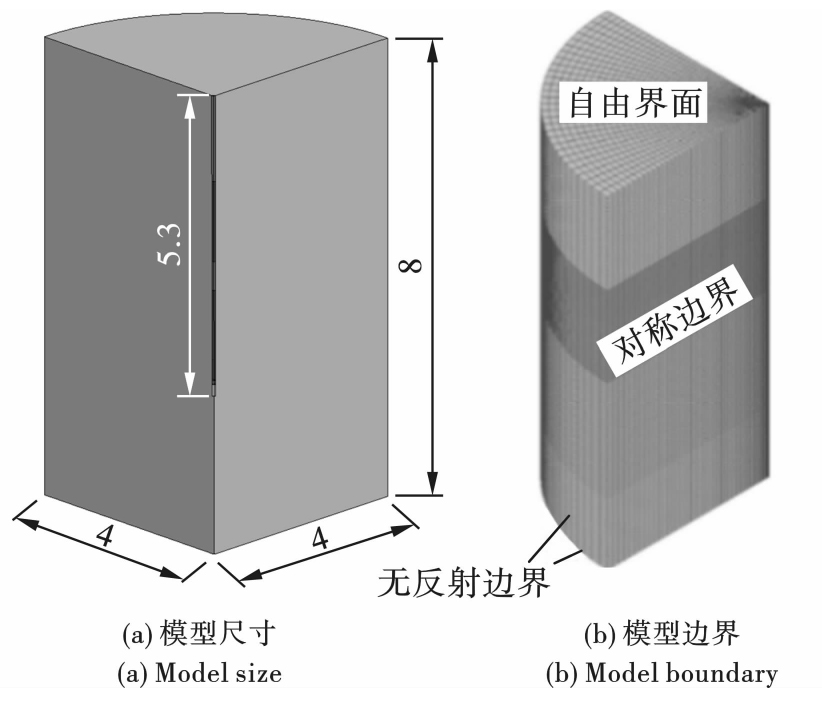

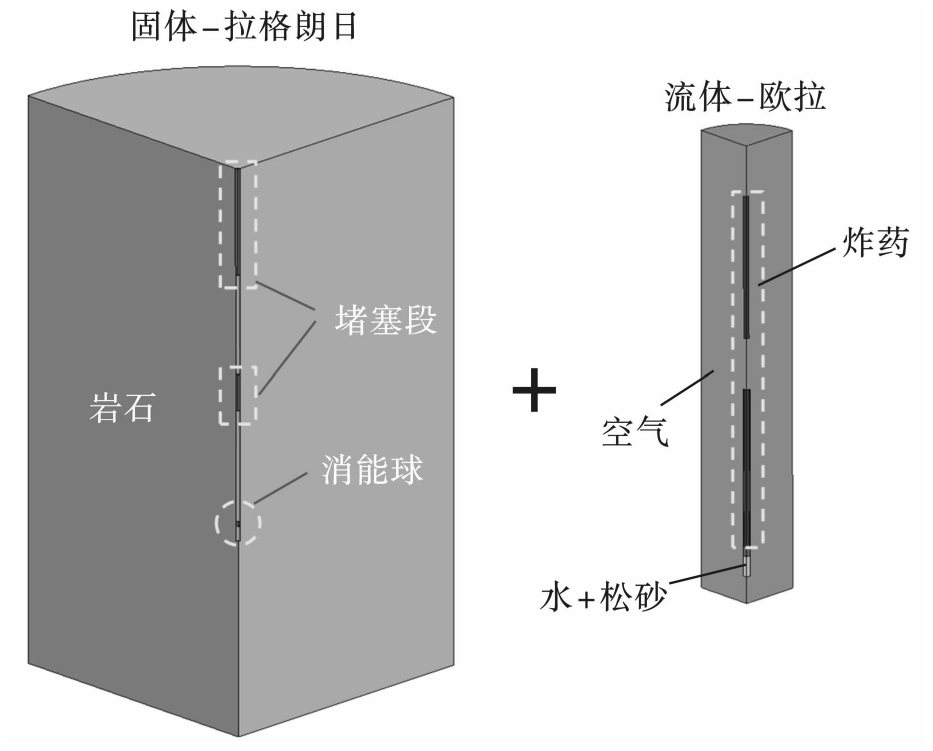

1)采用LS-DYNA数值分析软件进行仿真分析，结合以往开挖参数，数值模拟选取保护层厚度为5 m、钻孔直径为90 mm的保护层垂直孔一次爆除方案为研究对象，建立有限元计算模型，几何模型如图3，网格模型及尺寸如图4。其中模型高度8 m，炮孔深度5.3 m，堵塞长度2.0 m，松砂缓冲层厚度20 cm。由于模型具有对称性，为减少计算时间，建模时采用1/4模型，模型共计339 047单元、360 608节点，模型的侧边界和底部边界采用无反射边界。
2)炸药选用乳化炸药材料模型，采用高能材料模型MAT_HIGH_EXPLOSIVE _BURN来模拟，并利用*EOS_JWL状态方程控制爆轰压力的变化过程，炸药的相关参数见表1。炸药与炮孔壁面间的空气材料采用MAT_NULL来模拟，结合多线性状态方程*EOS_LINEAR_POLYNOMIAL描述空气压力与密度和内能之间的关系，一般情况下，空气可以认为是理想气体，此时，C0＝C1＝C2＝C3＝C6且C4＝C5＝0.401。计算中空气的初始密度取值为1.29 kg/m3，初始单位体积比内能为0.25 J/cm3。
消能球选用铸铁材料，岩石材料选用该水电站出露的硬质岩。其中堵塞和消能球采用*MAT_PLASTIC_KINEMATIC模型，岩石采用HJC模型，能够反映脆性材料在爆炸冲击荷载作用下发生断裂和损伤破坏过程。结合现场试验建议的岩体力学参数，给出有限元计算中具体的材料参数，如表2和表3。
柔性垫层材料选取粗砂，粗砂属散粒体材料，其特点是可以受压，却不能受拉，同时，其在动荷载条件下可能会出现液化现象。因此，计算中选用*MAT_SOIL_AND_FOAM材料模型，这是一种能在一定程度上描述粗砂材料特性的材料模型。
2.3.2　计算工况

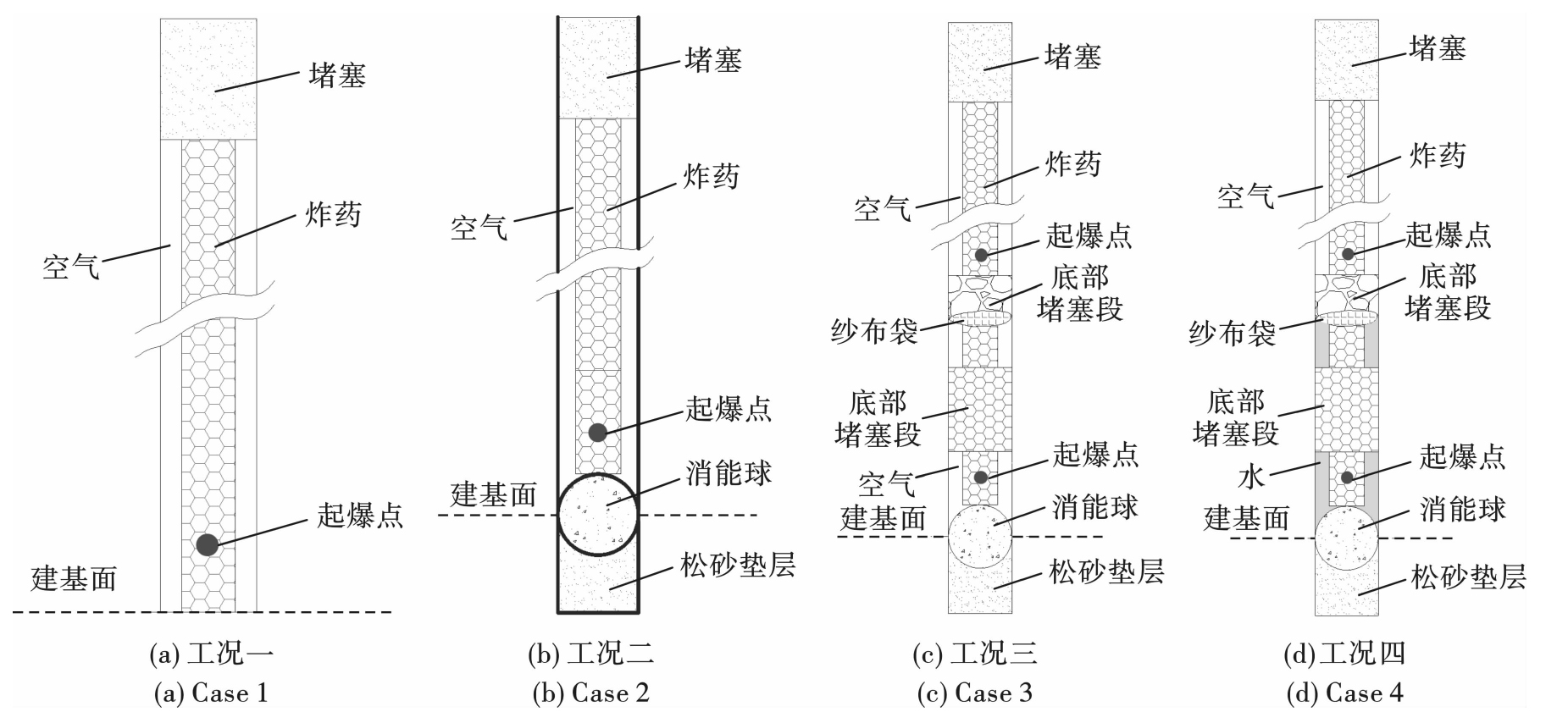

数值计算中，为对比分析硬岩复合消聚能爆破技术的开挖控制效果，分别考虑在炮孔底部设置不同的装药结构，一共设置了四种工况，具体的工况设置如表4。其中，四种工况的装药结构如图5，装药参数统计如表5。
2.3.3　模拟结果分析
1)孔底损伤区的范围
由于不同的损伤模型损伤变量的定义不同，因而岩体损伤的判定有着不同的方式。在HJC本构模型中，是通过等效塑性应变和塑性体积应变的累积来描述损伤的，其损伤方程如下
式中，D值的大小范围在0~1之间，当损伤值D达到1时，单元失去承载力并完全破坏。通常来说，损伤D值达到0.8后，岩石已完全失去承载力。当D值达到0.1时，岩体已经产生轻微的裂隙损伤。

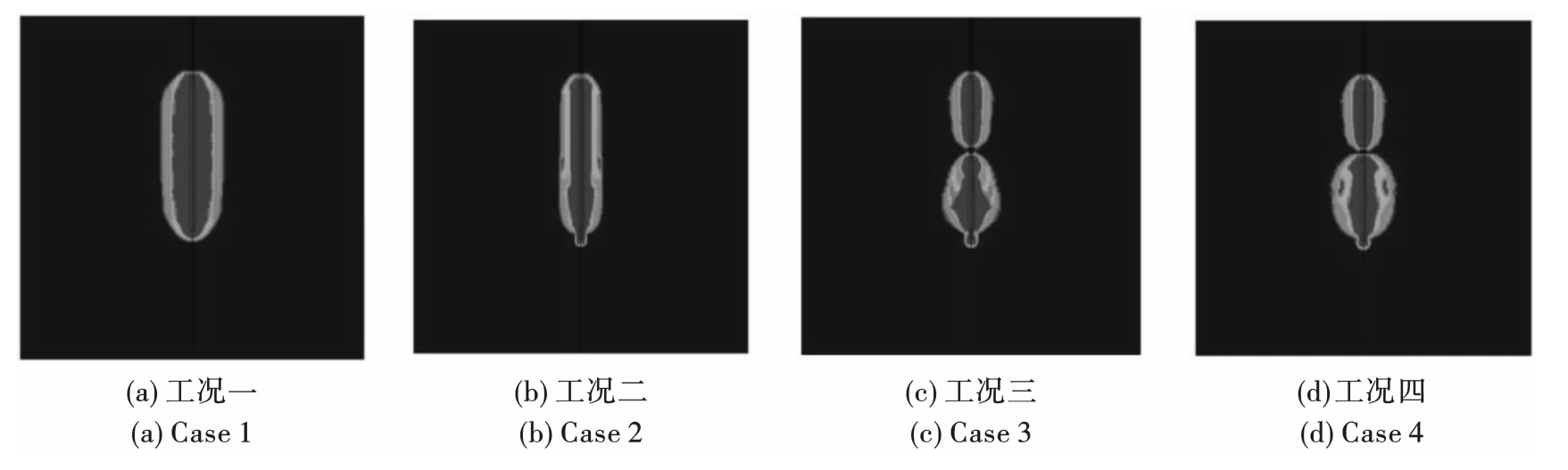

基于以上数值计算方法及模型参数，图6给出了不同工况下单孔爆破的岩体损伤分布特征。由图6可知，爆破完成后炮孔装药段近区均形成柱状损伤区，对比四种工况下的损伤区分布云图可知，4种工况的总体损伤分布规律接近，但最大水平损伤半径存在差异。工况一和工况二的损伤半径接近，均为0.70 m左右，出现在炮孔装药段的中上部位置；而工况三和工况四由于在孔底增设了一段堵塞和耦合装药段，二者的侧向损伤半径较工况一及工况二有一定程度的增大，损伤范围大小分别为0.80 m和0.87 m，均位于炮孔中下部的耦合装药段处。同时炮孔底部爆破损伤的分布由于复合消能结构垫层的存在呈现了很大的区别，在孔底存在垫层工况(工况二、三、四)下，损伤区呈明显的“扁平状”，而常规的孔底损伤区呈现正常的“漏斗状”。

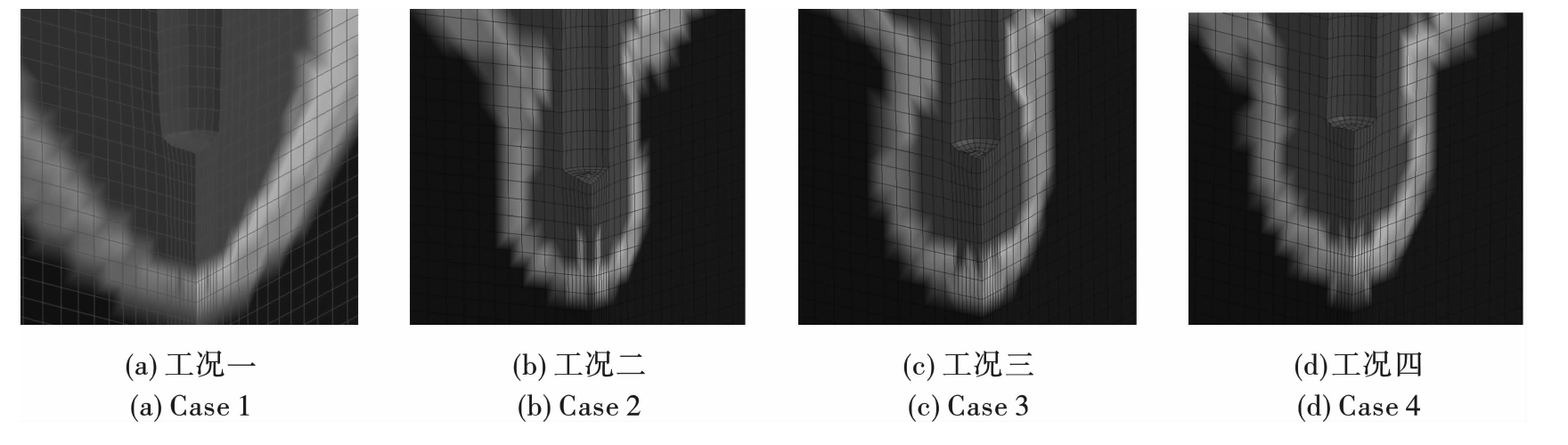

为进一步凸显孔底损伤范围的区别，图7给出了四种工况下放大的炮孔底部损伤分布云图，各工况下爆破损伤范围统计如下表6。从四种工况下的孔底损伤深度可以看出：孔底设置复合消能结构的工况相比于常规装药结构孔底损伤深度降低28%，说明复合消能结构可以有效控制底部损伤深度、保护基础岩体；同时，孔底增设堵塞段和耦合装药段后(工况三、工况四)，孔底的侧向损伤范围相比于不设置的工况(工况一、工况二)增大了20%。这种情况说明通过在孔底增设堵塞段和耦合装药段，可以明显提高孔底侧向损伤范围，有助于提高岩石基础面的开挖平整度，获得良好的开挖成型效果。总体上看，工况四即在孔底增设堵塞段和水耦合装药段具有最好的表现效果。
2)炮孔壁单元压力
为进一步研究和验证所提出的硬岩复合消聚能爆破技术对孔底岩体的开挖成型控制效果，从单元压力角度对不同工况进行了对比分析。数值模拟中，对孔底1.6 m范围内的炮孔壁单元的径向应力进行了统计，如图8和图9。

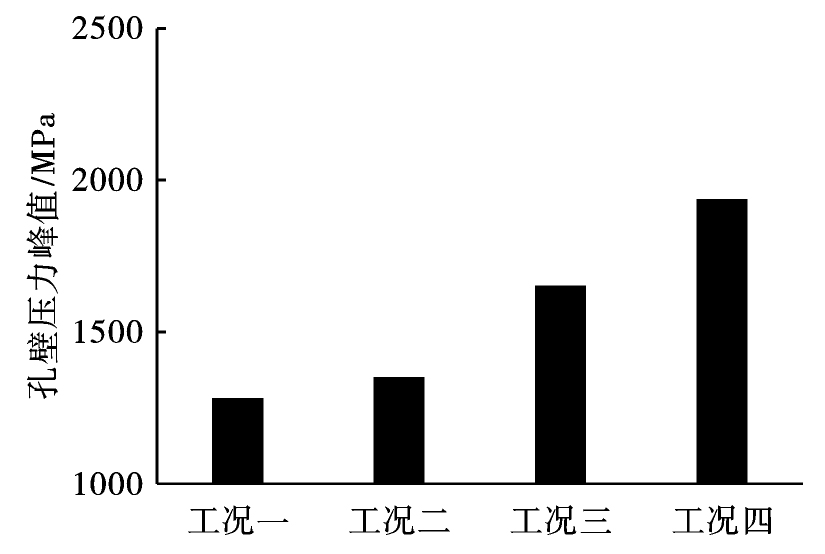

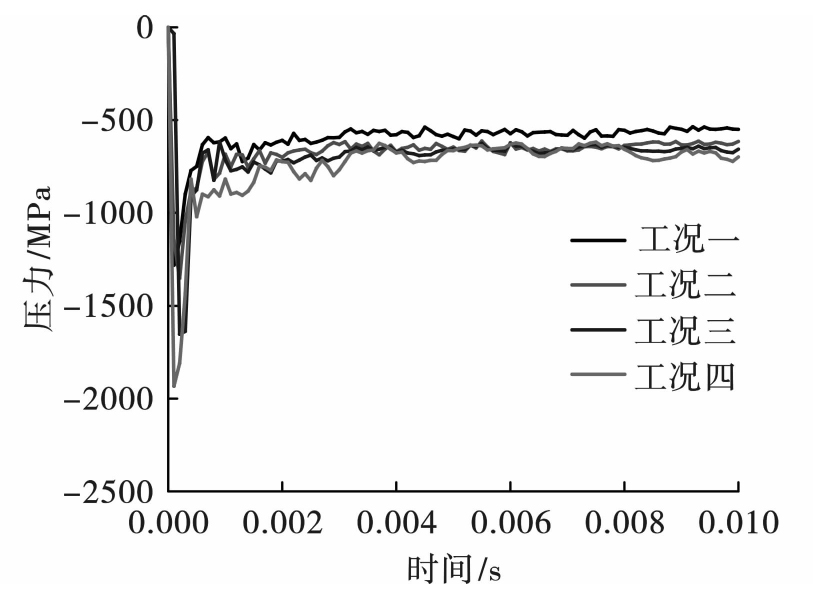

观察各工况的孔壁单元平均压力时程可知，在2 ms后单元的压力基本保持不变。因此，可以时间大于2 ms的单元应力平均值作为基准点，以此计算得到各工况下爆炸荷载的作用时间，对孔壁单元的峰值压力及荷载作用时间进行统计。由表7可知，与常规装药结构(工况一、工况二)相比，孔底增设堵塞段和耦合装药段时(工况三、工况四)，炮孔壁荷载峰值增大了30%，爆炸荷载的作用时间延长了35%。由此可见，通过在孔底布置堵塞段和耦合装药段，可以有效增大孔壁荷载峰值、延长爆炸荷载的作用时间，从而实现增加炮孔底部的破碎，降低炮孔间的起伏差，获得良好的开挖成型效果。同时在炮孔底部设置水耦合装药时，又可以进一步增大孔壁荷载峰值，同时延长荷载作用时间，这在实际开挖中更有助于底部硬岩的破碎，提高施工效率。
3　工程应用
收起
3.1　施工流程
复合消聚能爆破技术现场全程实行精细化控制，整个实施流程包括爆前工作、起爆和爆后工作三个部分。爆前工作的重点是：确保所有铁球顶部与开挖设计面齐平、保证孔底炸药段与水耦合质量、保证底部堵塞段密实，主要包括垂直炮孔钻设、底部消能结构安装、底部炸药放置与水耦合设置、纱布编制袋安装、底部堵塞段设置以及装药堵塞联网。爆后工作的重点是检查开挖底板的平整度及开挖质量，主要包括底板宏观监测、平整度检测以及损伤范围检测。

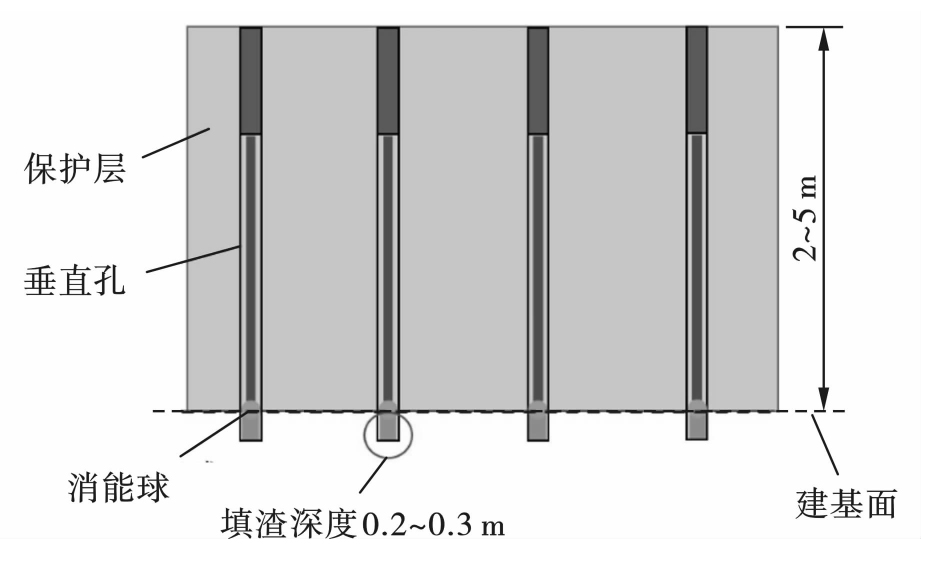

3.2　溢洪道保护层的爆破开挖方案
南公1水电站溢洪道保护层的开挖区域主要集中在引渠段和泄槽段，其中引渠段的开挖面积达15 000 m2，泄槽段的开挖面积达20 000 m2。保护层开挖具有开挖面积大、开挖工期紧的特点，采用消能-聚能联合控制爆破技术对溢洪道保护层一次开挖成型，可以大幅提高施工效率，保护层具体的爆破开挖方案如图10、图11所示。
3.3　基础开挖成型效果
通过在溢洪道引渠段开展一系列现场试验，结合数值仿真和试验效果，初步确定了适用于南公1水电站溢洪道保护层开挖，采用水耦合的消-聚能联合控制爆破参数，如表8所示。依据此参数，在一级消力池底板开挖中推广引用水耦合消聚能联合控制爆破技术。受现场降雨及施工道路布置的影响，在完成一级消力池所有爆破试验后，统一对表面的浮渣进行了清理，得到底板开挖成型宏观效果如图11所示。由图11可知，一级消力池底板整体上较为平整，起伏差较小，局部区域出现了残留凸起岩埂和浅坑，超欠挖较大的局域主要是由于节理面的存在引起的。总体而言，底板了基本达到了预期要求，开挖效果良好，排除了不良地质因素且超挖区域可控，欠挖部分后期可采用液压破碎锤凿除。

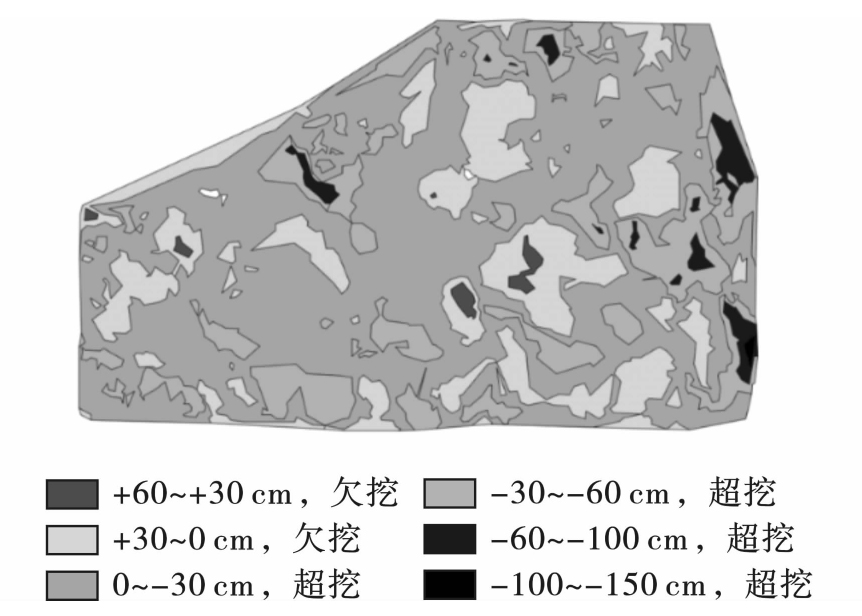

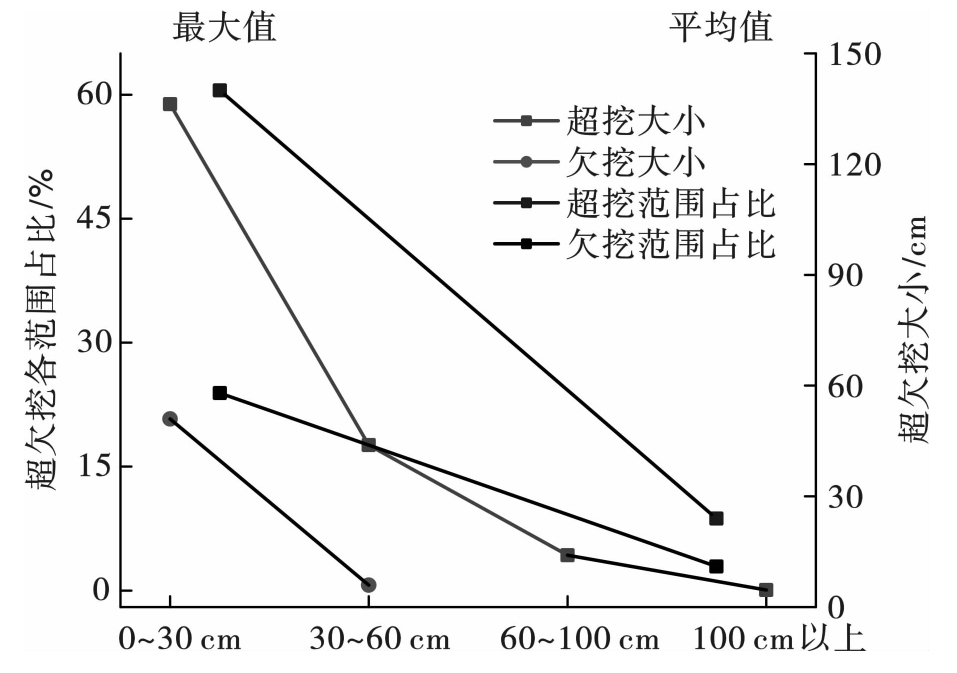

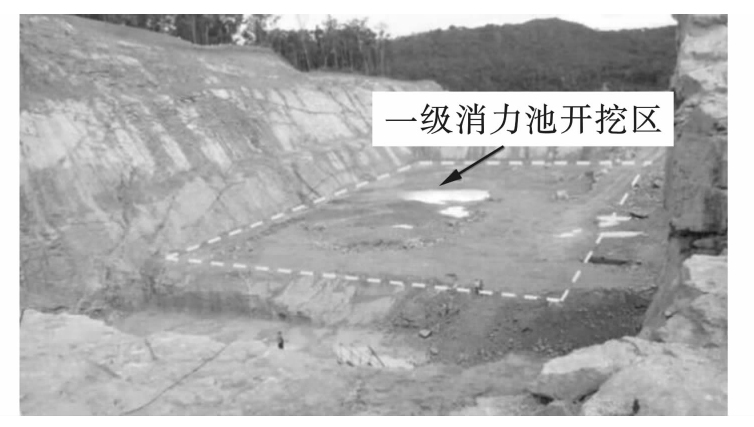

一级消力池现场清渣完毕后，采用RTK测量了底板的高程，图12为根据RTK测量的坐标所得到的底板超欠挖情况分布图。由图12、图13可知，一级消力池底板整体呈现为超挖状态，超挖深度主要分布在0~30 cm之间，超挖面积占比较大(为58.86%)，受节理面的影响，最大超挖深度为140 cm，平均超挖深度为24 cm。欠挖深度主要分布在＋30 cm~0之间，欠挖面积占比较小(为20.77%)，最大值为58 cm、平均欠挖深度约为11.0 cm。总体而言，一级消力池底板超欠挖深度主要分布在＋30~-30 cm以内，约占80%，底板高程基本控制在设计高程EL.282.0 m附近。
4　结论
收起
针对南公1溢洪道硬岩基础面开挖成型难题，研发了新型硬岩复合消聚能爆破技术，并通过理论分析和数值模拟验证了其可行性，并成功应用到溢洪道保护层爆破开挖中，为实现硬岩基础面一次开挖成型提供了技术支撑，得到的结论如下：
(1)基于数值模拟计算，得出孔底设置复合效能结构的工况相较于常规装药结构，损伤深度降低了28%，表明复合结构可以有效地保护底部损伤深度，保护岩体，减少爆破根底产生。此外，设置堵塞段和水耦合装药的工况，相较于设置堵塞段和空气装药的工况，孔底的侧向损伤范围增大了8.75%，说明了增设堵塞段和水耦合装药的形式，更有助于岩体基础面的开挖。
(2)通过对孔底1.6 m范围内的炮孔壁单元的进行应力进行统计，可知2 ms后的单元压力基本保持不变，因此可选用2 ms后的单元应力平均值作为基准点，计算不同工况下的爆破荷载作用时间。孔底增设堵塞段和耦合装药的工况相较于常规工况，爆破壁荷载的峰值增大了30%，作用时间延长了35%。此外，利用水耦合装药的消聚能方式，可以最有效地增大孔壁荷载峰值，延长爆破荷载的作用时间，从而提高效率。
(3)根据南公1溢洪道保护层的实际情况，设计了开挖方案，在一级消力池底板开挖中推广了硬质岩消能-聚能联合控制爆破技术，超欠挖以及地板高程均控制在要求范围内。在开挖二级和三级消力池保护层岩体时，消力池底板平整度较好，取得了良好地效果，说明了提出的较完整硬质岩消聚能爆破具有显著成效。
